Wiper Switch: Locations

Instrument Panel/Center Console Component Views

Left Side of Instrument Panel Components




1 - Brake Pedal Position (BPP) Sensor
2 - Accelerator Pedal Position (APP) Sensor
3 - Sunload Sensor
4 - Windshield Wiper/Washer Switch
5 - Turn Signal/Multifunction Switch
6 - Clutch Pedal Position (CPP) Sensor (MM6/MZ6/MN6)




Front of Vehicle/Engine Compartment Component Views

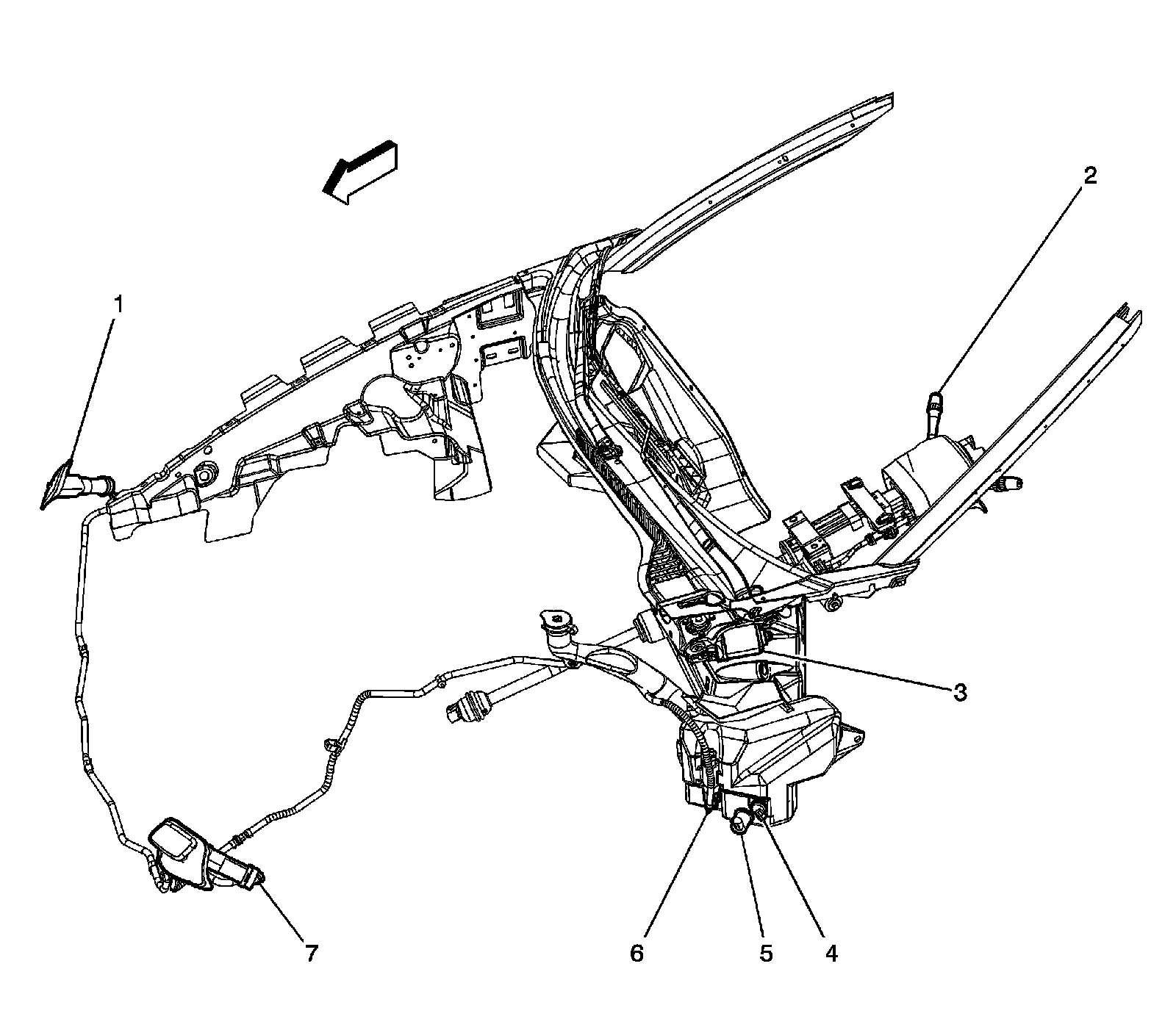

Wiper/Washer Components




1 - Heated Washer Nozzle - Left (CE4)
2 - Windshield Wiper/Washer Switch
3 - Windshield Wiper Motor
4 - Windshield Washer Fluid Level Switch
5 - Windshield Washer Fluid Pump
6 - Headlamp Washer Fluid Pump (CE4)
7 - Heated Washer Nozzle - Right (CE4)
