Seat Temperature Switch




Component Connector End Views

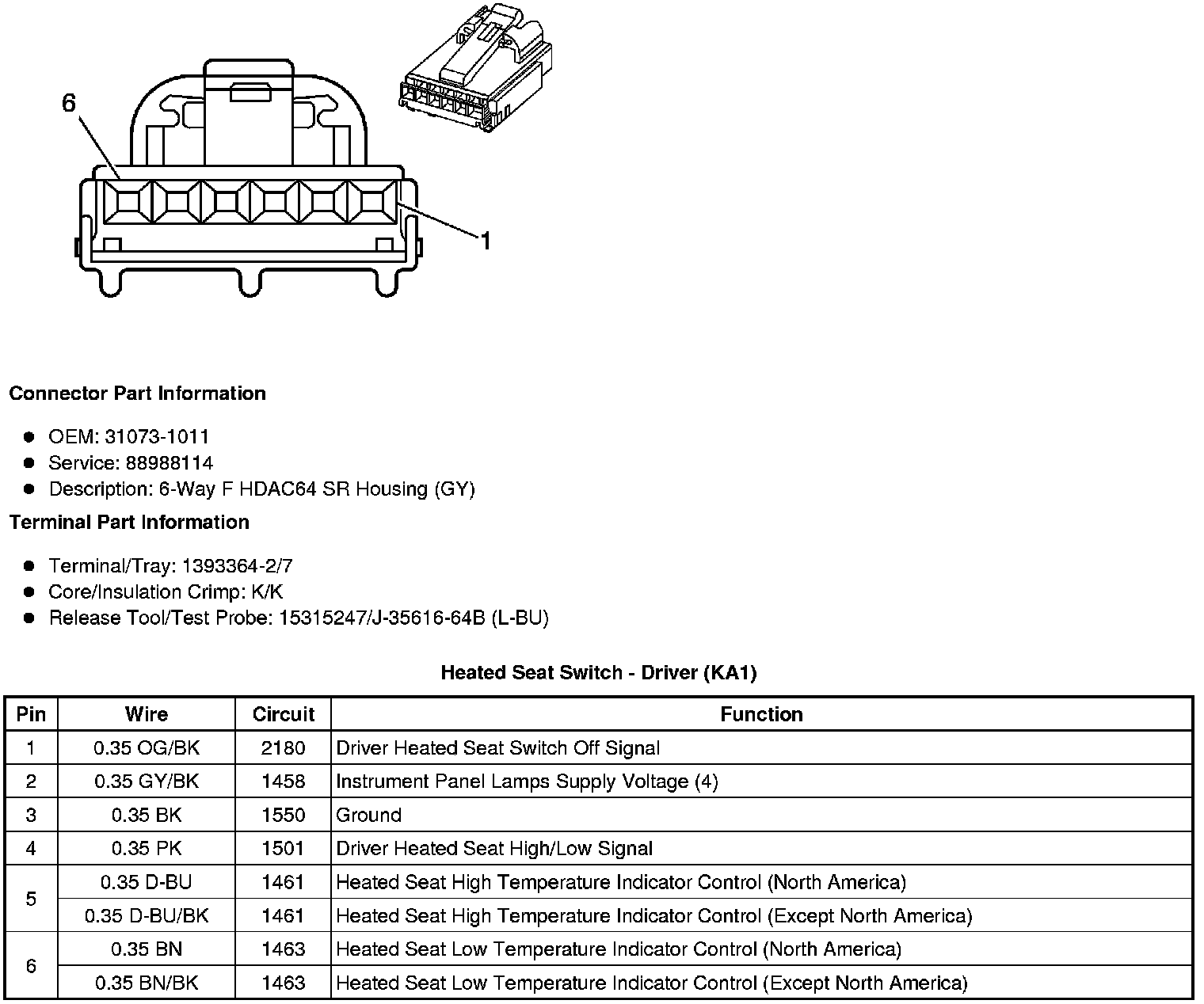

Heated Seat Switch - Driver (KA1)

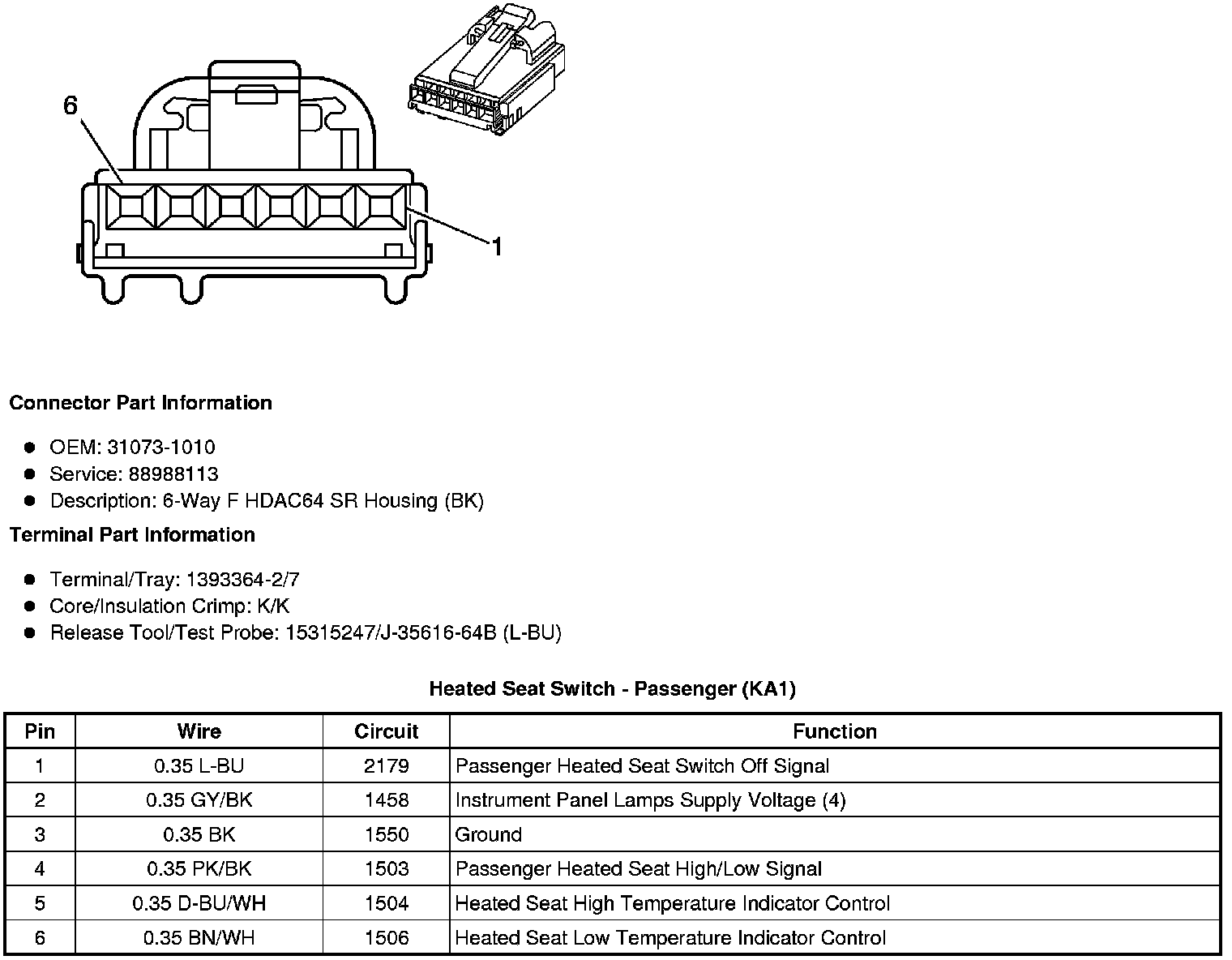

Heated Seat Switch - Passenger (KA1)
