Steering Wheel Secondary/Configurable Control System Wiring Schematics

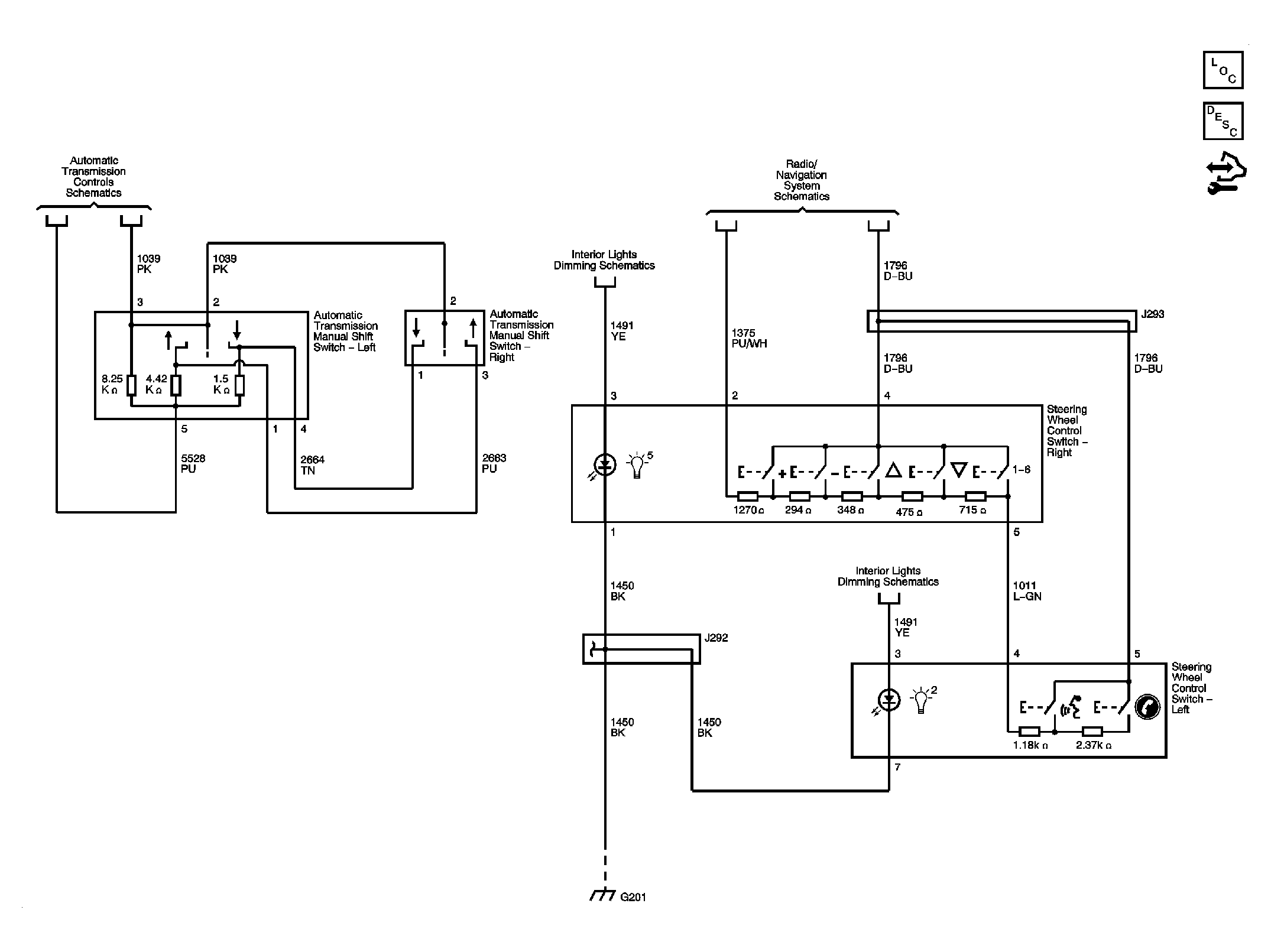

Fig 1: Steering Wheel Secondary/Configurable Customer Controls Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
