Power Distribution Schematic 6




Power Distribution Schematics

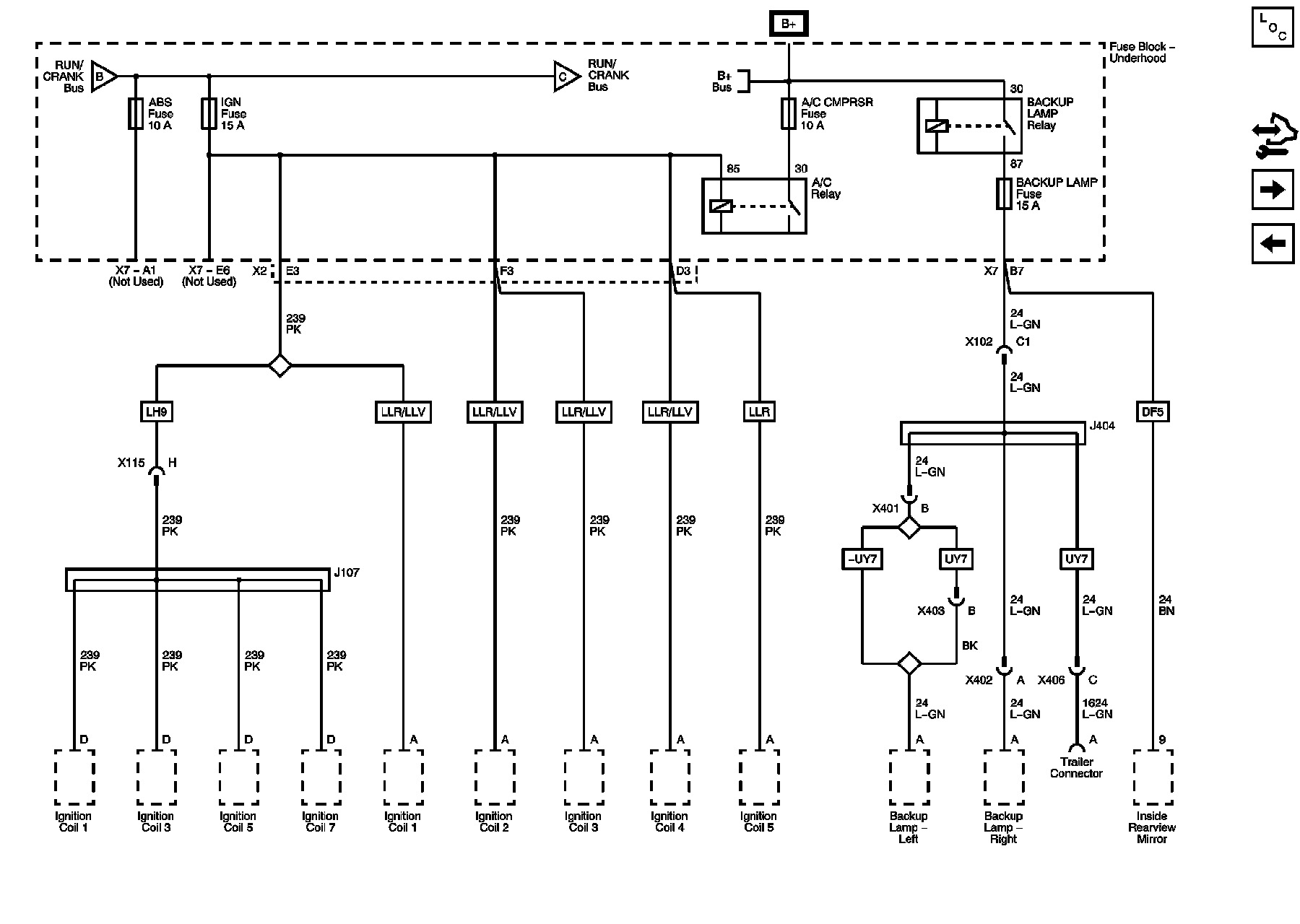

RUN/CRANK Bus (2 of 3), ABS, A/C CMPRSR, BACKUP LAMP, and IGN Fuses
