Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

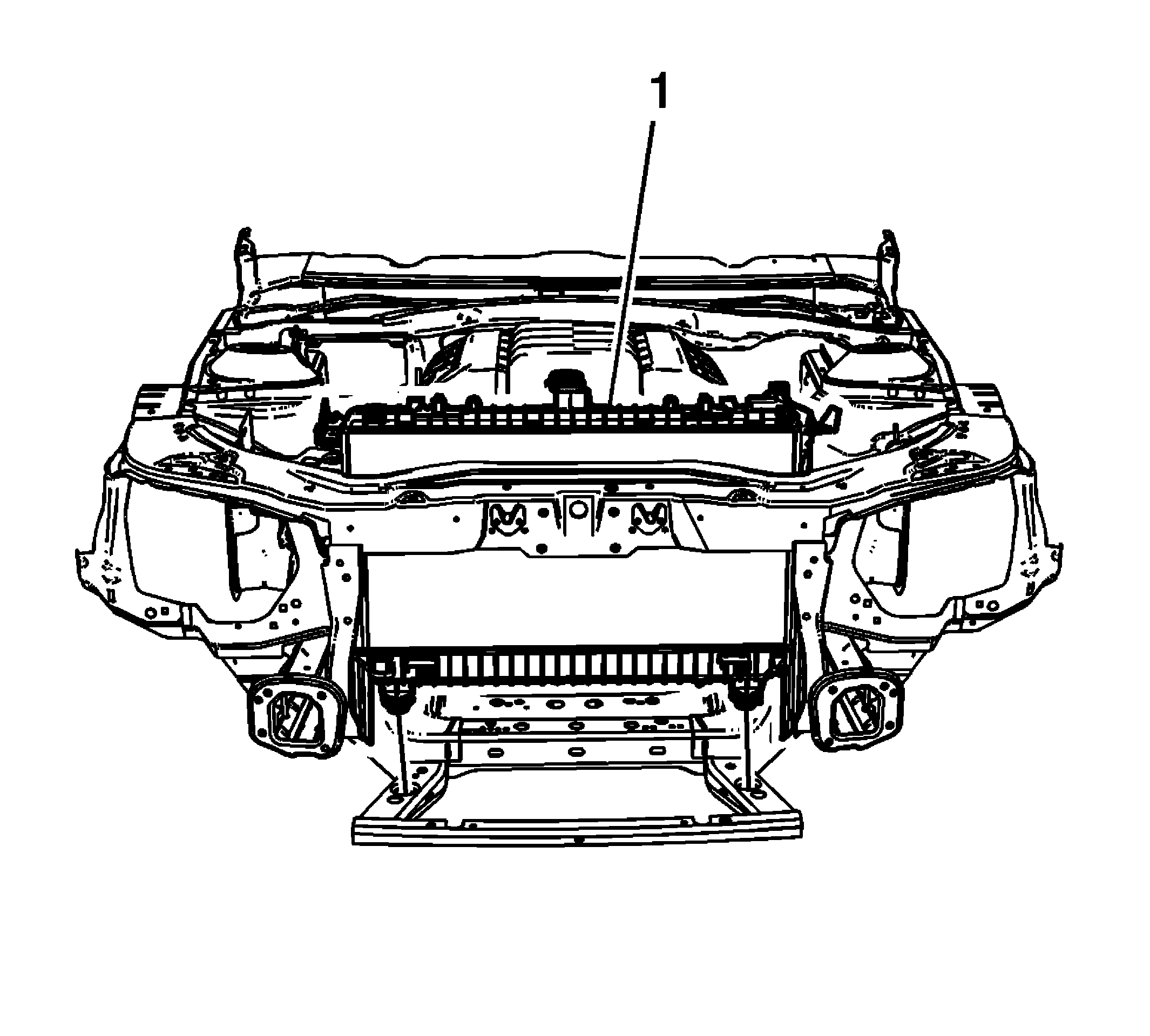

    Fig 1: Radiator
    GM2209229Courtesy of GENERAL MOTORS CORP.
  1. Install radiator (1) to vehicle.

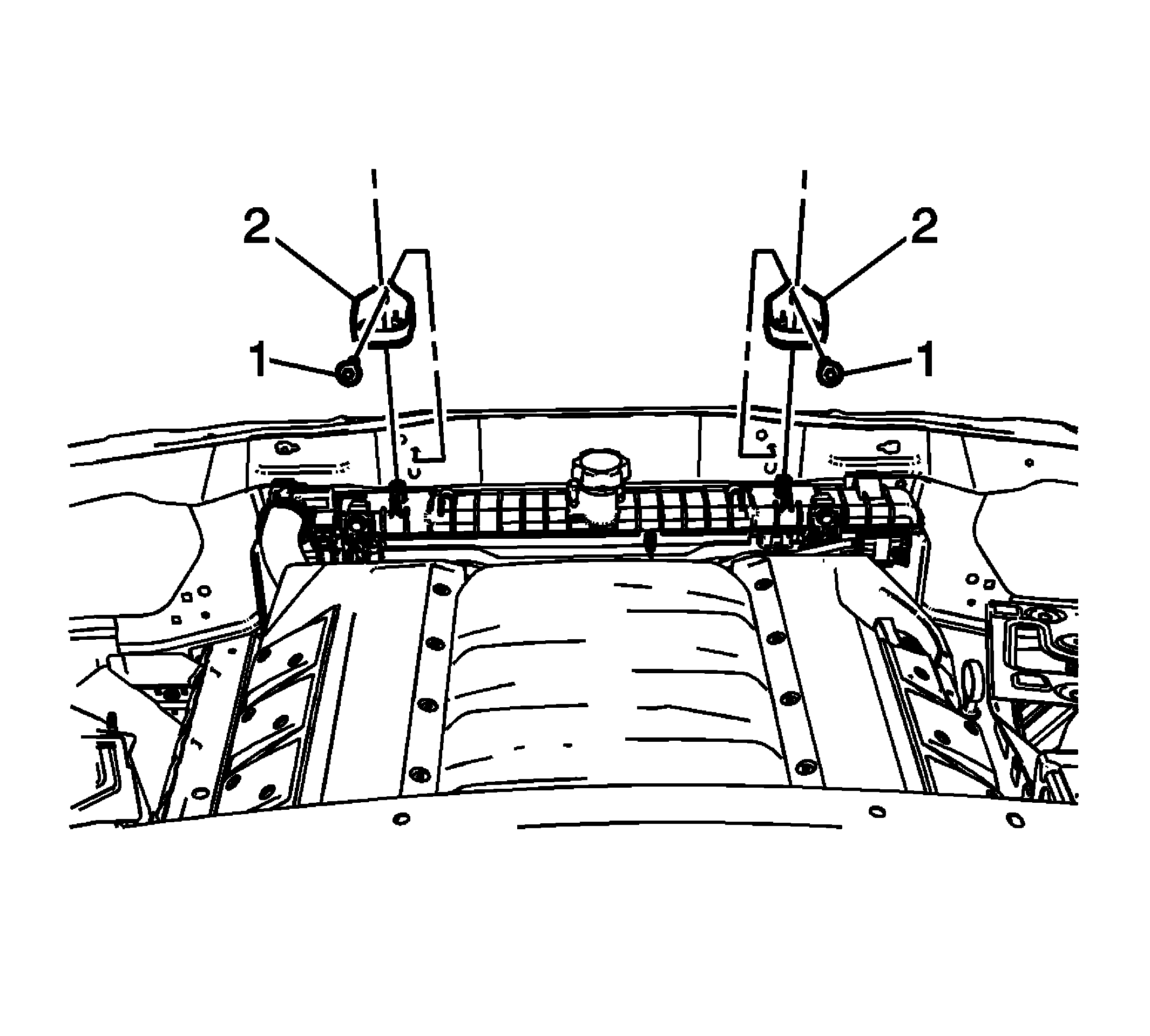

    2. Fig 2: Radiator Upper Support & Bolt
    GM2209228Courtesy of GENERAL MOTORS CORP.
  2. Install radiator upper support (2).
  3. Install radiator upper support bolt (1) and tighten to 9N.m (80 lb in).
  4. Install transmission oil cooler lines.
  5. Install the air conditioning condenser. Refer to Air Conditioning Condenser Replacement (LS3, L99) .
  6. Install the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement (LS3, L99) .
  7. Install the radiator overflow hose. Refer to Radiator Overflow Hose Replacement (LS3, L99) .
  8. Install the engine coolant air bleed hose. Refer to Engine Coolant Air Bleed Hose Replacement (LS3, L99) .
  9. Install the radiator outlet hose. Refer to Radiator Outlet Hose Replacement (LS3, L99) .
  10. Install the radiator inlet hose. Refer to Radiator Inlet Hose Replacement (L99)  or Radiator Inlet Hose Replacement (LS3) .
  11. Fill the cooling system. Refer to Cooling System Draining and Filling (LS3, L99 Static Fill)  or Cooling System Draining and Filling (GE 47716) .
