Windshield Washer Nozzle Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

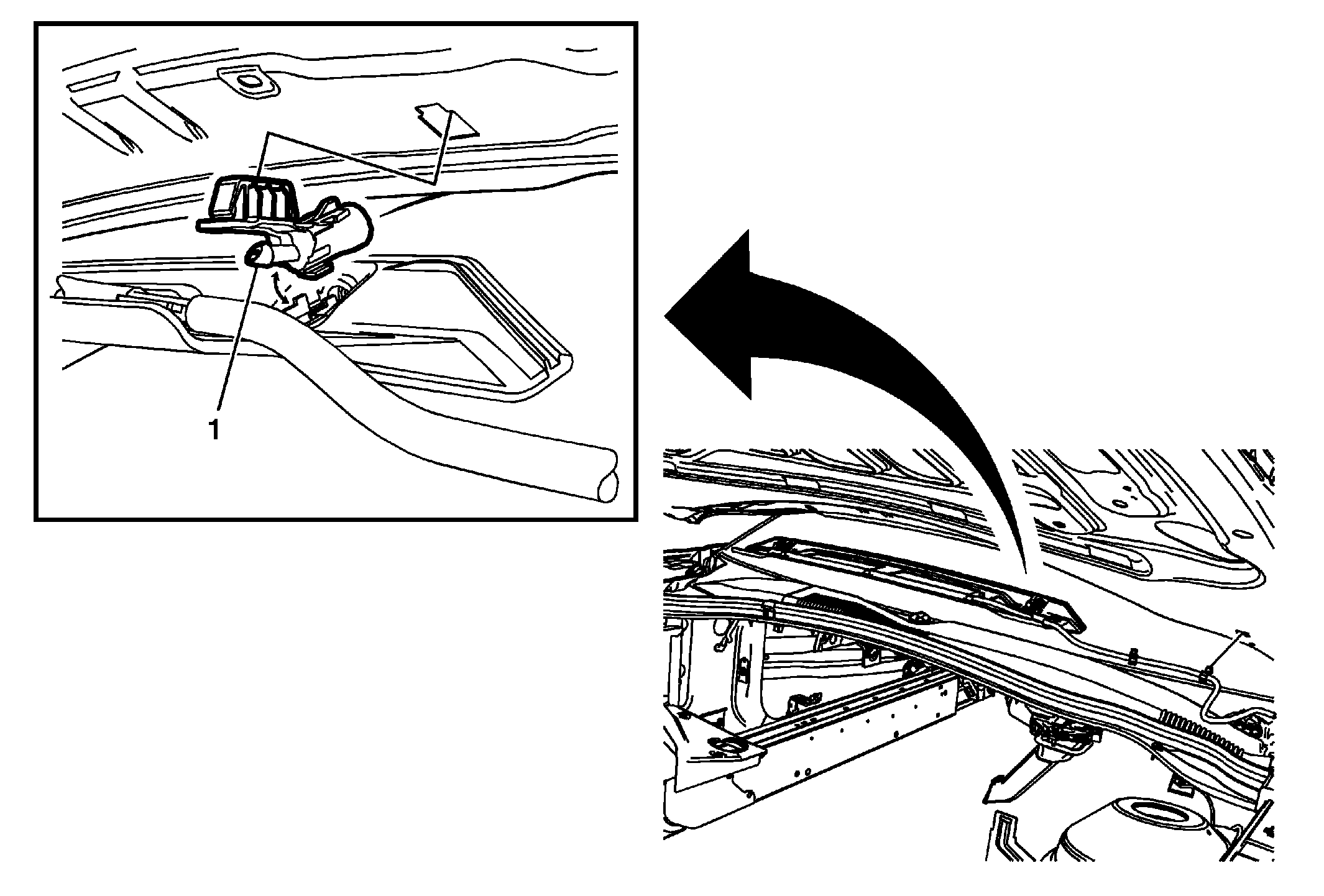

Fig 1: Windshield Washer Nozzle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open and support the hood. Release the hood inner panel assembly from the inner hood panel. Use a small flat-bladed tool in order to release the washer nozzle locking tab from the inner hood panel. Release the washer nozzle from the hood inner panel assembly.
1	Windshield Washer Hose Nozzle Procedure Disengage the windshield washer hose from the windshield washer nozzle. Adjust the windshield washer nozzles. Refer to Windshield Washer Nozzle Adjustment .

Callout

Component Name

Preliminary Procedures

Open and support the hood.
Release the hood inner panel assembly from the inner hood panel.
Use a small flat-bladed tool in order to release the washer nozzle locking tab from the inner hood panel.
Release the washer nozzle from the hood inner panel assembly.

Windshield Washer Hose Nozzle

Procedure

Disengage the windshield washer hose from the windshield washer nozzle.
Adjust the windshield washer nozzles. Refer to Windshield Washer Nozzle Adjustment .
