Accessory Wakeup Serial Data Wiring Schematics

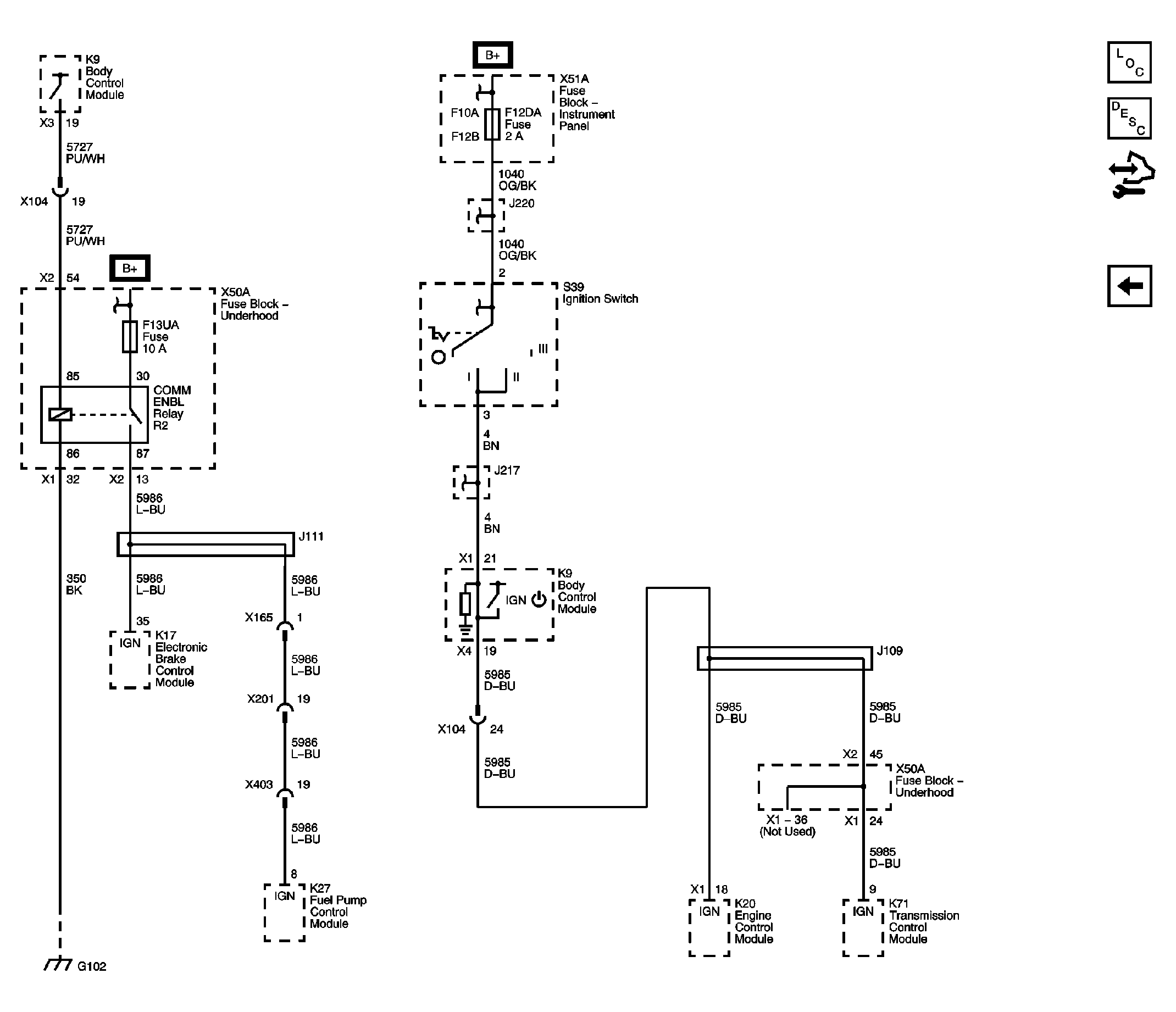

Fig 1: Accessory Wakeup Serial Data Wiring Schematic
GM2531626Courtesy of GENERAL MOTORS CORP.
