Installation Procedure

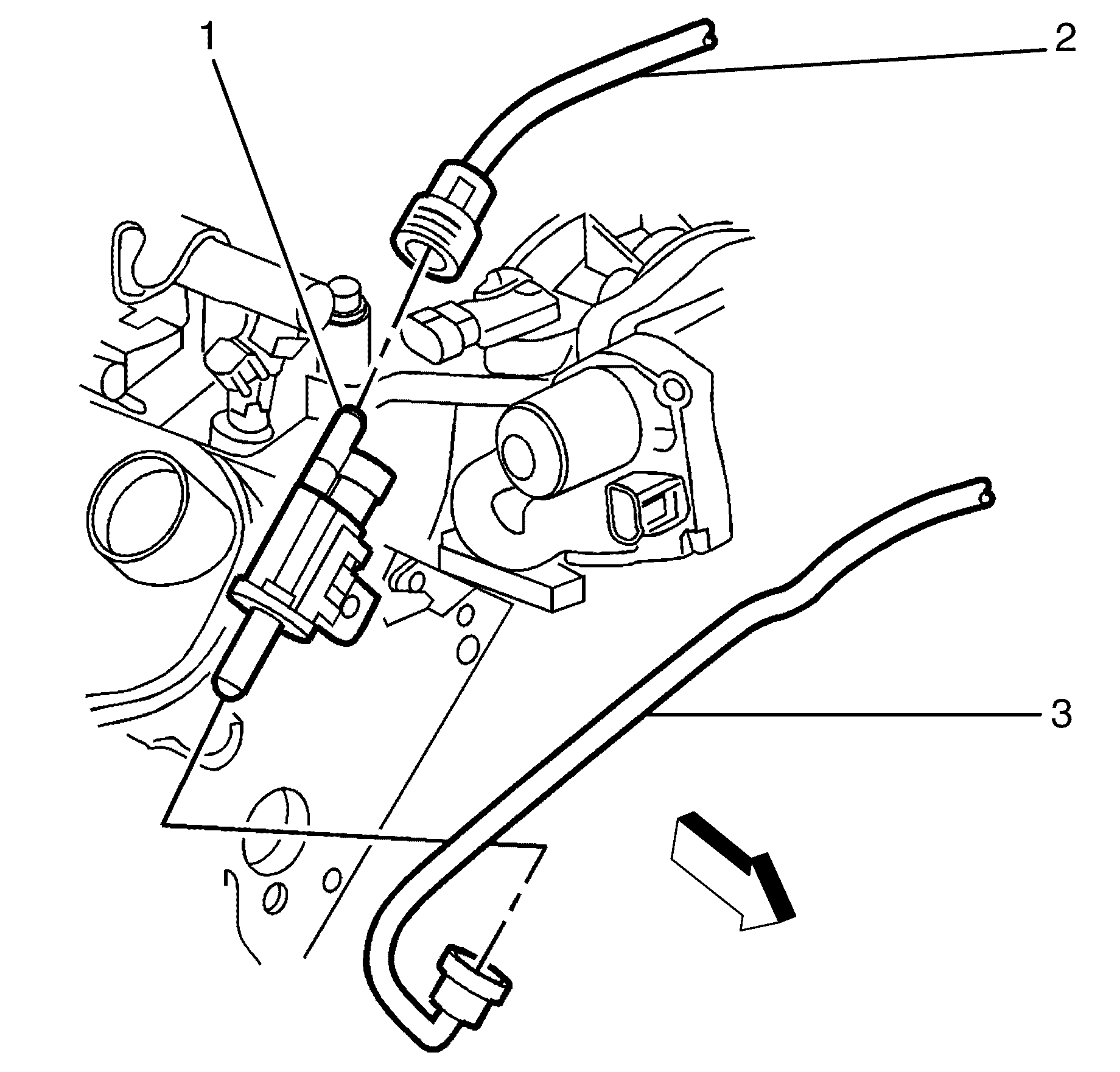

Fig 1: Identifying EVAP Engine Tube & Valve Solenoid

Courtesy of GENERAL MOTORS CORP.

Install the EVAP engine tube (2) to the EVAP valve solenoid. Refer to Plastic Collar Quick Connect Fitting Service .

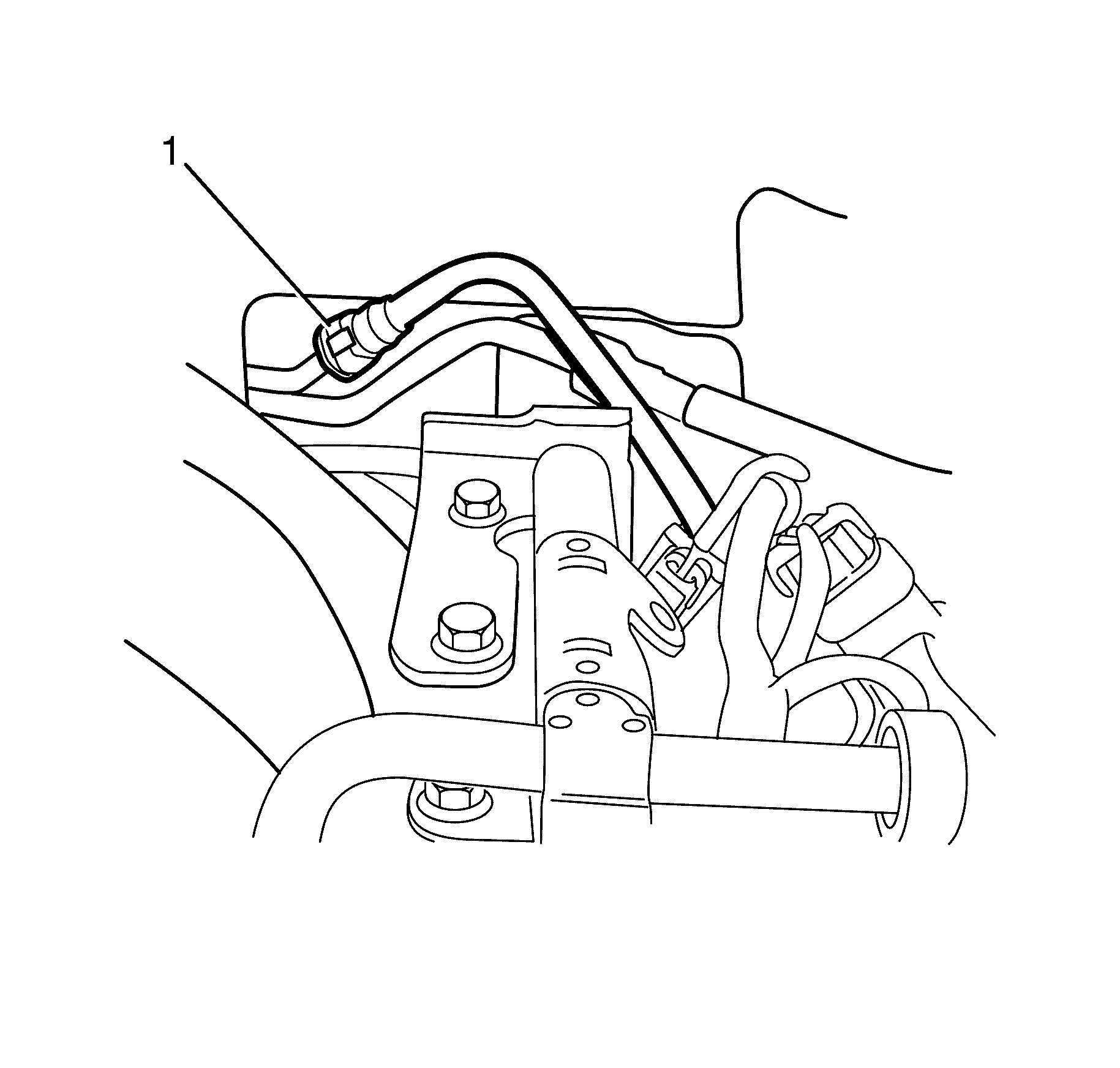

Fig 2: Identifying EVAP Engine Tube & Chassis Pipe

Courtesy of GENERAL MOTORS CORP.

Connect the EVAP engine tube (1) to the EVAP chassis pipe. Refer to Plastic Collar Quick Connect Fitting Service .
Install the oil filler cap.
Connect the negative battery cable.
