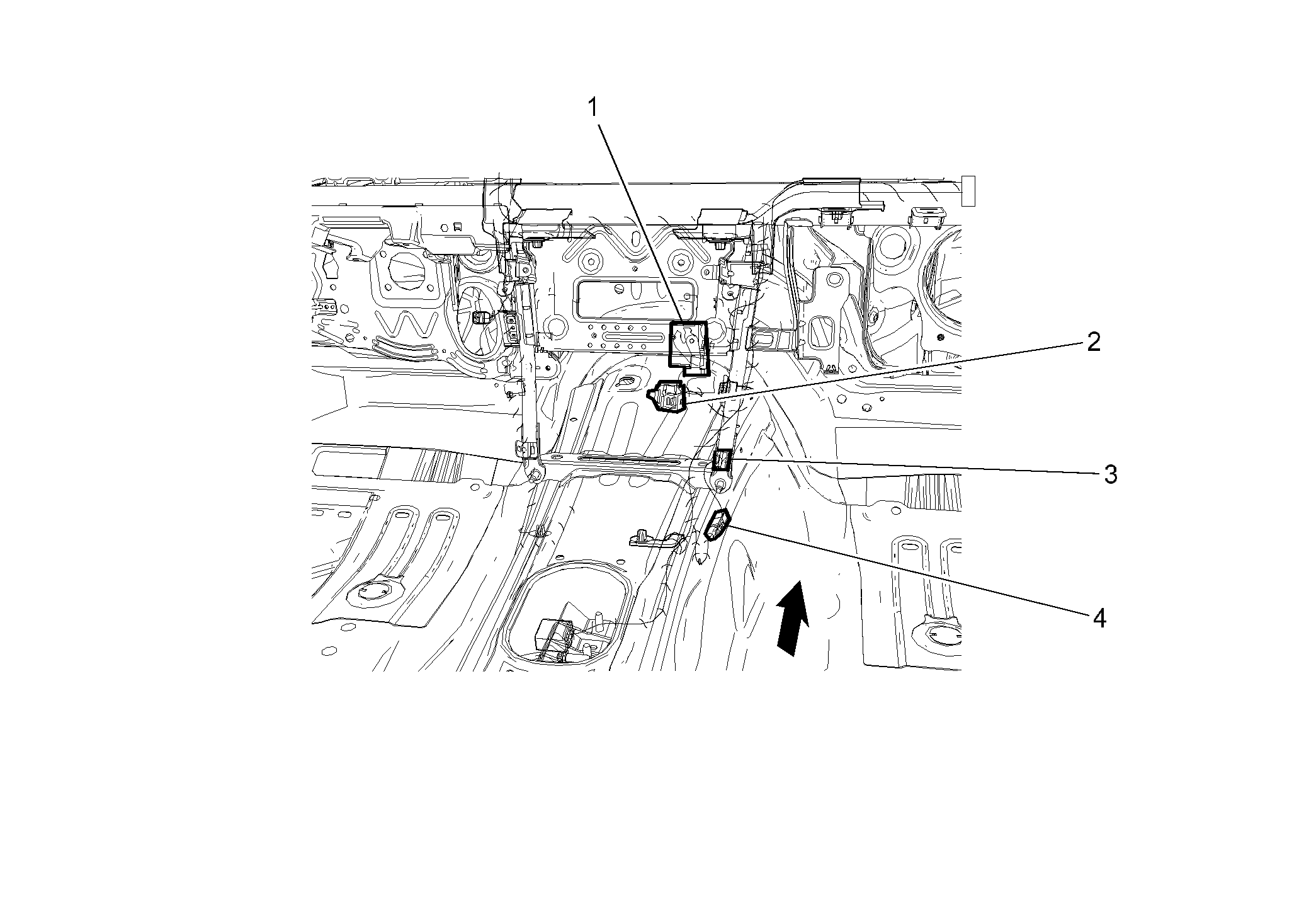

Ground Views: G303
G303
| Component Name |
Callout |
| Radio Connector |
1 |
| Cigar Lighter Connector |
2 |
| G303 |
3 |
| X223 |
4 |
Courtesy of GENERAL MOTORS CORP.
