Left Side of the Engine Compartment Components

Left Side of the Engine Compartment Components

Component Name Callout
B19B Brake Booster Vacuum Sensor 1
M75 Windshield Wiper Motor 2
X60A Junction Block - Underhood 3
B75B Mass Air Flow/Intake Air Temperature Sensor 4
B20 Brake Fluid Level Switch 5

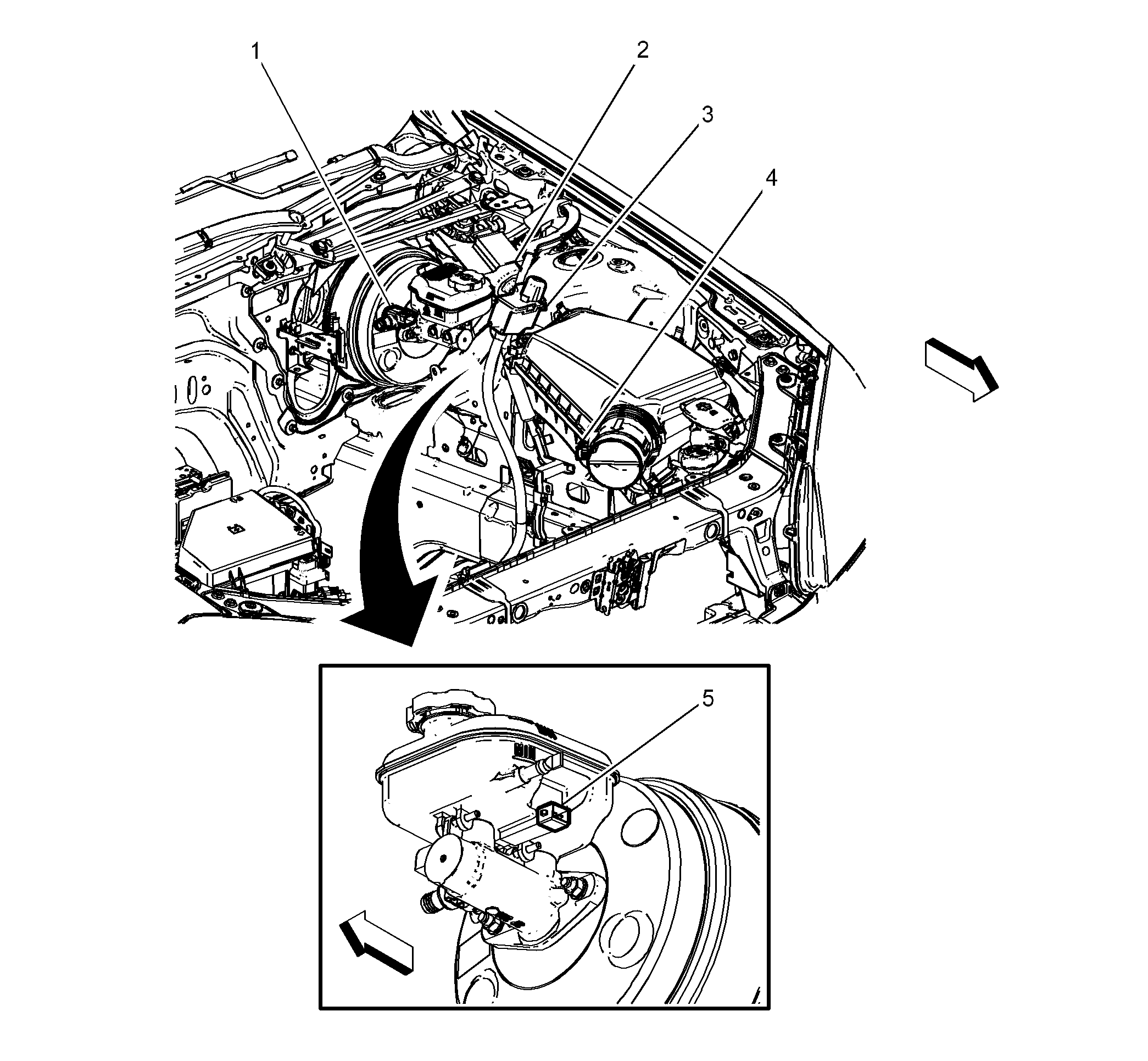

Fig 1: Left Side of the Engine Compartment Components
GM2542875Courtesy of GENERAL MOTORS CORP.
