Front of Vehicle Components

Front of Vehicle Components

Component Name Callout
E4P Park/Turn Signal Lamp - Right 1
E4F Headlamp - Right High Beam 2
E4E Headlamp - Left High Beam 3
E4N Park/Turn Signal Lamp - Left 4
E13L Headlamp - Left 5
E4C Daytime Running Lamp - Left 6
E2LF Side Marker Lamp - Left Front 7
E2RF Side Marker Lamp - Right Front 8
E4D Daytime Running Lamp - Right 9
E13R Headlamp - Right 10

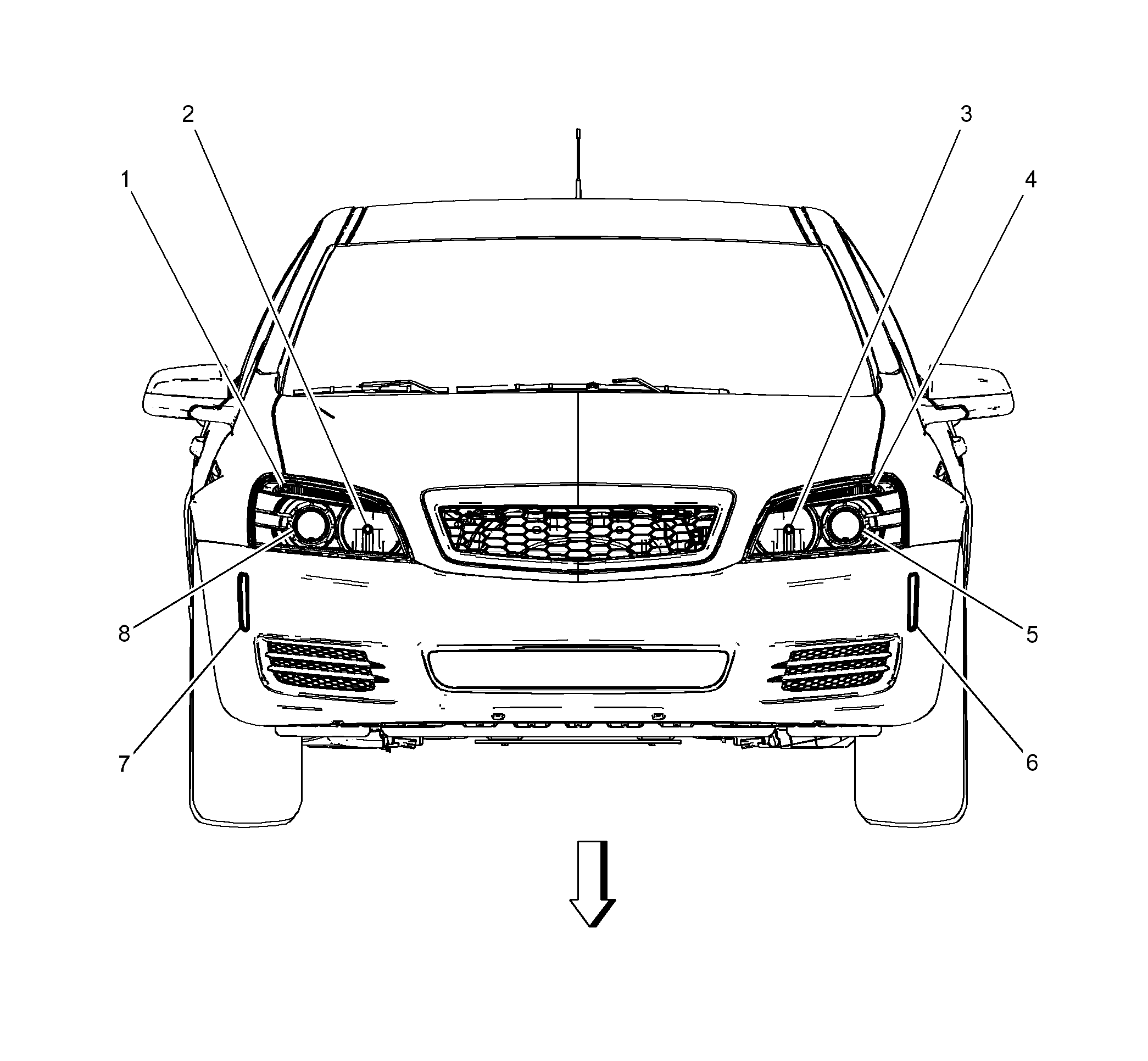

Fig 1: Front of Vehicle Components
GM2542873Courtesy of GENERAL MOTORS CORP.
