Front of Engine Compartment Components

Front of Engine Compartment Components

Component Name Callout
P12L Horn - Left 1
G10L Cooling Fan Motor - Left 2
P12R Horn - Right 3
G10R Cooling Fan Motor - Right 4
B59L Front Impact Sensor - Left 5
B55 Hood Ajar Switch 6
B59R Front Impact Sensor - Right 7
B9 Ambient Air Temperature Sensor 8
G24 Windshield Washer Pump 9

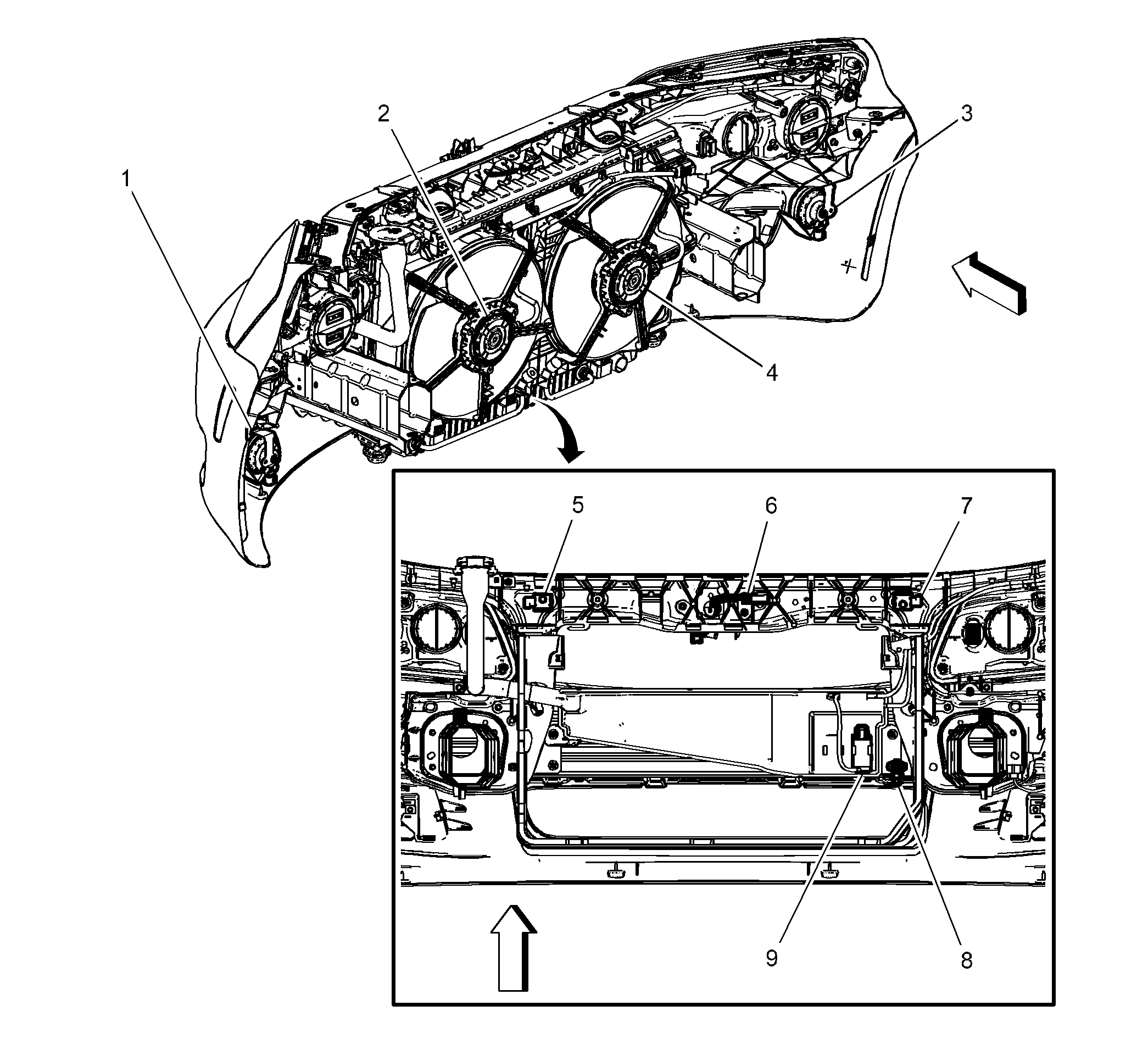

Fig 1: Front of Engine Compartment Components
GM2542876Courtesy of GENERAL MOTORS CORP.
