Installation Procedure

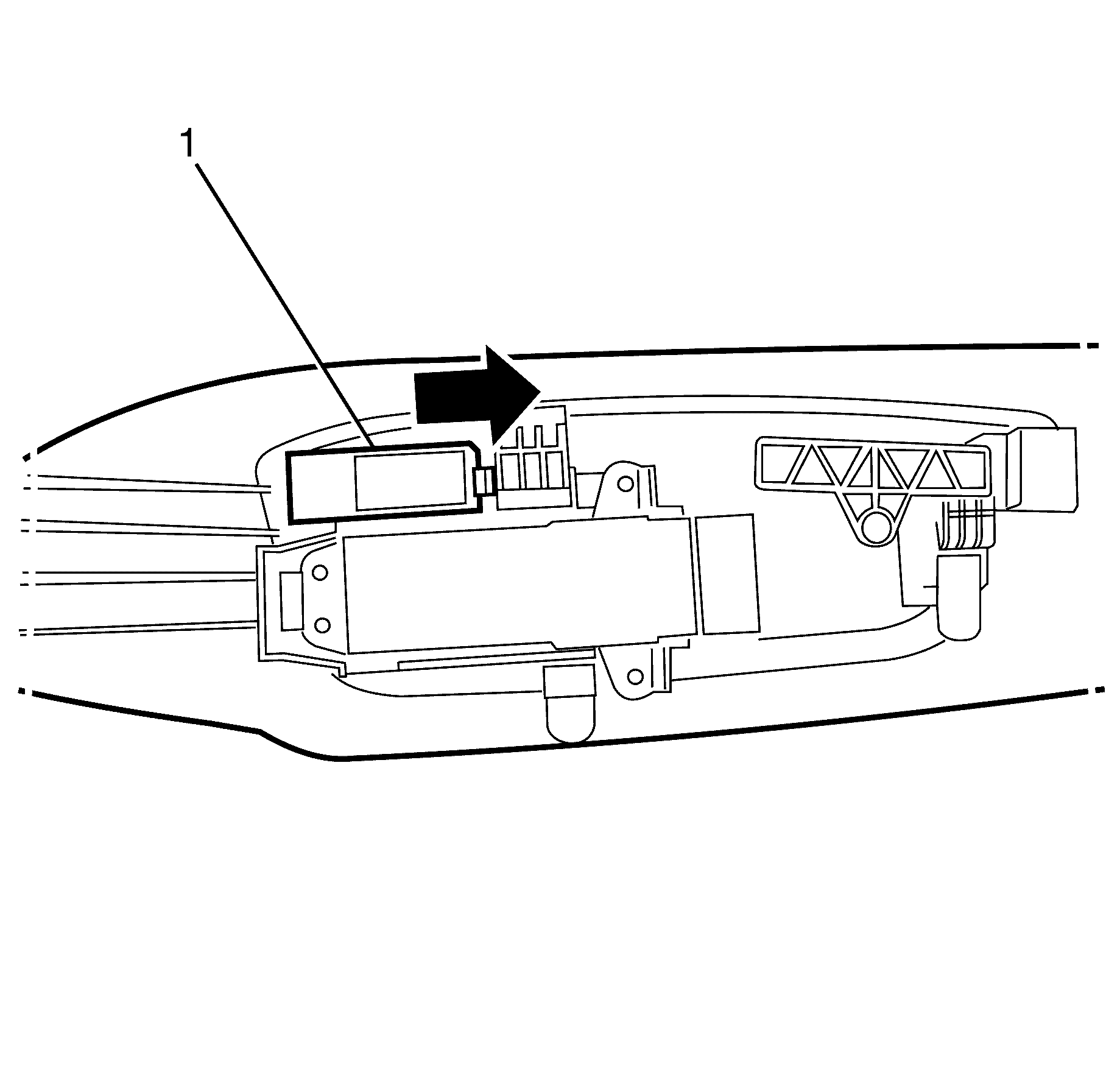

    Fig 1: Electrical Connectors
    GM1943633Courtesy of GENERAL MOTORS CORP.
  1. Install the lumbar support switch.
  2. Connect the electrical connectors.
  3. Install the outer trim panel. Refer to Seat Cushion Outer Trim Panel Replacement .
