Removal Procedure

  1. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement .
  2. Remove the upper auxiliary weatherstrip. Refer to Front Side Door Upper Auxiliary Weatherstrip Replacement .

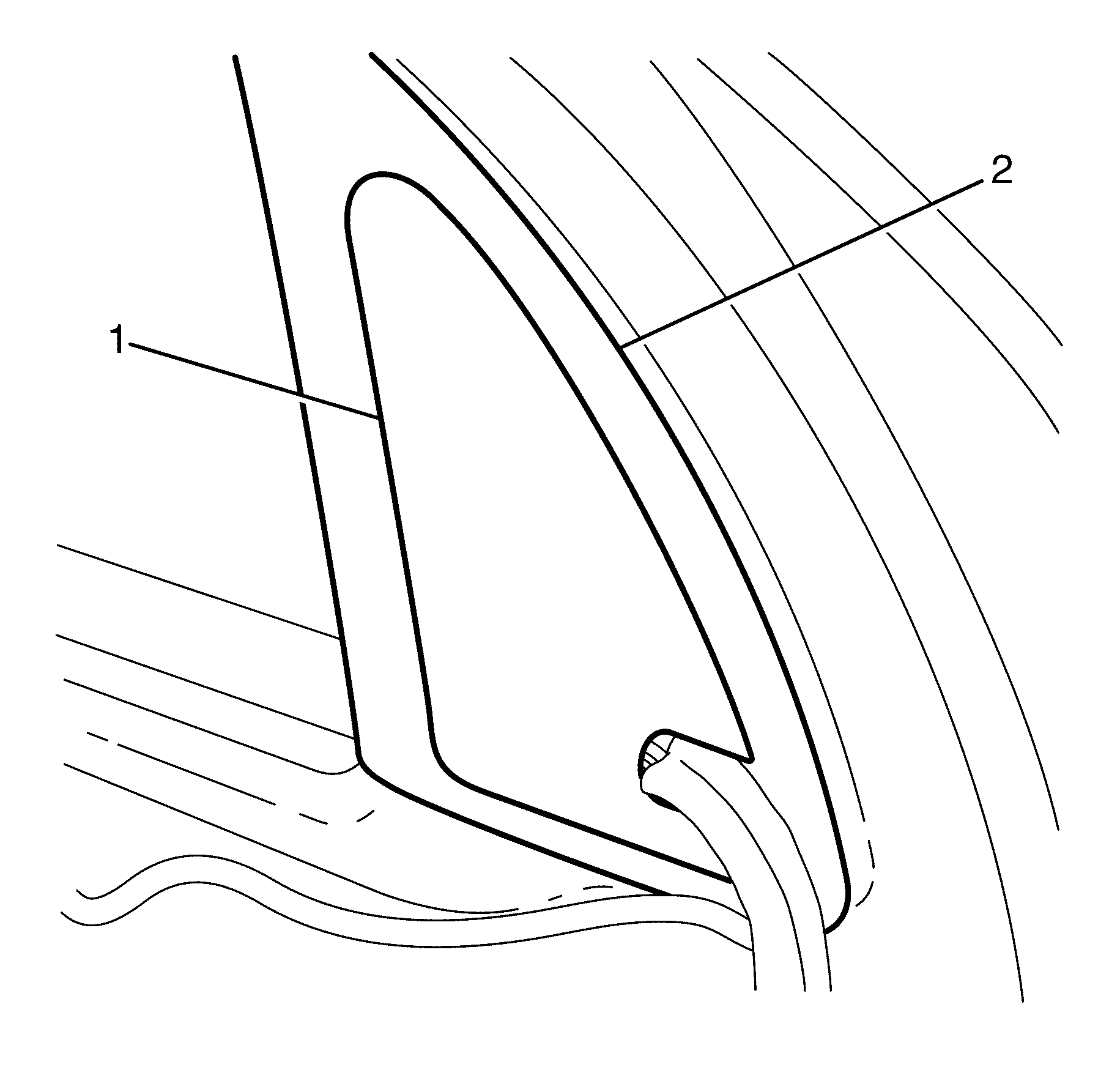

    3. Fig 1: View Of Inner Panel
    GM1939966Courtesy of GENERAL MOTORS CORP.
    NOTE:

    Use a suitable tool to pry open inner panel (1).

  3. Remove the inner panel (1) from the door (2).

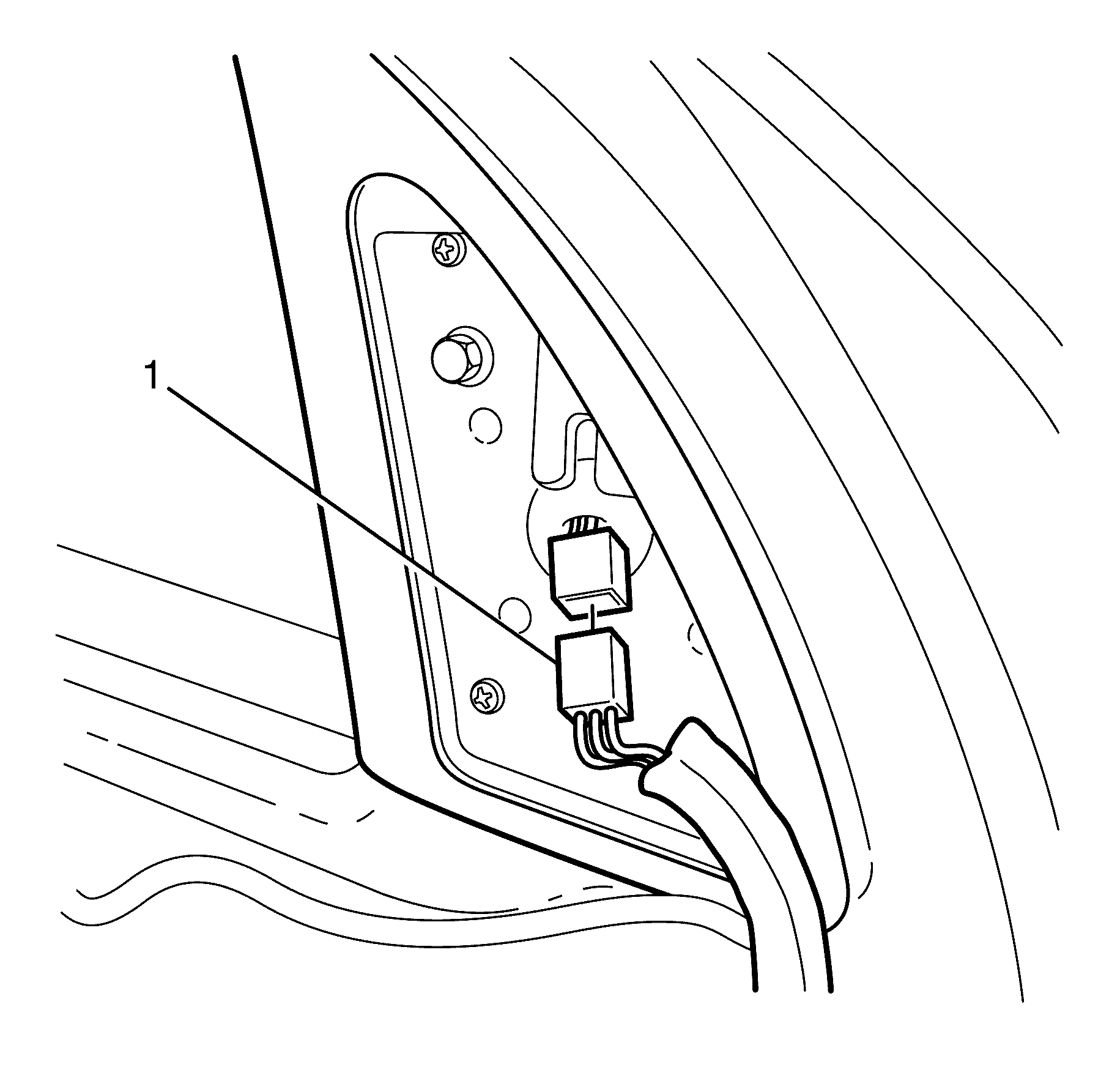

    4. Fig 2: Identifying Mirror To Door Harness Electrical Connector
    GM1939956Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the mirror to door harness electrical connector (1).

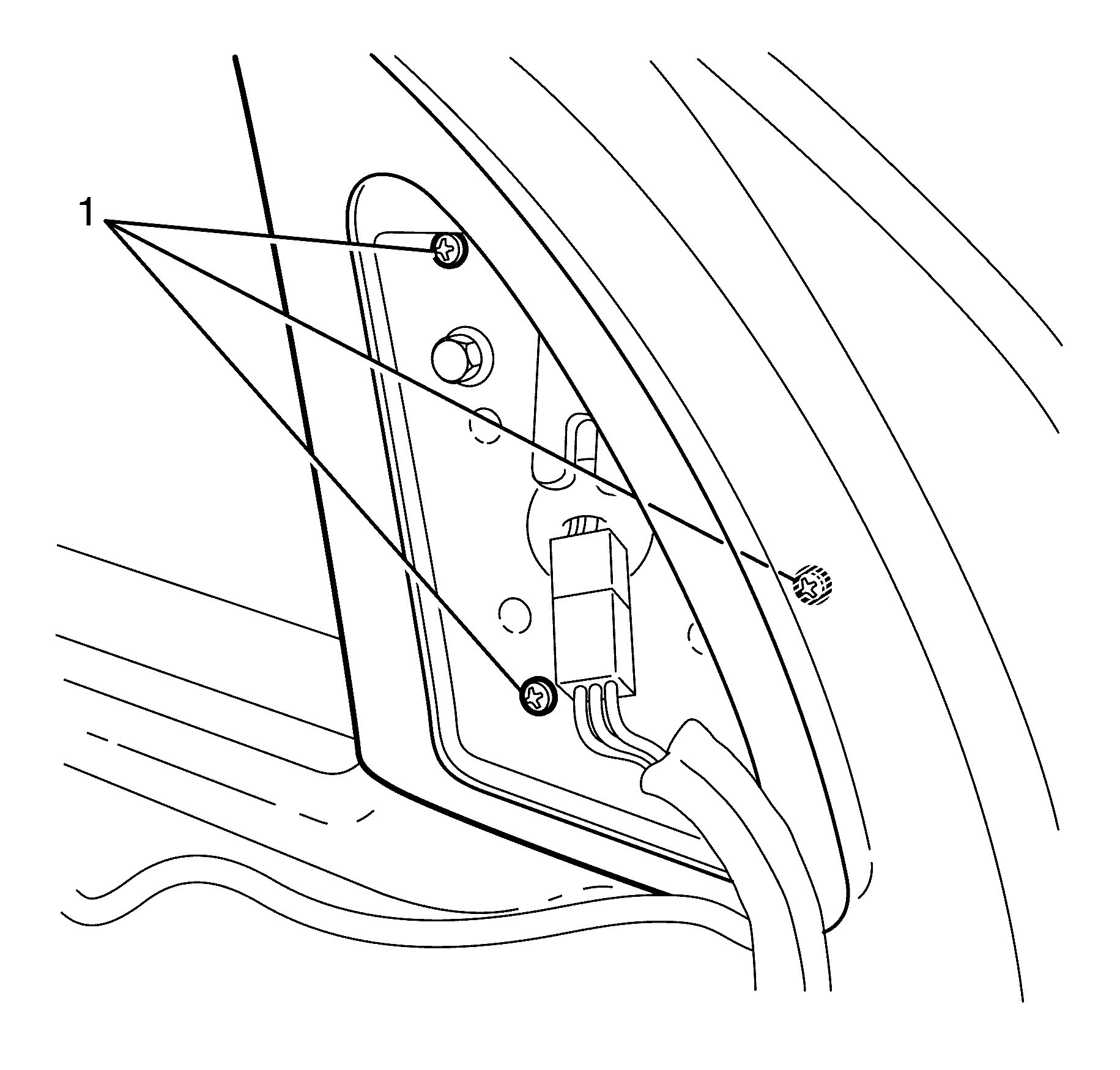

    5. Fig 3: Identifying Mirror To Door Retaining Screws
    GM1939967Courtesy of GENERAL MOTORS CORP.
    NOTE:

    Position aside upper auxiliary weatherstrip to locate the front mirror to door retaining screw.

    NOTE:

    Support the mirror when removing retaining screws (1).

  5. Remove the mirror to door retaining screws (1).
  6. Remove the mirror from the door.
