Installation Procedure

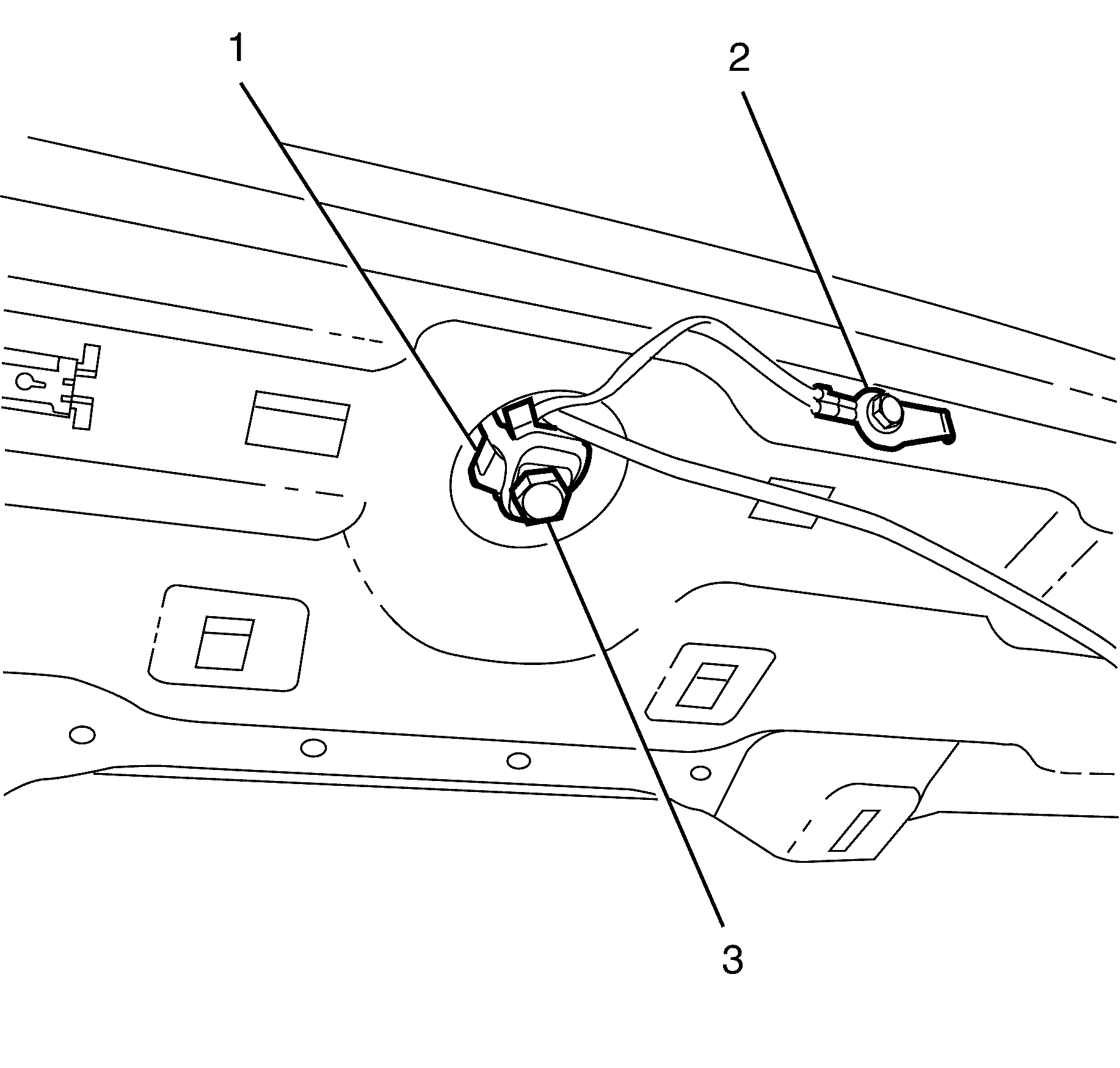

    Fig 1: Roof Panel Retaining Bolt
    GM1957830Courtesy of GENERAL MOTORS CORP.
  1. From outside the vehicle, install the radio antenna module and harness to the vehicle by threading through the cavity.
  2. Install the radio antenna module to roof panel retaining clip (1).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the radio antenna module to roof panel retaining bolt (3).

    Tighten

    Tighten the bolt to 4 N.m (35 lb in).

  4. Install the radio antenna module ground point to roof panel retaining bolt (2).

    Tighten

    Tighten the bolt to 2 N.m (18 lb in).

  5. Connect the radio antenna module electrical connector.
  6. Install the headlining trim assembly. Refer to Headlining Trim Panel Replacement .
