Fuse Block - Underhood




Electrical Center Identification Views

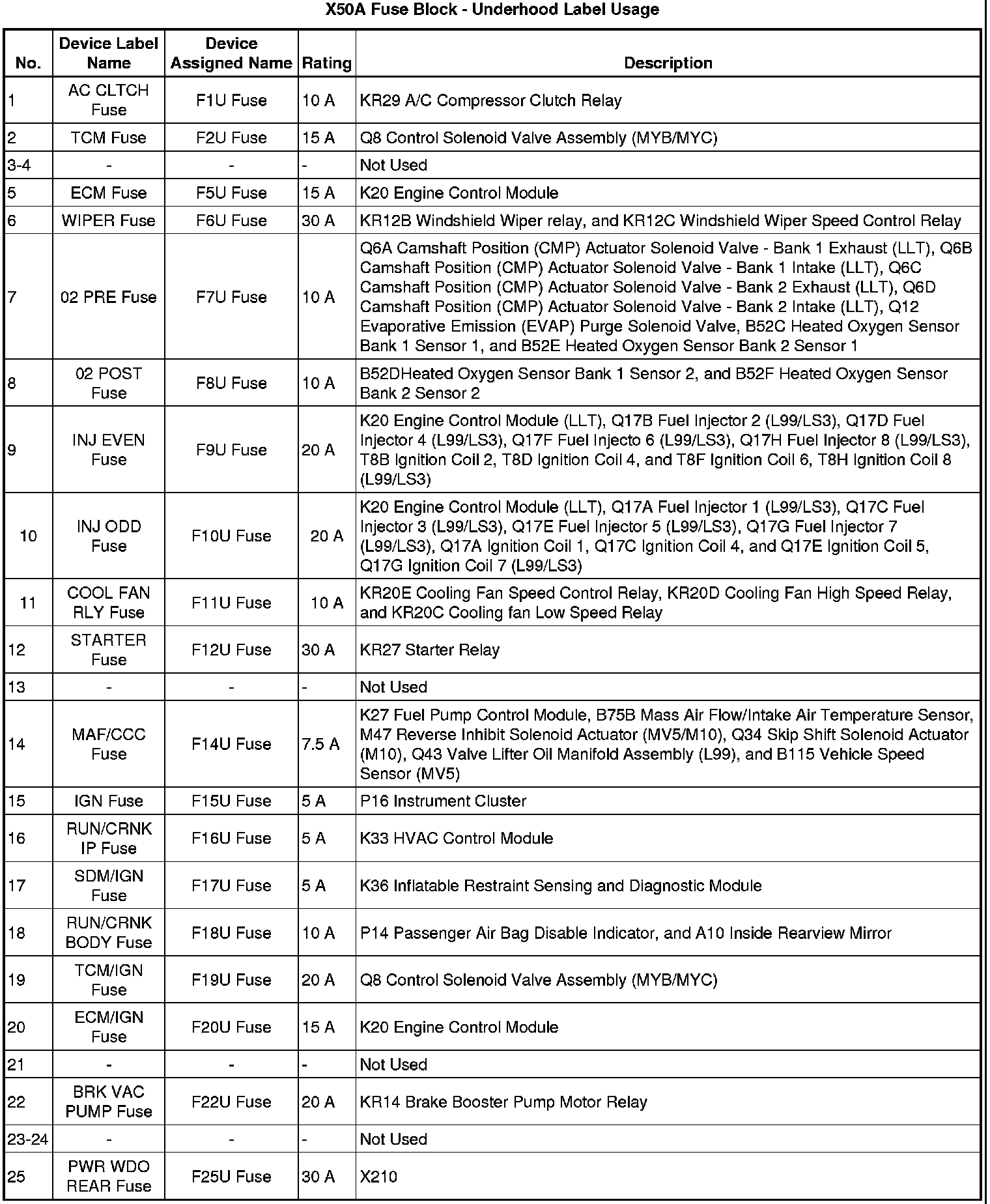

X50A Fuse Block - Underhood Label

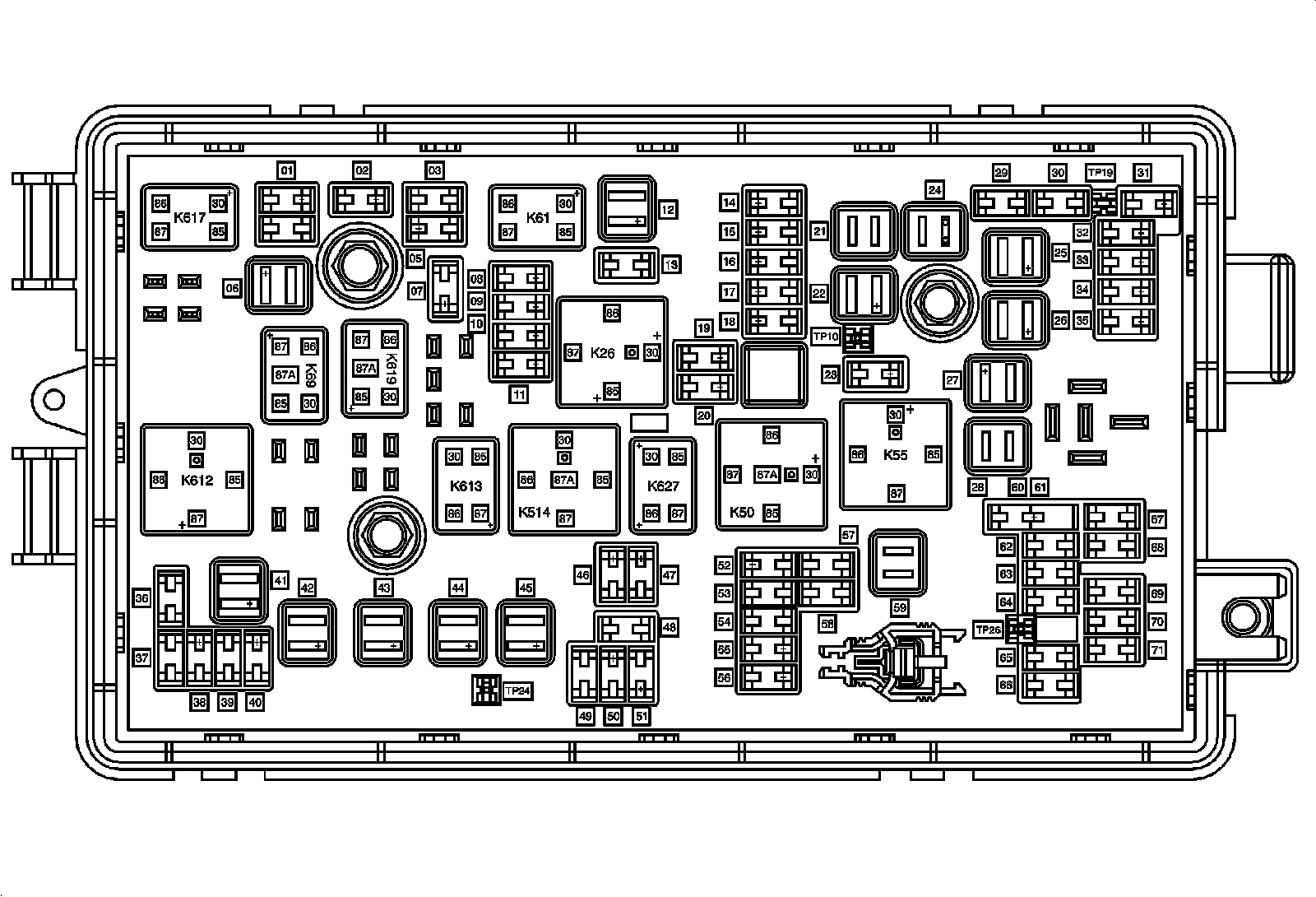

X50A Fuse Block - Underhood Top View

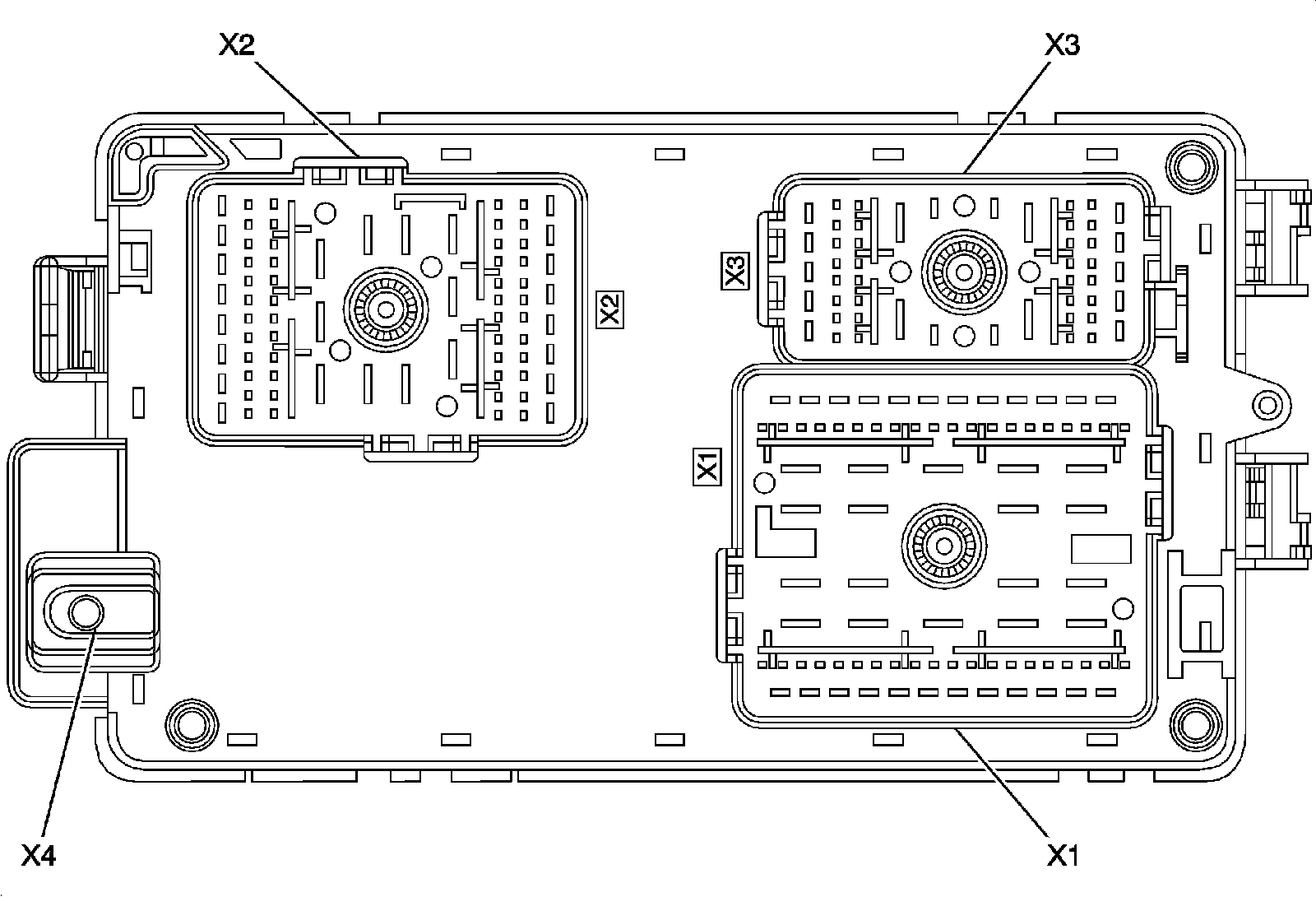

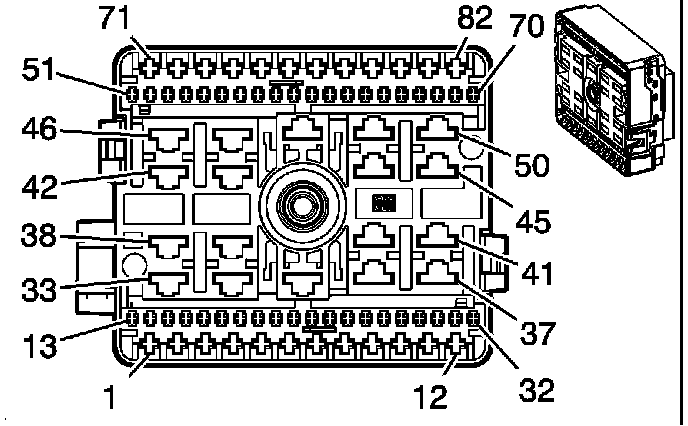

X50A Fuse Block - Underhood Bottom View

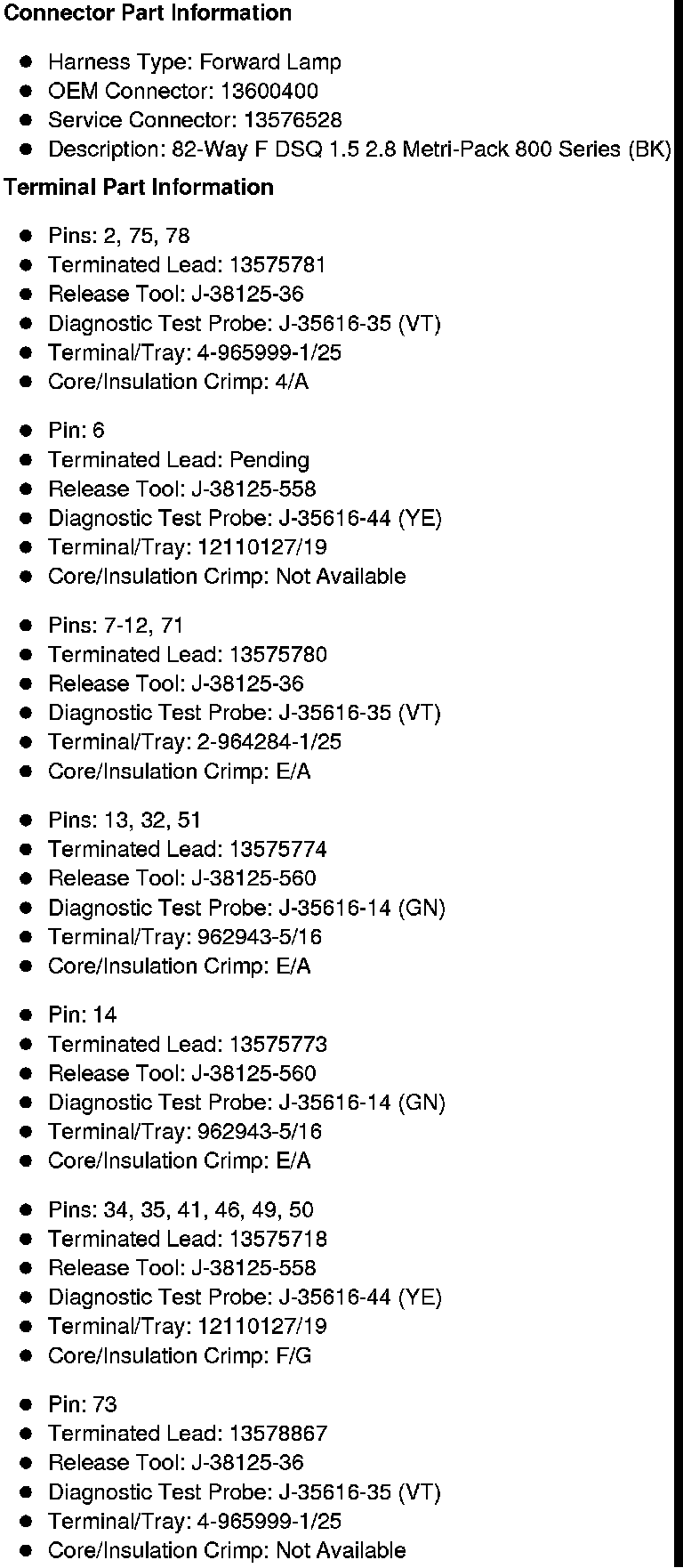

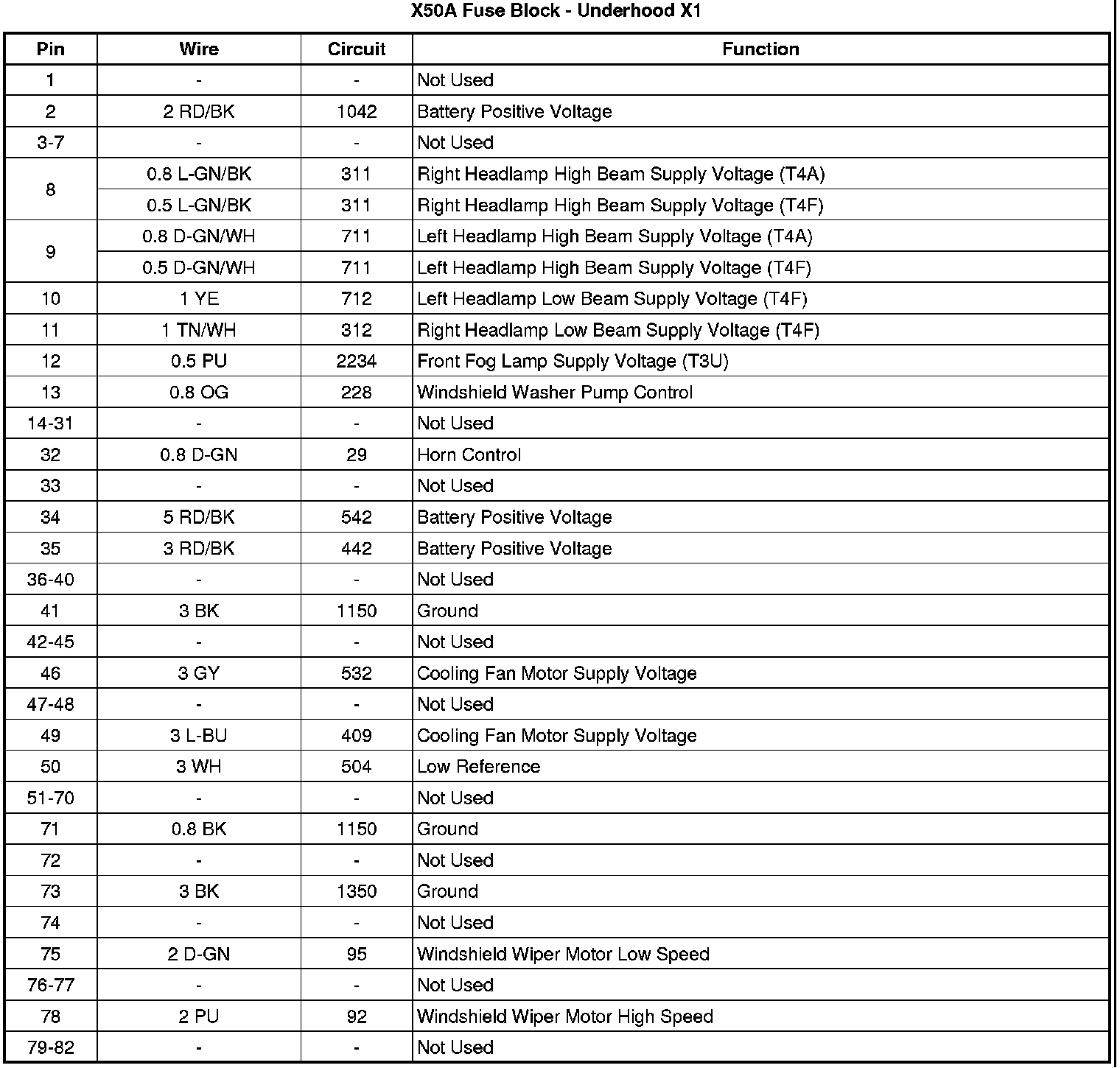

X50A Fuse Block - Underhood X1

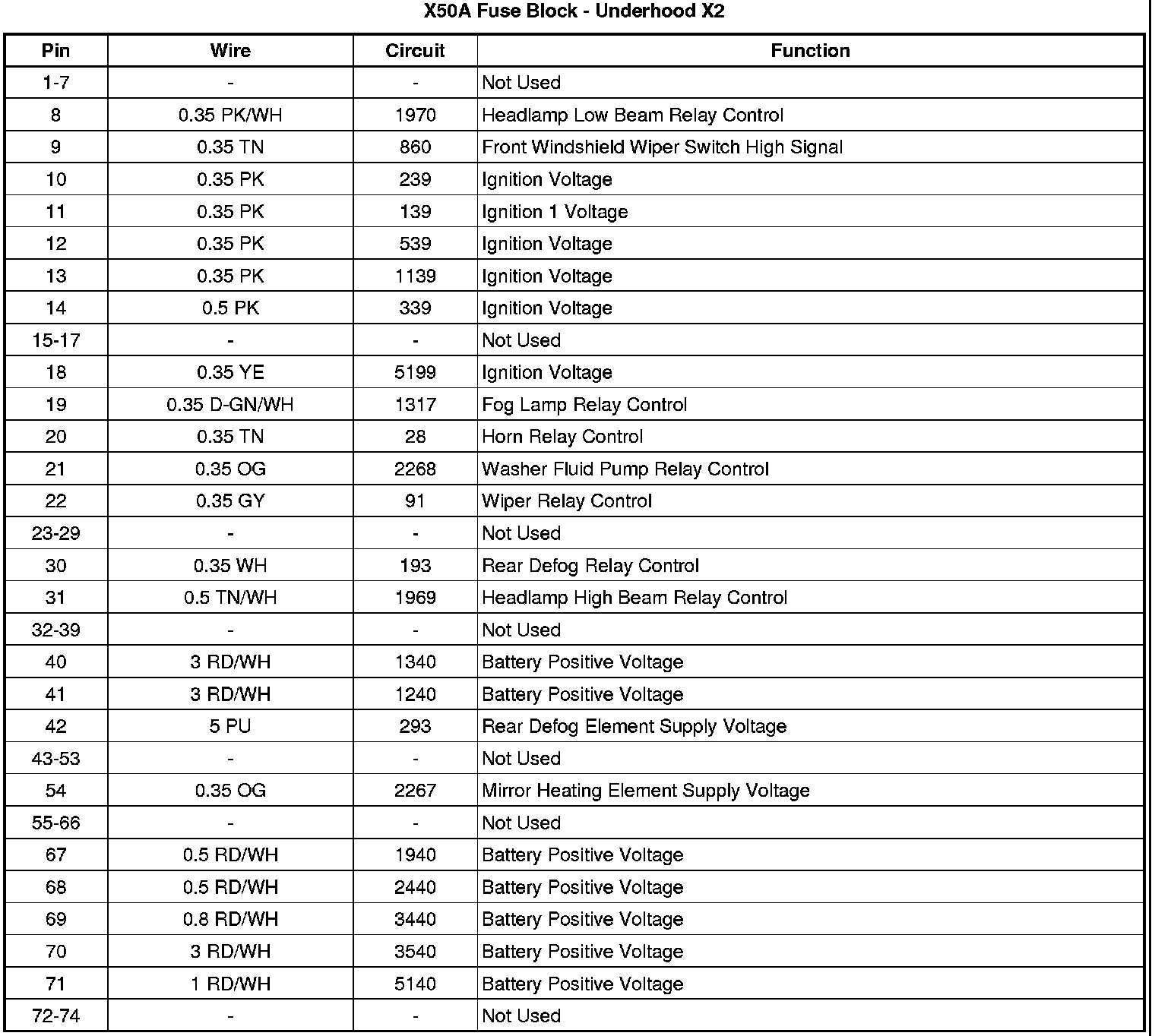

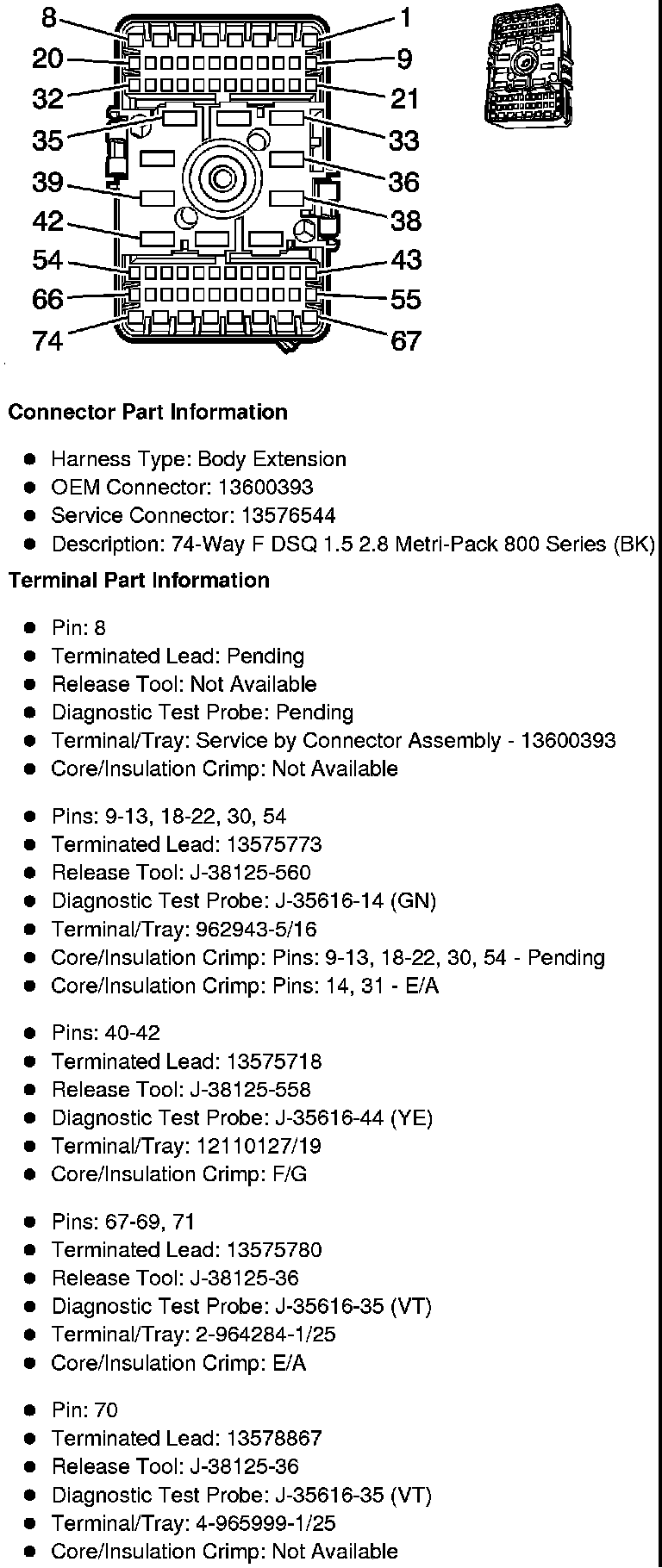

X50A Fuse Block - Underhood X2

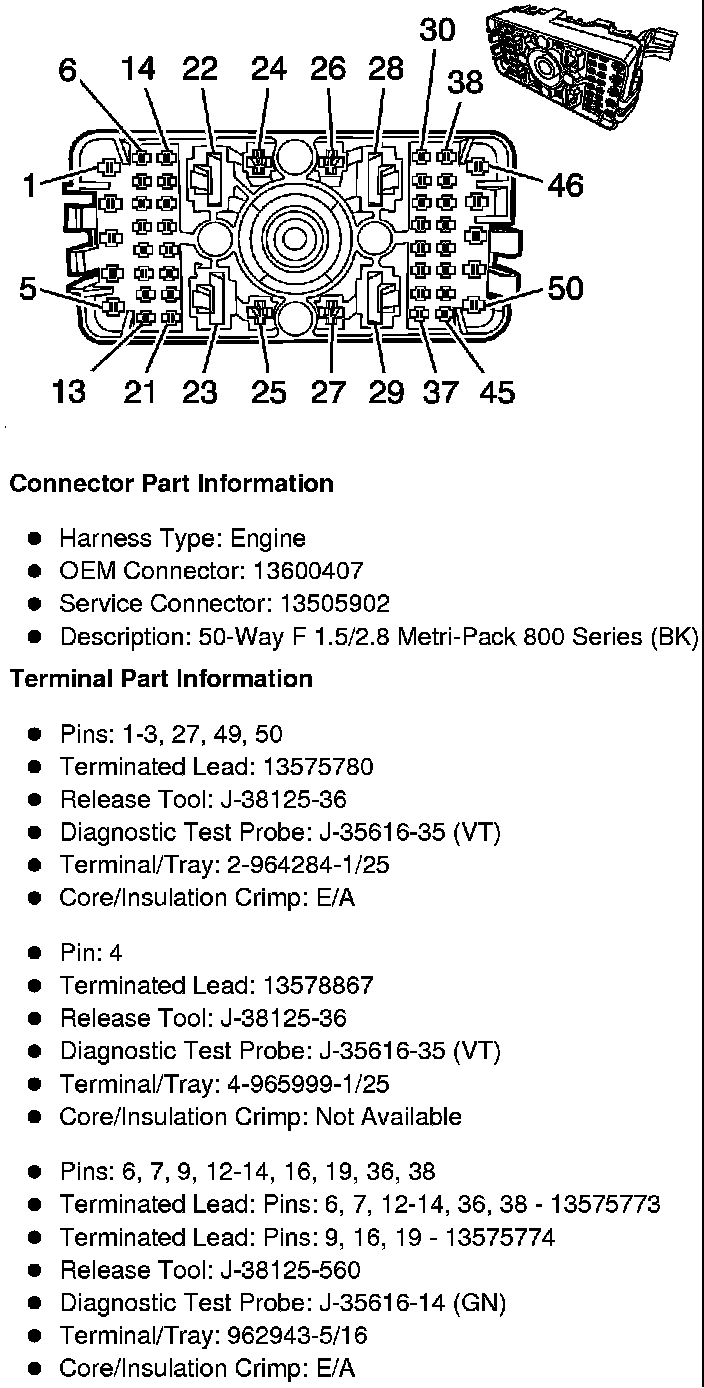

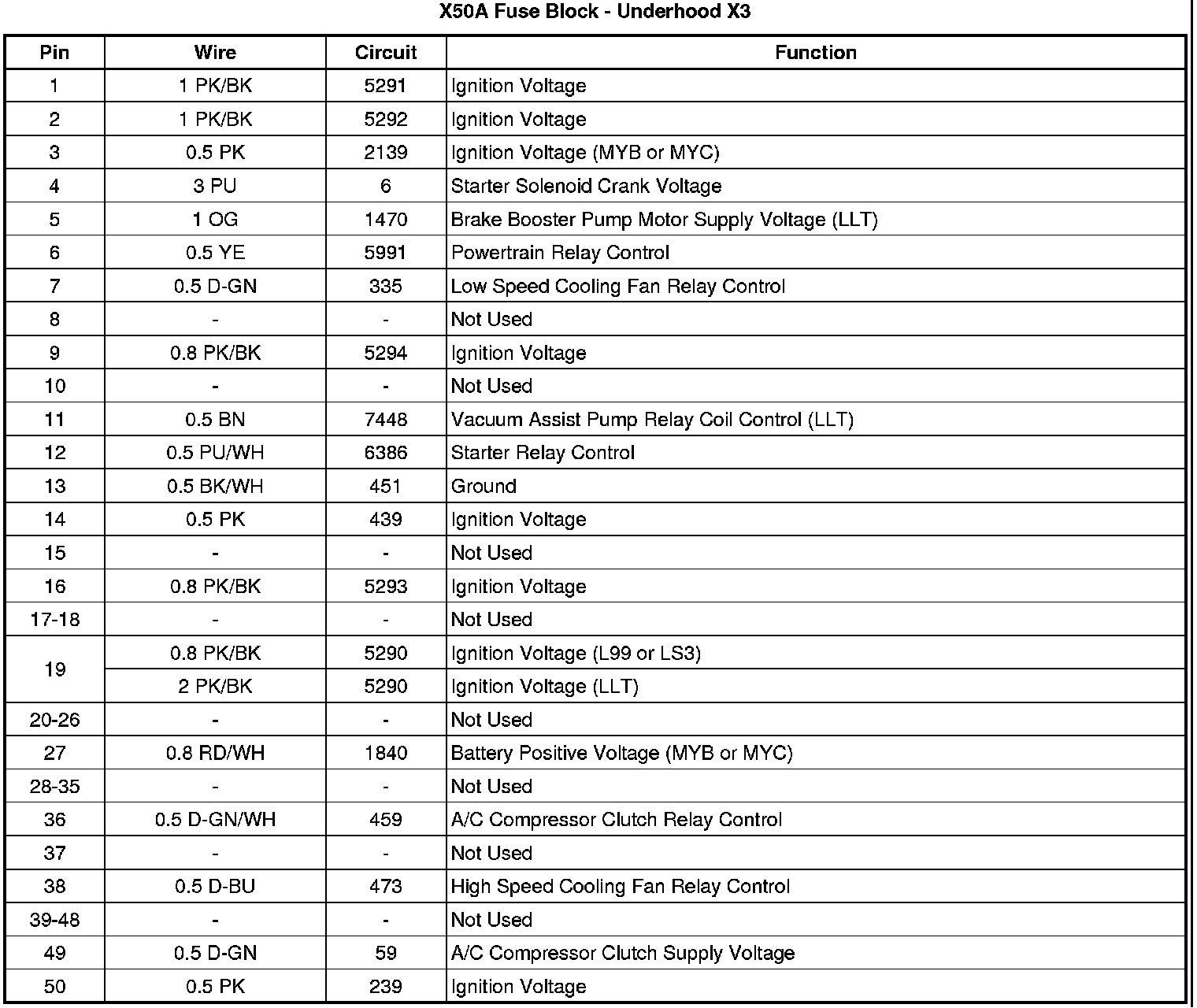

X50A Fuse Block - Underhood X3

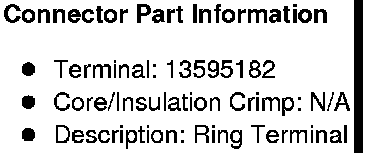

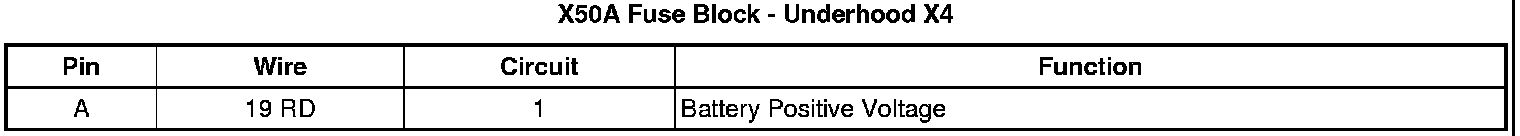

X50A Fuse Block - Underhood X4
