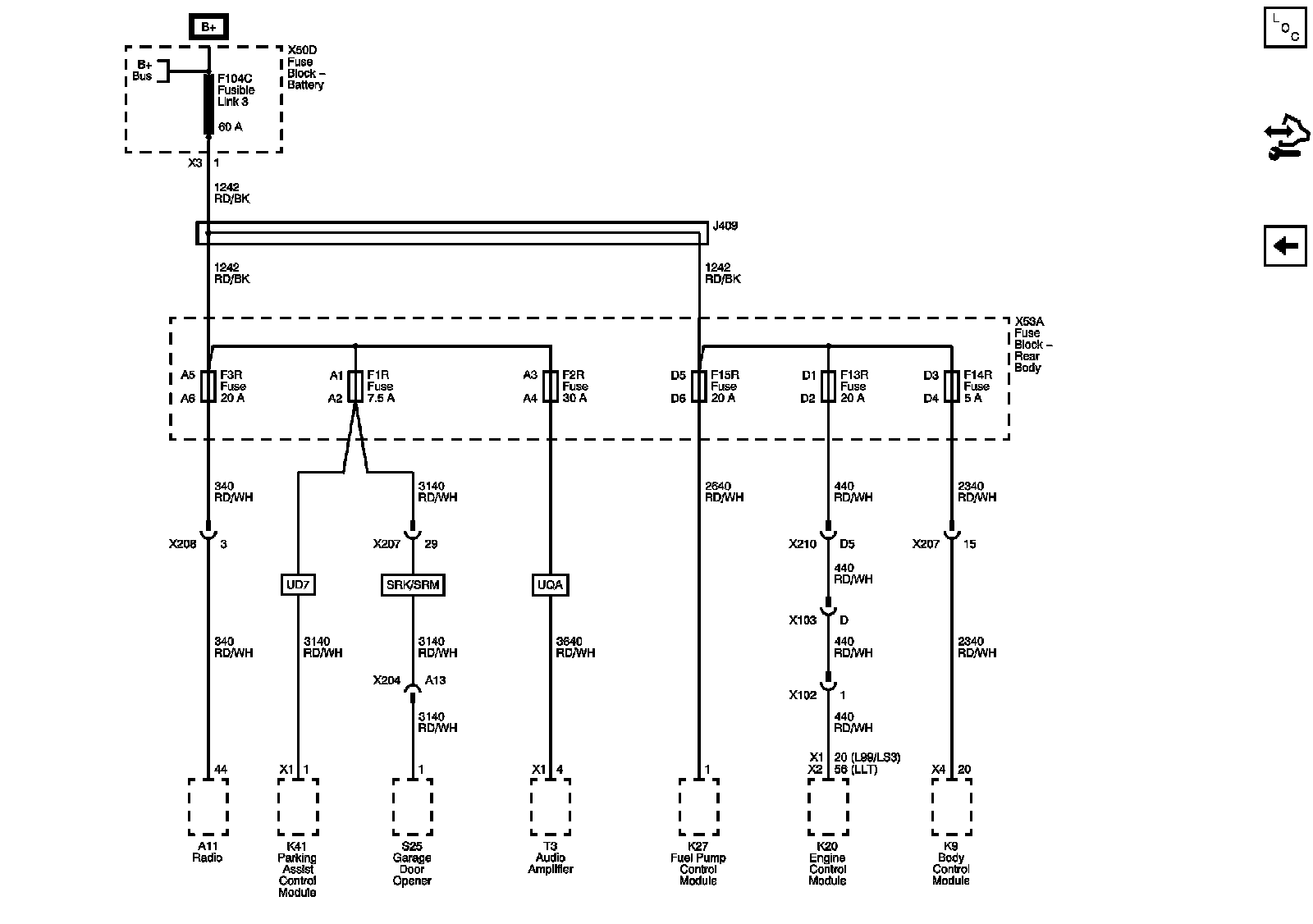

Power Distribution Schematic 10




Power Distribution Schematics

Fuse Block - Rear - F1R, F2R, F3R, F13R, F14R and F15R Fuses
