Compressor Clutch Hub: Service and Repair

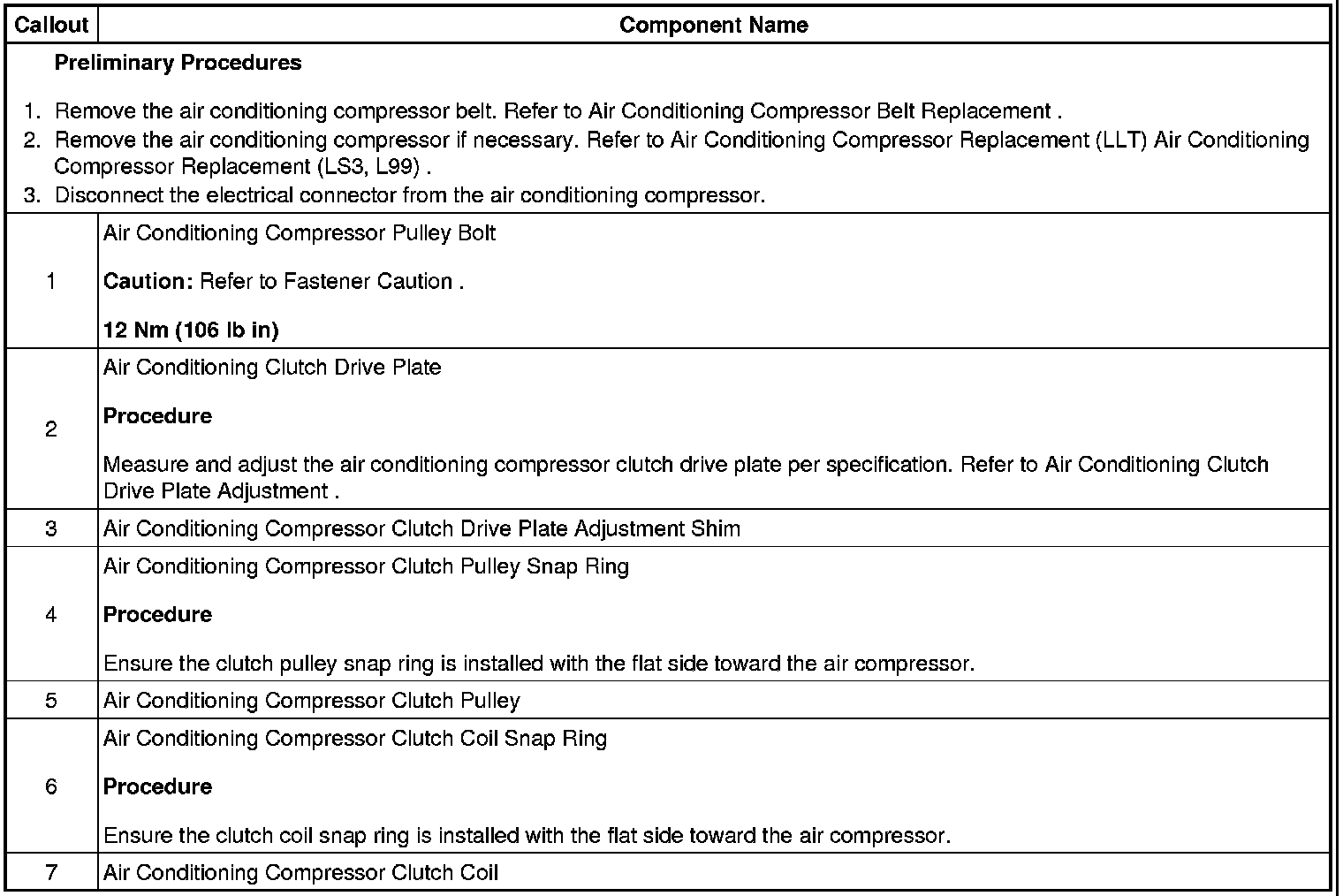

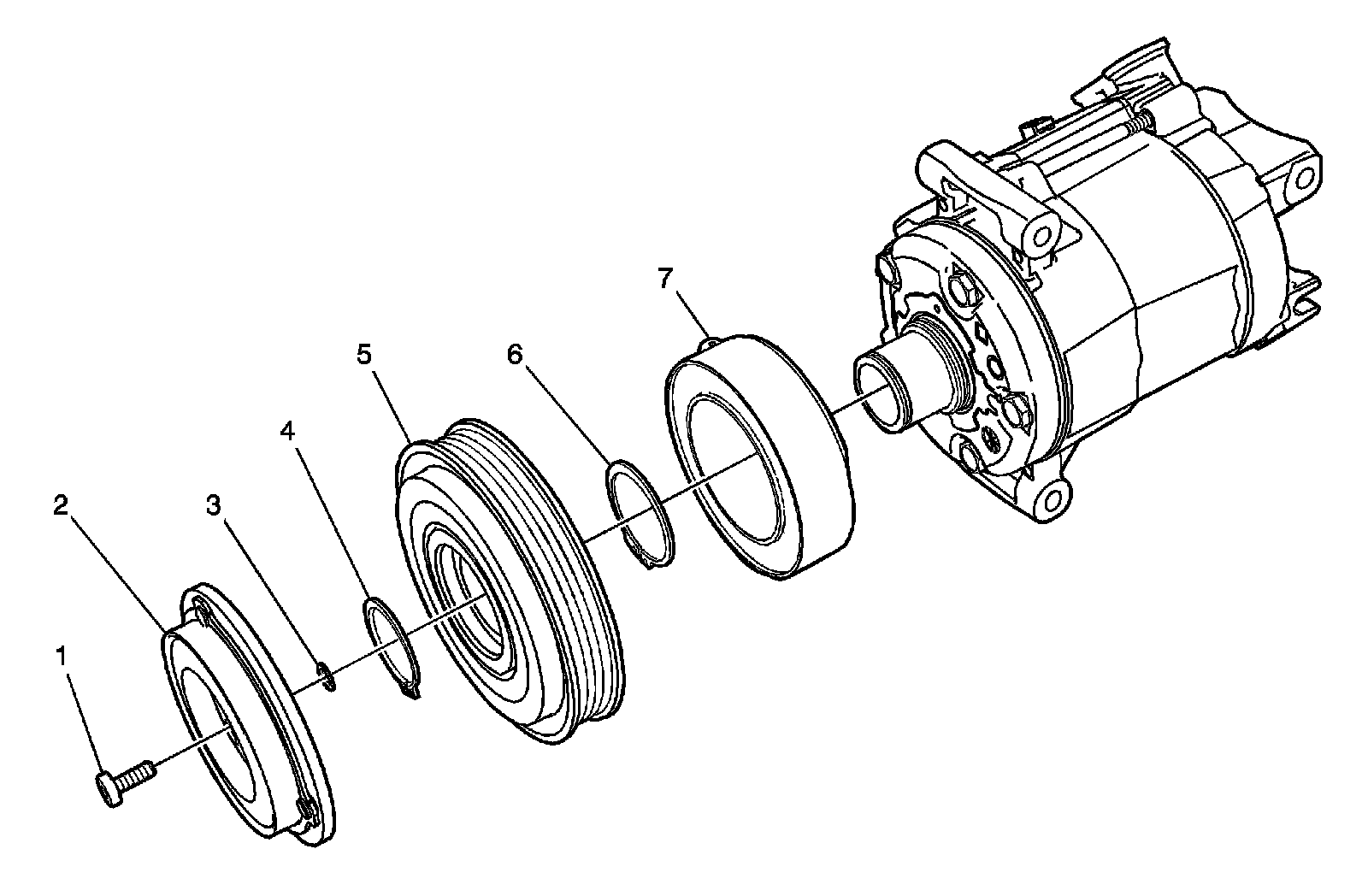

Compressor Clutch Plate and Hub Assembly Removal (LS3, L99)
