Seat Temperature Element




Component Connector End Views

E14A Seat Heating Element - Driver Back (KA1)

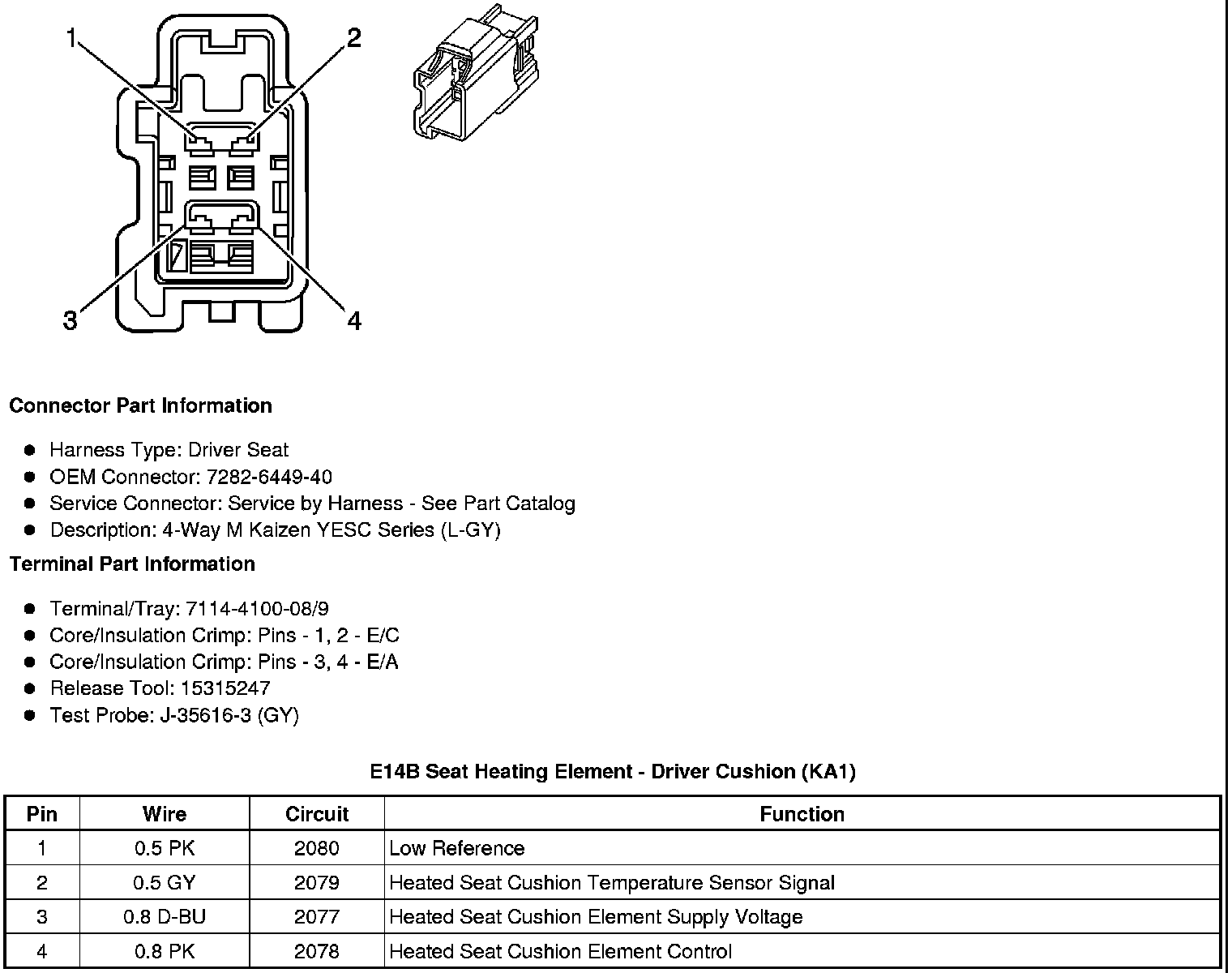

E14B Seat Heating Element - Driver Cushion (KA1)

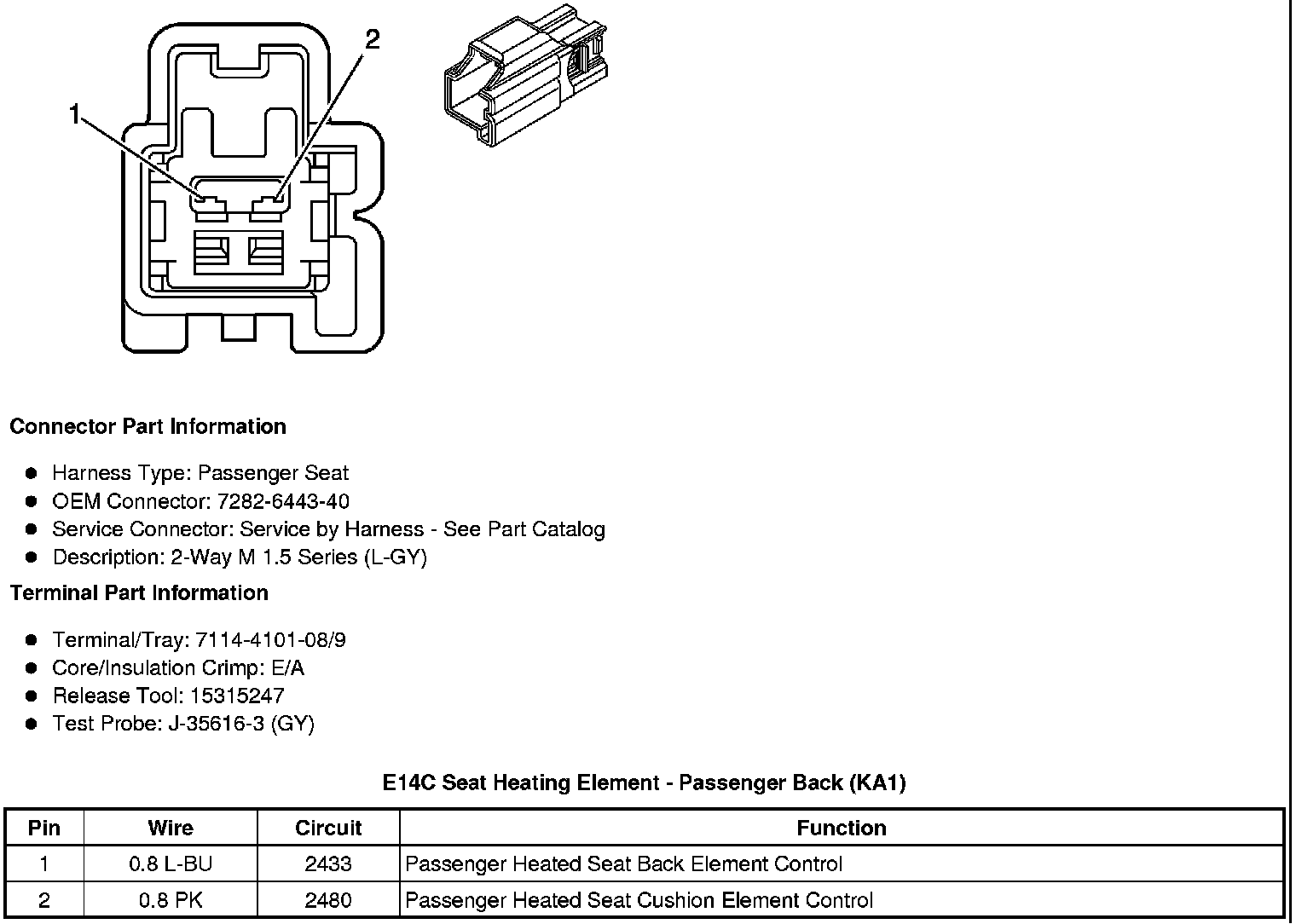

E14C Seat Heating Element - Passenger Back (KA1)

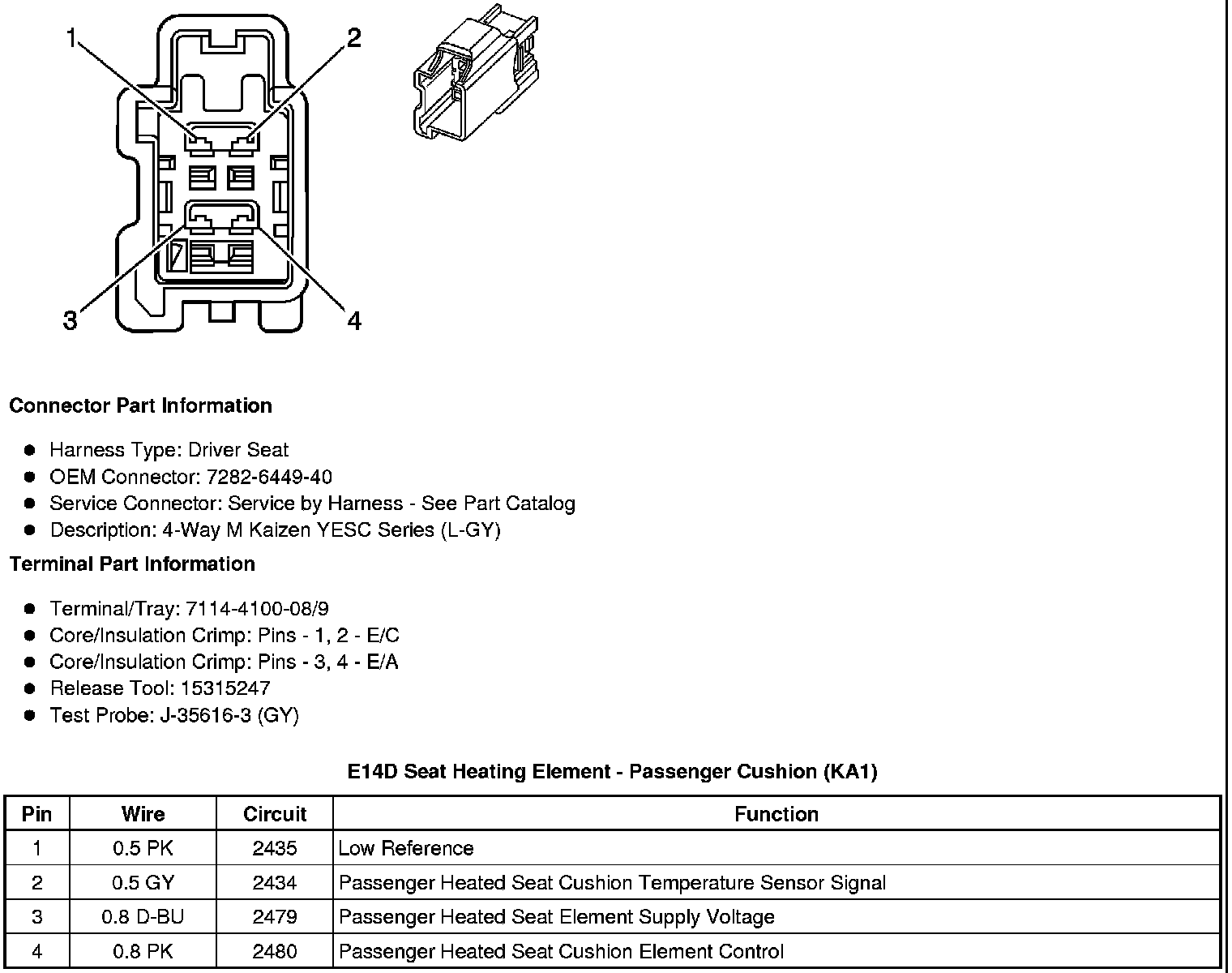

E14D Seat Heating Element - Passenger Cushion (KA1)
