Power Seat Switch




Component Connector End Views

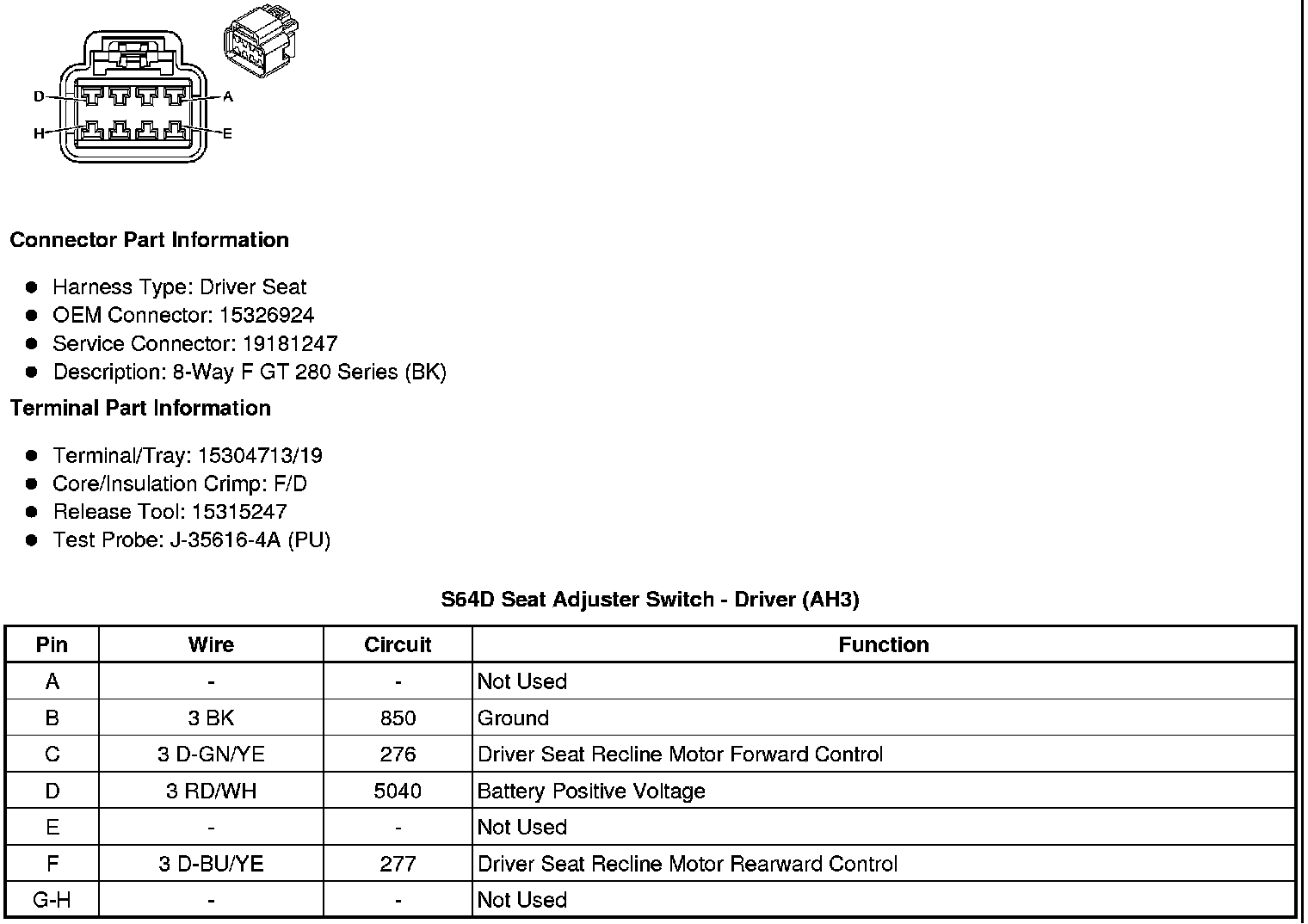

S64D Seat Adjuster Switch - Driver (AH3)

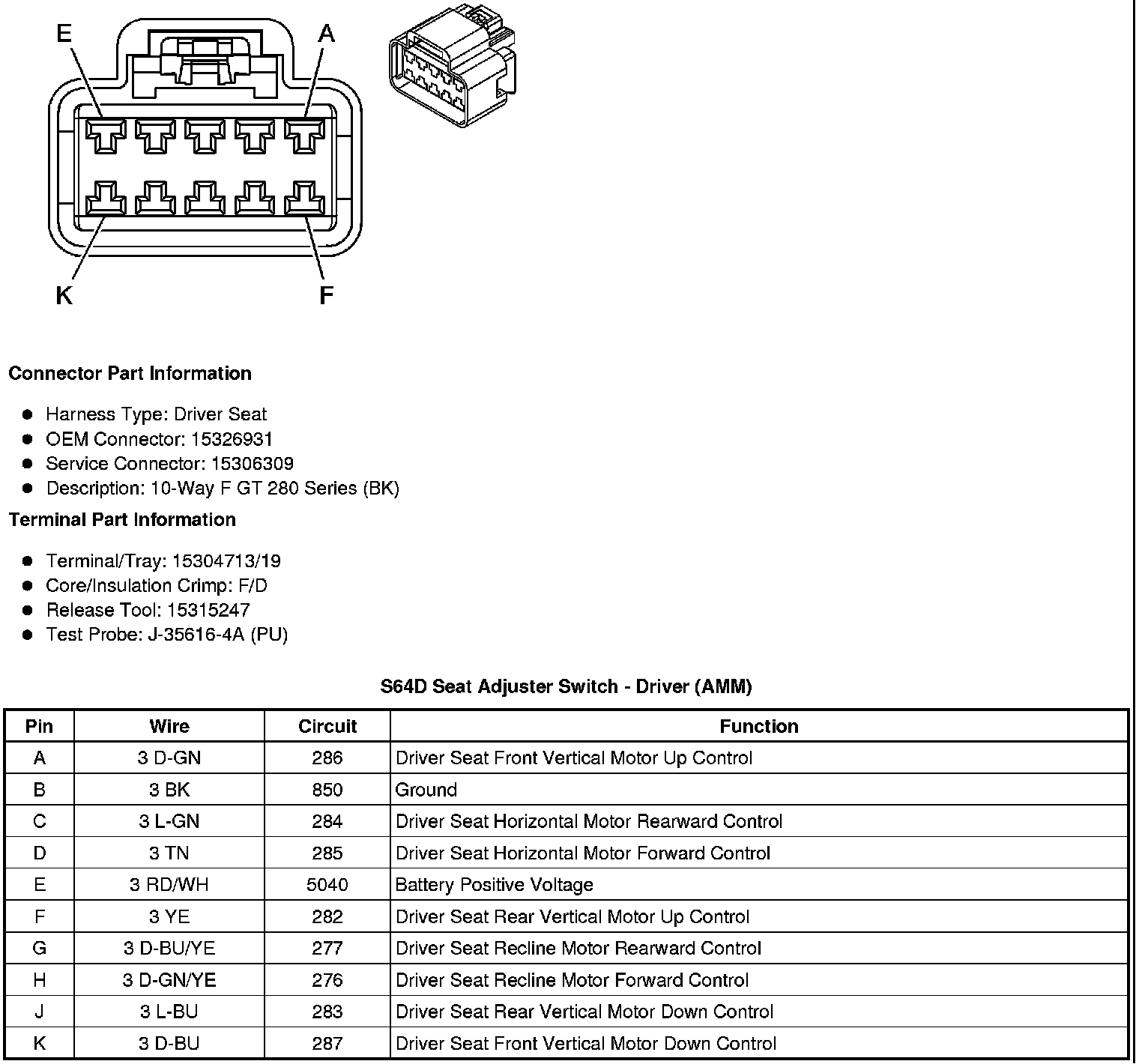

S64D Seat Adjuster Switch - Driver (AMM)

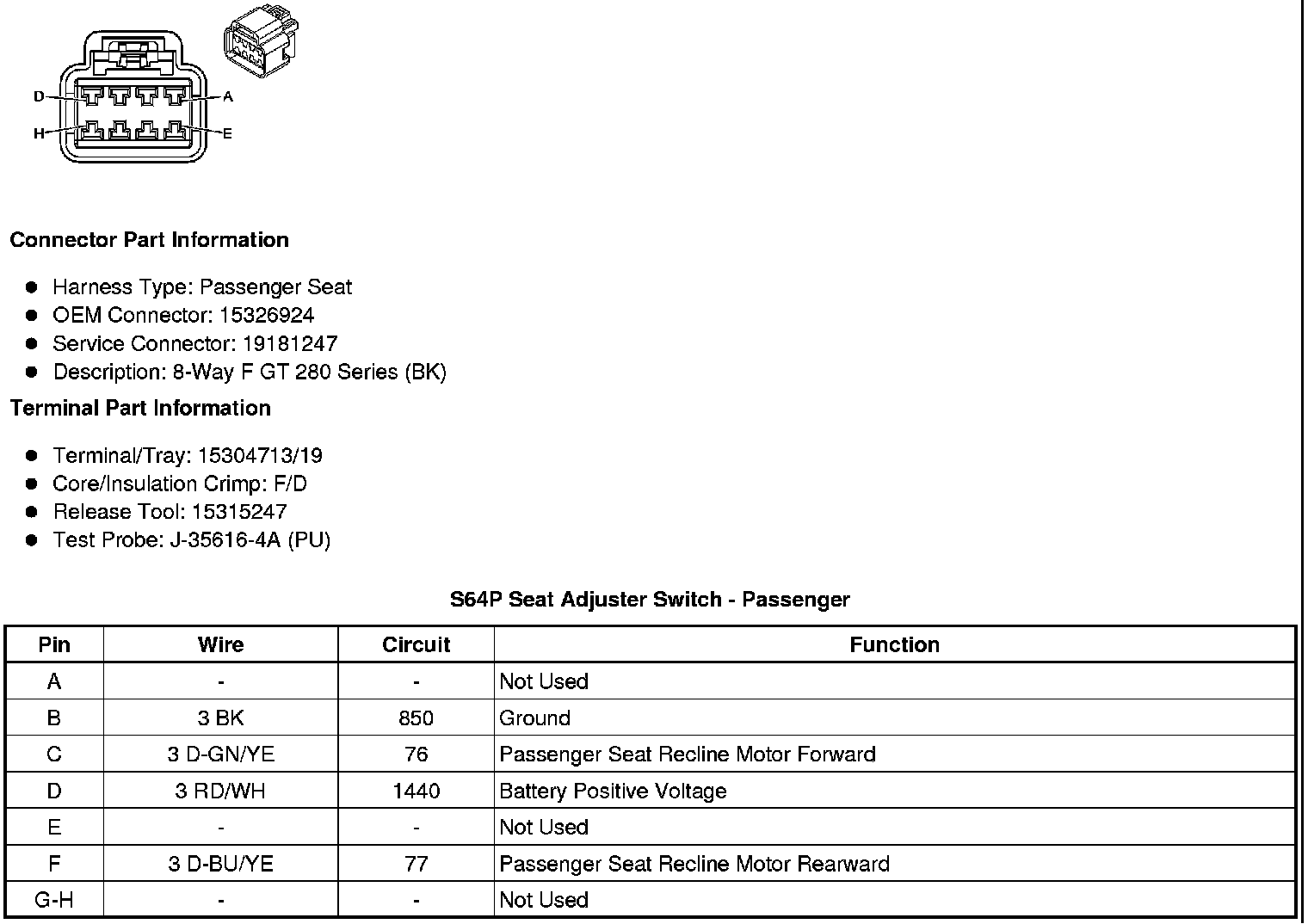

S64P Seat Adjuster Switch - Passenger
