License Plate Lamp




Component Connector End Views

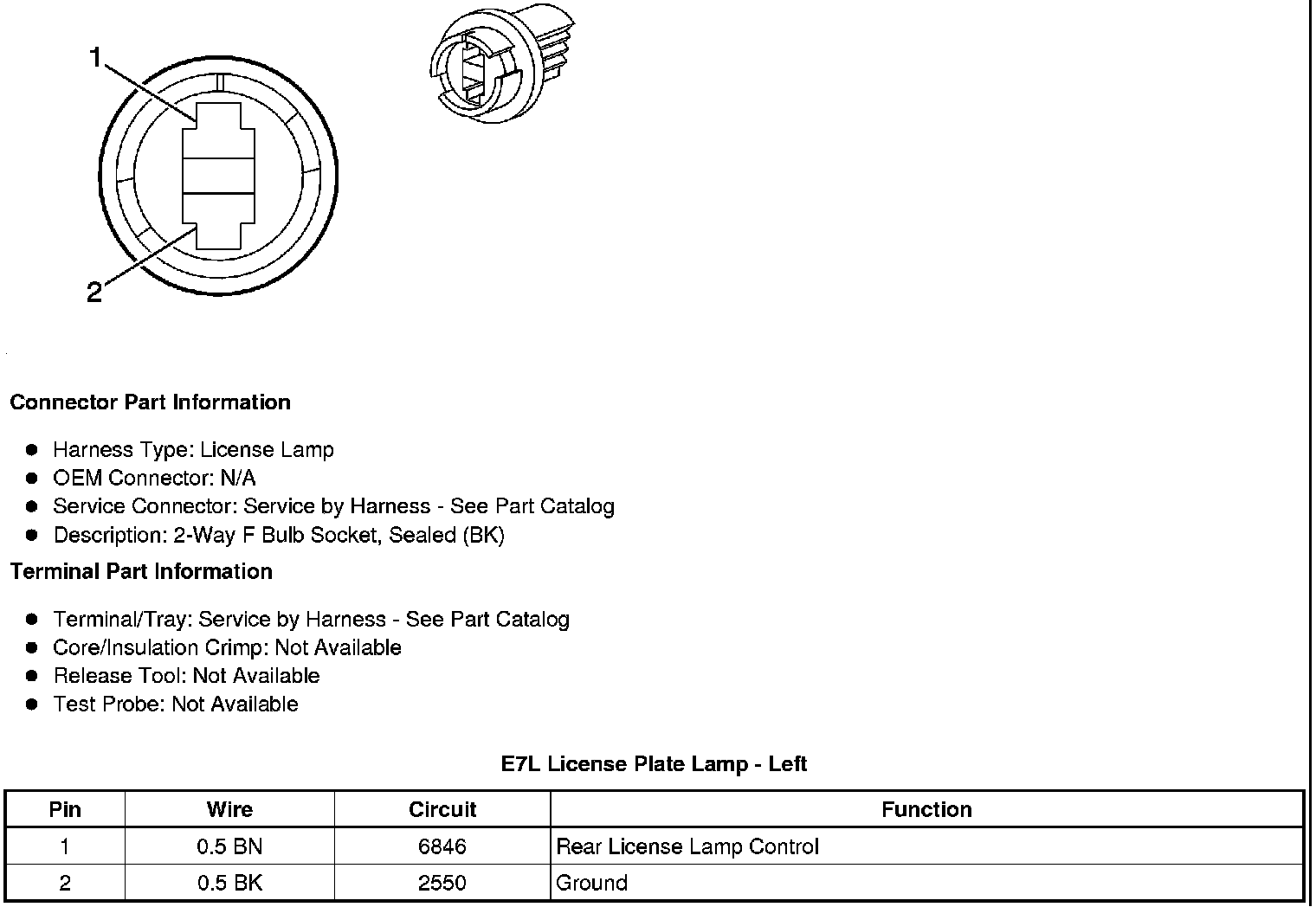

E7L License Plate Lamp - Left

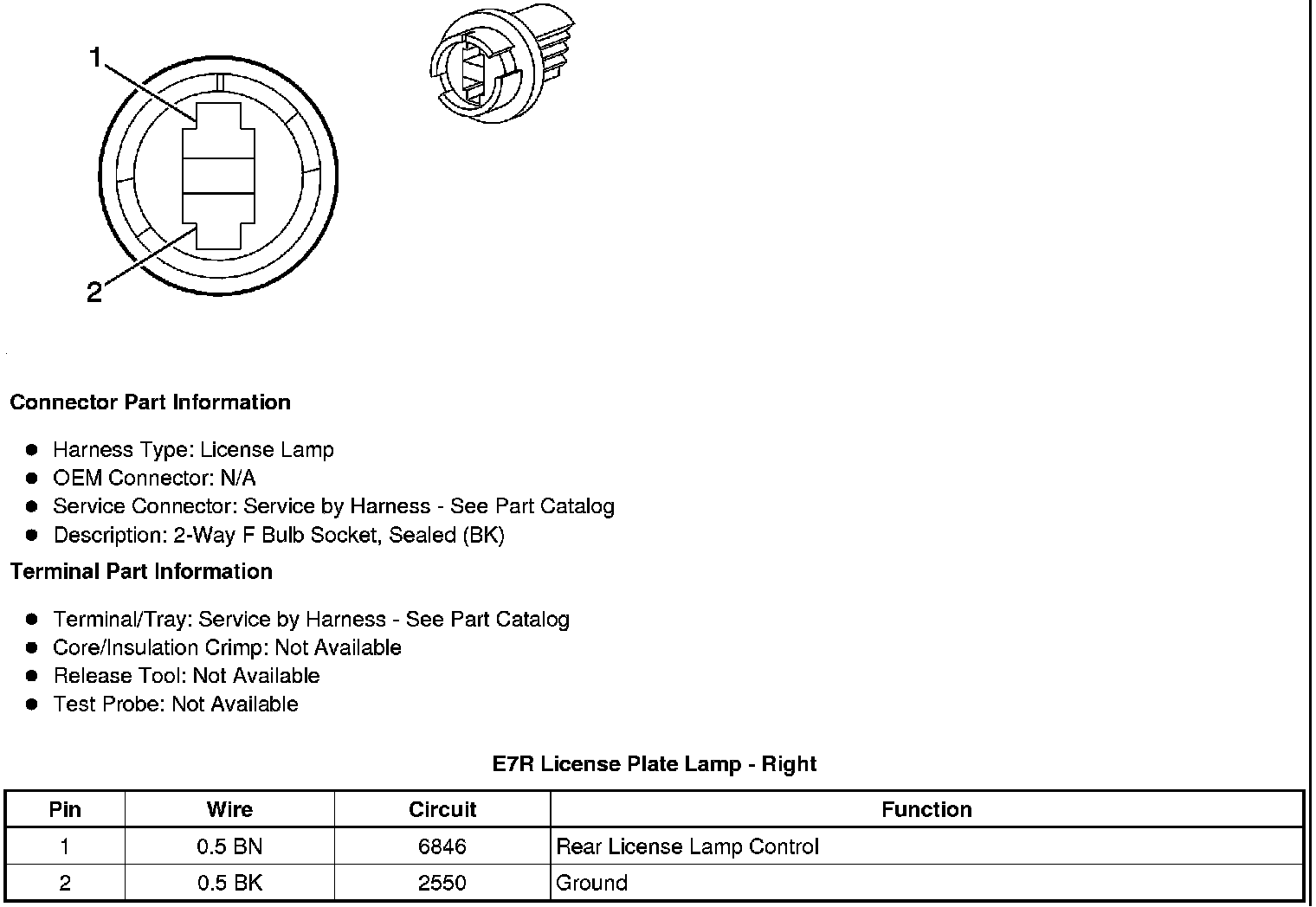

E7R License Plate Lamp - Right
