Ignition Coil




Component Connector End Views

T8A Ignition Coil 1 (L99 or LS3)

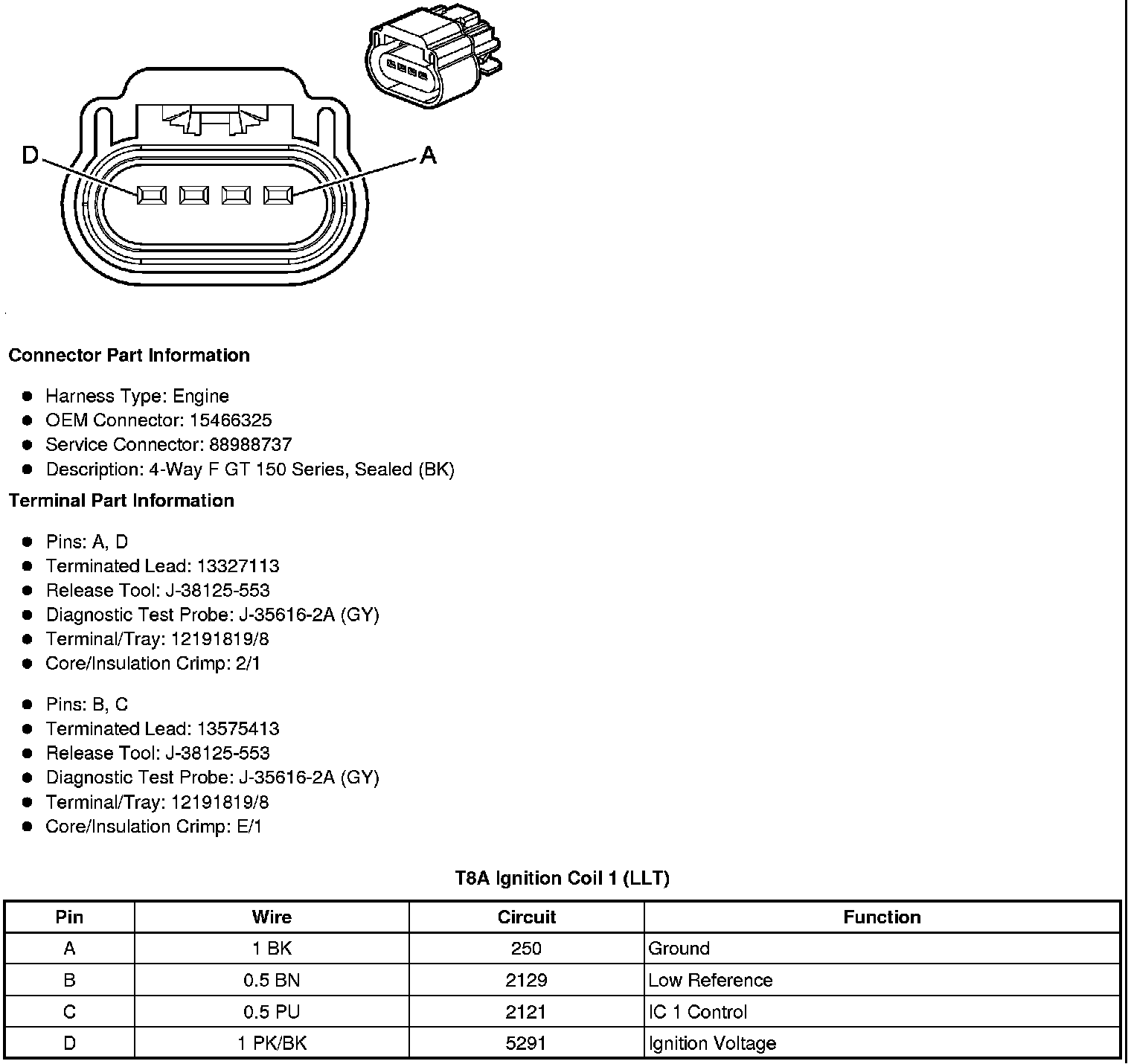

T8A Ignition Coil 1 (LLT)

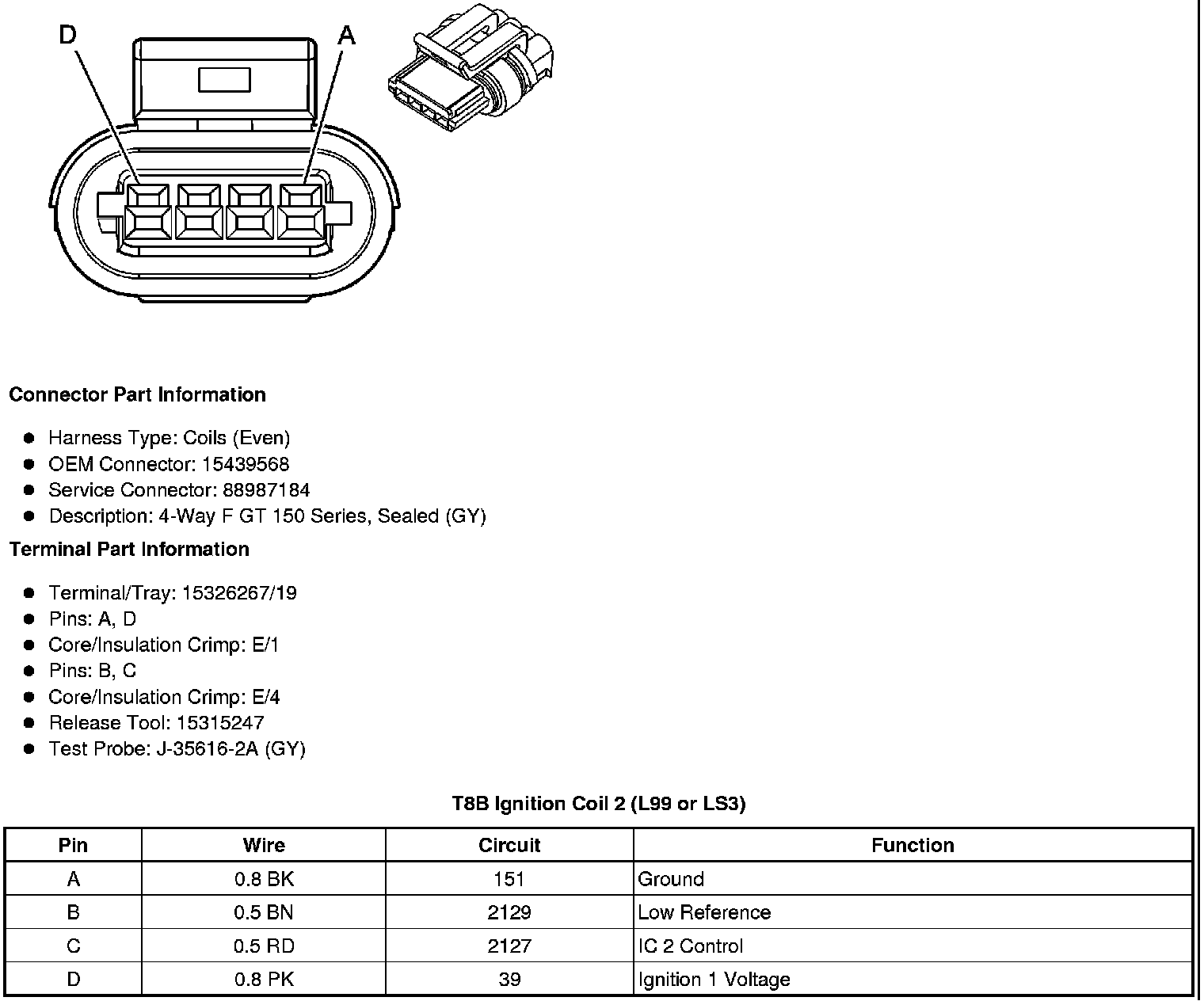

T8B Ignition Coil 2 (L99 or LS3)





T8B Ignition Coil 2 (LLT)





T8C Ignition Coil 3 (L99 or LS3)





T8C Ignition Coil 3 (LLT)

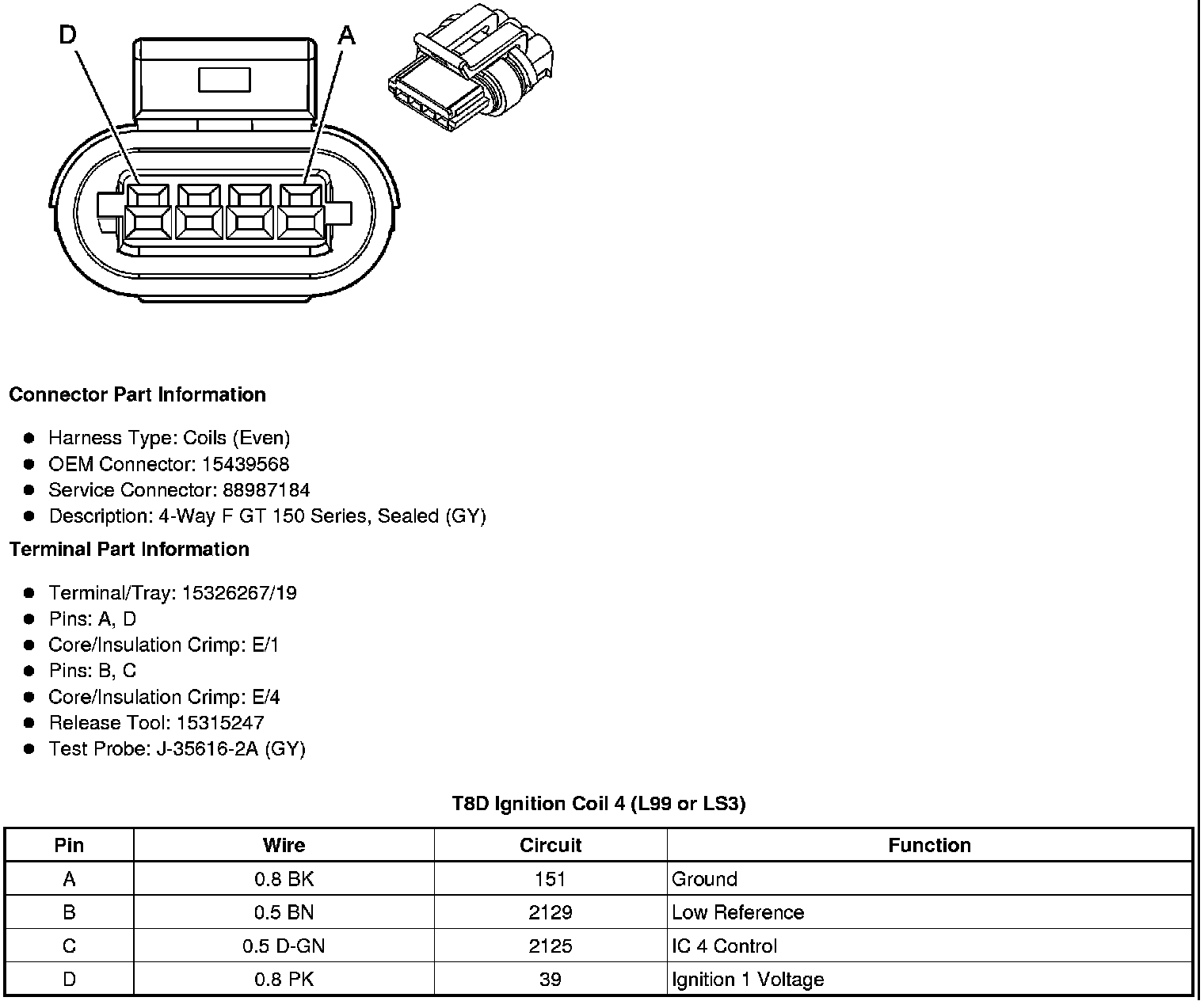

T8D Ignition Coil 4 (L99 or LS3)





T8D Ignition Coil 4 (LLT)





T8E Ignition Coil 5 (L99 or LS3)





T8E Ignition Coil 5 (LLT)

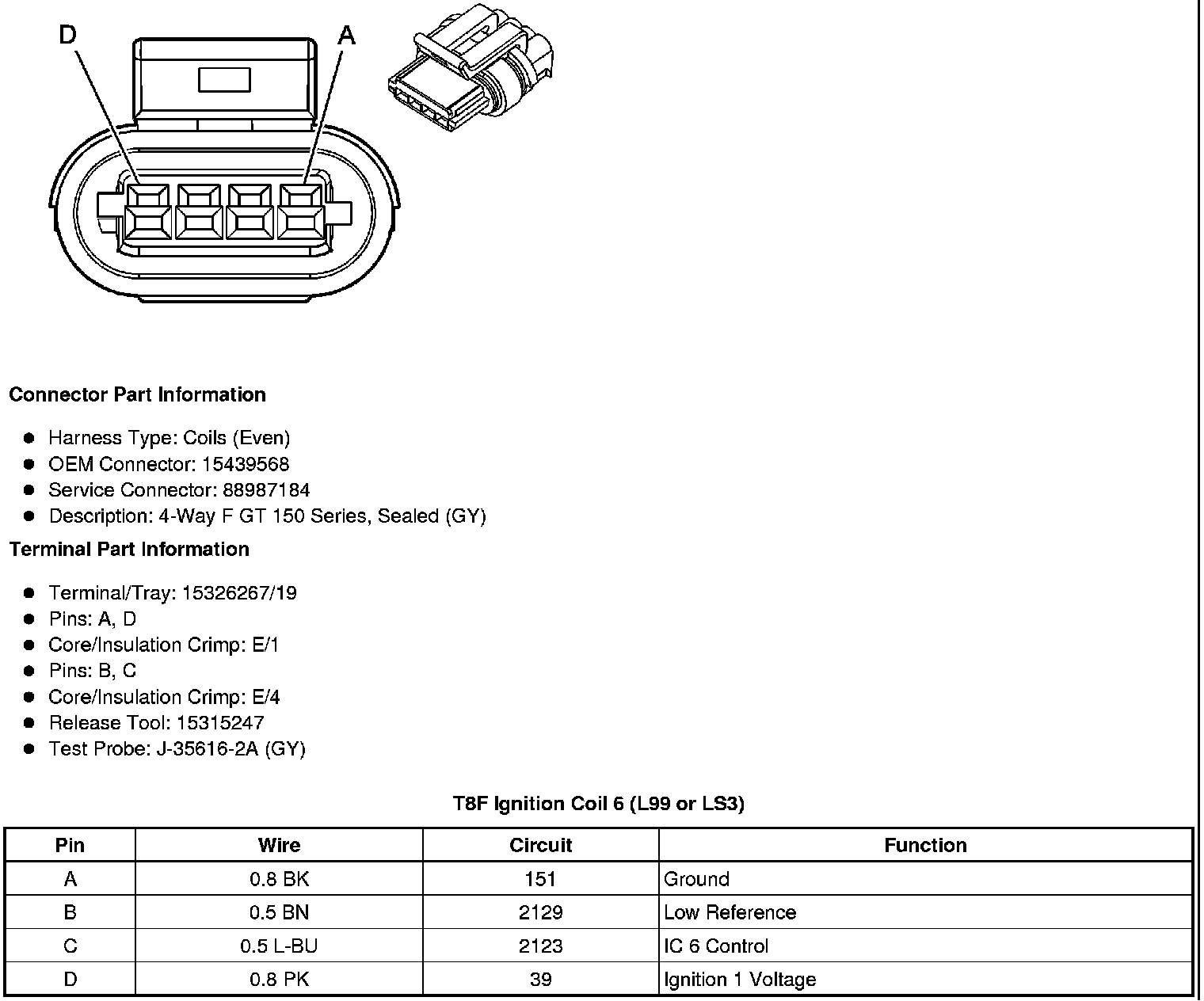

T8F Ignition Coil 6 (L99 or LS3)

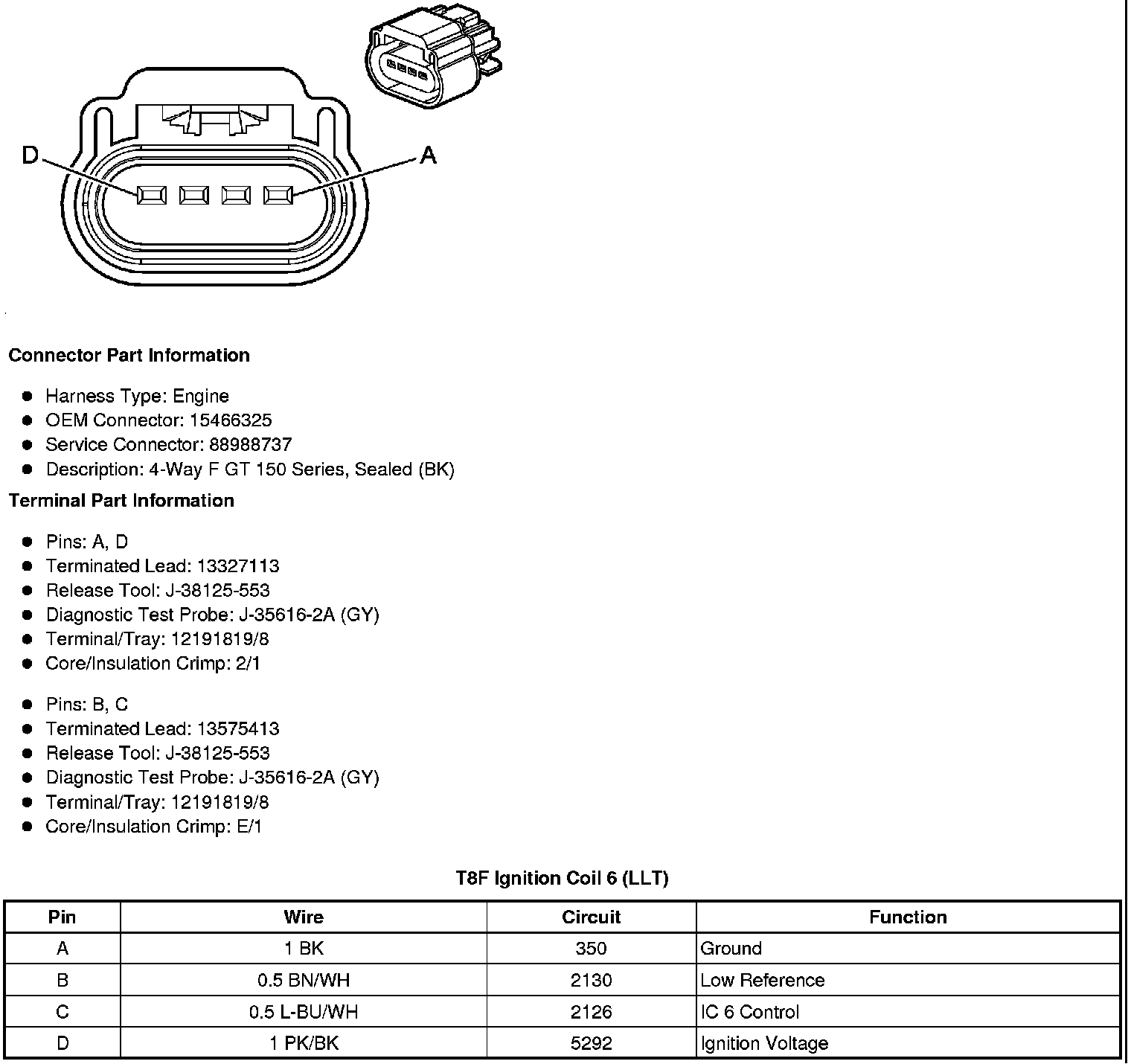

T8F Ignition Coil 6 (LLT)





T8G Ignition Coil 7 (L99 or LS3)





T8H Ignition Coil 8 (L99 or LS3)
