Moveable Window Wiring Schematics

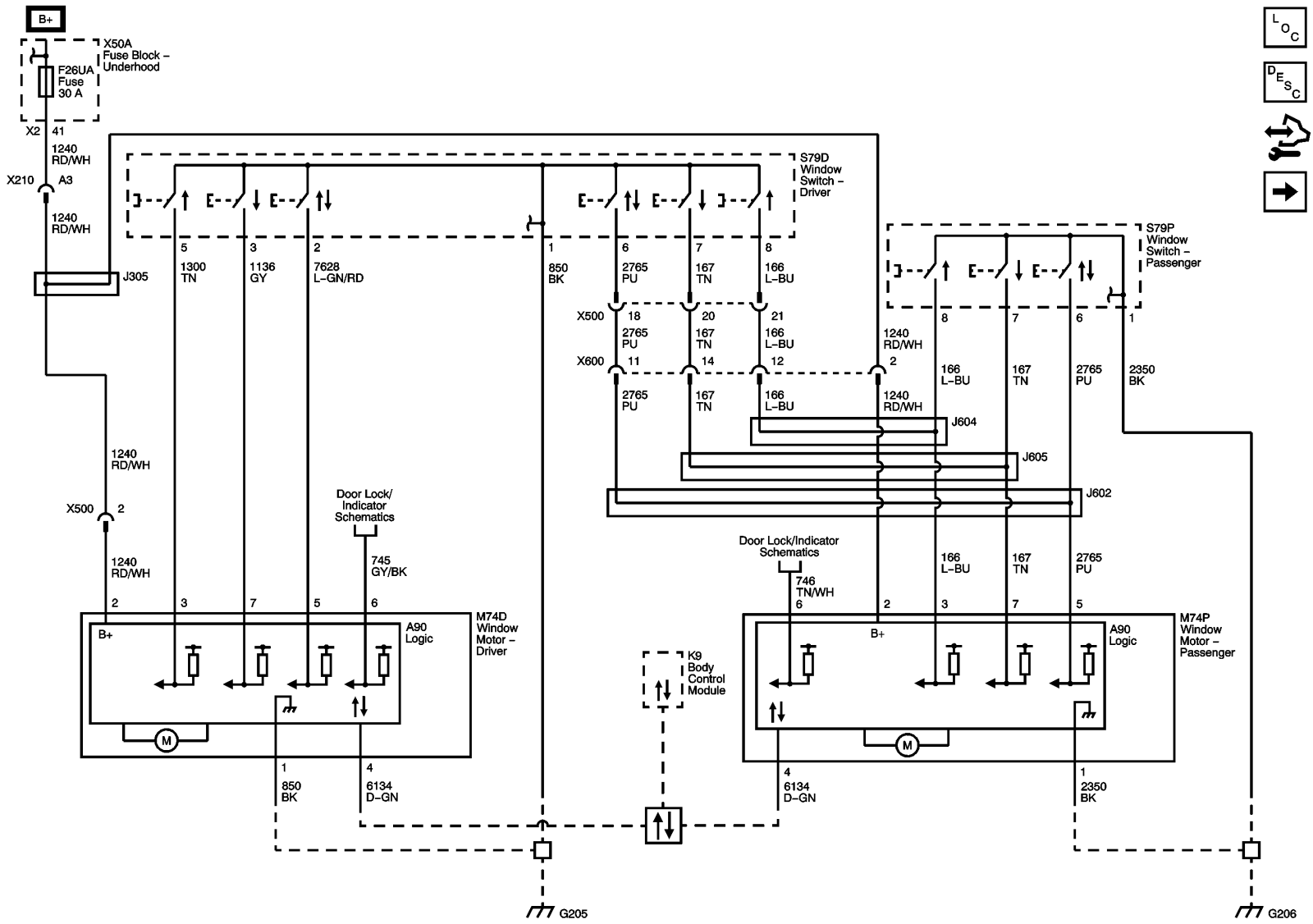

Fig 1: Moveable Window Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
