Door Window Regulator Replacement (Power Front)

Door Window Regulator Replacement (Power Front)

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).

1. Disconnect the negative battery cable.
2. Remove the door glass. Refer to Front Side Door Window Replacement (Service and Repair).

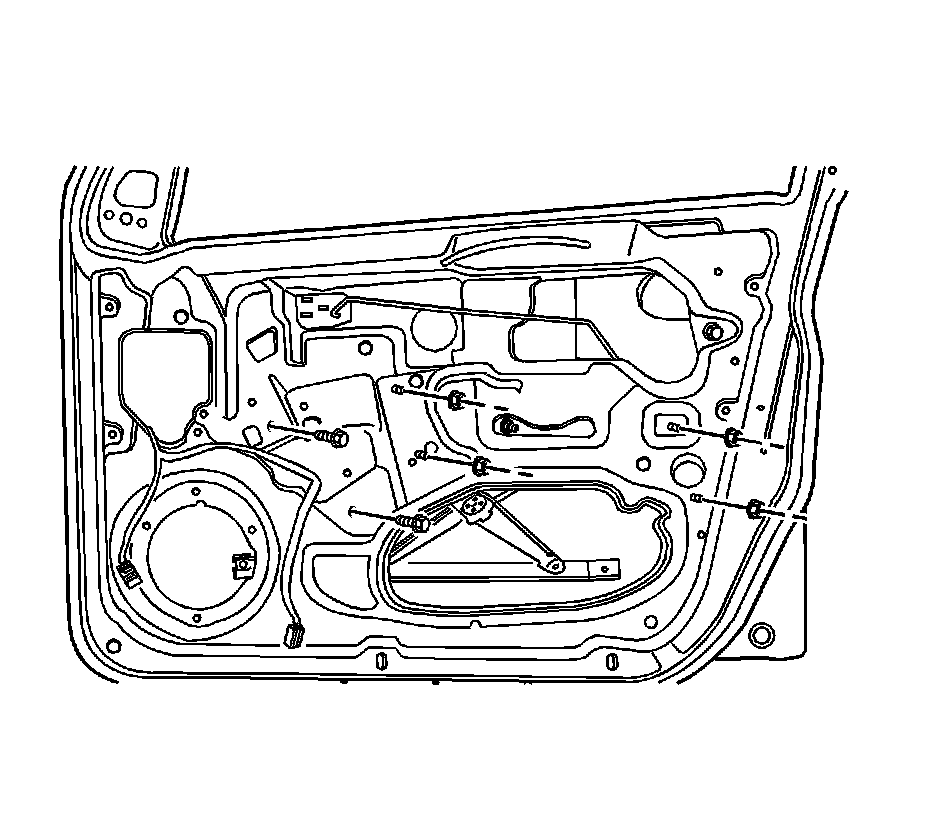

3. Remove the nuts and the regulator.
4. Disconnect the electrical connector.

Installation Procedure




1. Connect the electrical connector.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the window regulator with the nuts and tighten to 7 Nm (62 lb in).
3. Install the front door glass. Refer to Front Side Door Window Replacement (Service and Repair).
4. Connect the negative battery cable.
5. If the vehicle is equipped with a one touch up function, and the driver side power window regulator has been replaced, perform the window motor reinitialization process. Refer to Power Window Reinitialization ().
