Power Window Switch
>>
Window Switch - Driver (ABZ)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

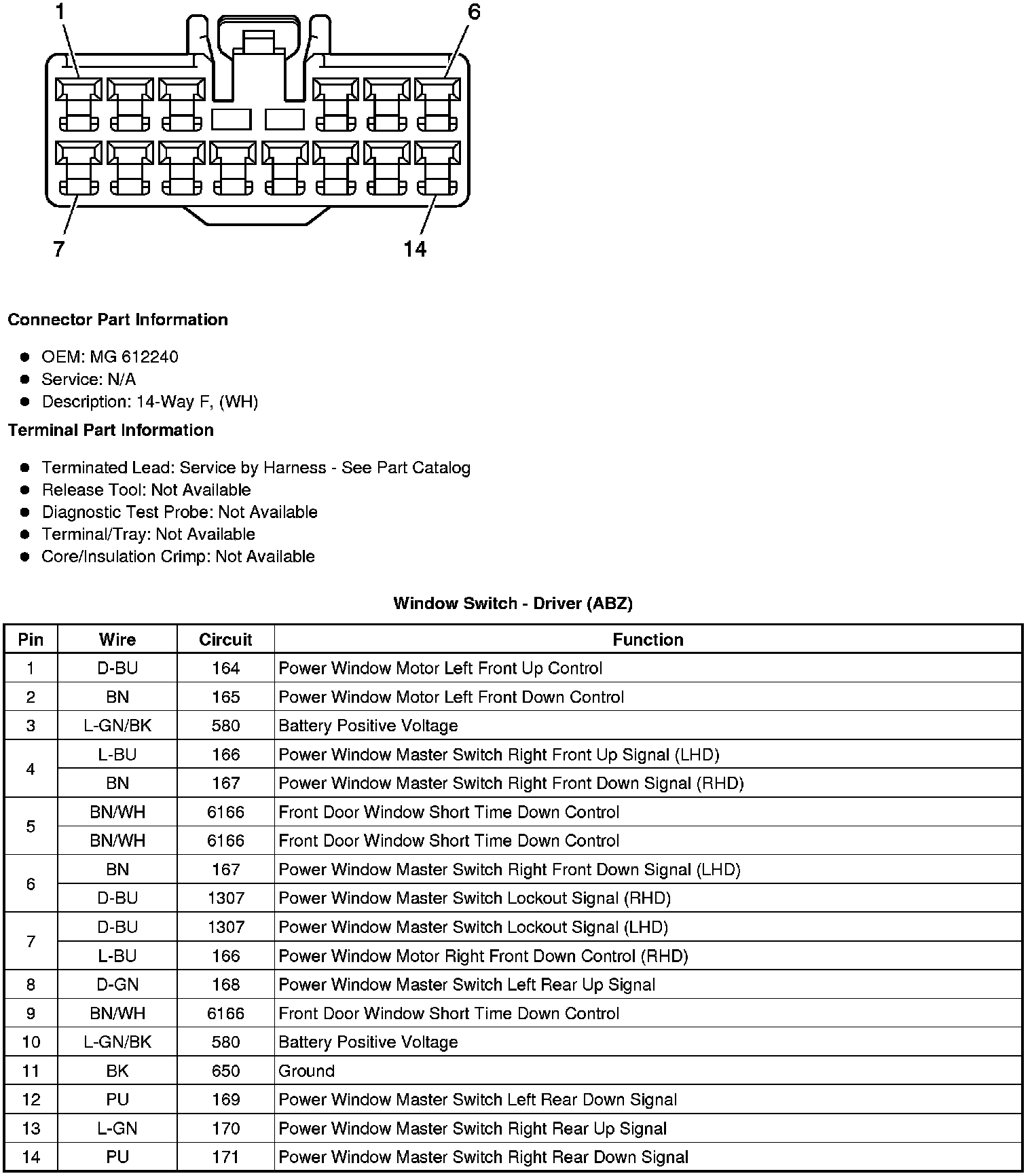

Window Switch - Driver (ABZ)
Component Connector End Views
Window Switch - Driver (ABZ)
