Transmission Support Crossmember Replacement

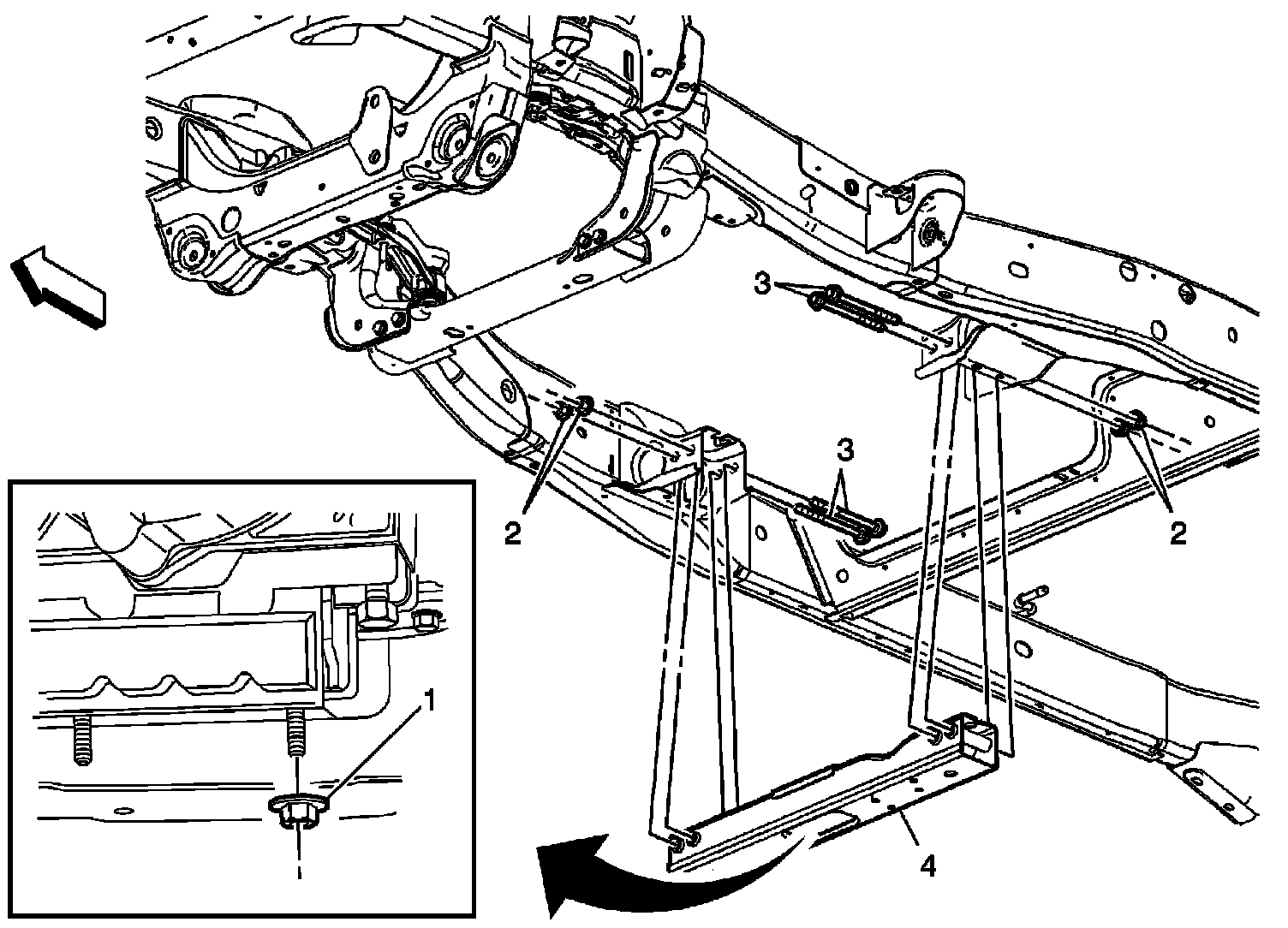

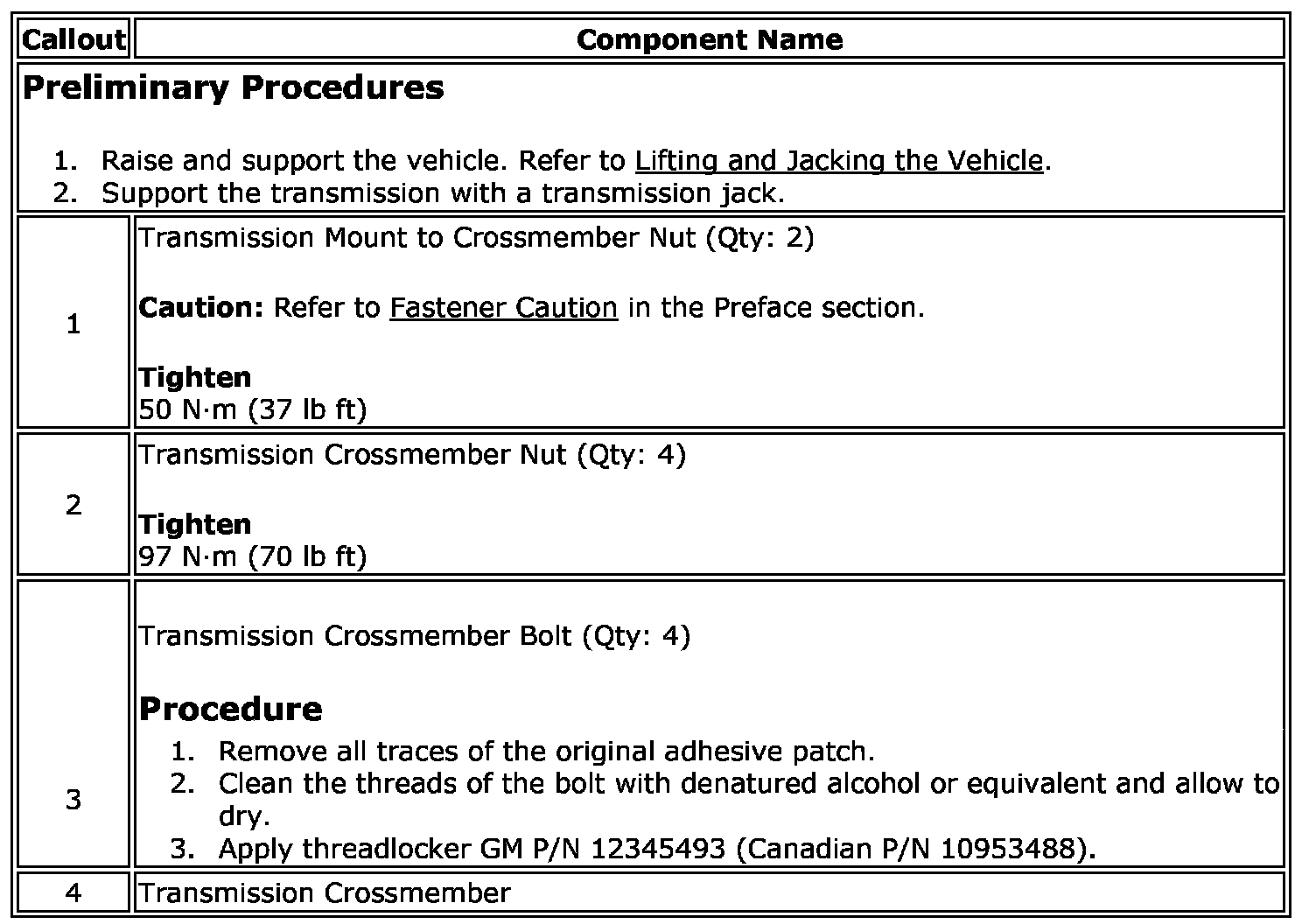

Transmission Support Crossmember Replacement (4WD 1500 Series)

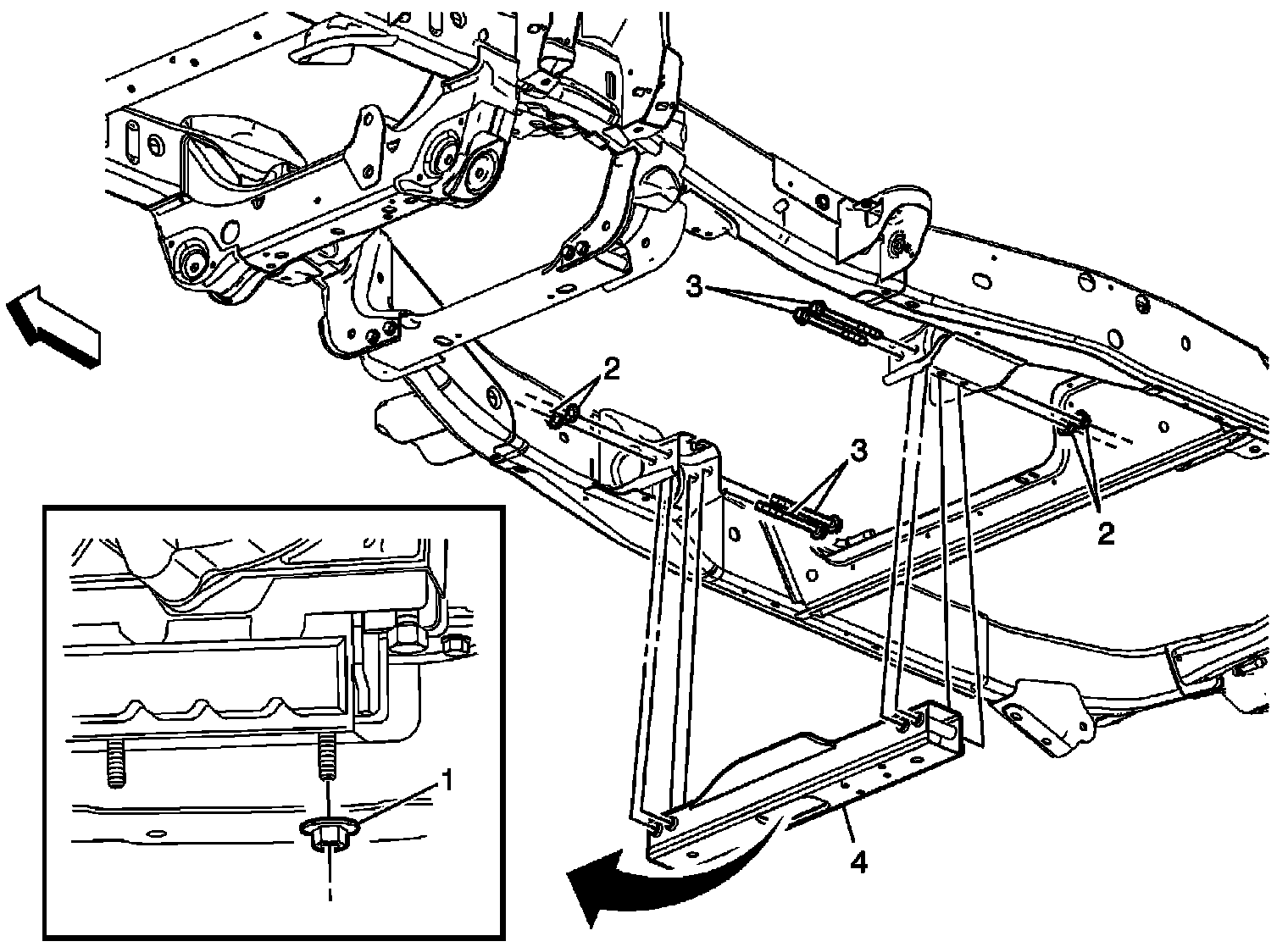

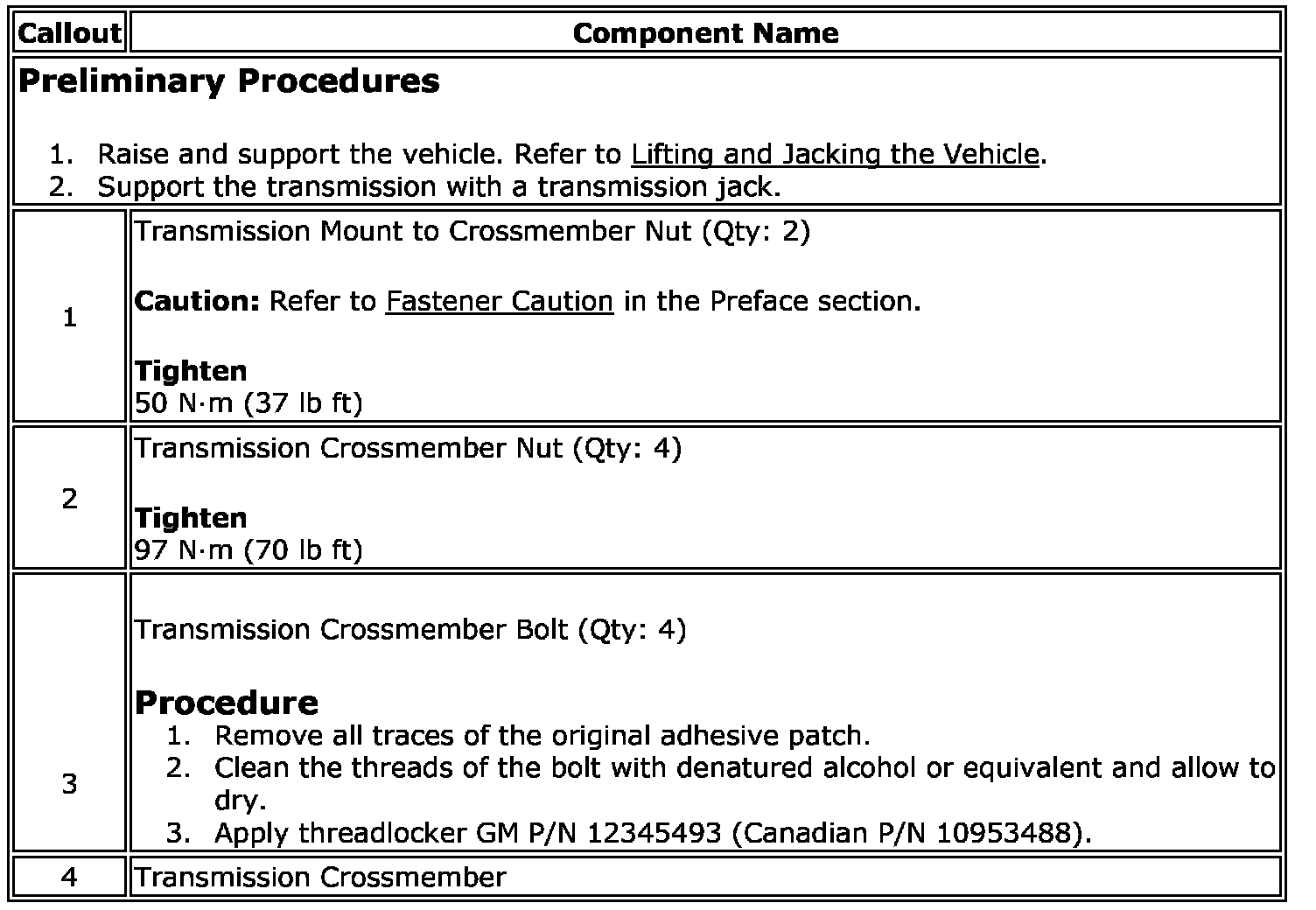

Transmission Support Crossmember Replacement (2WD 1500 Series)

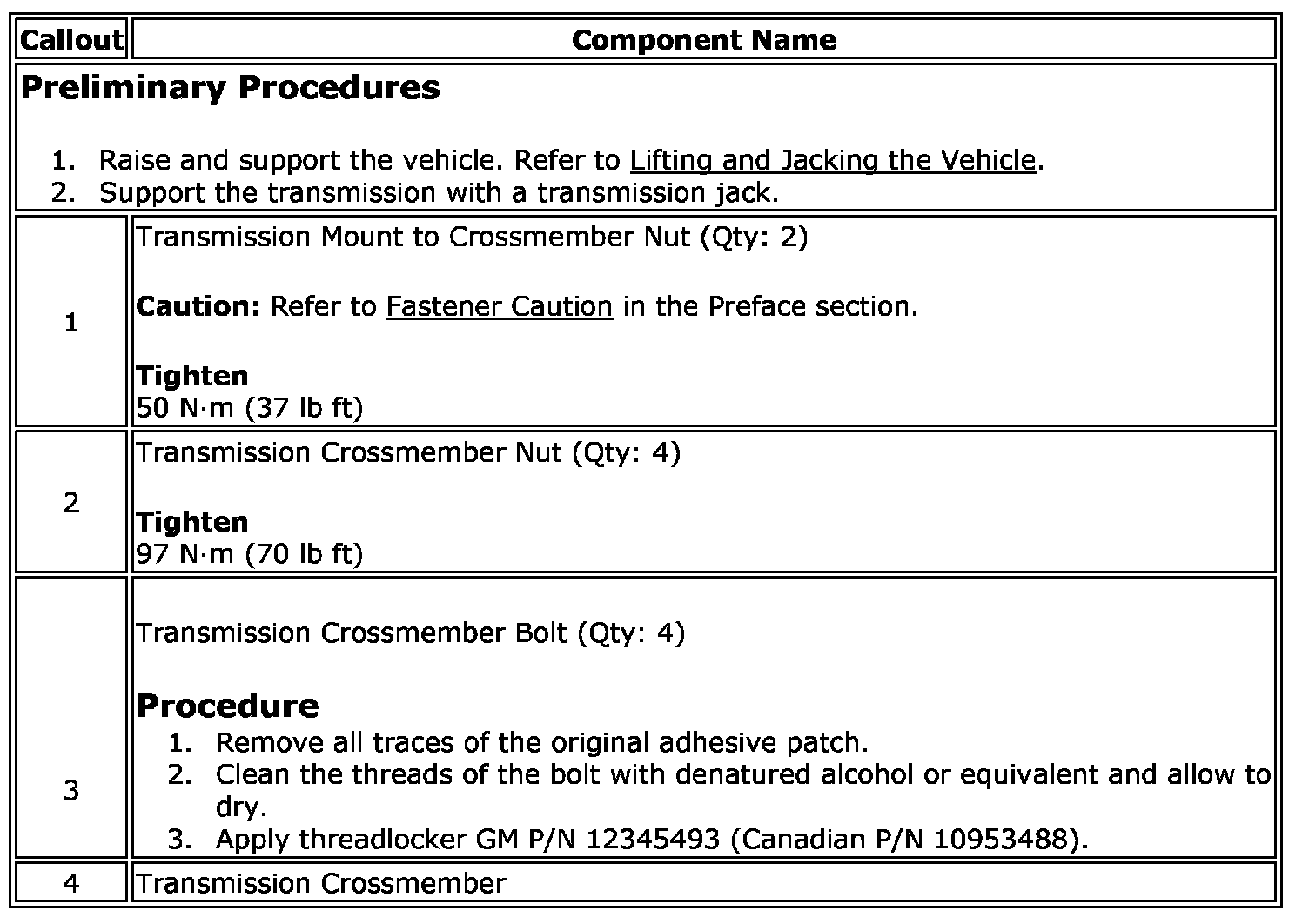

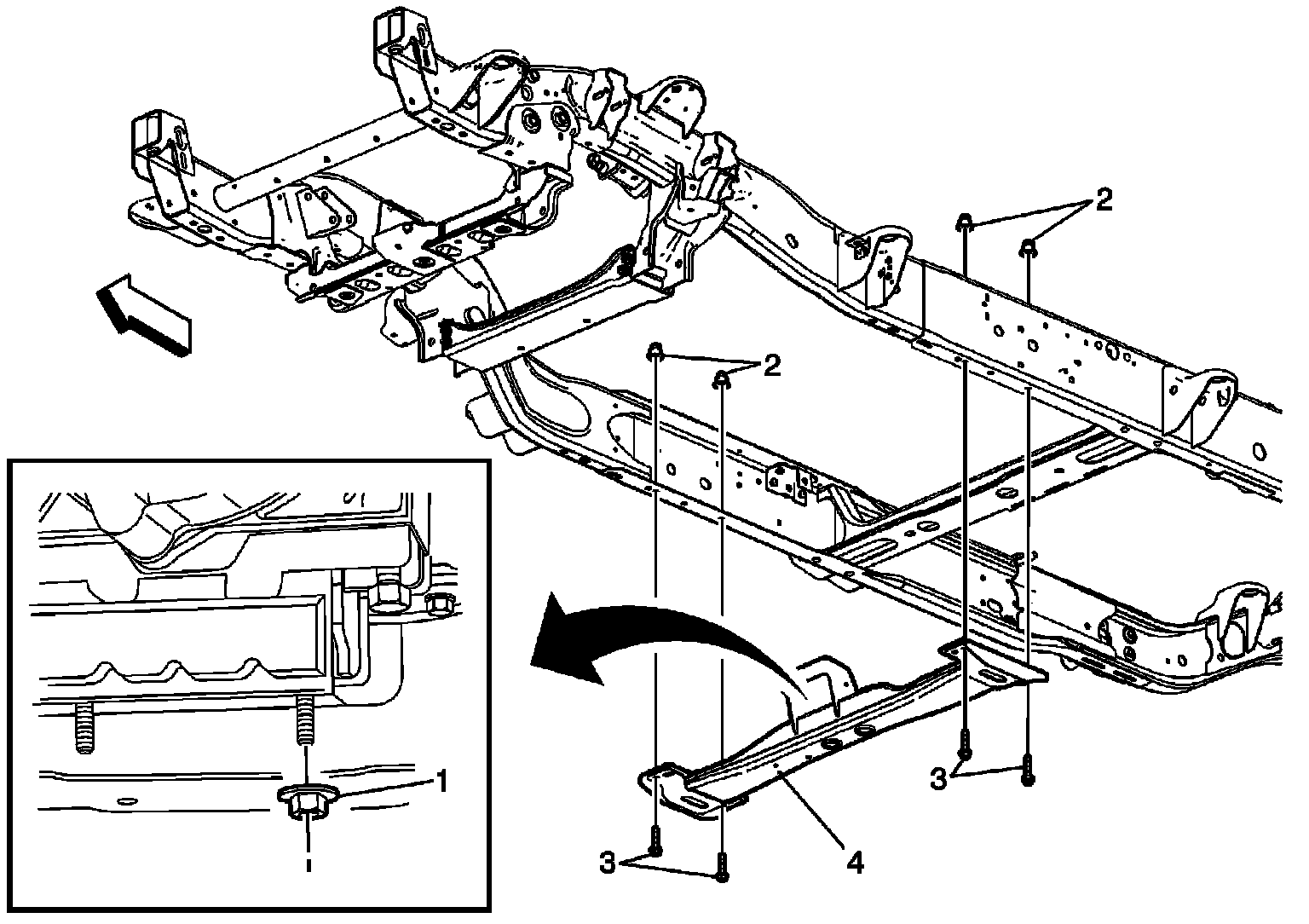

Transmission Support Crossmember Replacement (4WD 2500 Series)

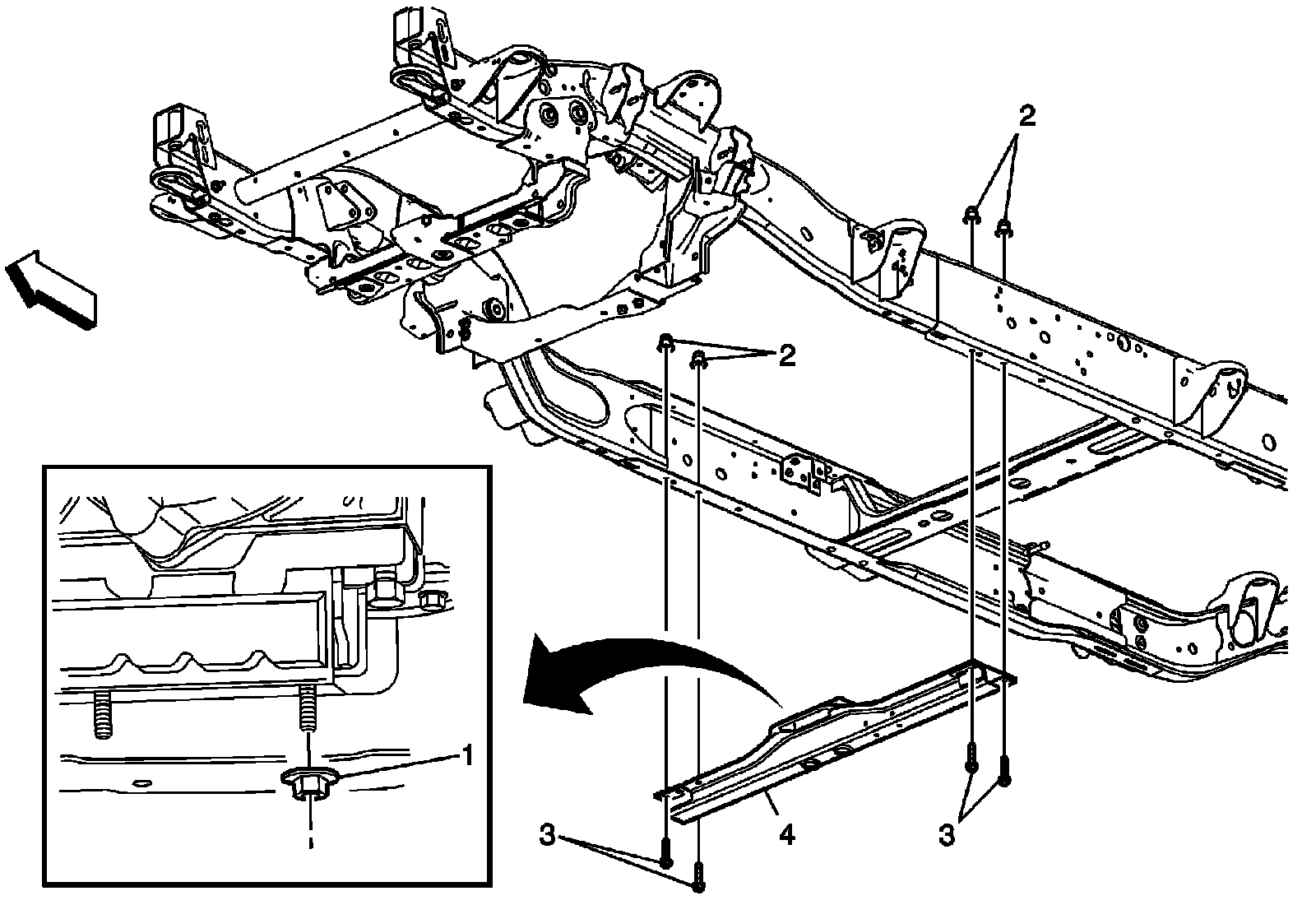

Transmission Support Crossmember Replacement (2WD 2500 Series)
