Moveable Window Schematics (AXE)

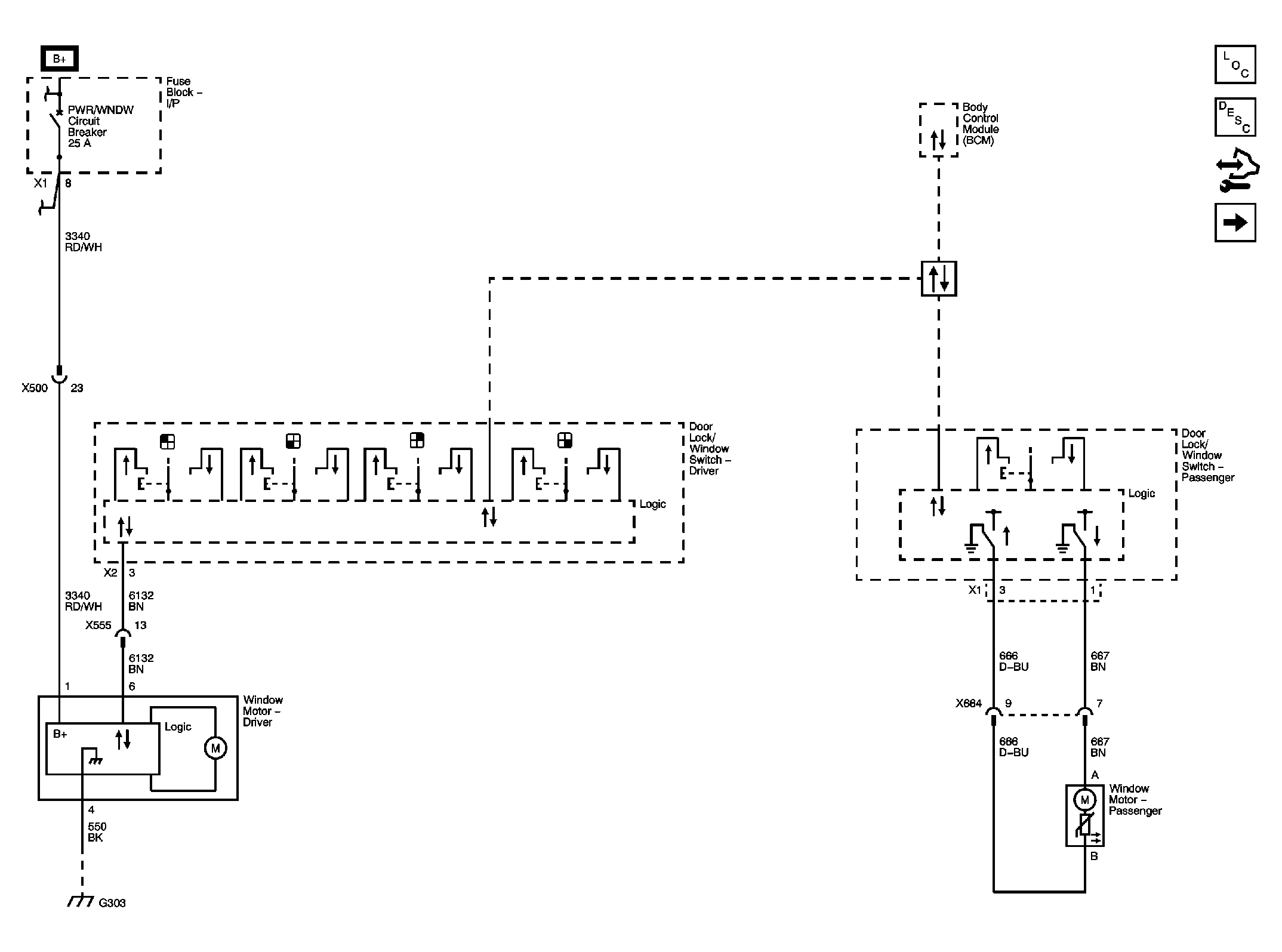

Fig 1: Front Moveable Window Circuit Schematic (AXE)
GM2247917Courtesy of GENERAL MOTORS CORP.

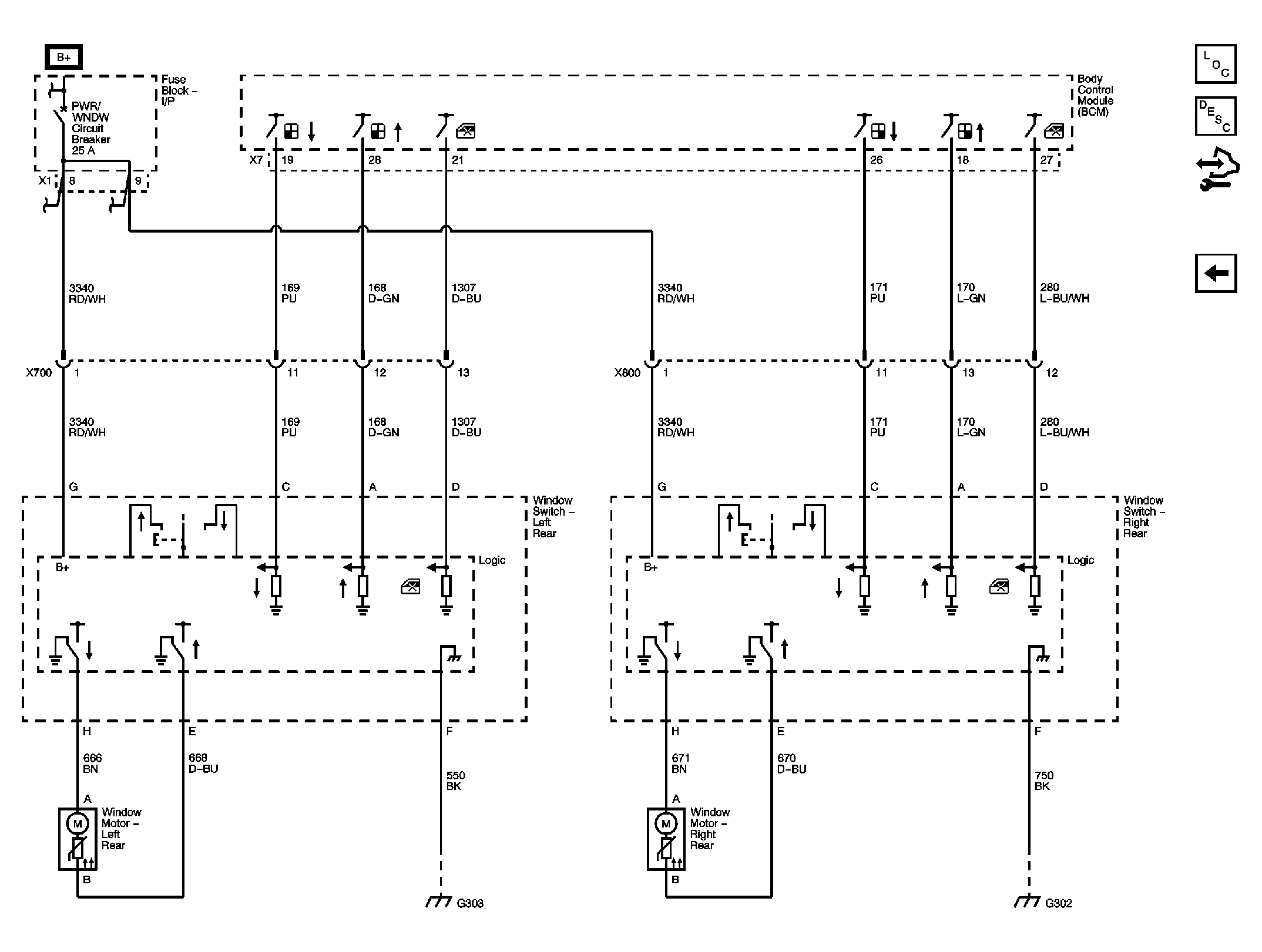

Fig 2: Rear Moveable Window Circuit Schematic (AXE)
GM2247919Courtesy of GENERAL MOTORS CORP.
