Fuse Block - I/P




Electrical Center Identification Views

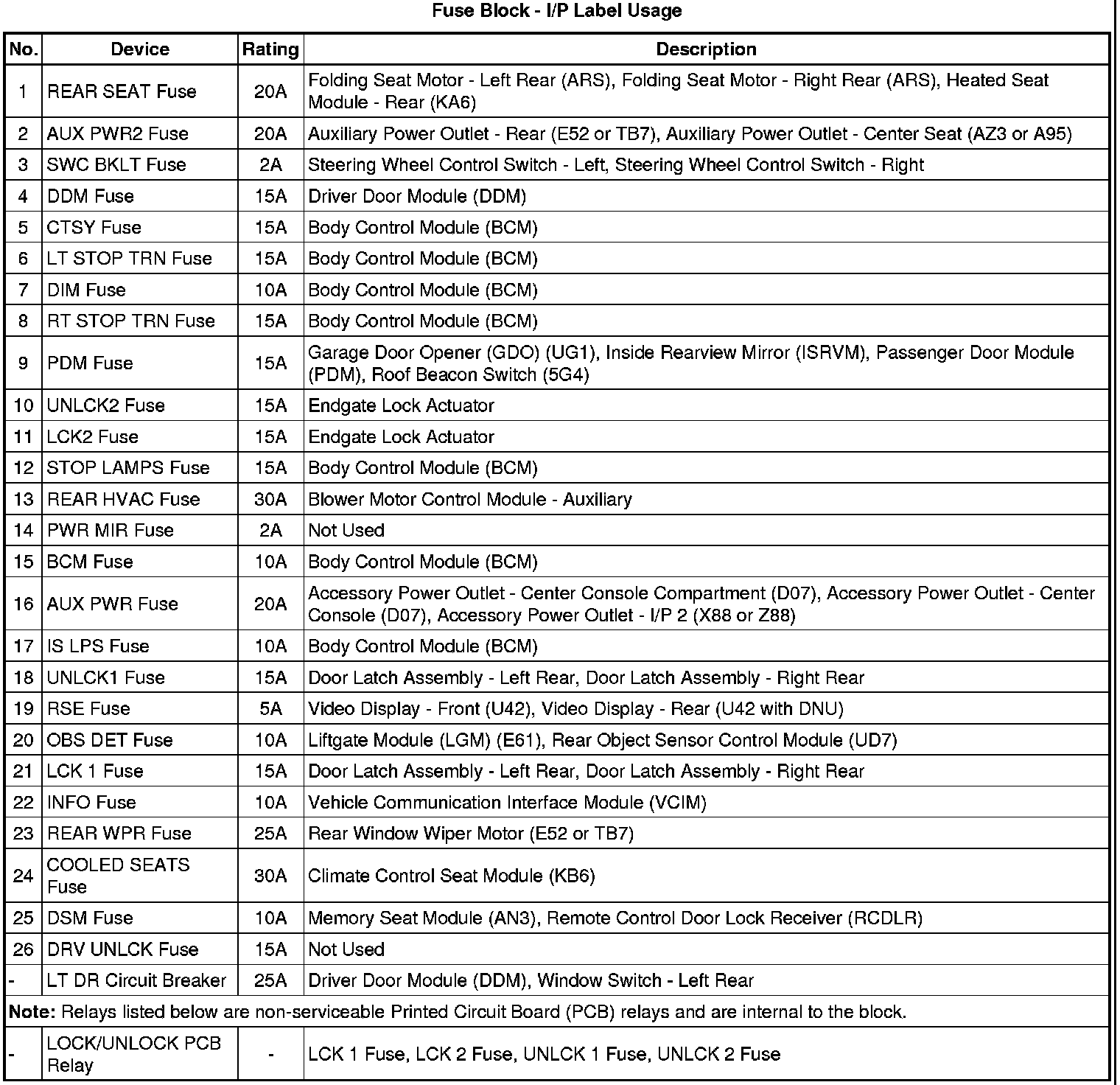

Fuse Block - I/P Label









Fuse Block - I/P, Top View





Fuse Block - I/P, Bottom View

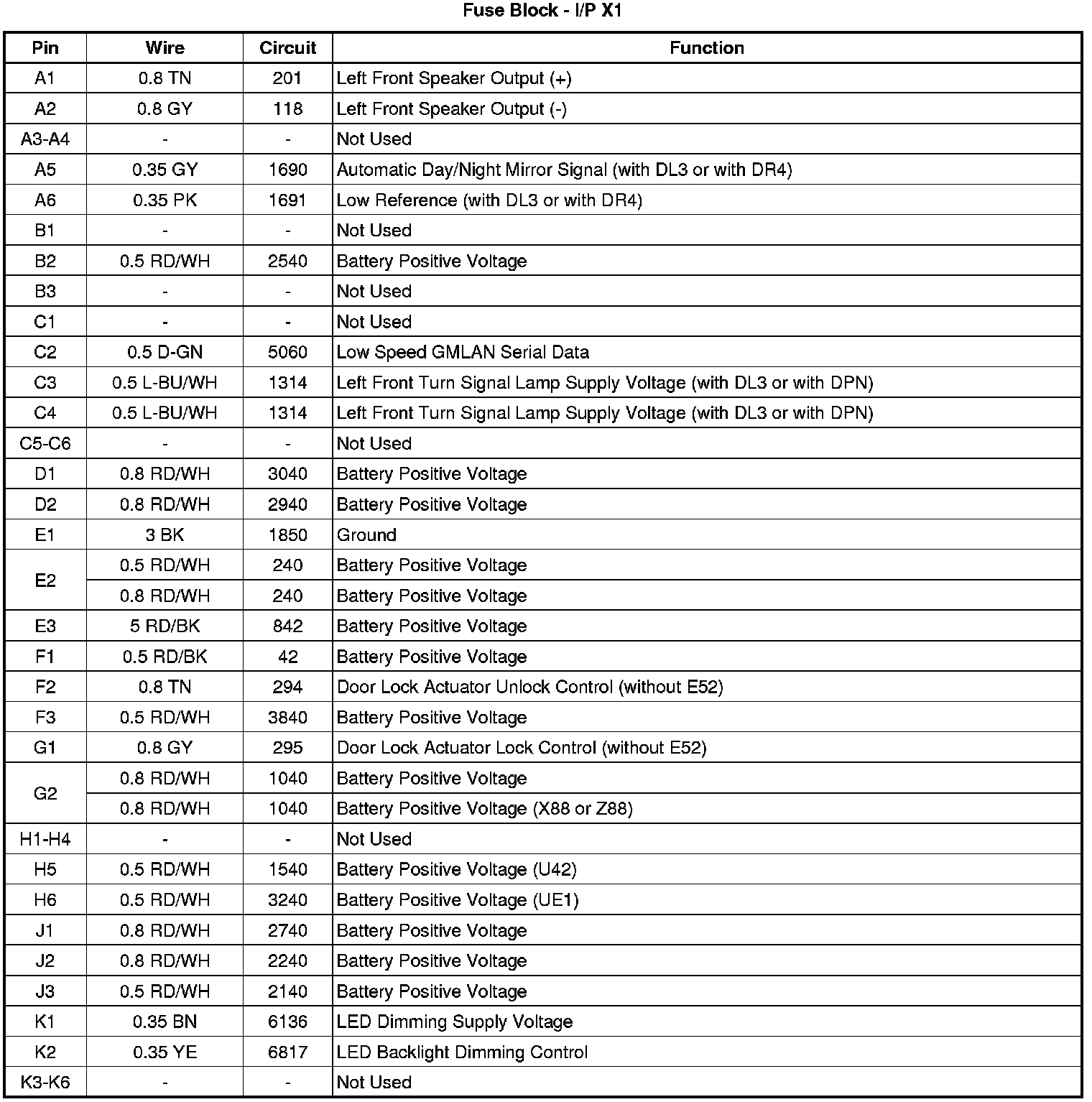

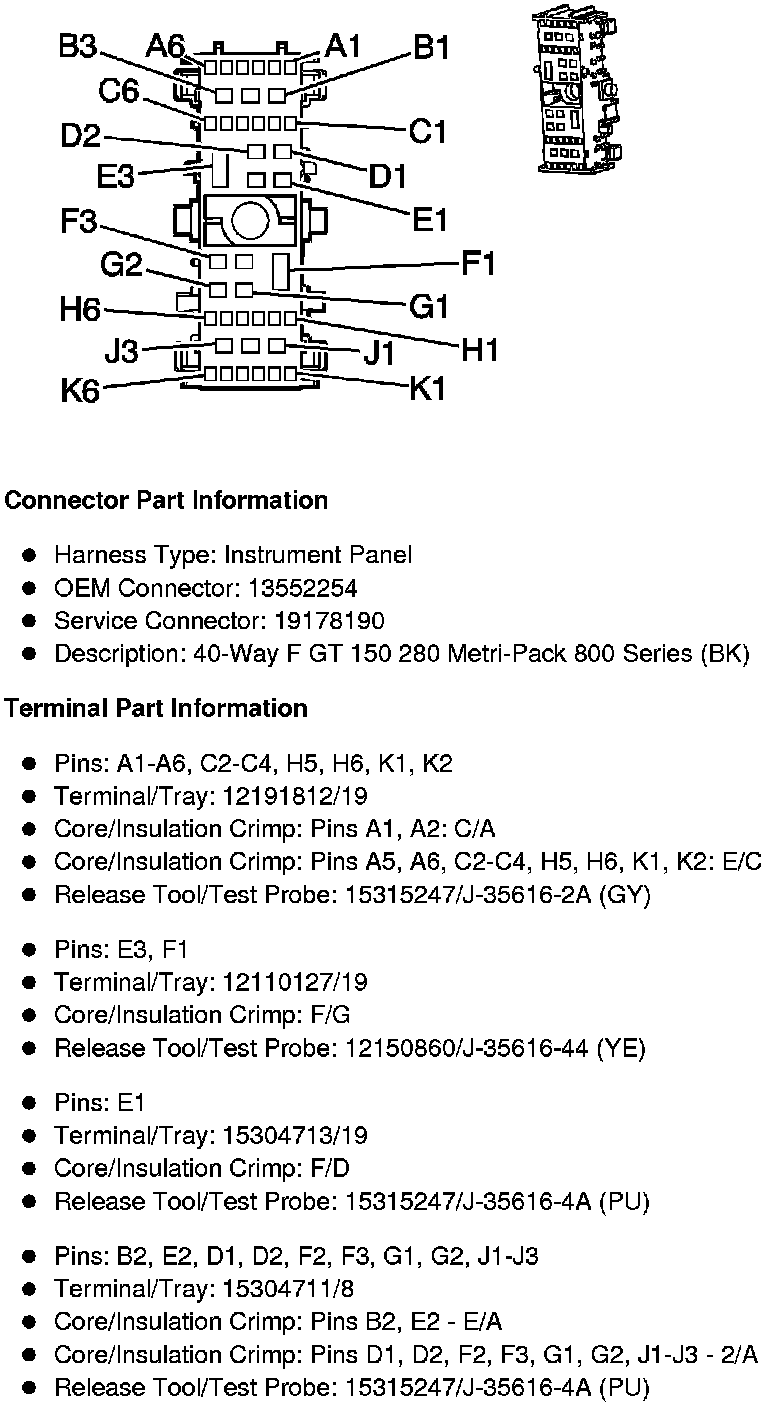

Fuse Block - I/P X1

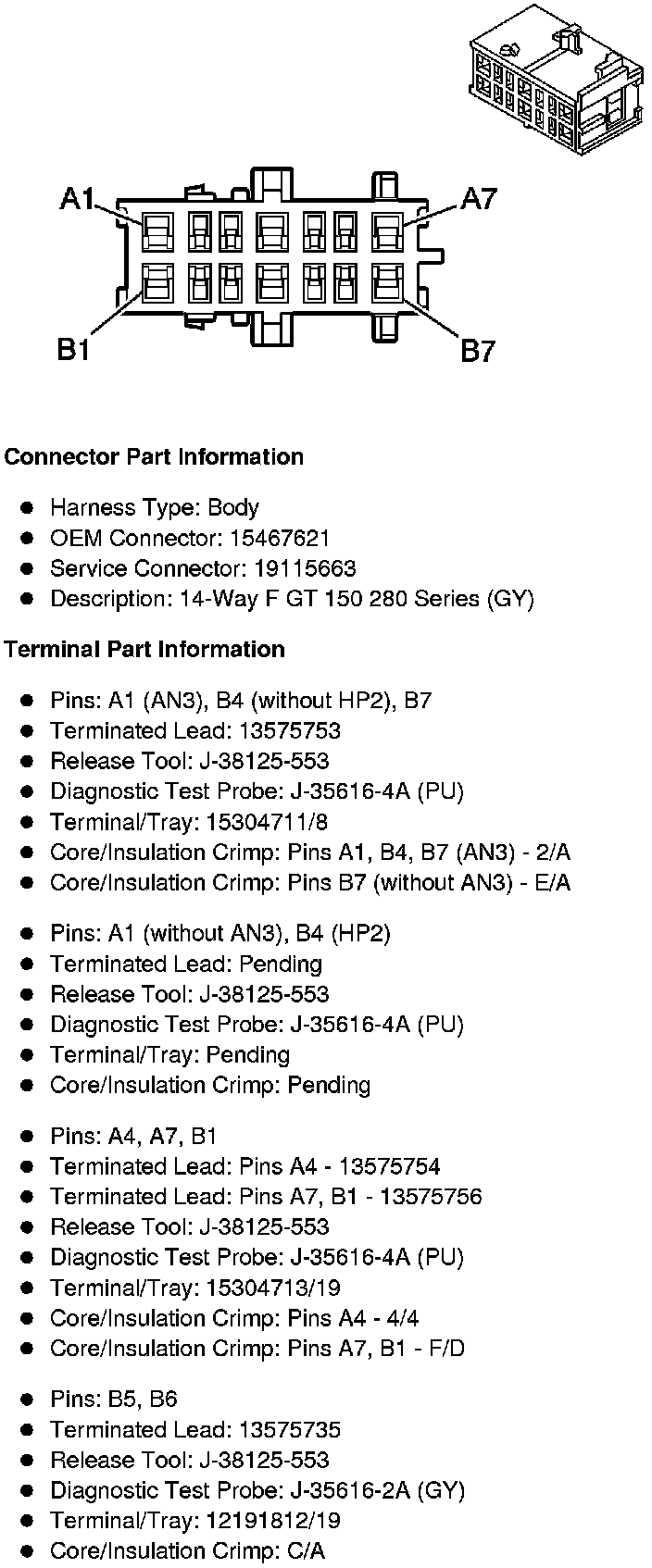

Fuse Block - I/P X2

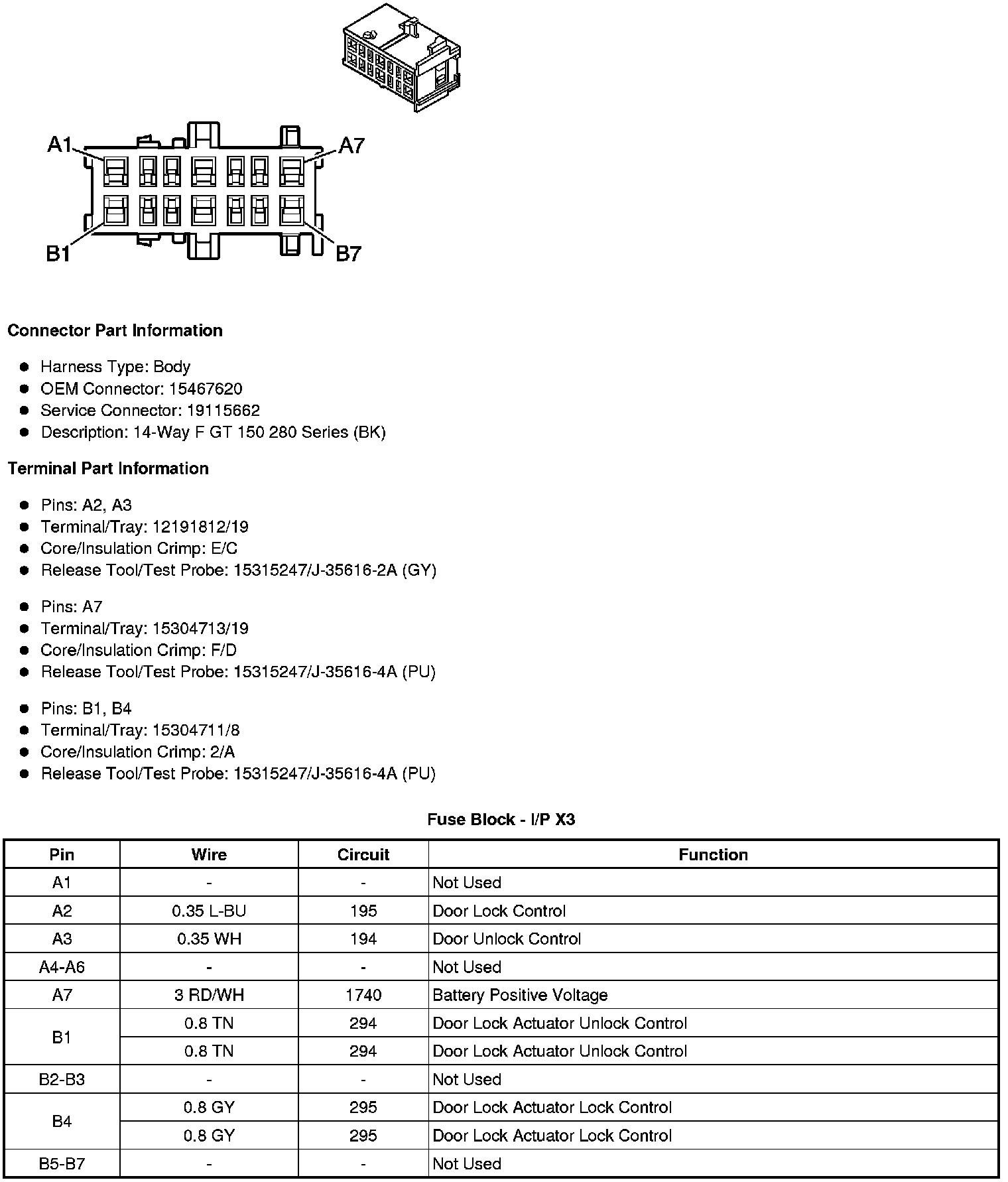

Fuse Block - I/P X3





Fuse Block - I/P X4
