Amplifier, Sound System




Component Connector End Views

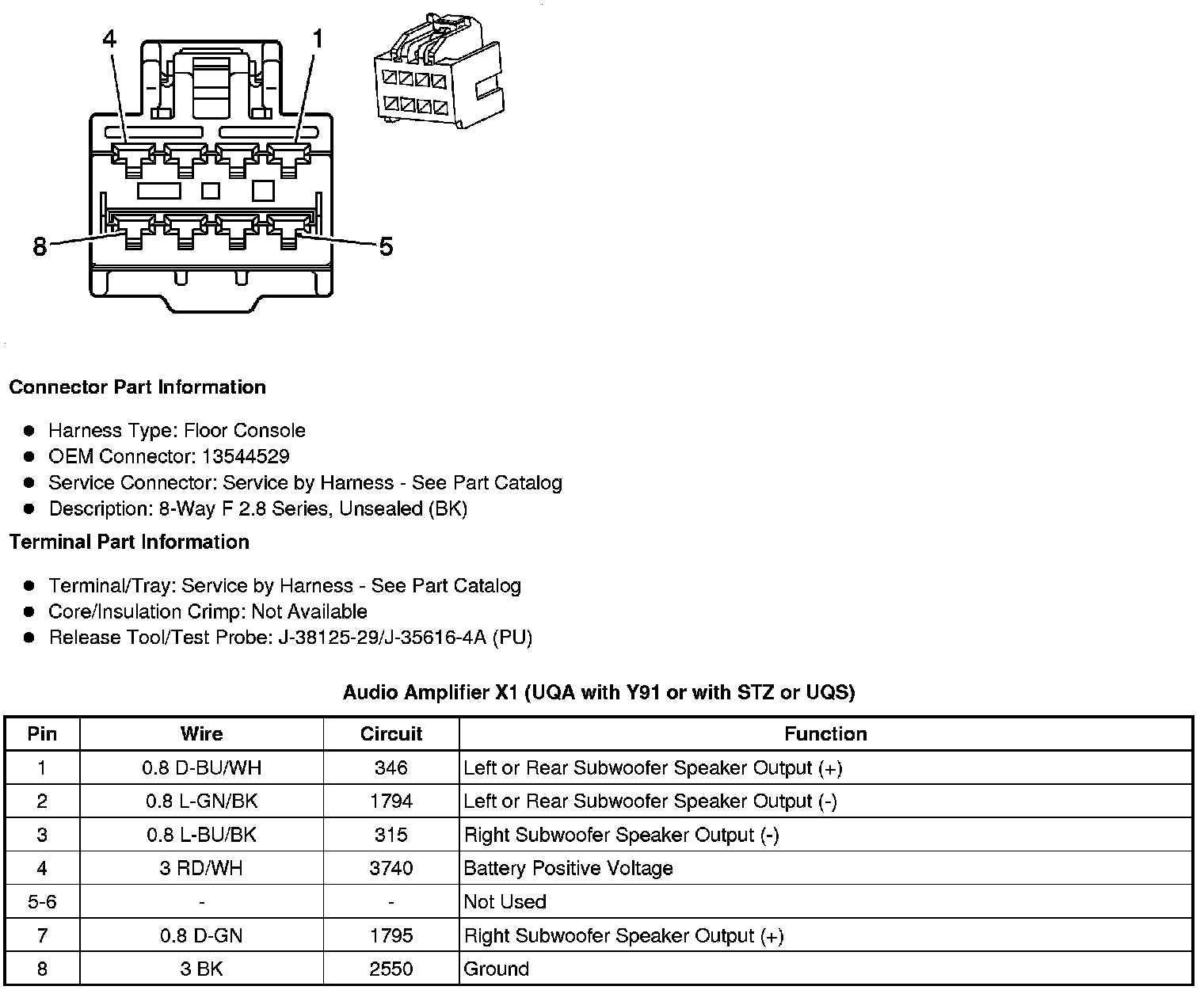

Audio Amplifier X1 (UQA with Y91 or with STZ or UQS)

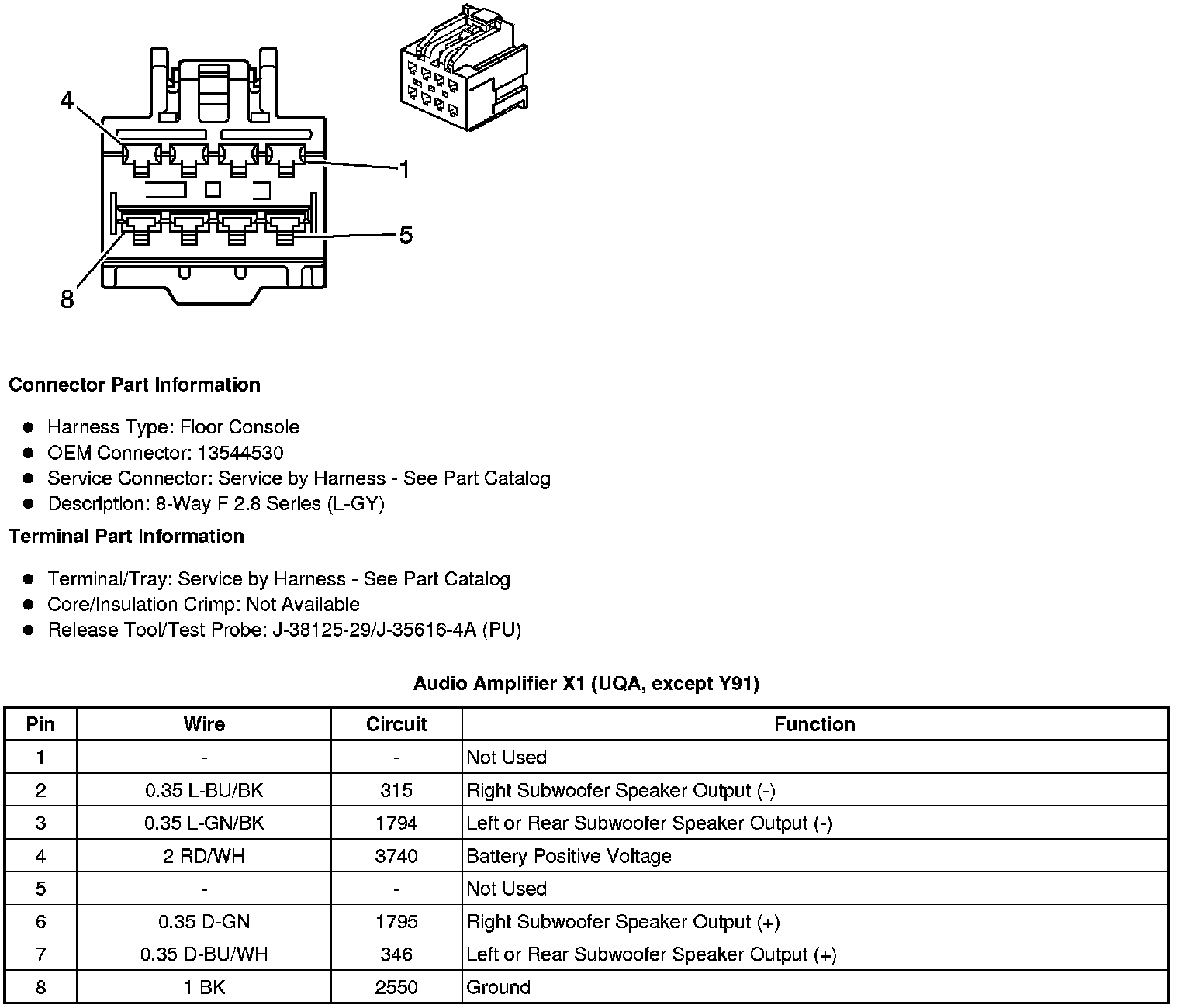

Audio Amplifier X1 (UQA, except Y91)

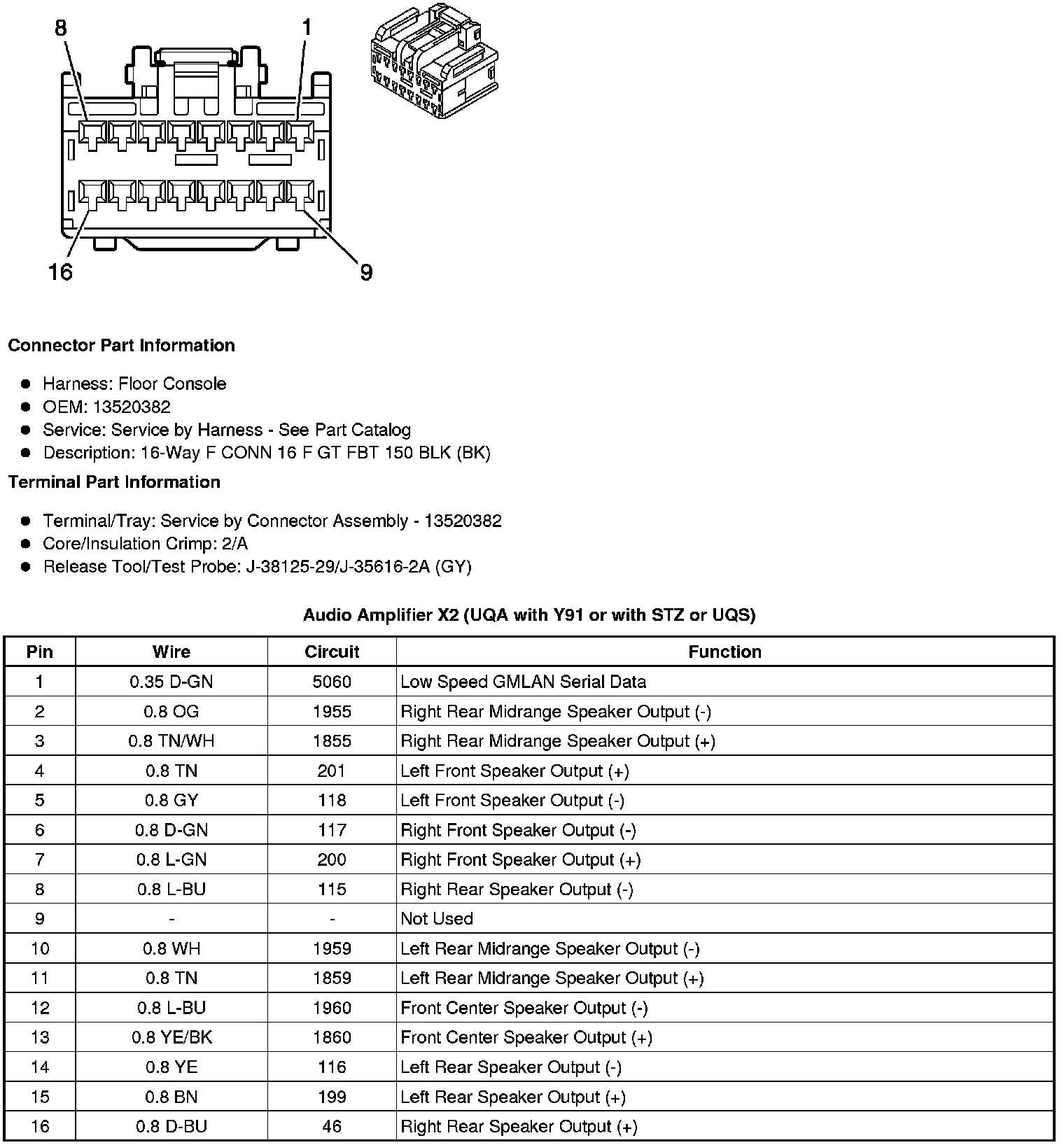

Audio Amplifier X2 (UQA with Y91 or with STZ or UQS)

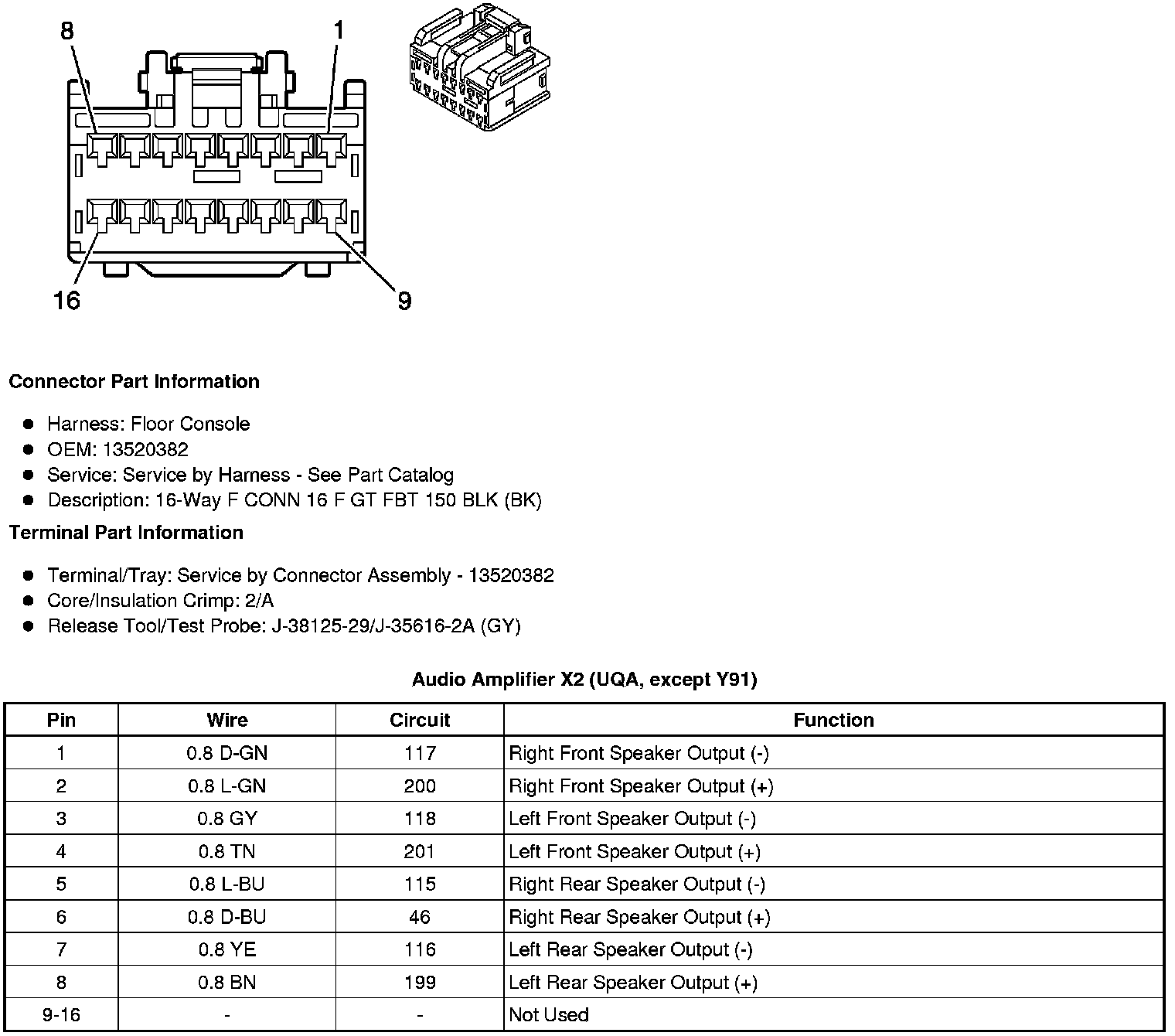

Audio Amplifier X2 (UQA, except Y91)

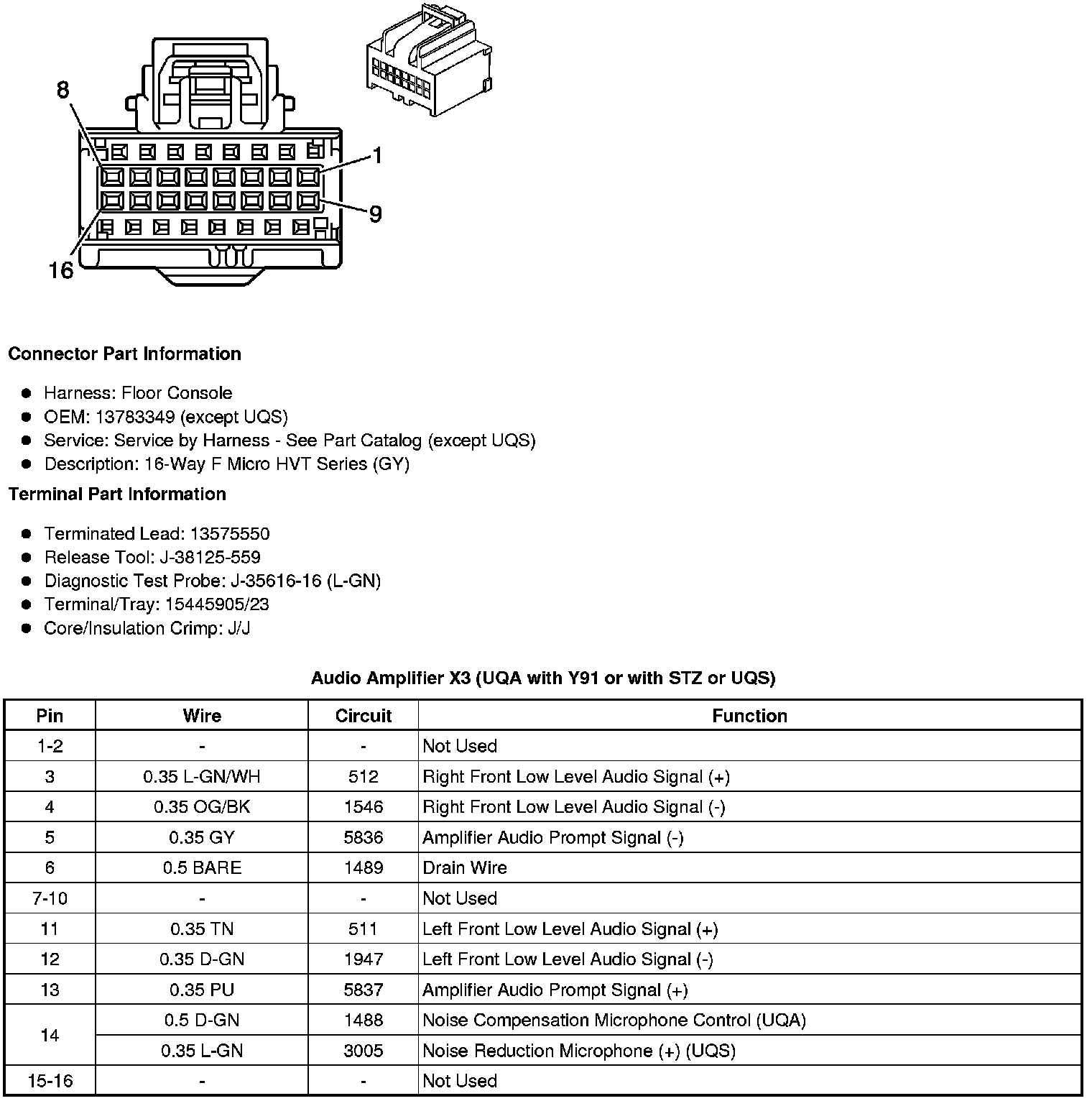

Audio Amplifier X3 (UQA with Y91 or with STZ or UQS)

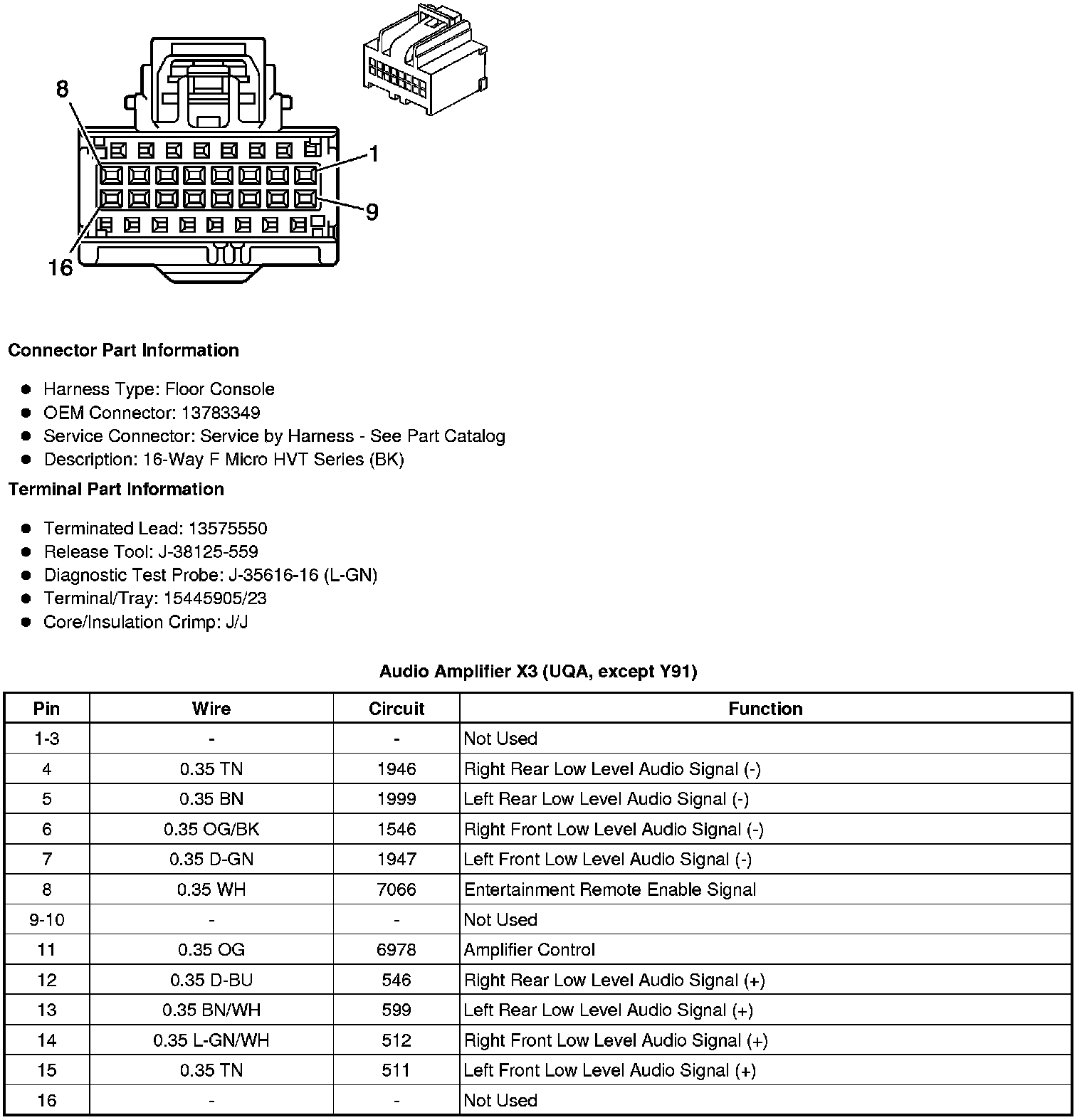

Audio Amplifier X3 (UQA, except Y91)

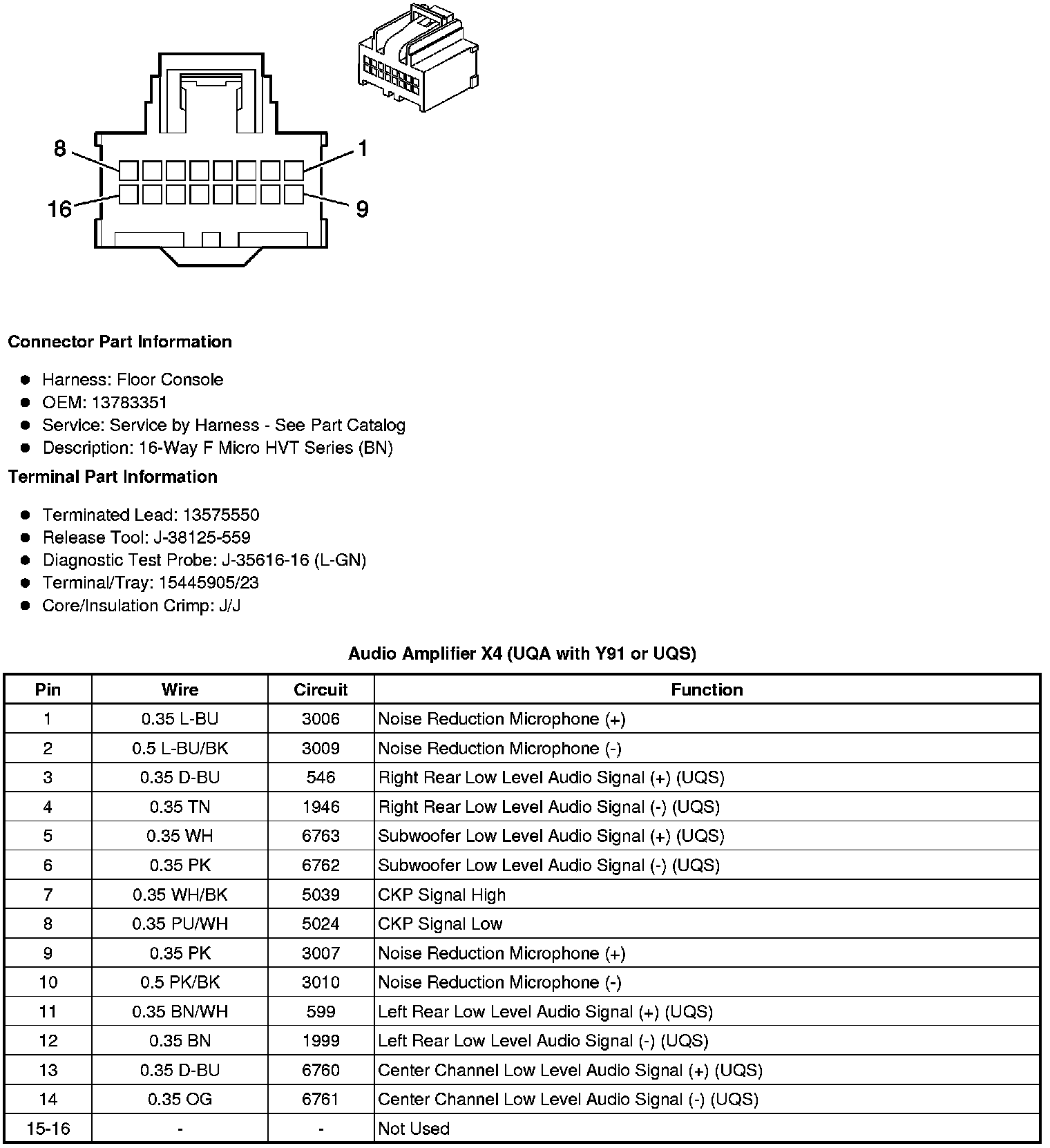

Audio Amplifier X4 (UQA with Y91 or UQS)
