Trailer Brake Control Module

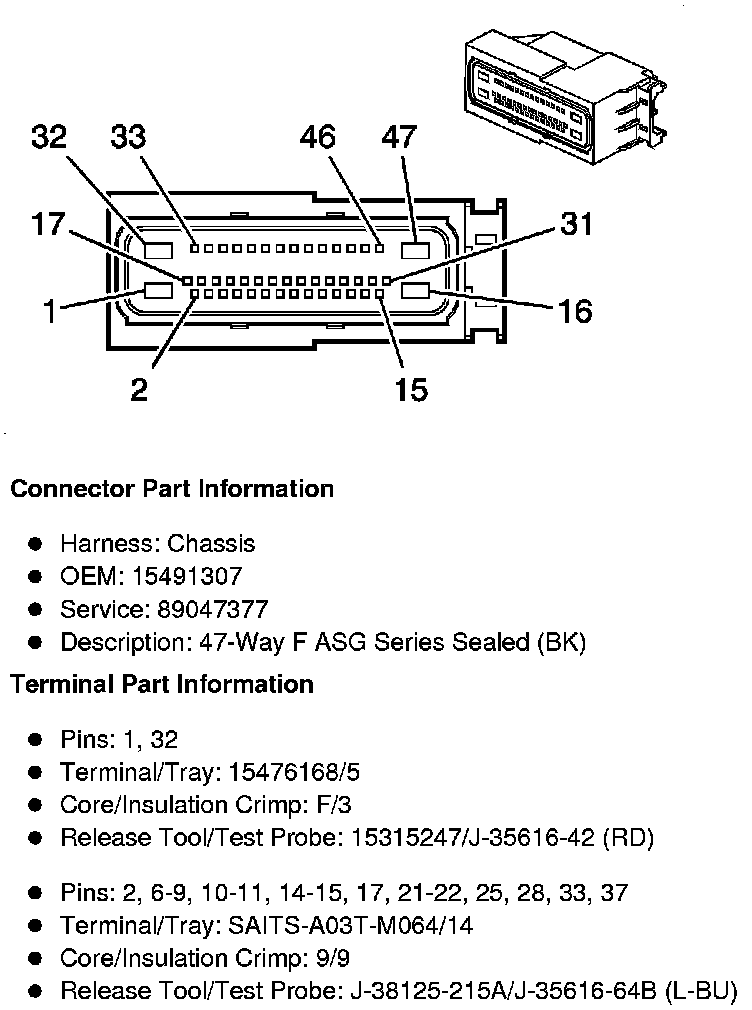

Component Connector End Views

Trailer Brake Control Module (JL1 except 31 Series)

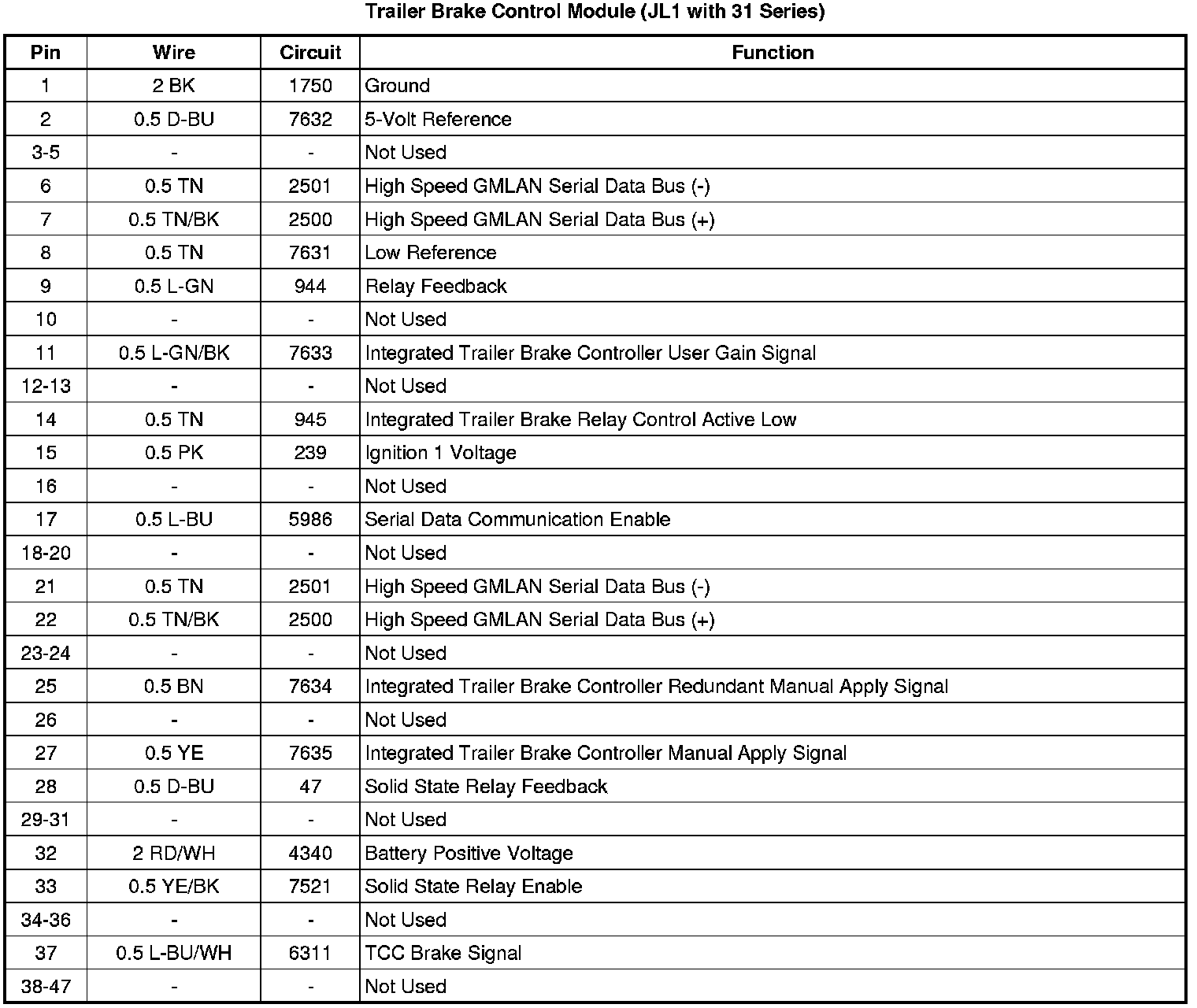

Trailer Brake Control Module (JL1 with 31 Series)

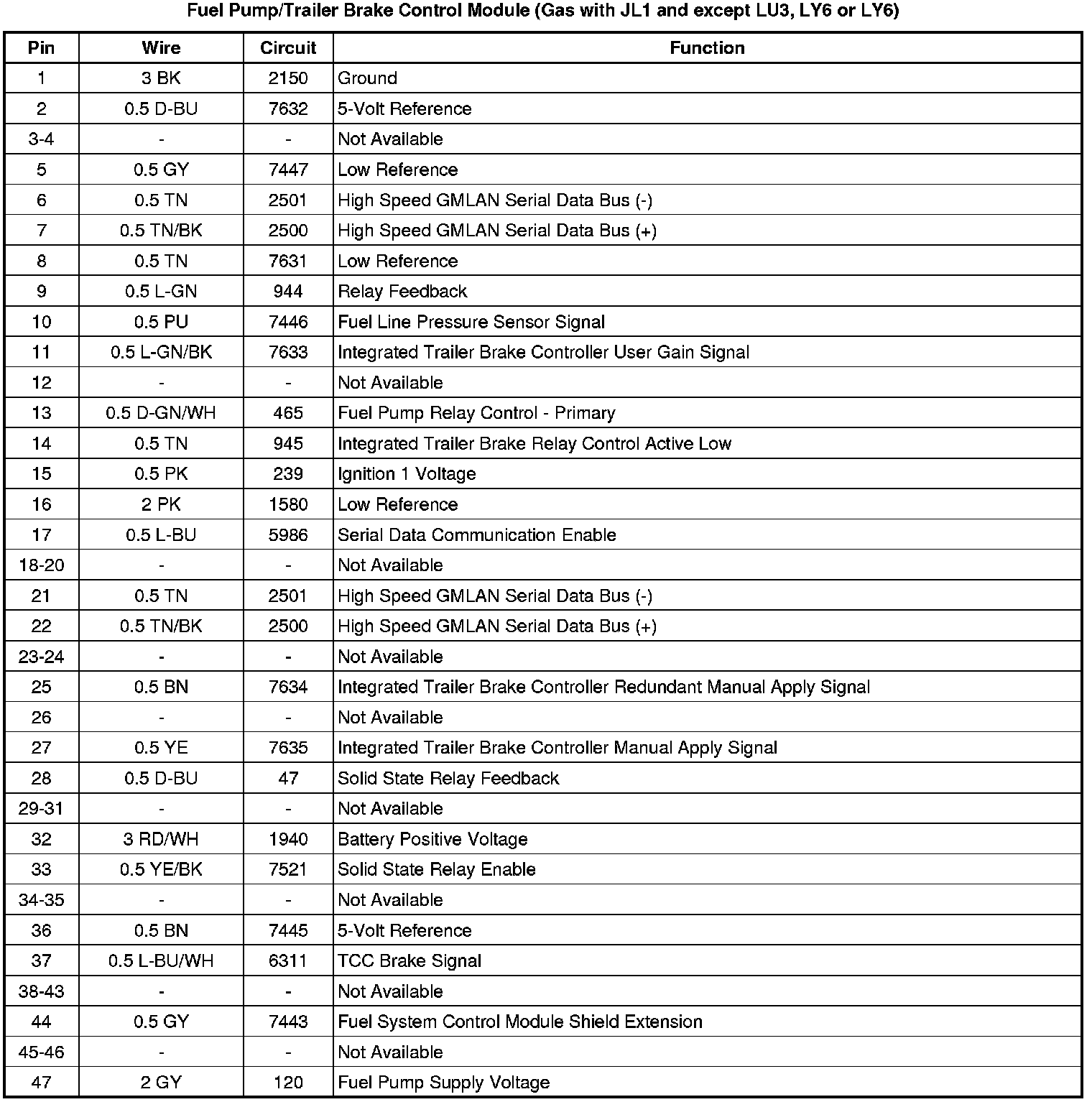

Fuel Pump/Trailer Brake Control Module (Gas with JL1 and except LU3, LY6 or LY6)
