Antilock Brake System Schematics

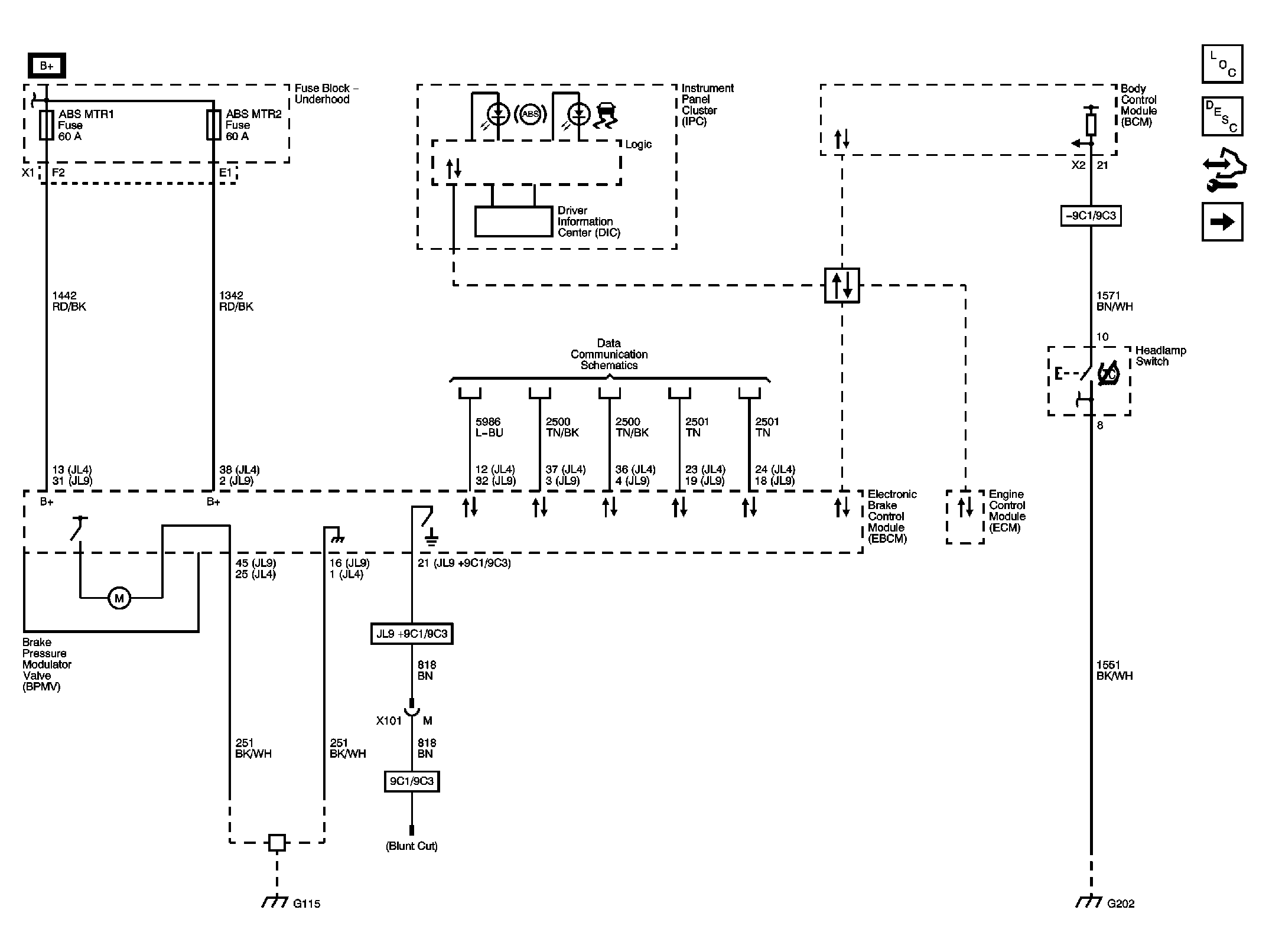

Fig 1: Power, Ground, and Brake Pressure Modulator Valves
Courtesy of GENERAL MOTORS CORP.

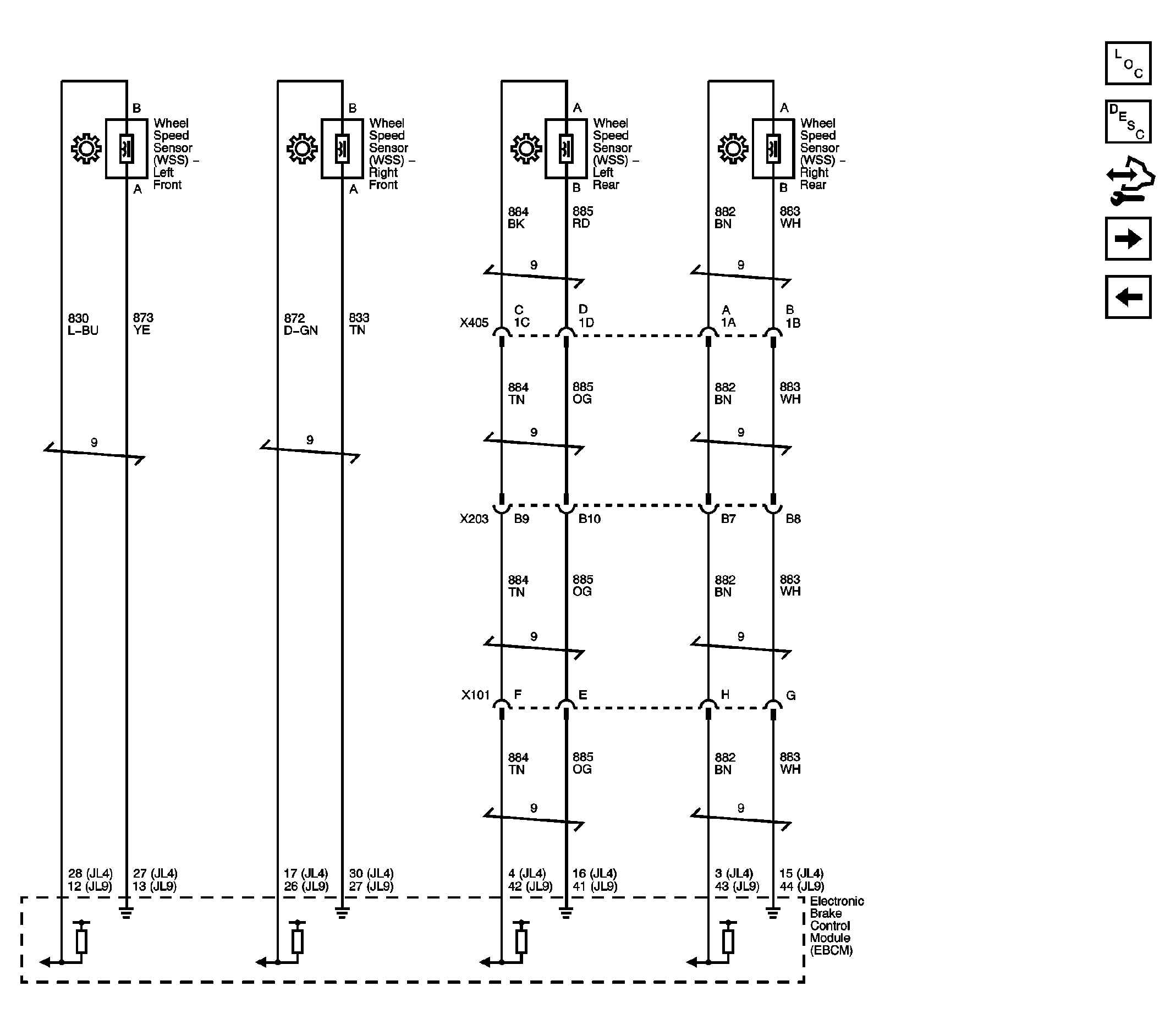

Fig 2: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

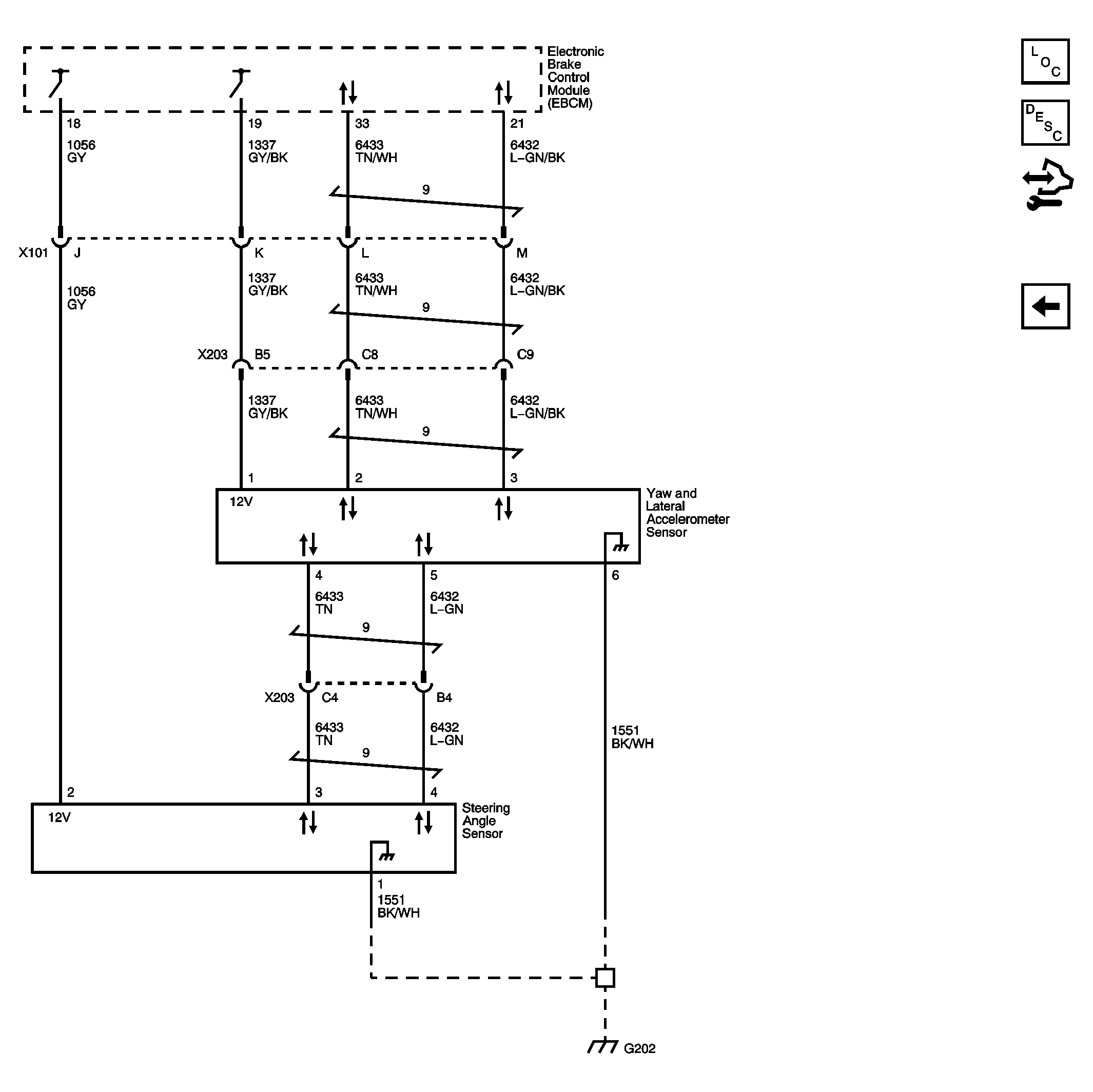

Fig 3: Steering Angle and Yaw and Lateral Accelerometer Sensors (JL4)
Courtesy of GENERAL MOTORS CORP.
