Chevrolet
>>
2010
>>
HHR SS, Standard
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Schematic and Routing Diagrams
>>
Power Steering Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Steering Schematics

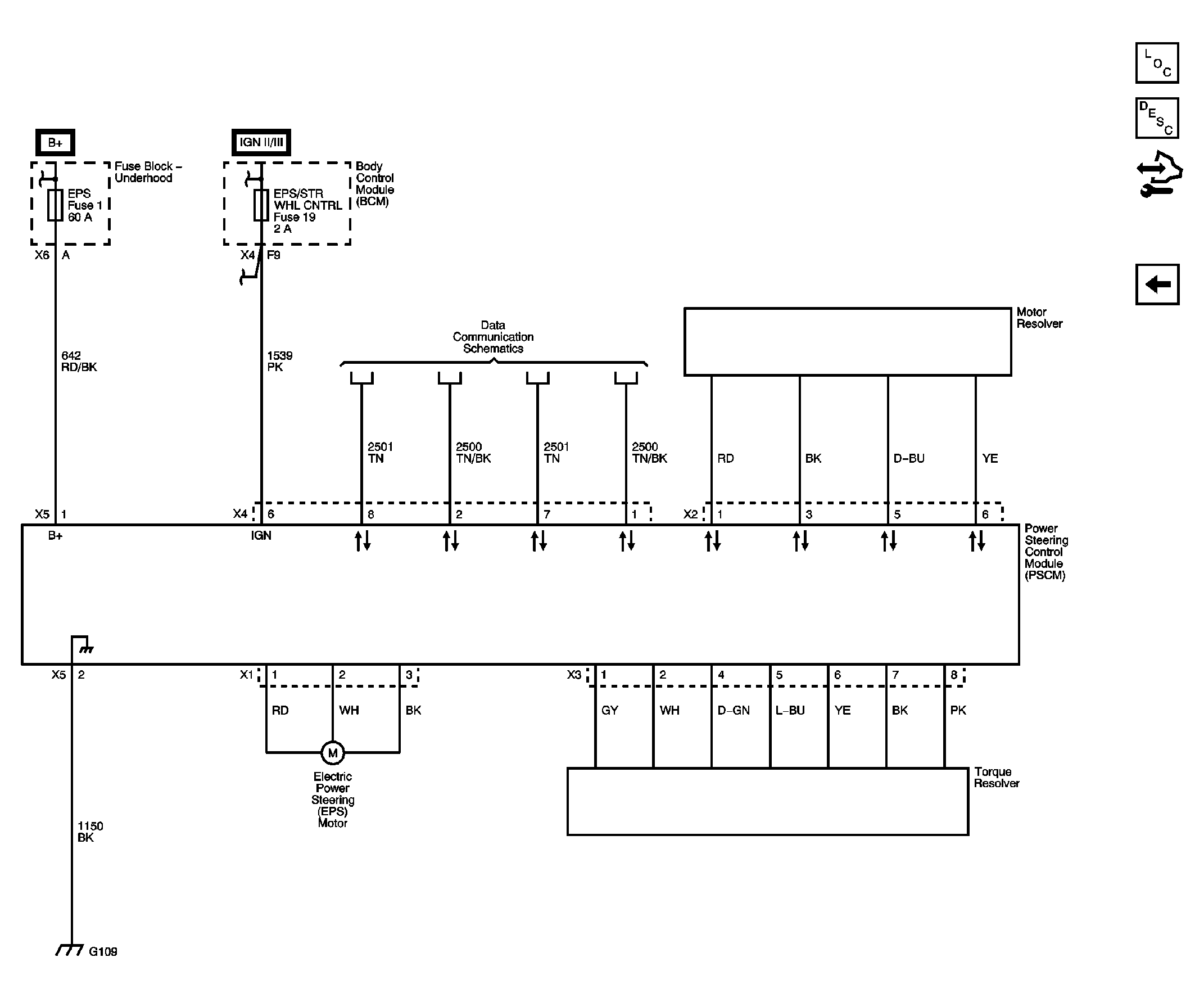

Fig 1: LE8/LE9
Courtesy of GENERAL MOTORS CORP.

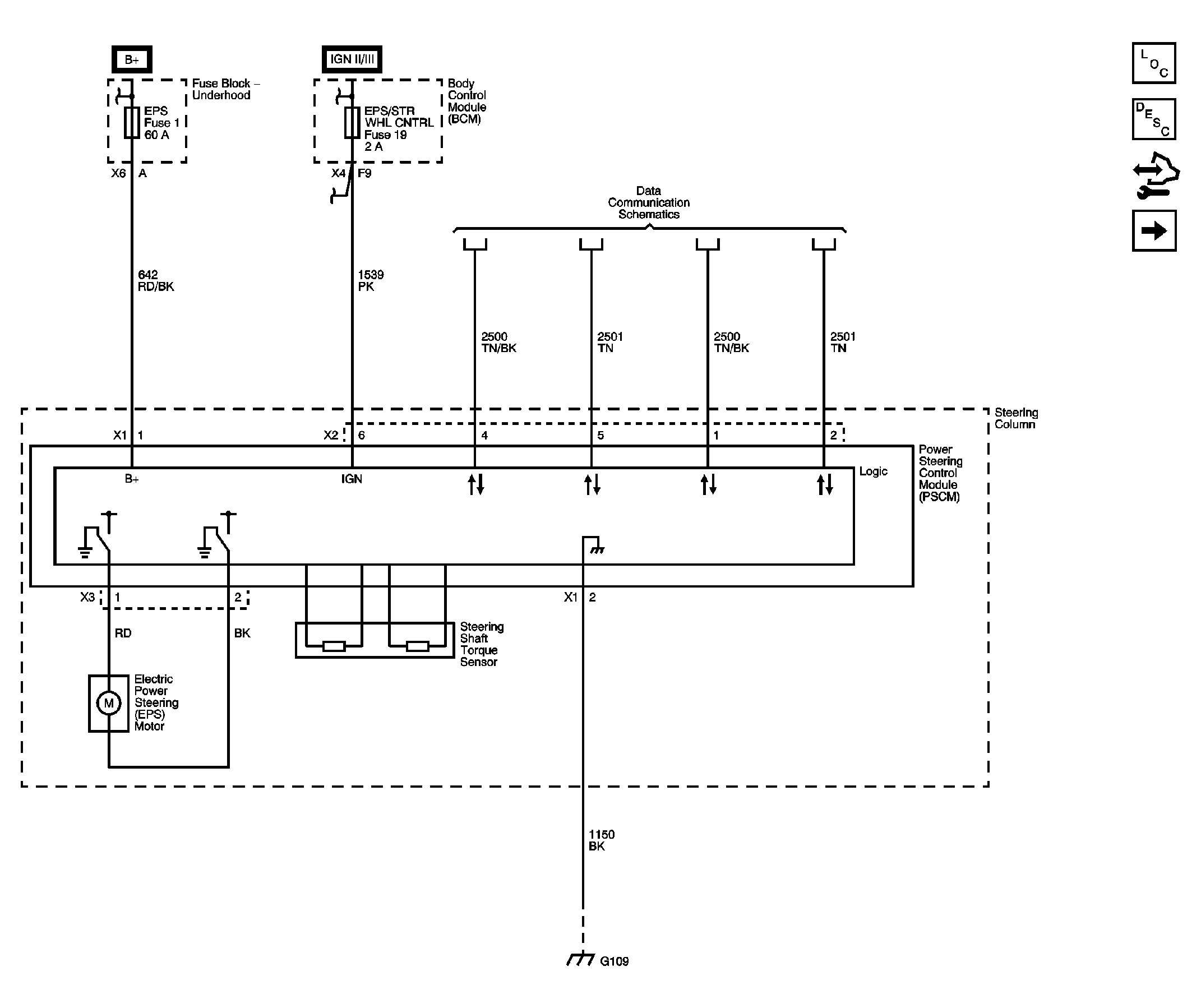

Fig 2: LNF
Courtesy of GENERAL MOTORS CORP.
