Rear Seat Shoulder Belt Guide Replacement

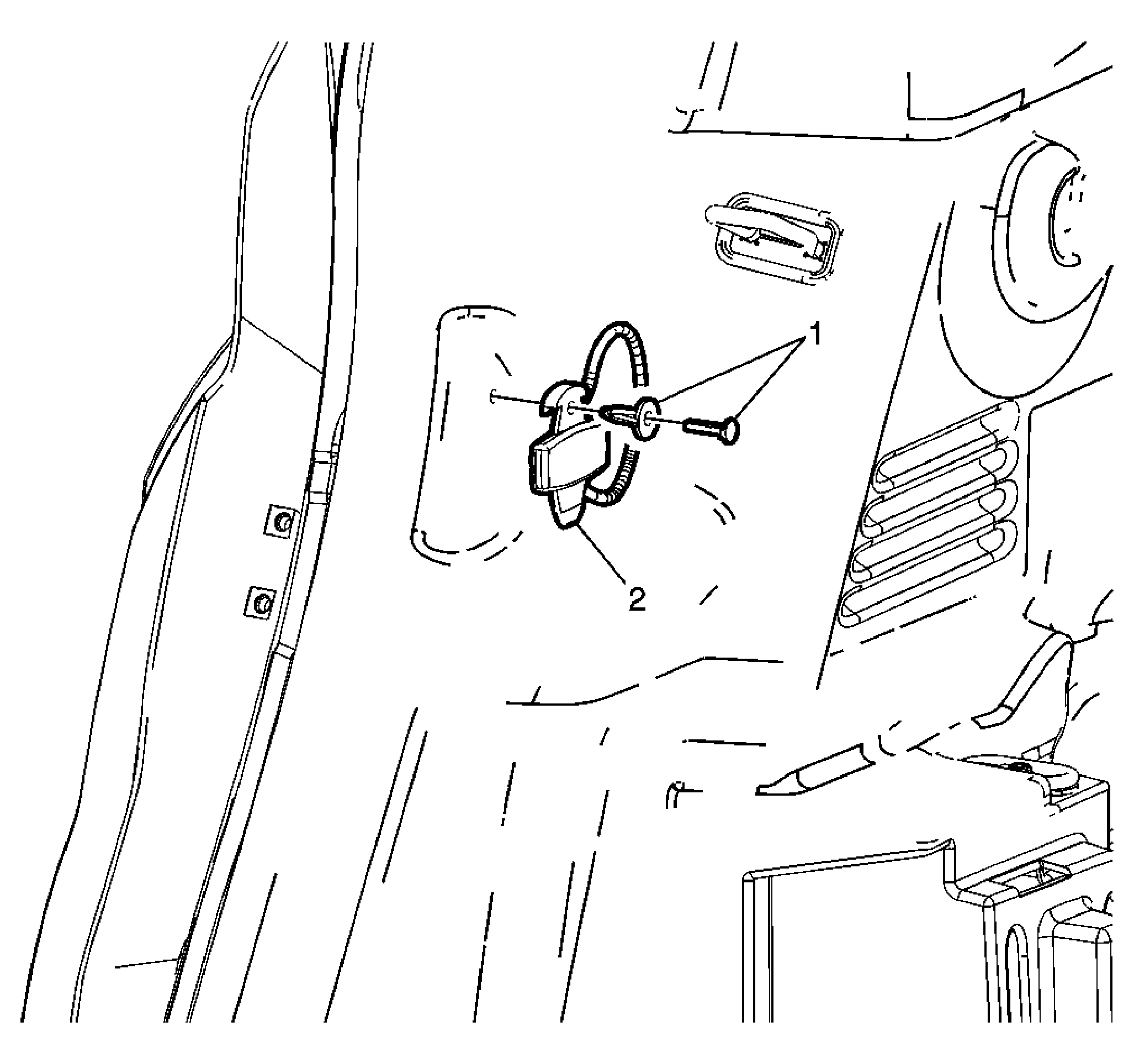

Fig 1: Rear Seat Shoulder Belt Guide
GM1644058Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Rear Seat Shoulder Belt Guide Strap Retainer
Tip:  Fold the seat back forward to allow easier access to the fastener.
2 Rear Seat Shoulder Belt Guide Strap
