Power Window Motor: Diagrams




Component Connector End Views

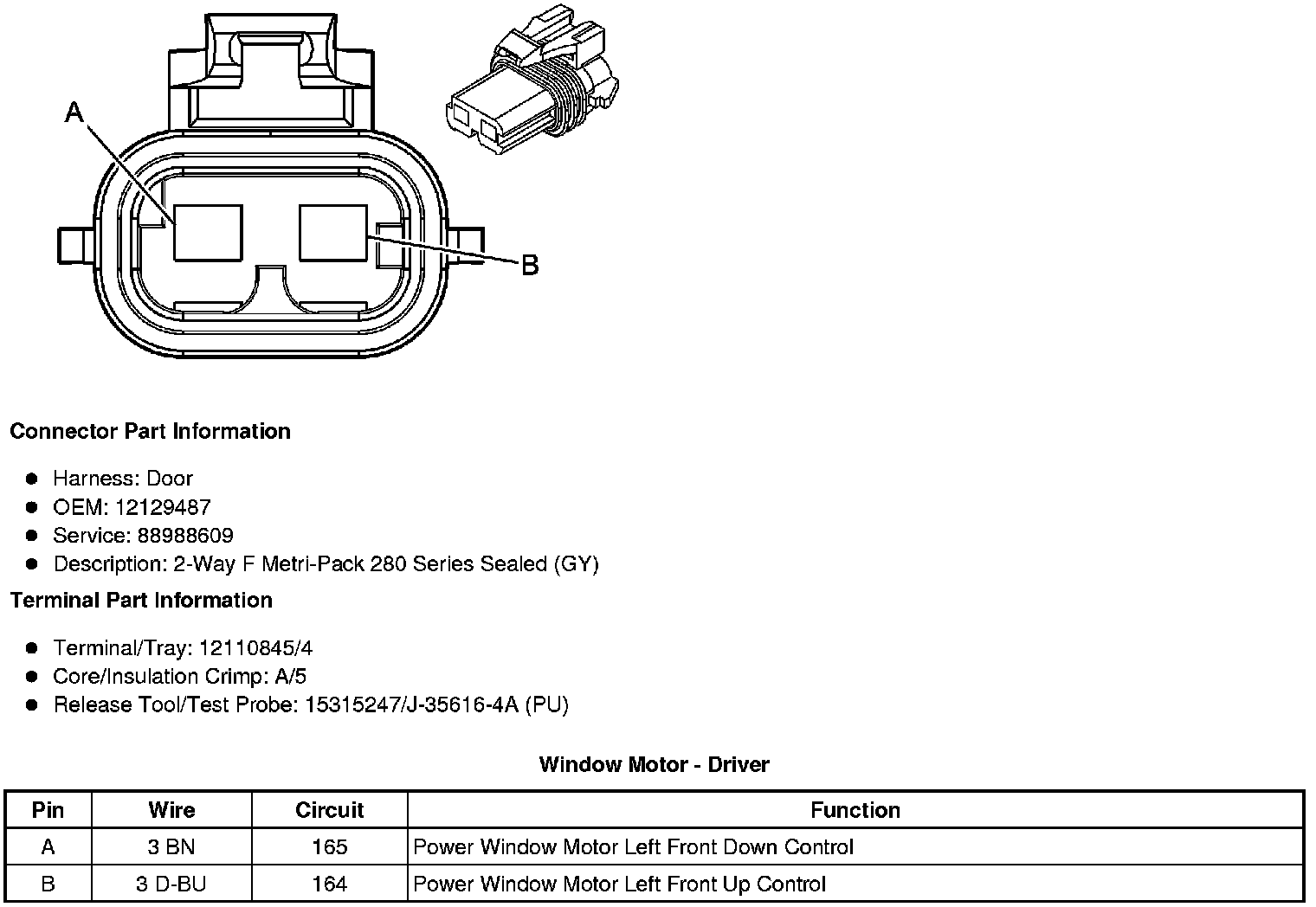

Window Motor - Driver






Window Motor - Left Rear (without Panel Van)

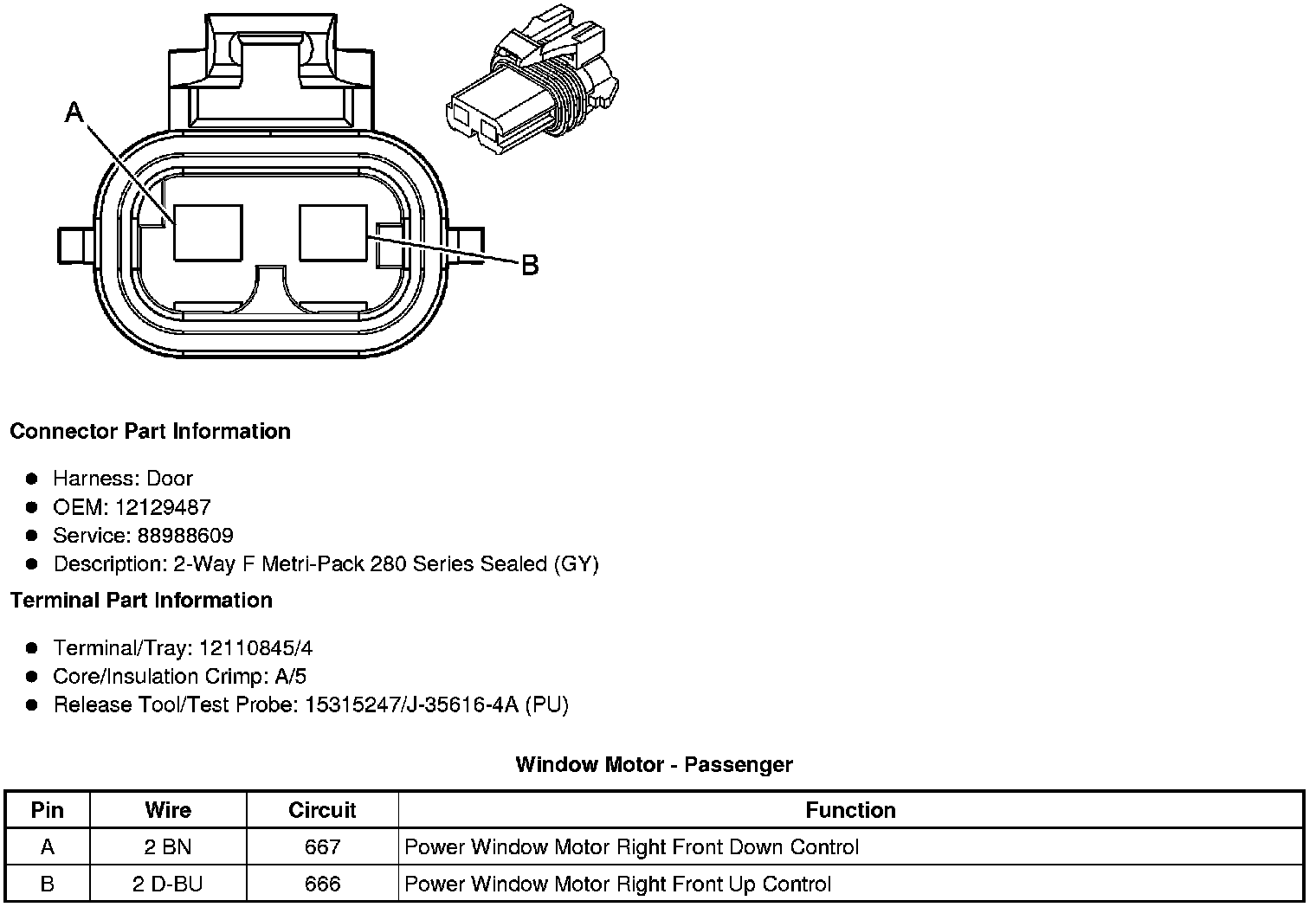

Window Motor - Passenger






Window Motor - Right Rear (without Panel Van)
