Accelerator Pedal Position Sensor: Locations

Passenger Compartment/Roof Component Views

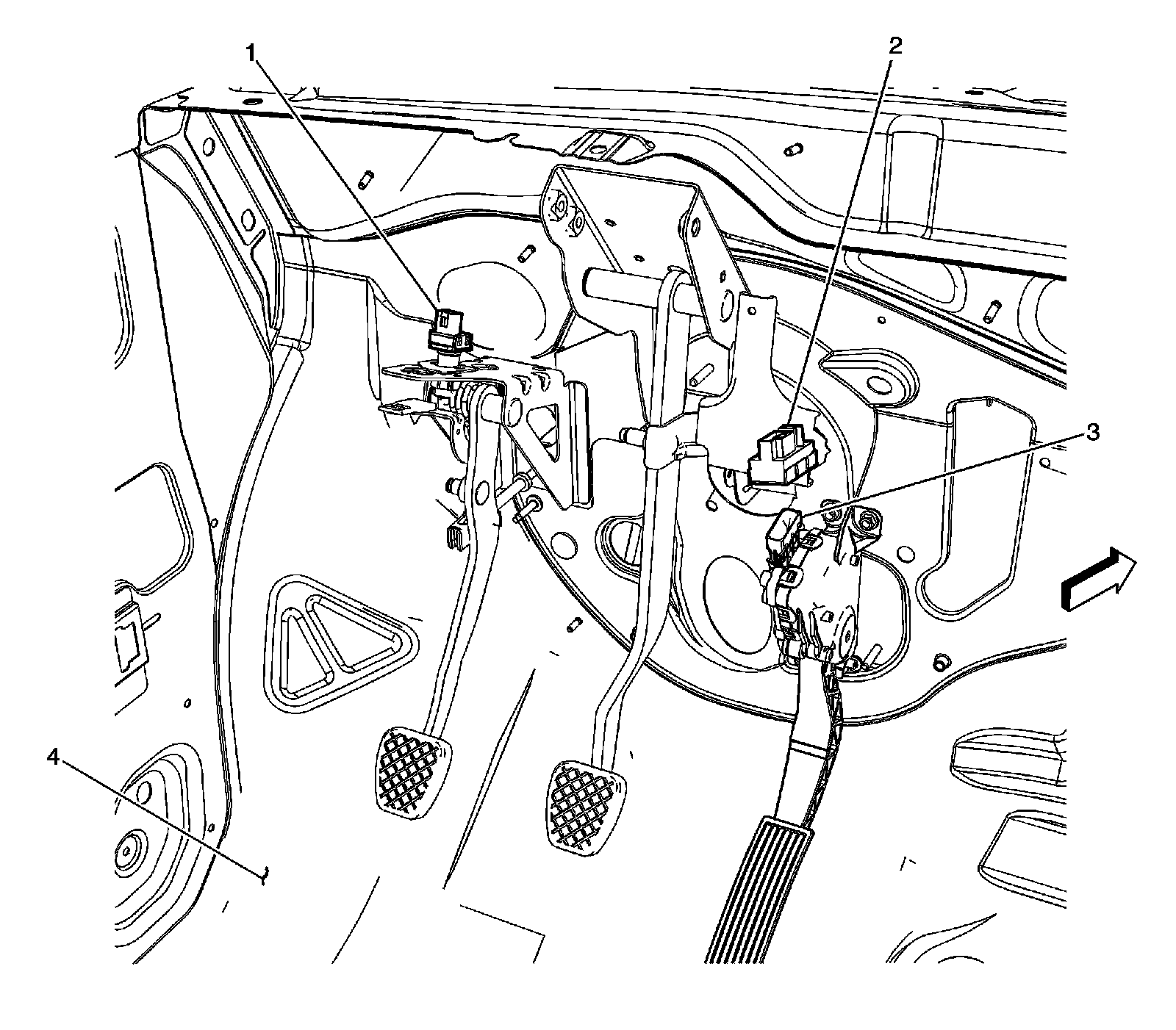

Pedal Assemblies

1 - Clutch Pedal Position (CPP) Sensor (M86/MU3)
2 - Brake Pedal Position Sensor
3 - Accelerator Pedal Position (APP) Sensor
4 - Floor Panel
