Power Distribution Schematic 7




Power Distribution Schematics

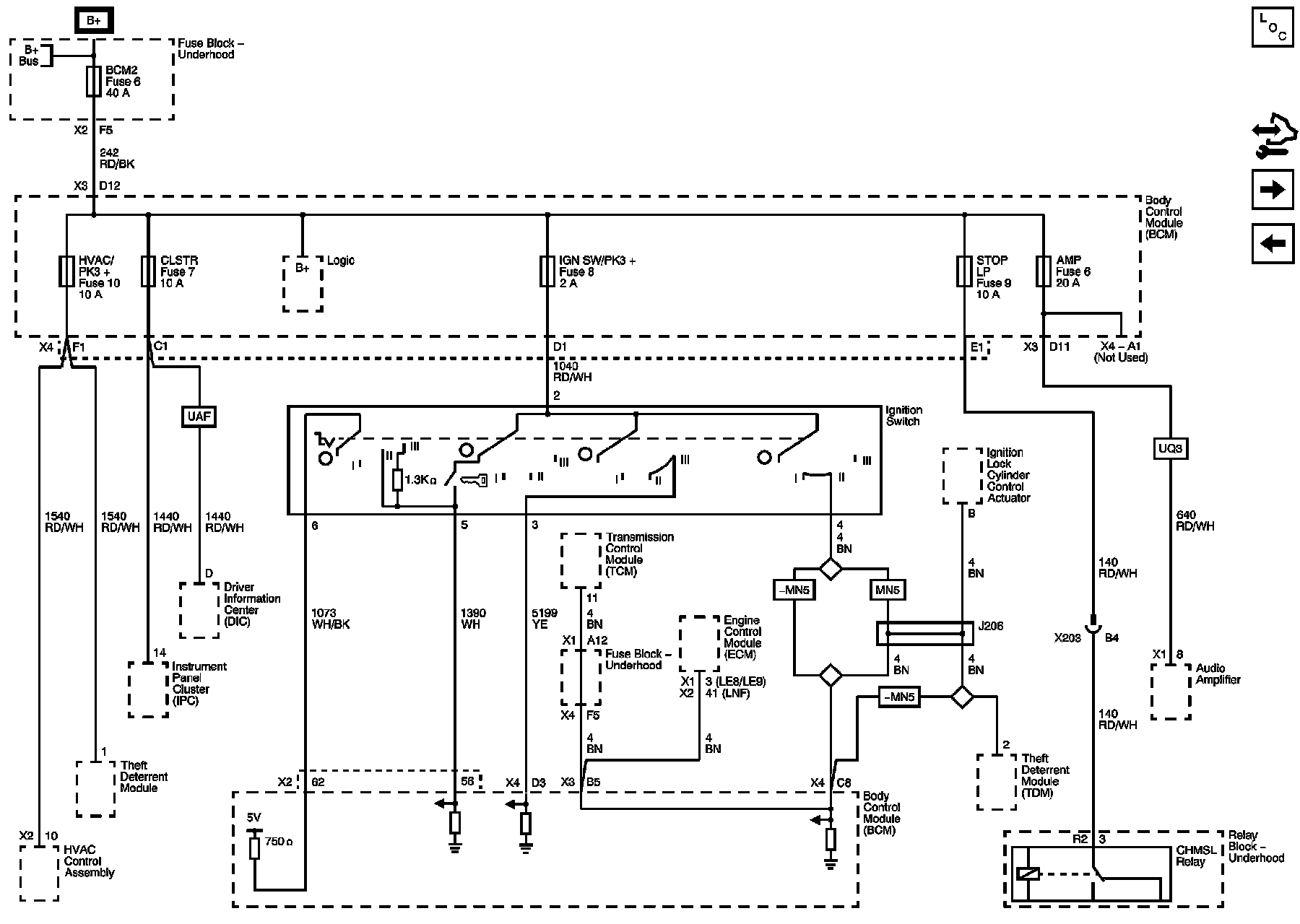

Body Control Module - BCM2, HVAC/PK3, CLUSTER, IGN SW, STOP LPS, and AMP Fuses
