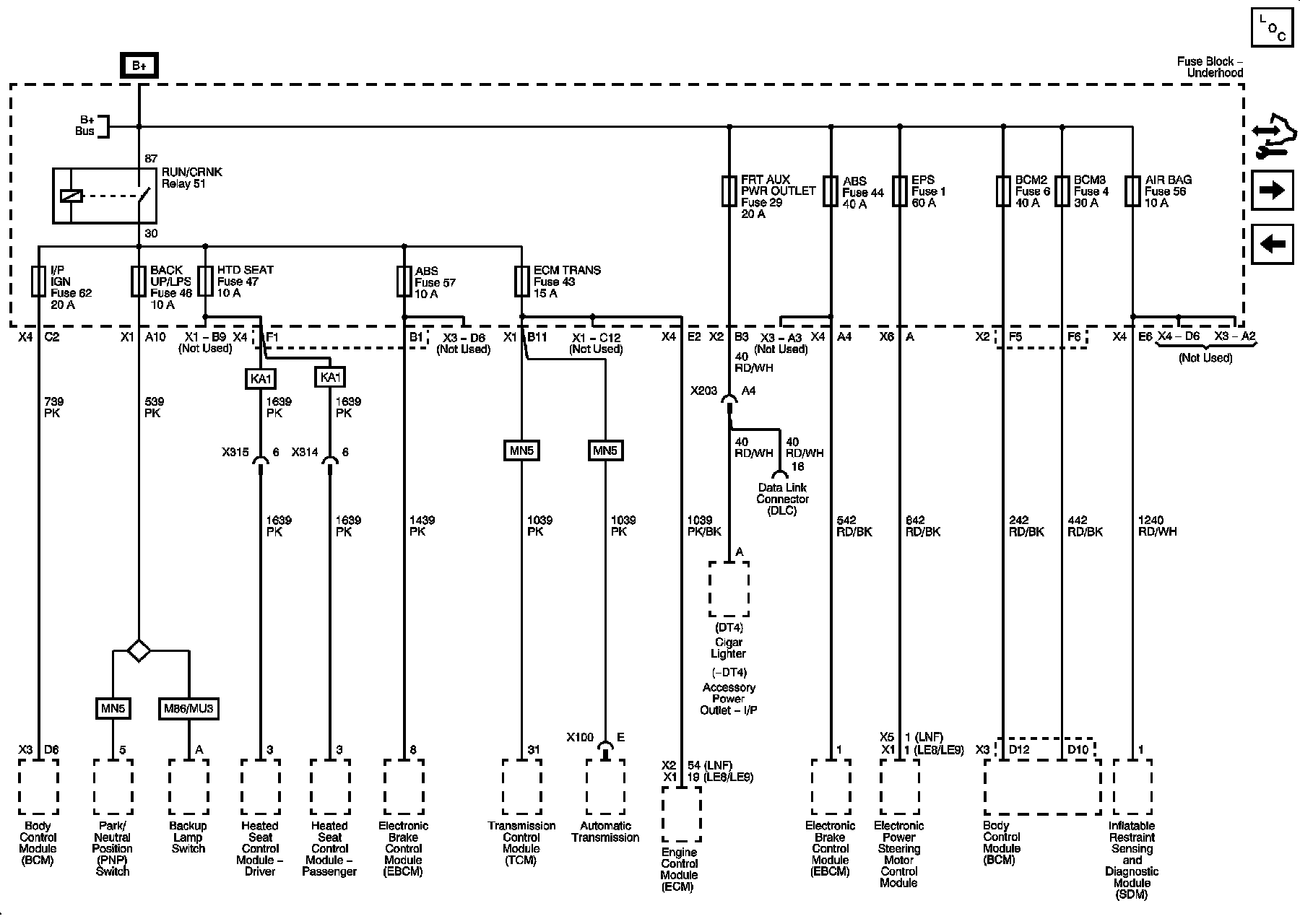

Power Distribution Schematic 2
Power Distribution Schematics
Underhood Fuse Block - ABS (10A), ABS (30A), BACK UP/LPS, BCM 2, BCM3, ECM TRANS, EPS, FRT AUX PWR OUTLET, HTD SEAT, I/P IGN, PRK/NEUT, S-BAND Fuses
