Powertrain Component Views

Powertrain Component Views

Engine - Rear (LE8/LE9)




1 - Heated Oxygen Sensor (HO2S) 1
2 - Heated Oxygen Sensor (HO2S) 2

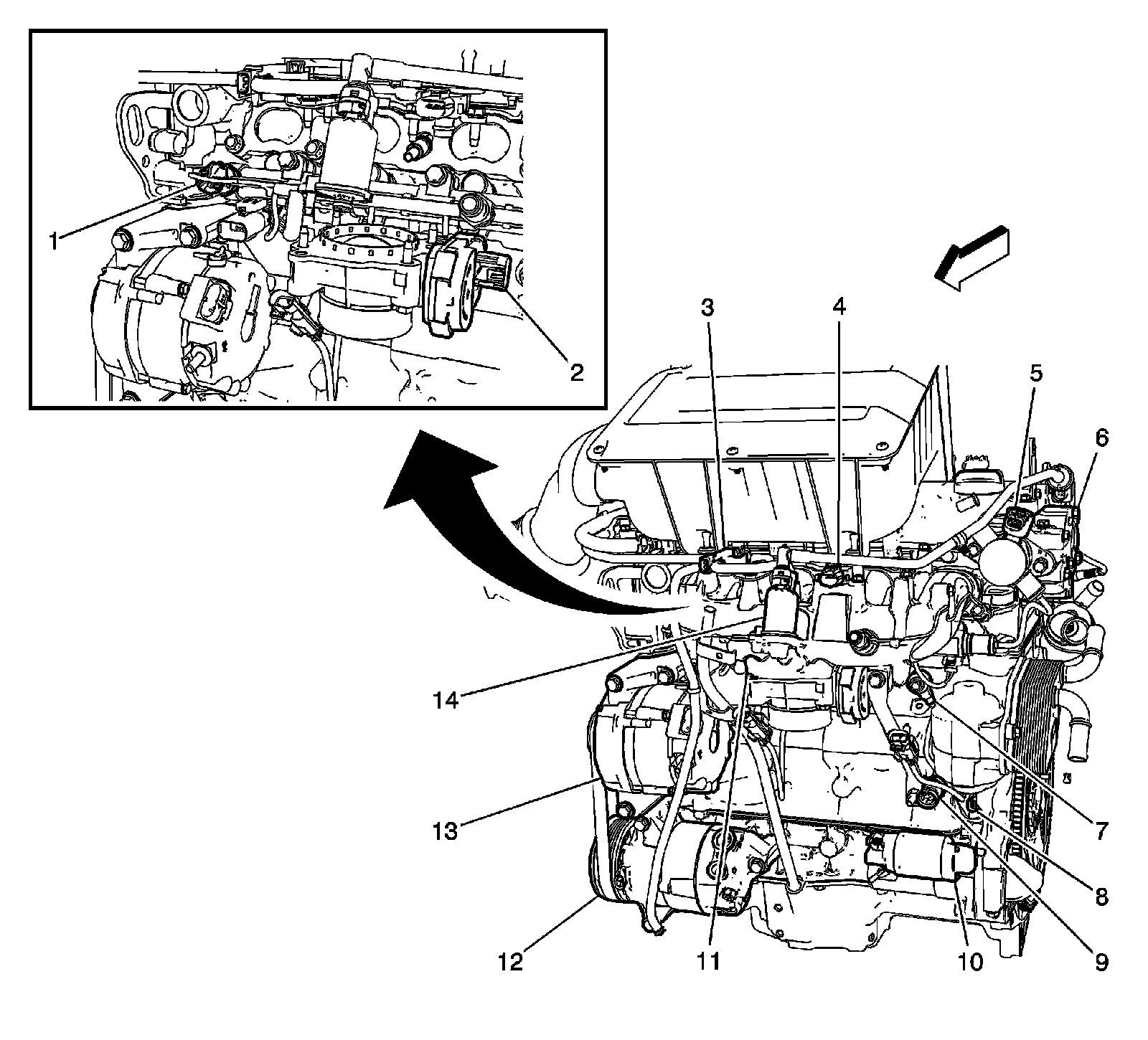

Engine - Front (LNF)




1 - Fuel Rail Pressure Sensor (FPS)
2 - Throttle Actuator Control (TAC) Module
3 - Turbo Bypass Valve Solenoid
4 - Manifold Absolute Pressure (MAP) Sensor
5 - High Pressure Fuel Pump
6 - Camshaft Position (CMP) Sensor Intake
7 - Knock Sensor (KS) 1
8 - Crankshaft Position (CKP) Sensor
9 - Engine Oil Pressure (EOP) Switch
10 - Starter
11 - Knock Sensor (KS) 2
12 - A/C Compressor Clutch
13 - Generator
14 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve

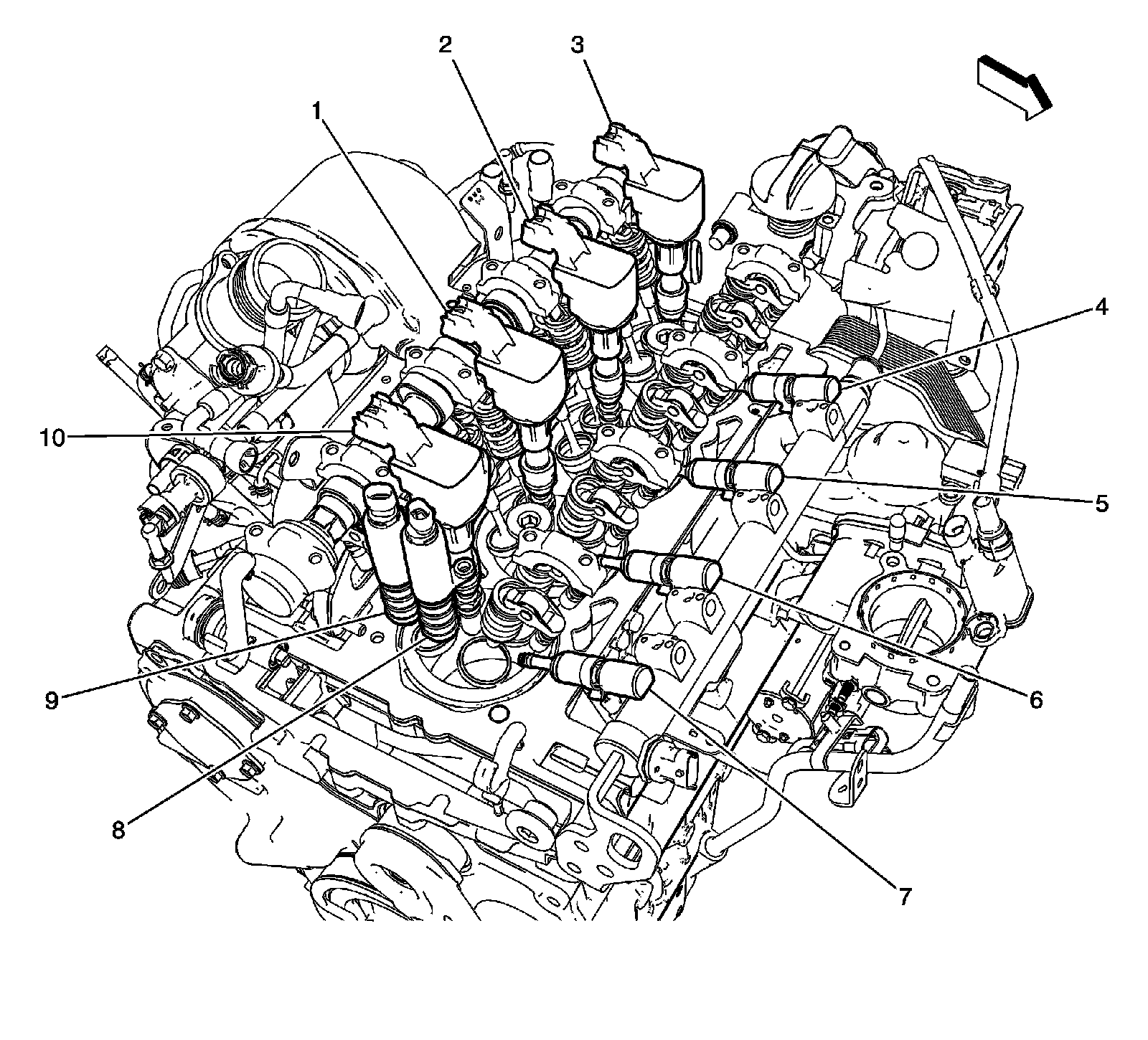

Engine - Top (LNF)




1 - Ignition Coil 2
2 - Ignition Coil 3
3 - Ignition Coil 4
4 - Fuel Injector 4
5 - Fuel Injector 3
6 - Fuel Injector 2
7 - Fuel Injector 1
8 - Camshaft Position (CMP) Actuator Solenoid Exhaust
9 - Camshaft Position (CMP) Actuator Solenoid Intake
10 - Ignition Coil 1

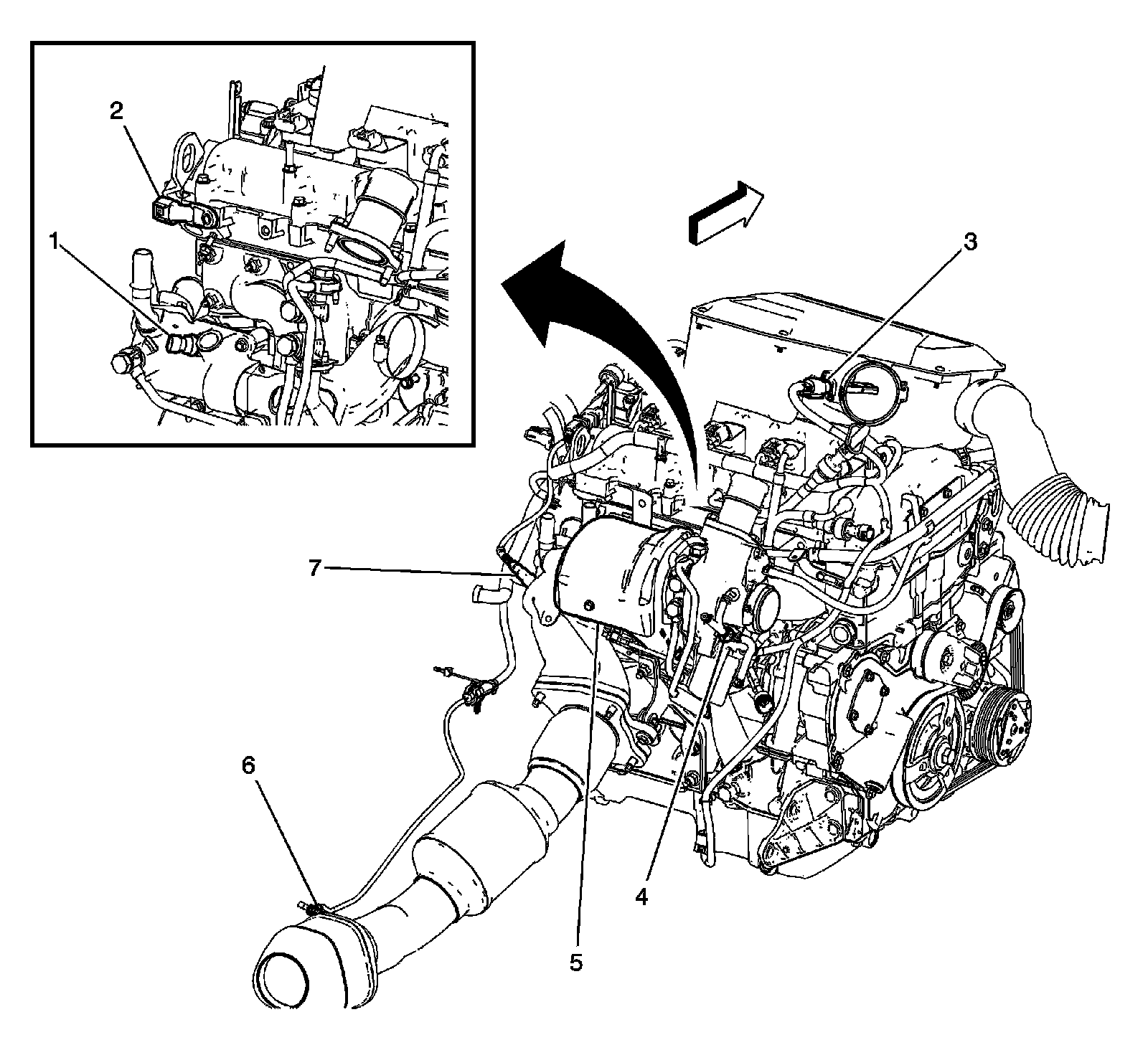

Engine - Rear (LNF)




1 - Engine Coolant Temperature (ECT) Sensor
2 - Camshaft Position (CMP) Sensor Exhaust
3 - Mass Air Flow (MAF)/ Intake Air Temperature (IAT) Sensor
4 - Turbocharger Wastegate Solenoid (LNF)
5 - Turbocharger
6 - Heated Oxygen Sensor (HO2S) 2
7 - Heated Oxygen Sensor (HO2S) 1

Turbo Bypass Valve Solenoid (LNF)




1 - Turbo Bypass Valve Solenoid

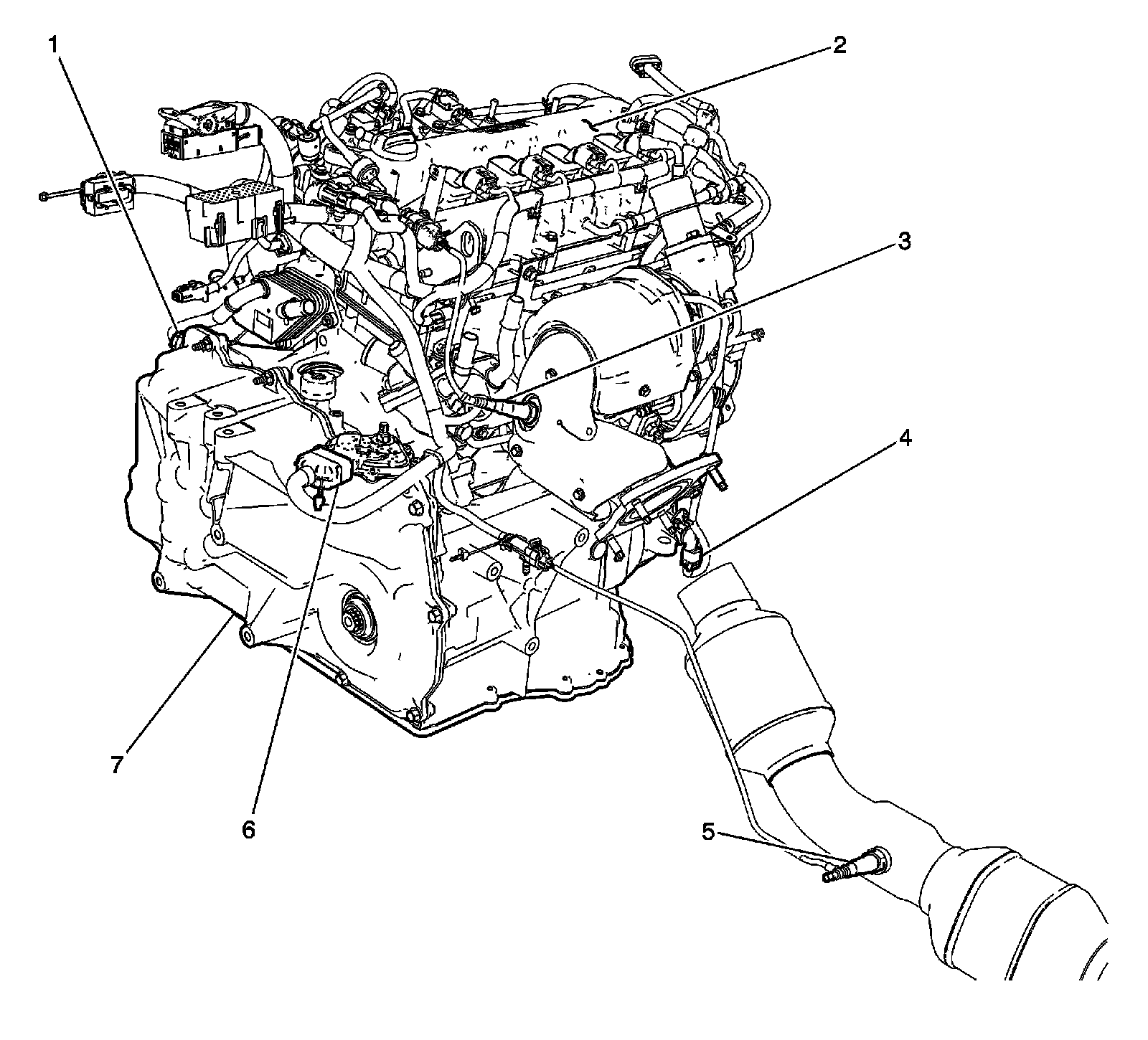

Engine with Transmission (LNF/MN5)




1 - X100 (MN5)
2 - Engine (LNF)
3 - Heated Oxygen Sensor (HO2S) 1
4 - Automatic Transmission Output Speed Sensor (OSS) (MN5)
5 - Heated Oxygen Sensor (HO2S) 2
6 - Park Neutral Position (PNP) Switch (MN5)
7 - Transmission (MN5)

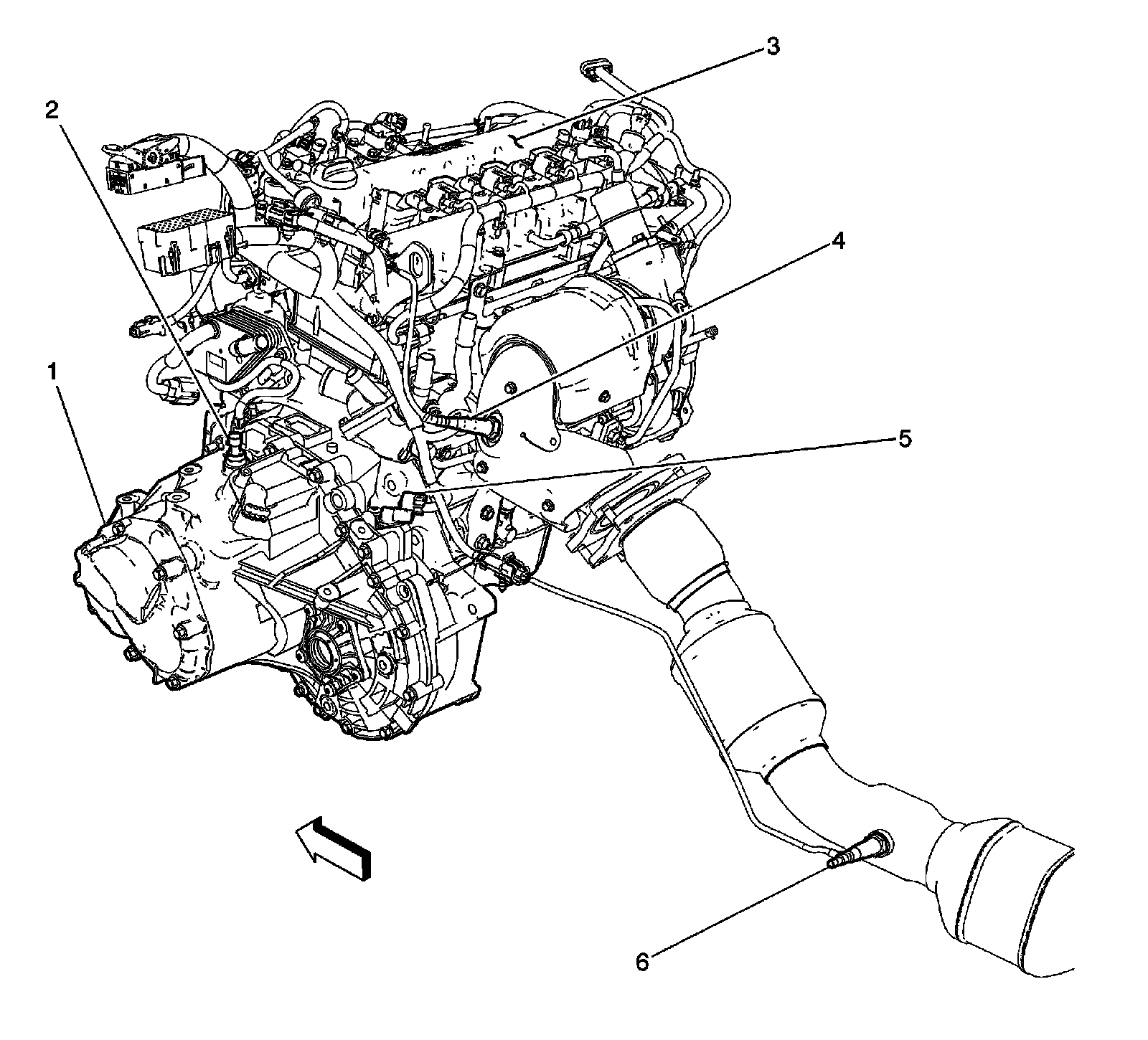

Engine with Transmission (LNF/MU3)




1 - Transmission
2 - Backup Lamp Switch
3 - Engine (LNF)
4 - Heated Oxygen Sensor (HO2S) 1
5 - Vehicle Speed Sensor (VSS)
6 - Heated Oxygen Sensor (HO2S) 2

Engine Block - Rear (LE8/LE9)




1 - Engine Coolant Temperature (ECT) Sensor
2 - Engine Block

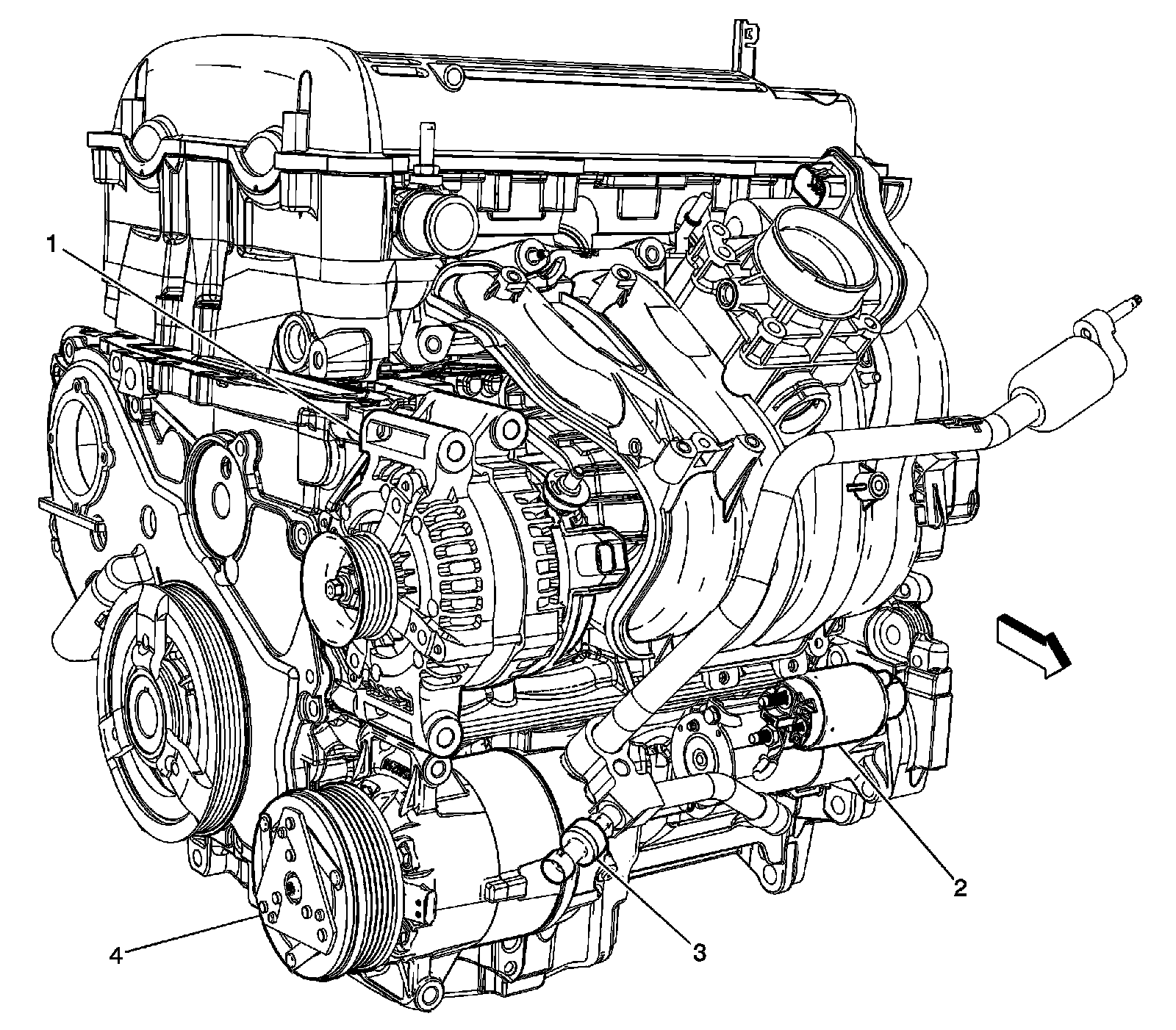

Lower Front of the Engine




1 - Generator
2 - Starter
3 - A/C Refrigerant Pressure Sensor
4 - A/C Compressor Clutch

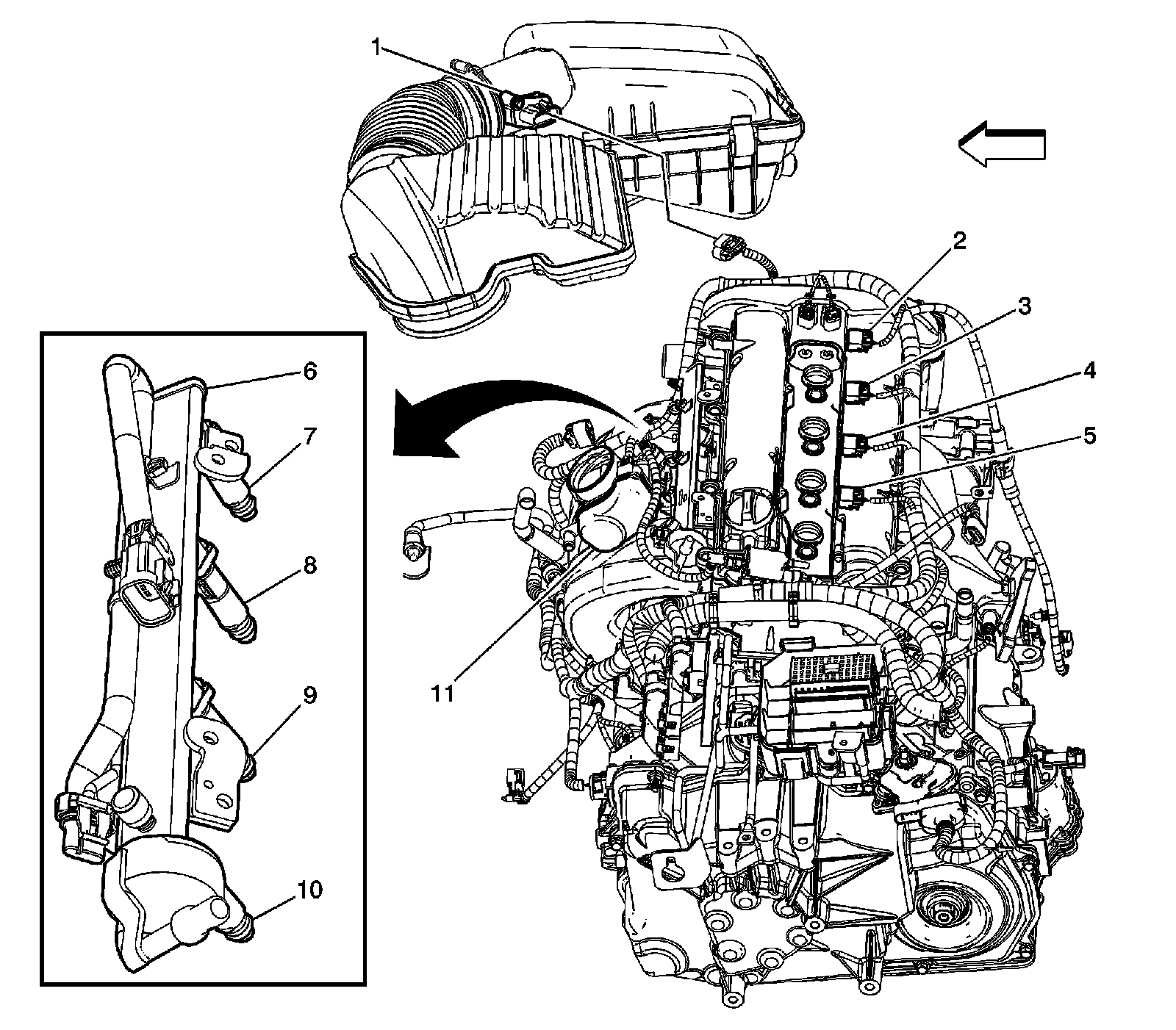

Engine - Left Side (LE8/LE9)




1 - MAF/IAT Sensor
2 - Ignition Coil Module 1 Connector
3 - Ignition Coil Module 2 Connector
4 - Ignition Coil Module 3 Connector
5 - Ignition Coil Module 4 Connector
6 - Fuel Rail
7 - Fuel Injector 1
8 - Fuel Injector 2
9 - Fuel Injector 3
10 - Fuel Injector 4
11 - Throttle Actuator Control (TAC) Module

Engine - Rear (LE8/LE9)




1 - Ignition Coil Module 4
2 - Ignition Coil Module 3
3 - Ignition Coil Module 2
4 - Camshaft Position (CMP) Actuator Solenoid-Intake
5 - Camshaft Position (CMP) Actuator Solenoid-Exhaust
6 - Ignition Coil Module 1
7 - Engine Harness
8 - Heated Oxygen Sensor (HO2S) 1
9 - Heated Oxygen Sensor (HO2S) 2
10 - Engine Coolant Temperature (ECT) Sensor
11 - Camshaft Position (CMP) Sensor (Exhaust)
12 - G108
13 - Camshaft Position (CMP) Sensor (Intake)
14 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve

Front of the Engine (LE8/LE9) (1 of 2)




1 - Fuel Injector 1
2 - Fuel Injector 2
3 - Fuel Injector 3
4 - Manifold Absolute Pressure (MAP) Sensor
5 - Fuel Injector 4
6 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
7 - Camshaft Position (CMP) Sensor - Intake
8 - Knock Sensor (KS)
9 - Engine Oil Pressure (EOP) Switch
10 - Crankshaft Position (CKP) Sensor
11 - Starter Solenoid
12 - Starter
13 - Intake Manifold

Front of the Engine (LE8/LE9) (2 of 2)




1 - Throttle Actuator Control (TAC) Module
2 - Evaporative Emission (EVAP) Canister Purge Solenoid
3 - Engine Oil Pressure (EOP) Switch
4 - Crankshaft Position (CKP) Sensor
5 - Knock Sensor (KS)
6 - Starter
7 - Starter Solenoid

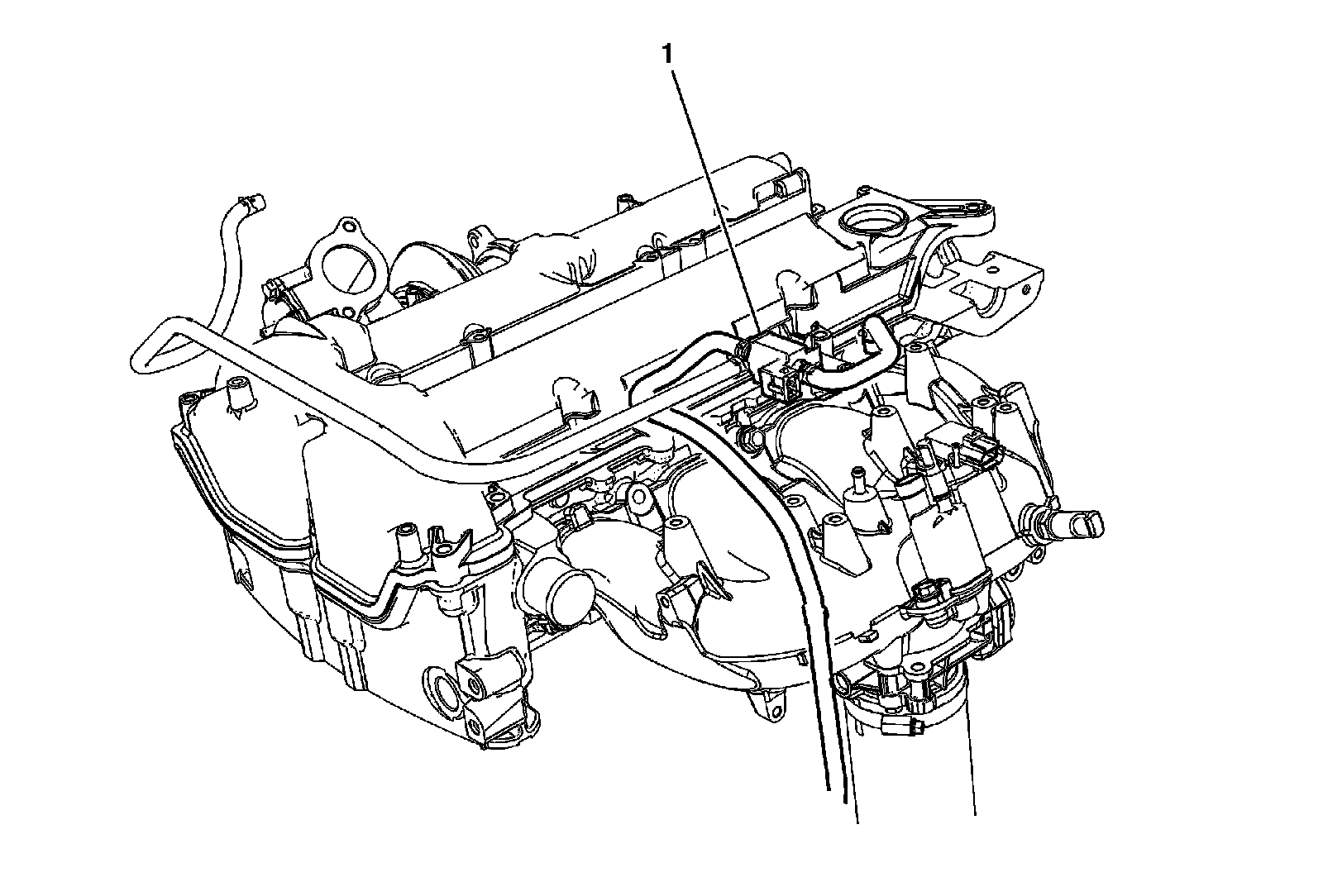

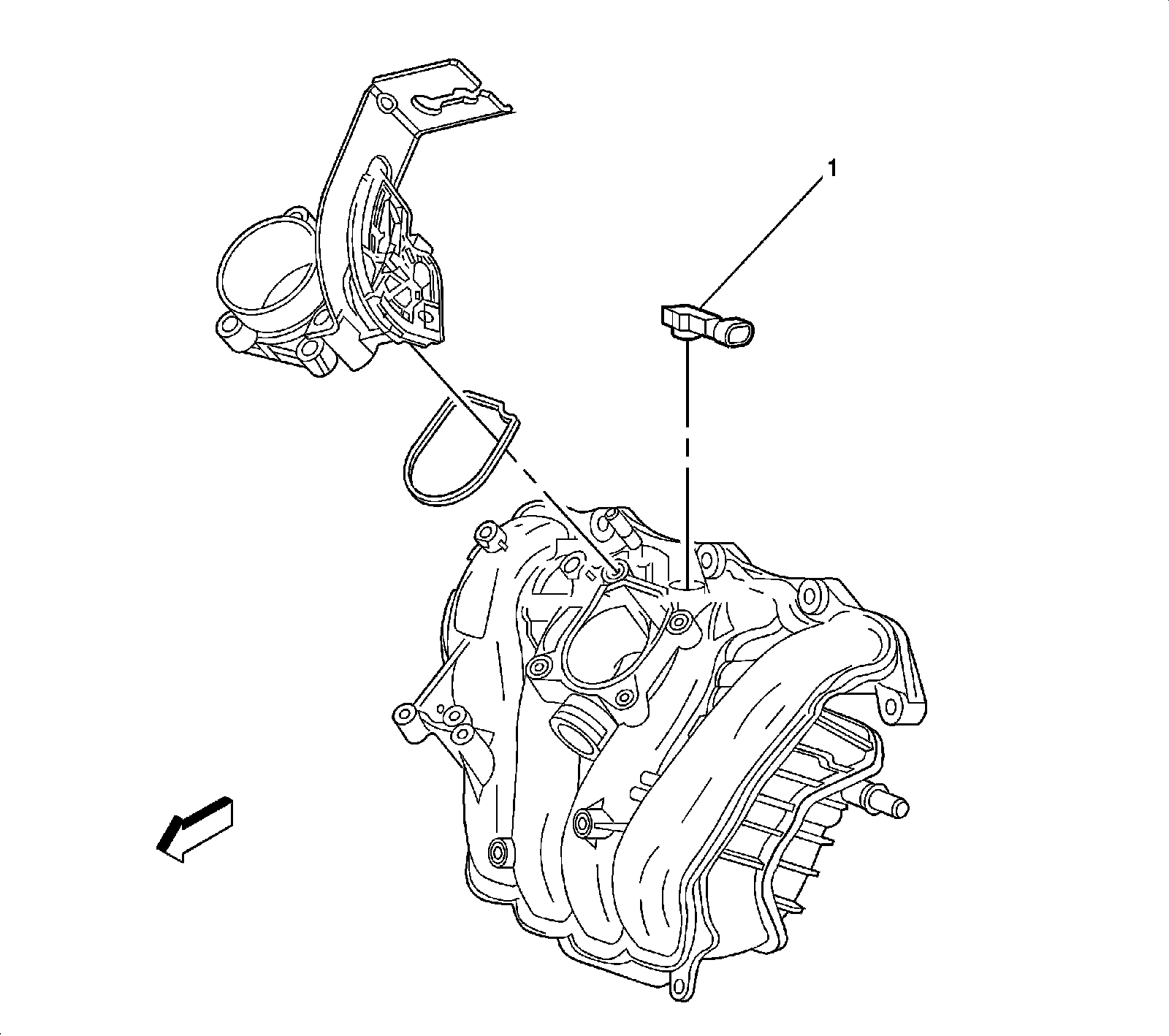

Manifold Absolute Pressure (MAP) Sensor (LE8/LE9)




1 - Manifold Absolute Pressure (MAP) Sensor

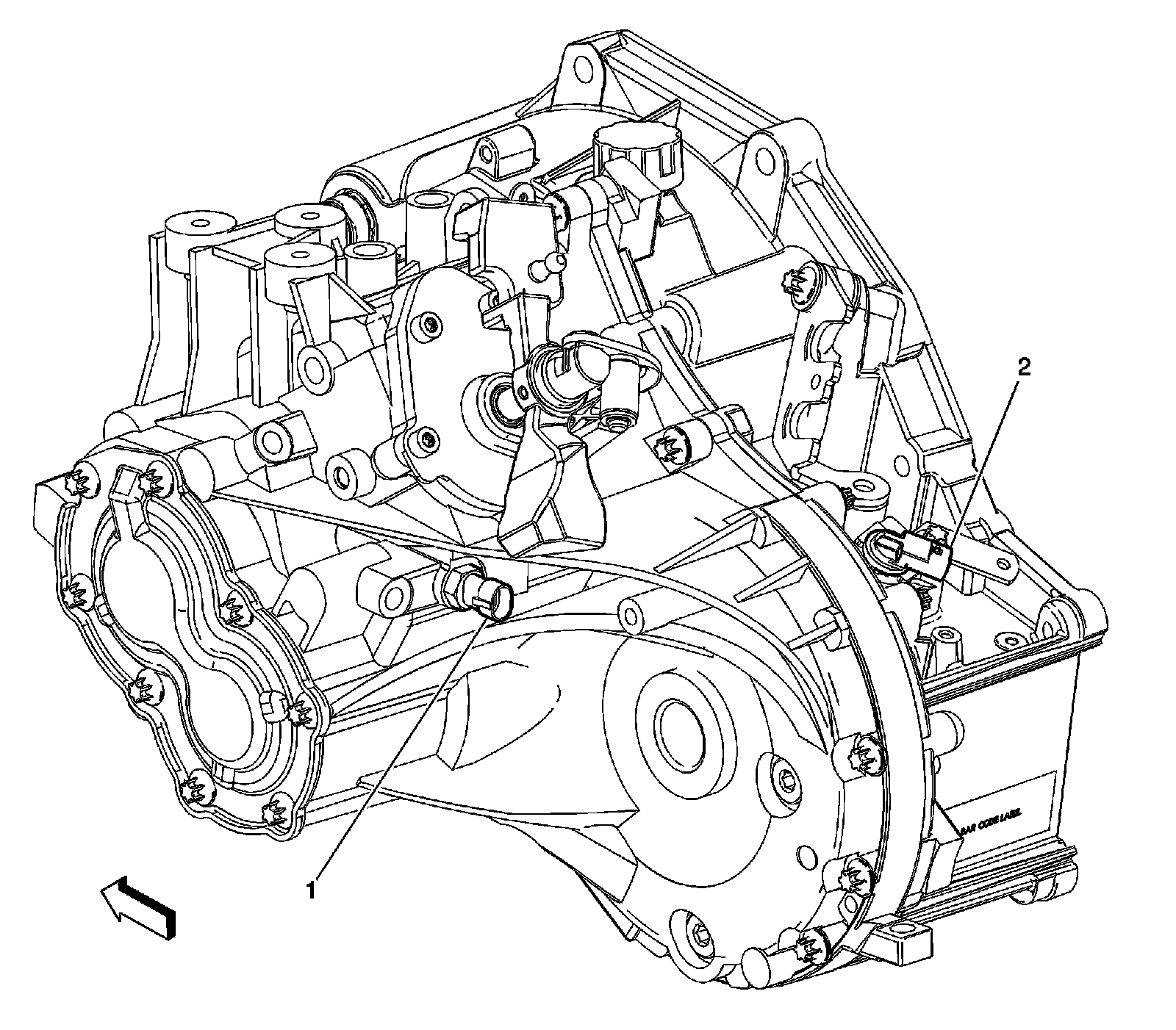

Manual Transmission (M86)




1 - Backup Lamp Switch
2 - Vehicle Speed Sensor

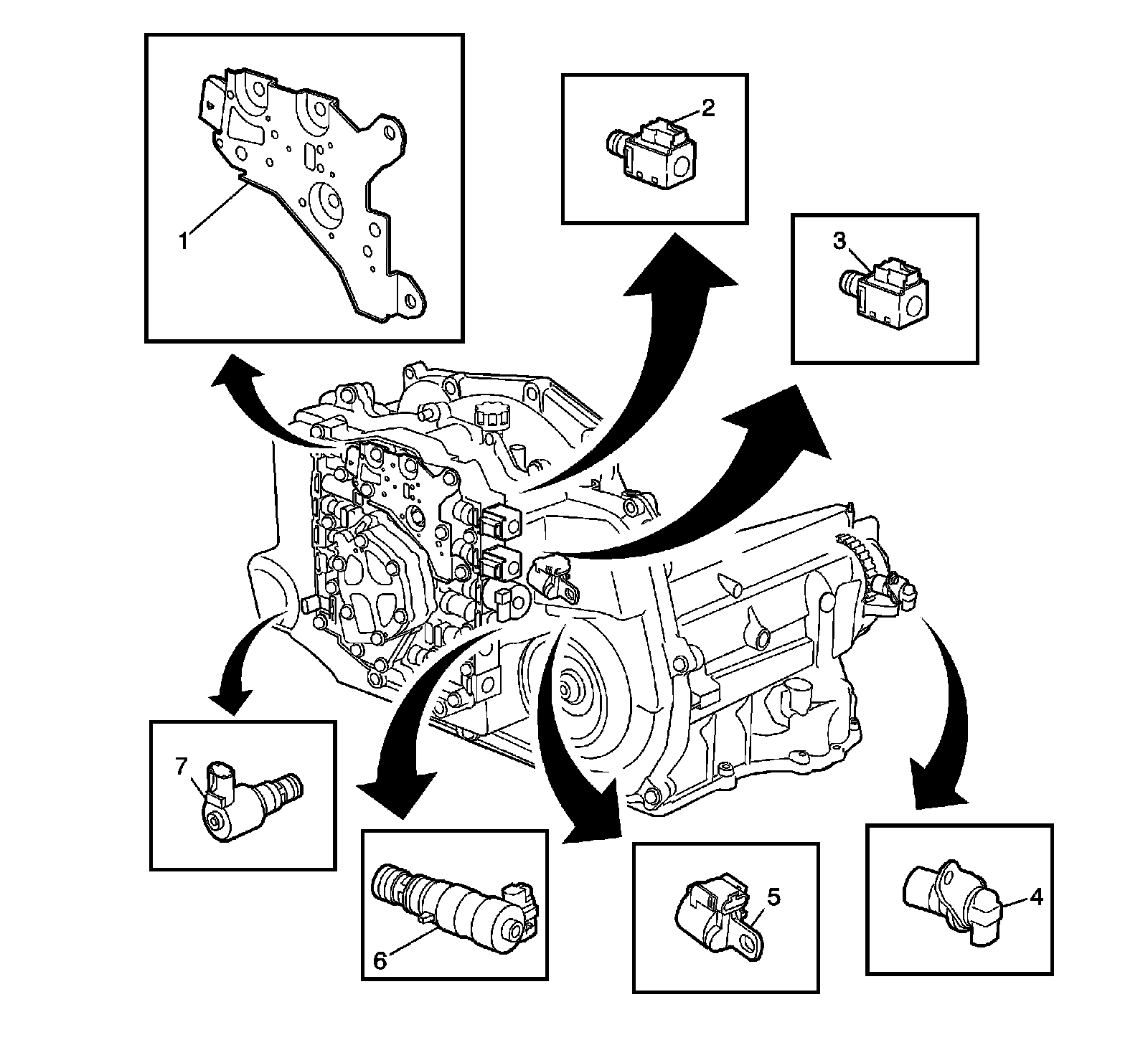

Automatic Transmission Internal Components (MN5)




1 - Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
2 - 1-2 Shift Solenoid Valve
3 - 2-3 Shift Solenoid Valve
4 - Automatic Transmission Output Speed Sensor
5 - Automatic Transmission Input Speed Sensor
6 - Pressure Control Solenoid
7 - TCC Control PWM Solenoid
