Door Component Views

Door Component Views

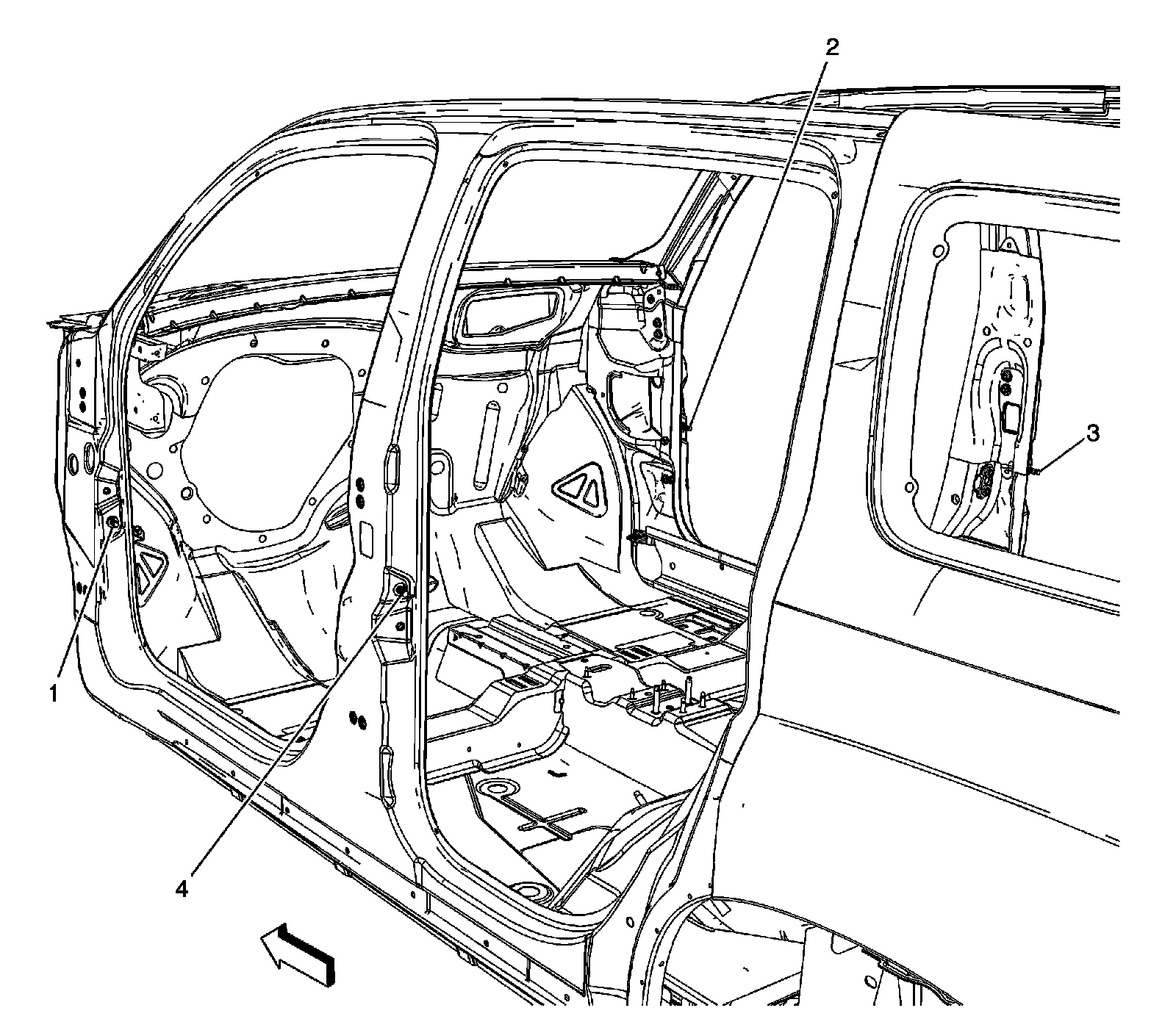

Door Jamb Switches




1 - Door Jamb Switch - Left Front
2 - Door Jamb Switch - Right Front
3 - Door Jamb Switch - Right Rear (Except Panel Van)
4 - Door Jamb Switch - Left Rear (Except Panel Van)

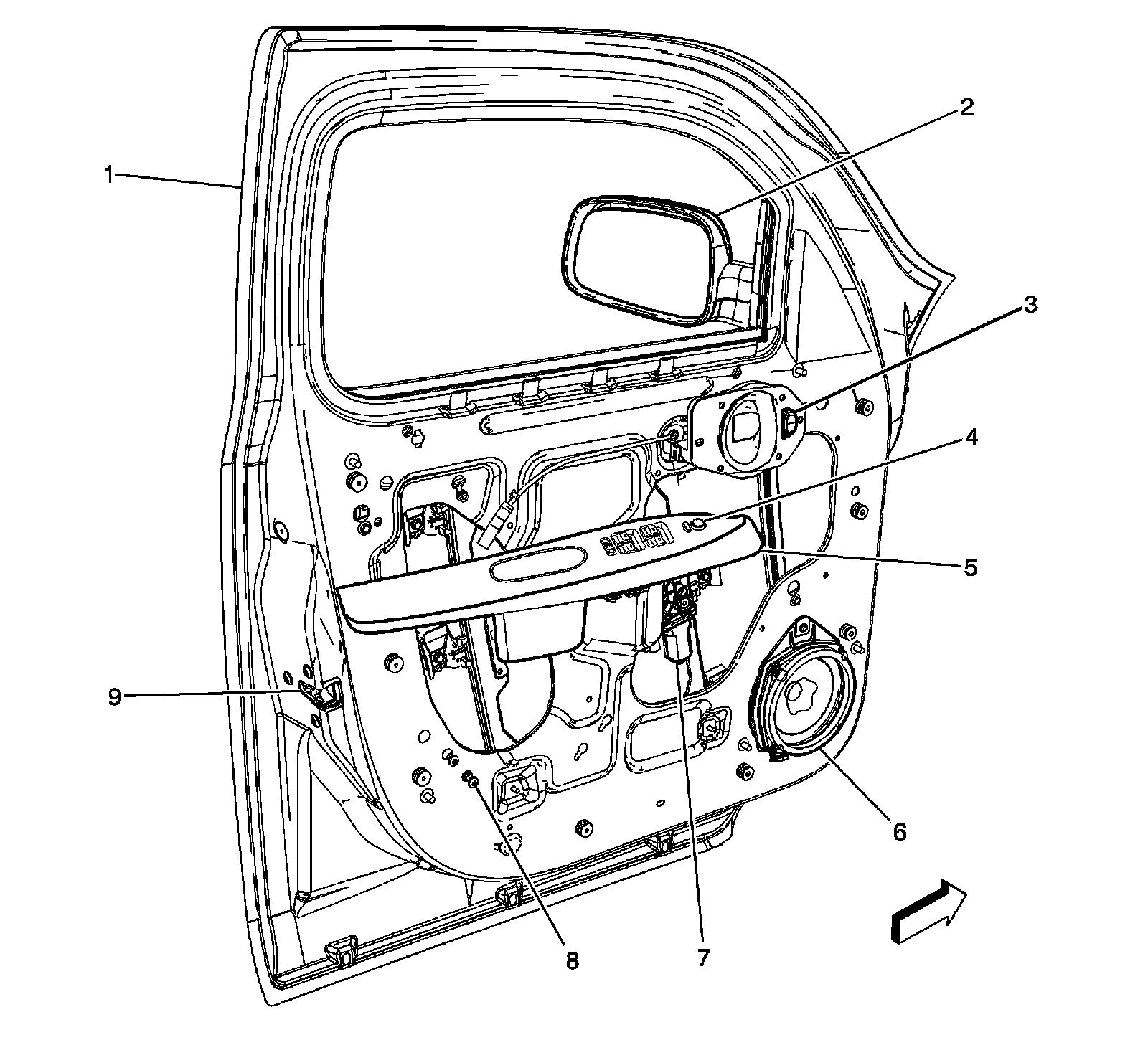

Driver Door Components




1 - Door Frame
2 - Outside Rearview Mirror Motor - Driver
3 - Door Lock Switch - Driver
4 - Outside Rearview Mirror Switch
5 - Window Switch - Driver
6 - Speaker - Left Front Door
7 - Window Motor - Driver
8 - Inflatable Restraint Side Impact Sensor (SIS) Left (ASF)
9 - Door Latch - Driver

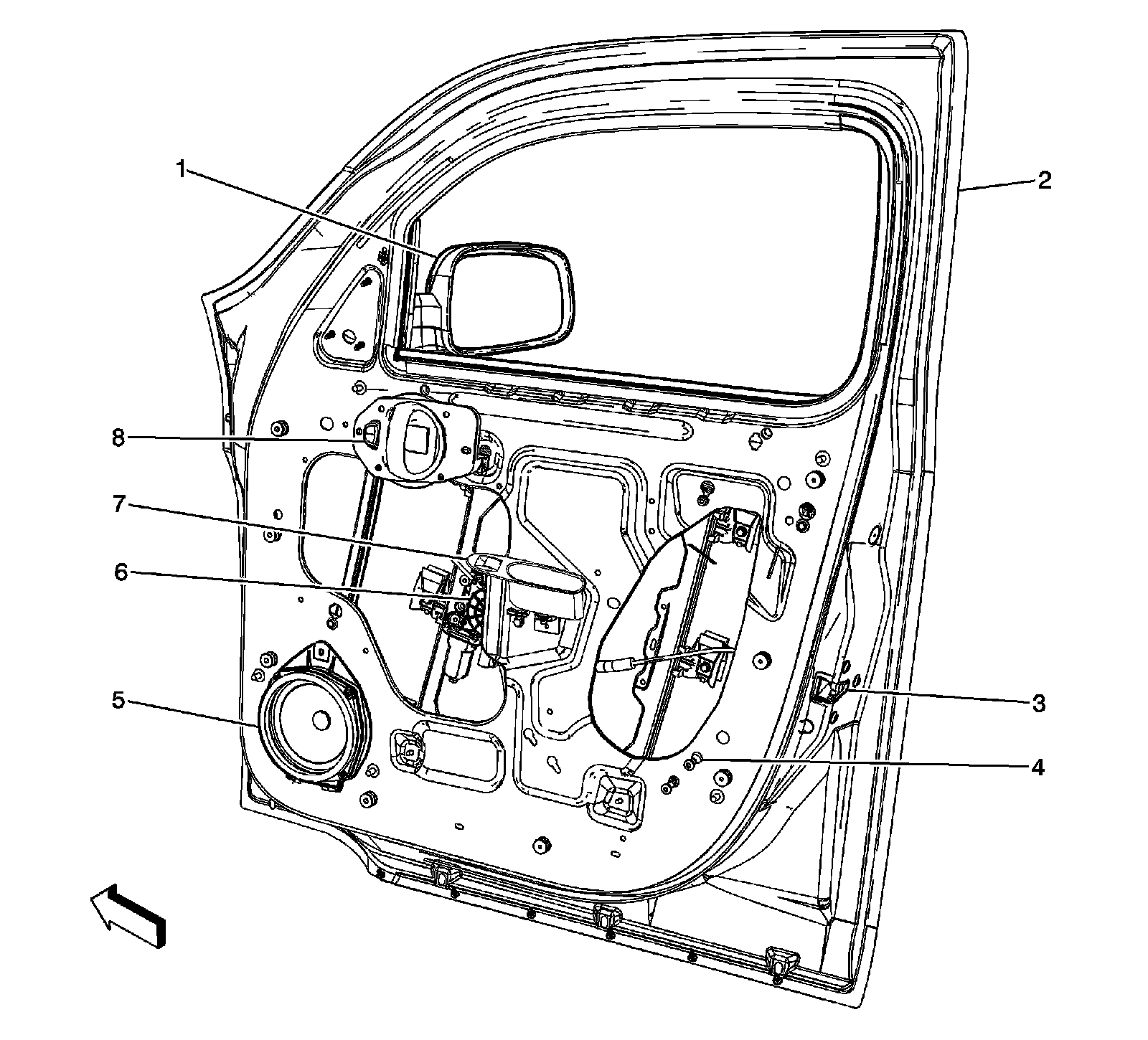

Passenger Door Components




1 - Outside Rearview Mirror Motor - Passenger
2 - Door Frame
3 - Door Latch - Passenger
4 - Inflatable Restraint Side Impact Sensor (SIS) Right (ASF)
5 - Speaker - Right Front Door
6 - Window Motor - Passenger
7 - Window Switch - Passenger
8 - Door Lock Switch - Passenger

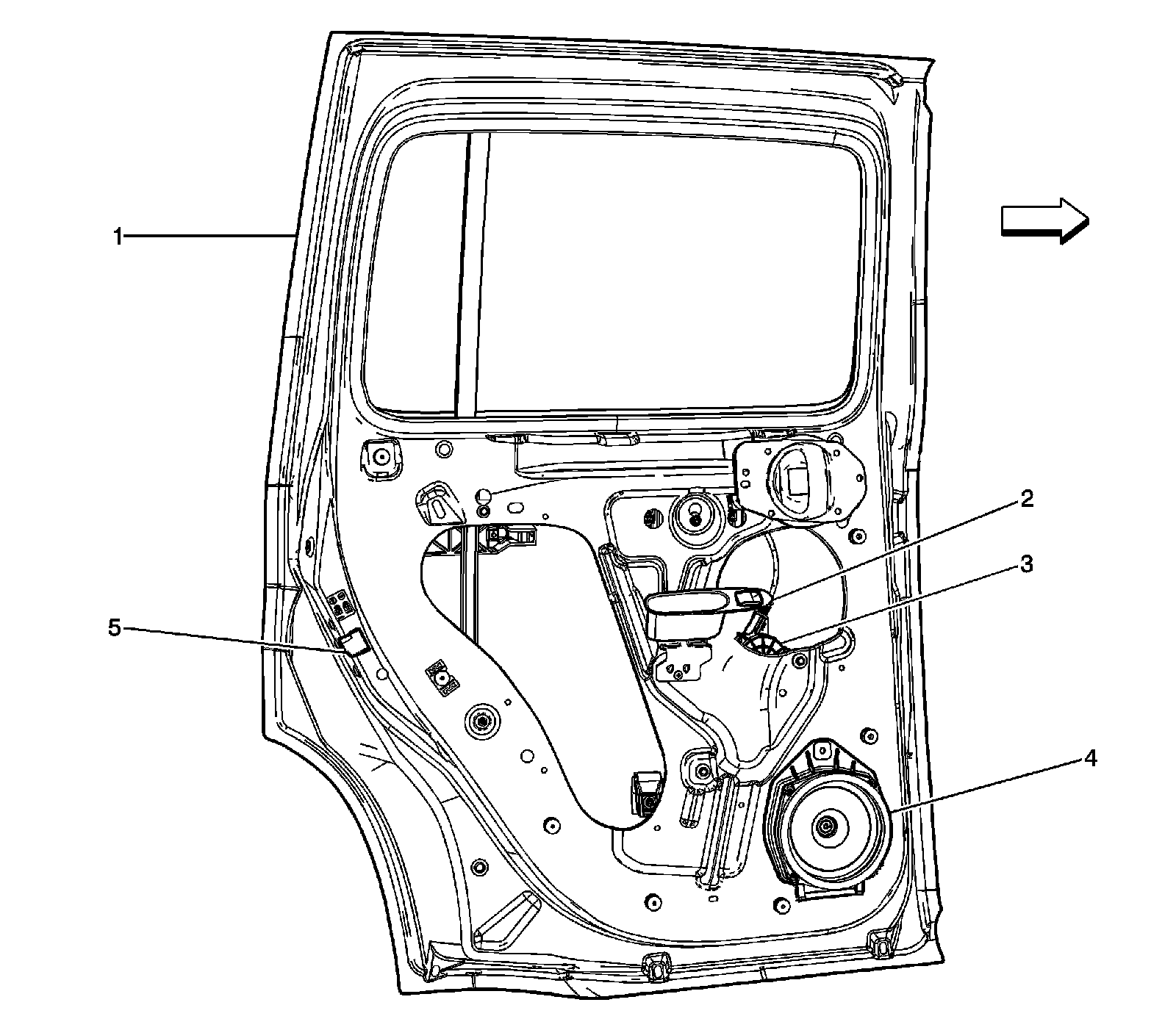

Left Rear Door (except Panel Van)




1 - Door Frame
2 - Window Switch - Left Rear
3 - Window Motor - Left Rear
4 - Speaker - Left Rear Door
5 - Door Latch - Left Rear

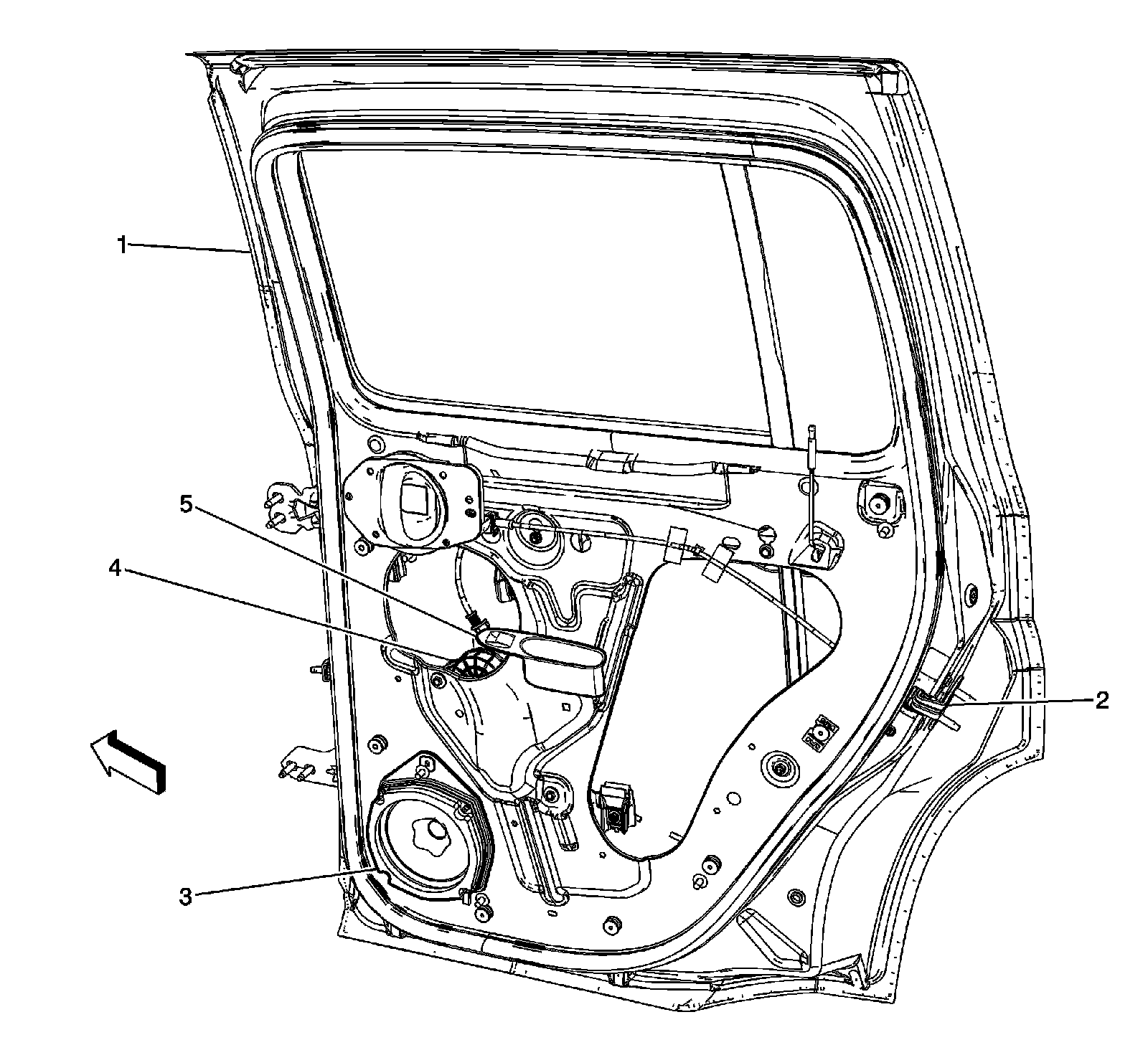

Right Rear Door (except Panel Van)




1 - Door Frame
2 - Door Latch - Right Rear
3 - Speaker - Right Rear Door
4 - Window Motor - Right Rear
5 - Window Switch - Right Rear

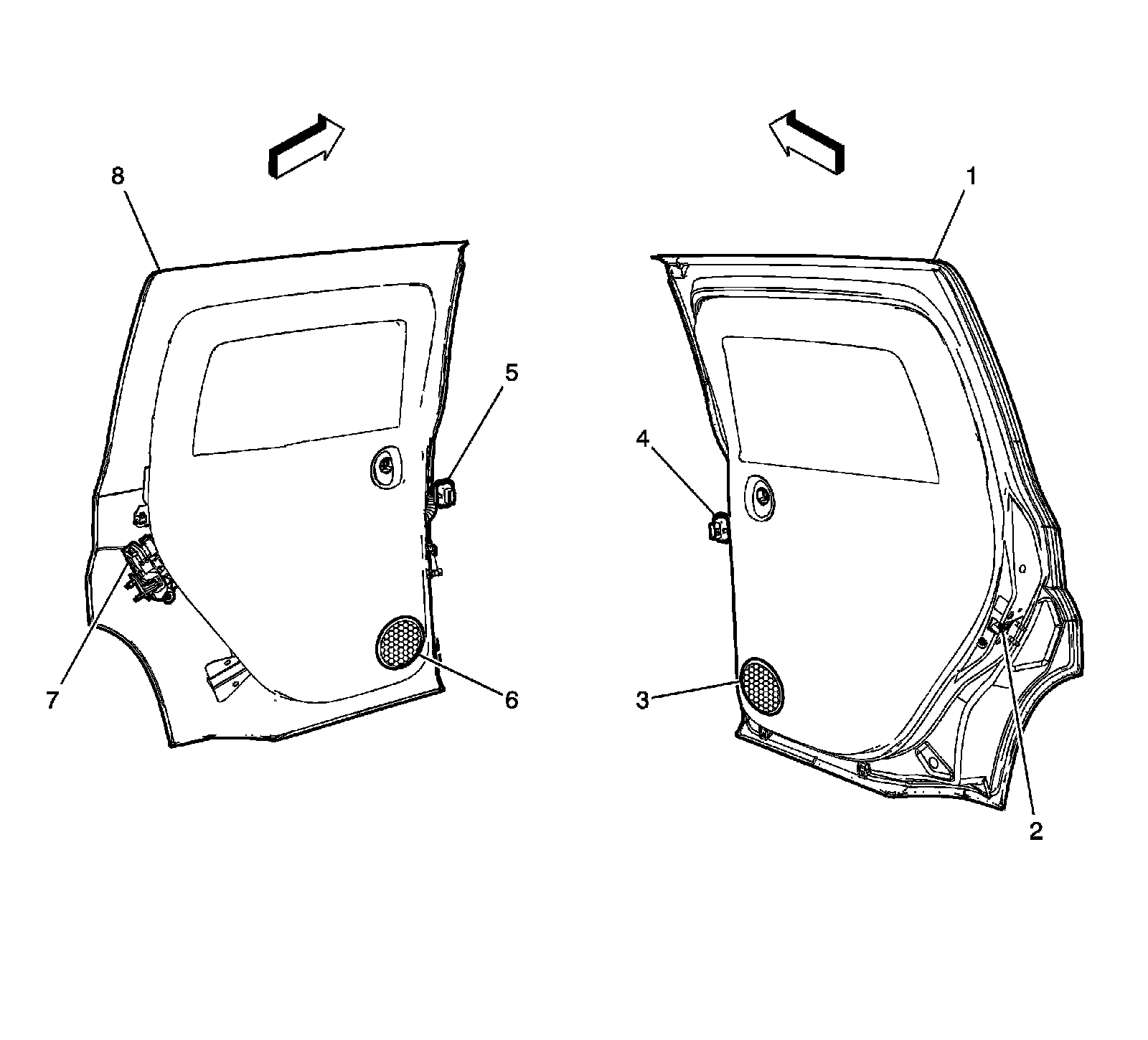

Rear Access Panel Components (Panel Van)




1 - Rear Access Panel - Right Rear
2 - Rear Access Panel Latch - Right Rear
3 - Speaker - Right Rear
4 - X700
5 - X800
6 - Speaker - Left Rear
7 - Rear Access Panel Latch - Left Rear
8 - Rear Access Panel - Left Rear
