Amplifier, Sound System




Component Connector End Views

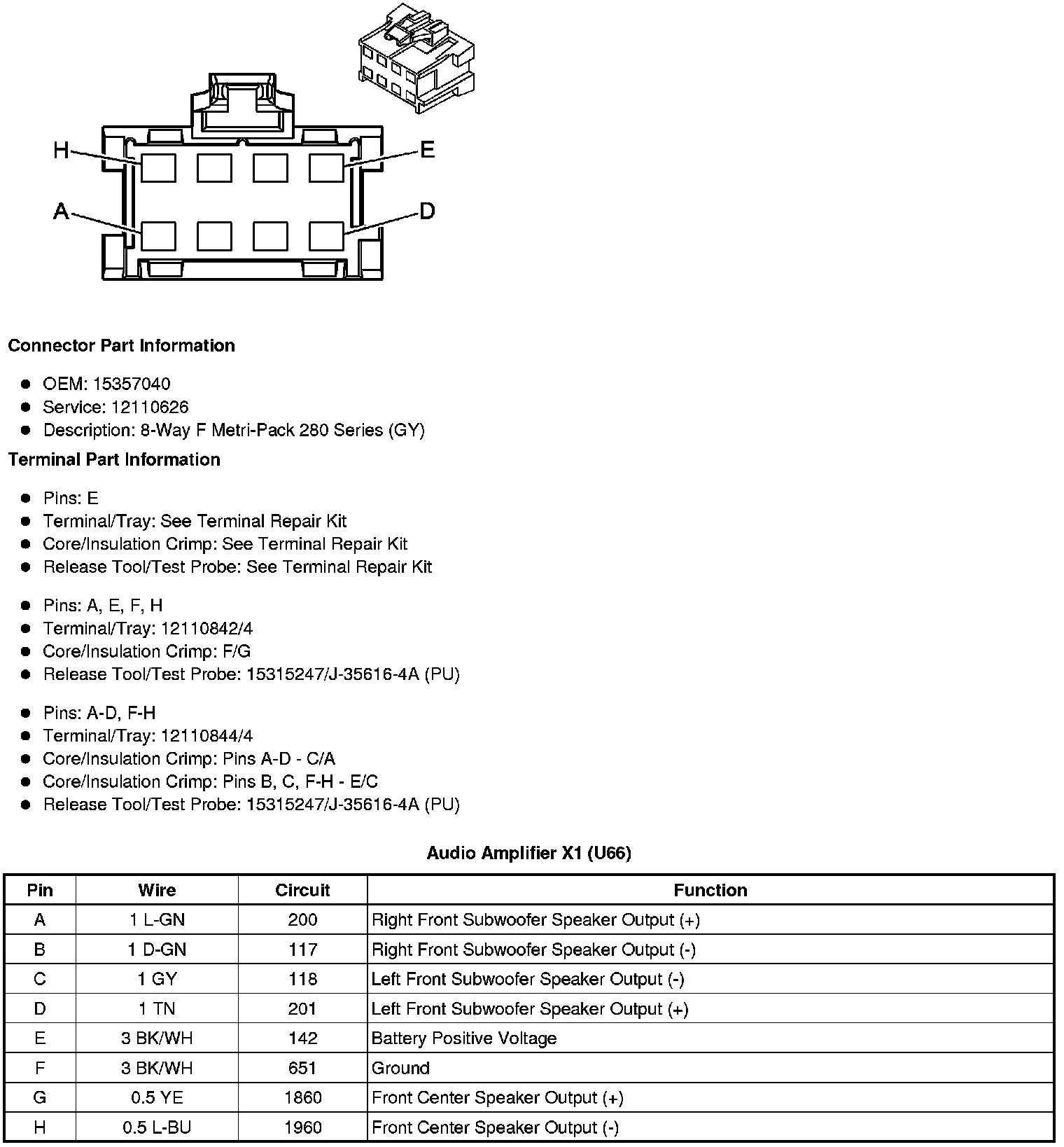

Audio Amplifier X1 - U66

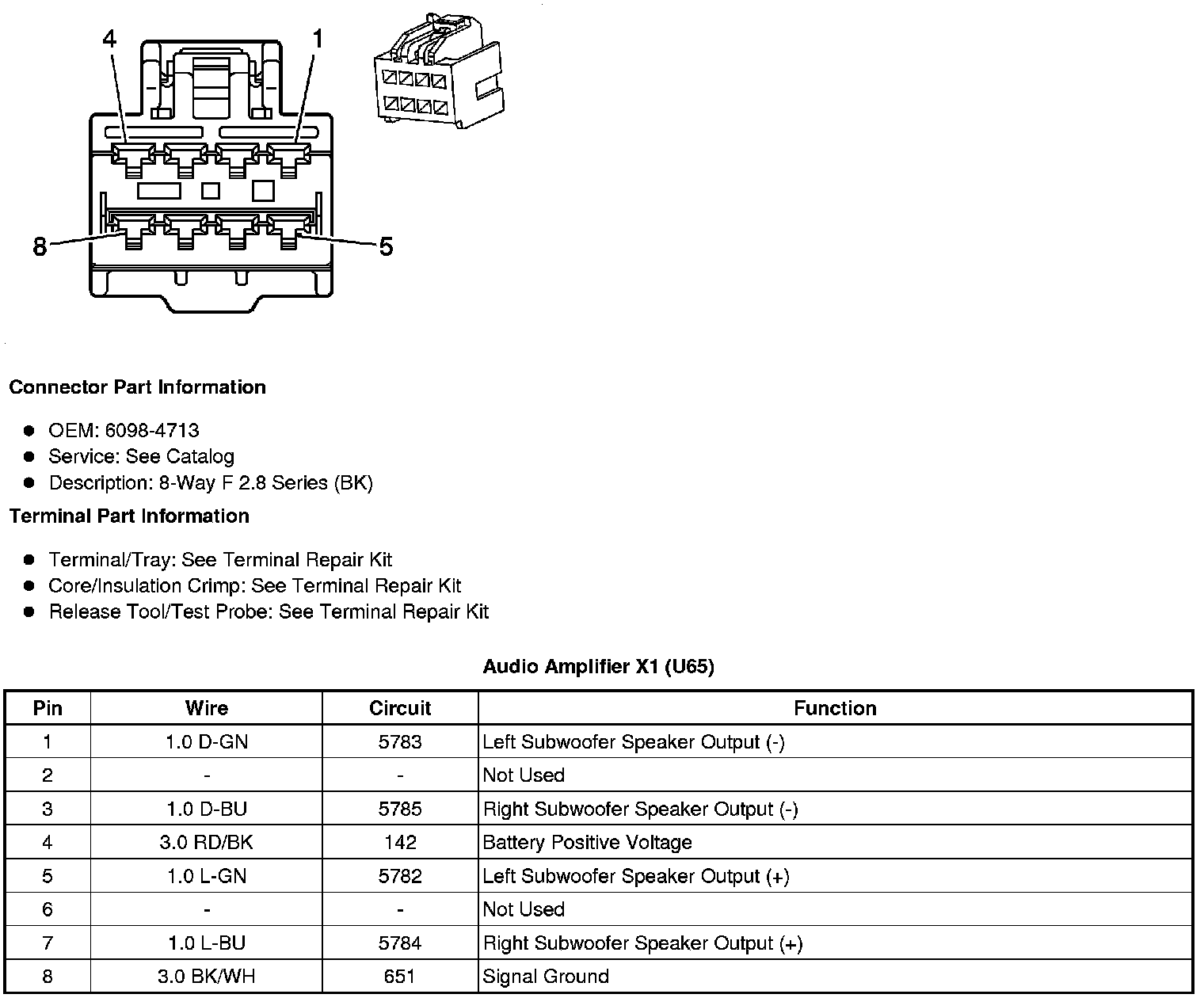

Audio Amplifier X1 (U65)

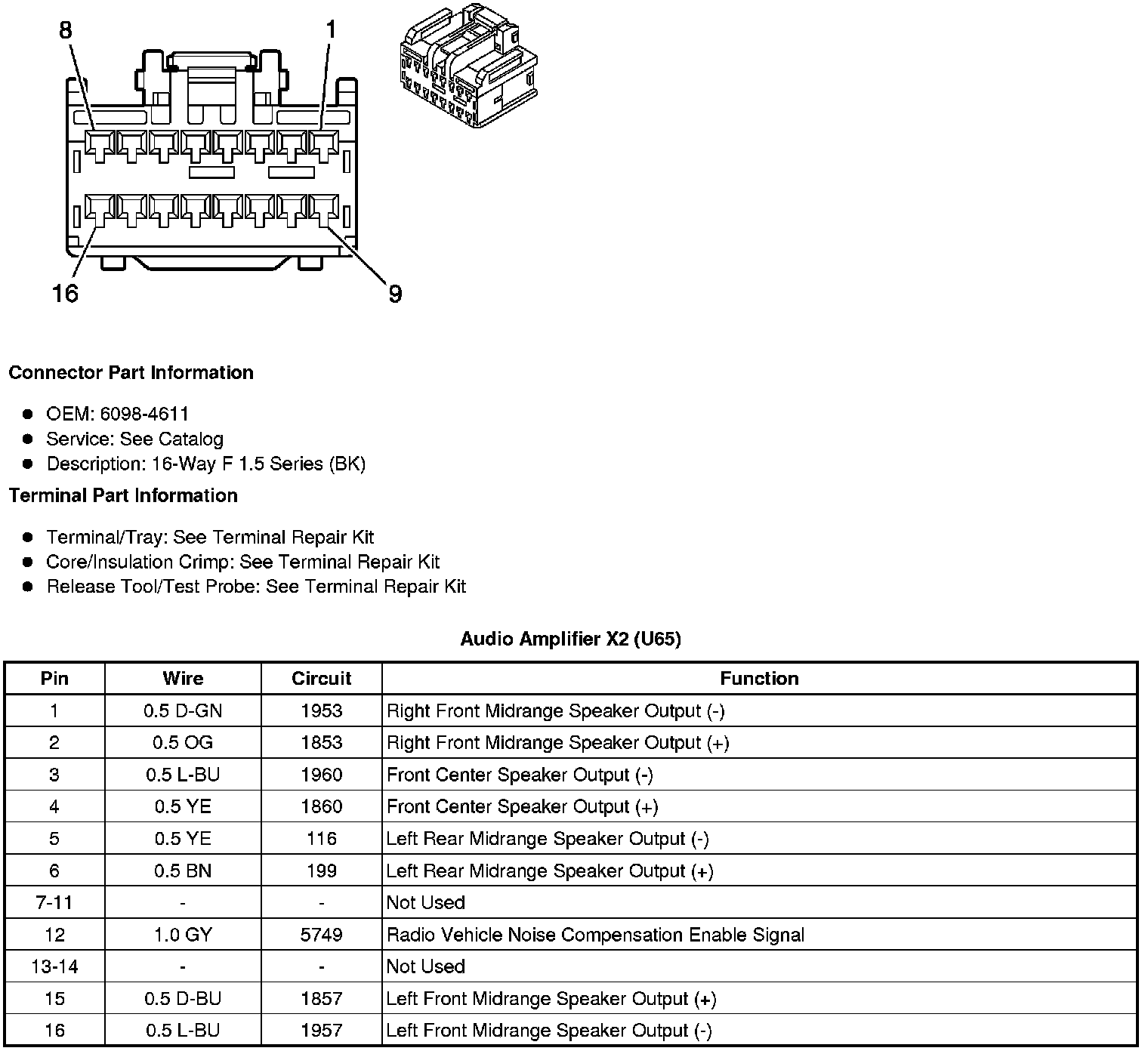

Audio Amplifier X2 (U66)

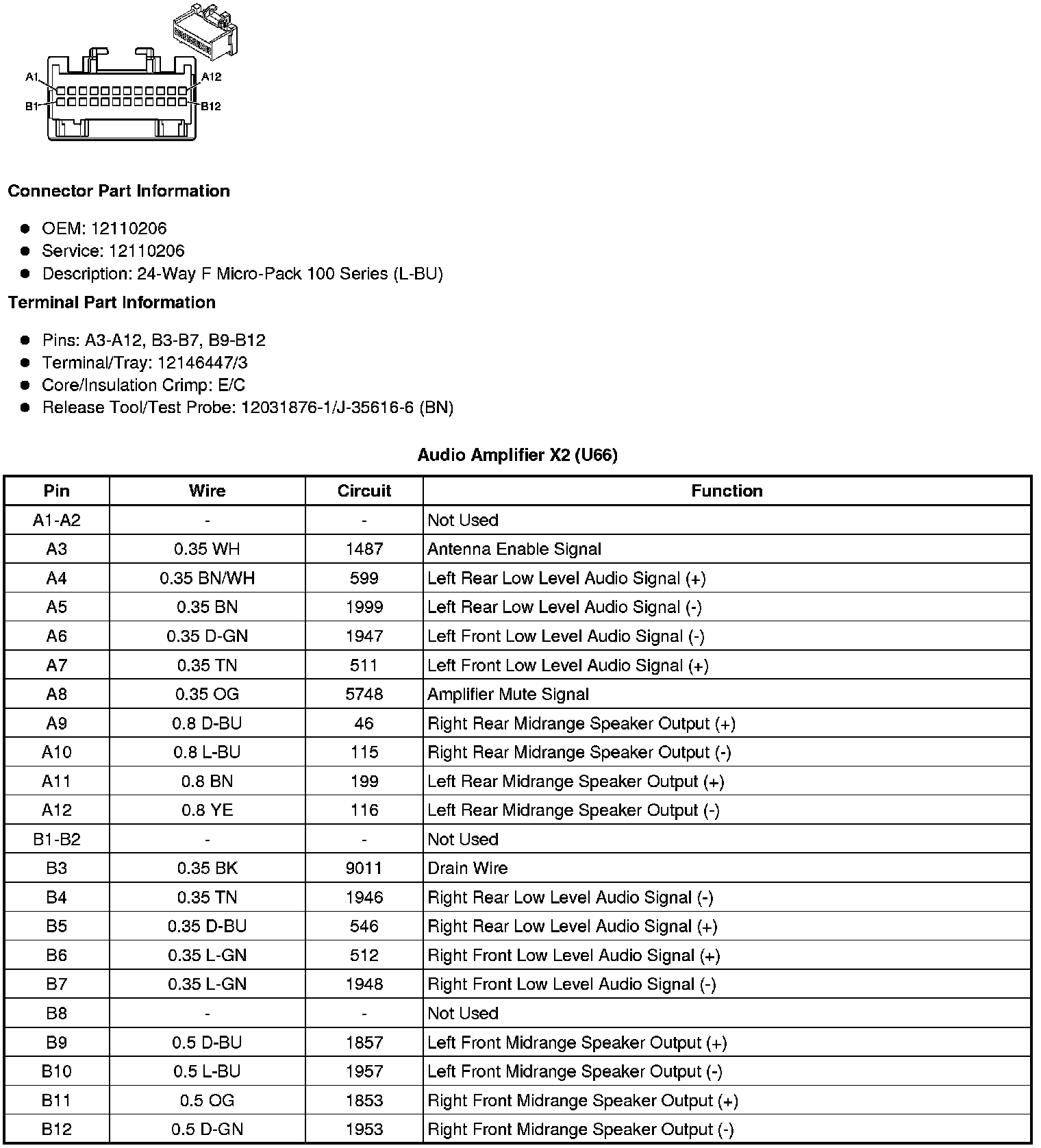

Audio Amplifier X2 (U65)

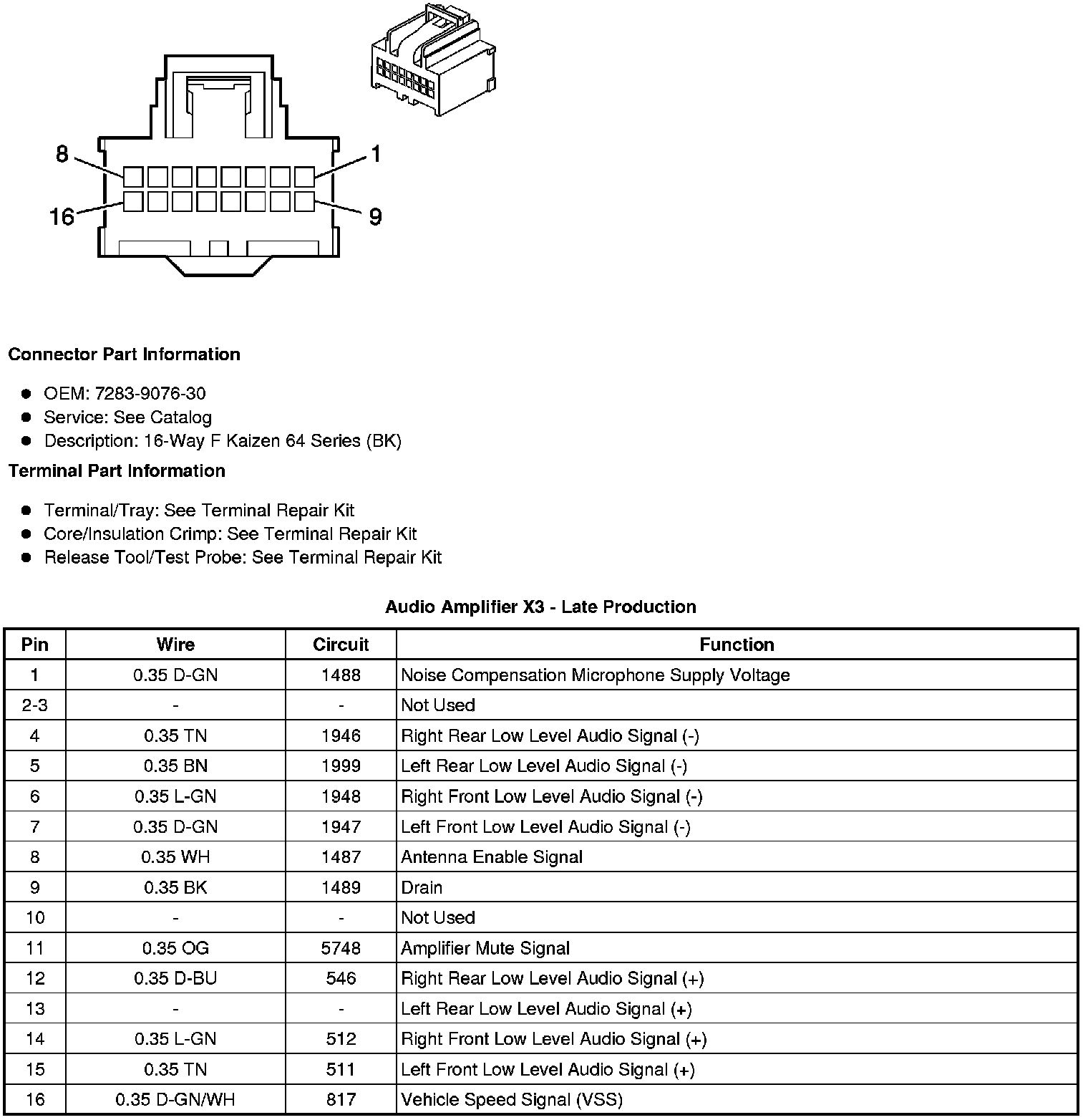

Audio Amplifier X3 - Late Production
