Control Module, Transfer Case

Component Connector End Views

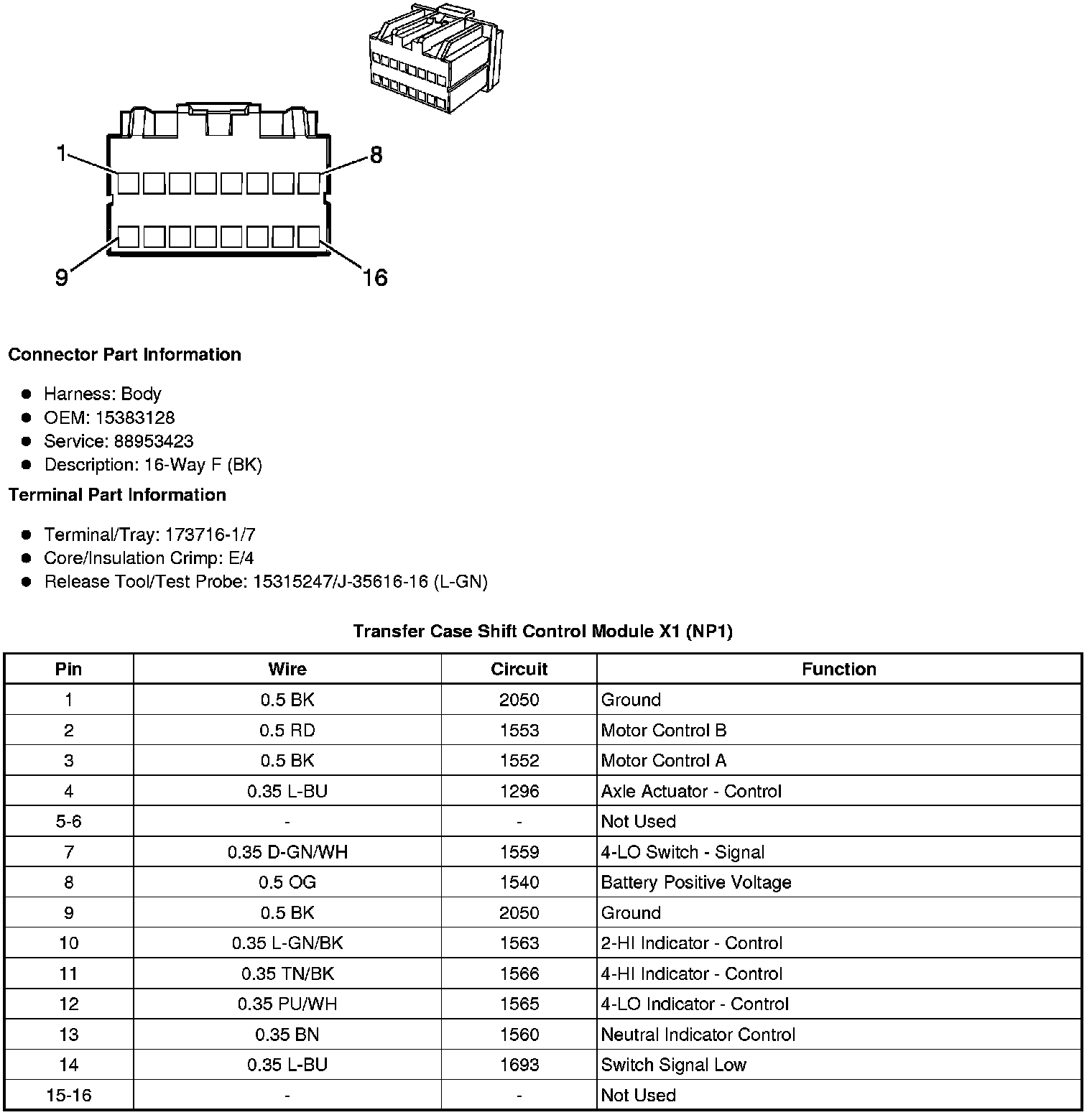

Transfer Case Shift Control Module X1 (NP1)

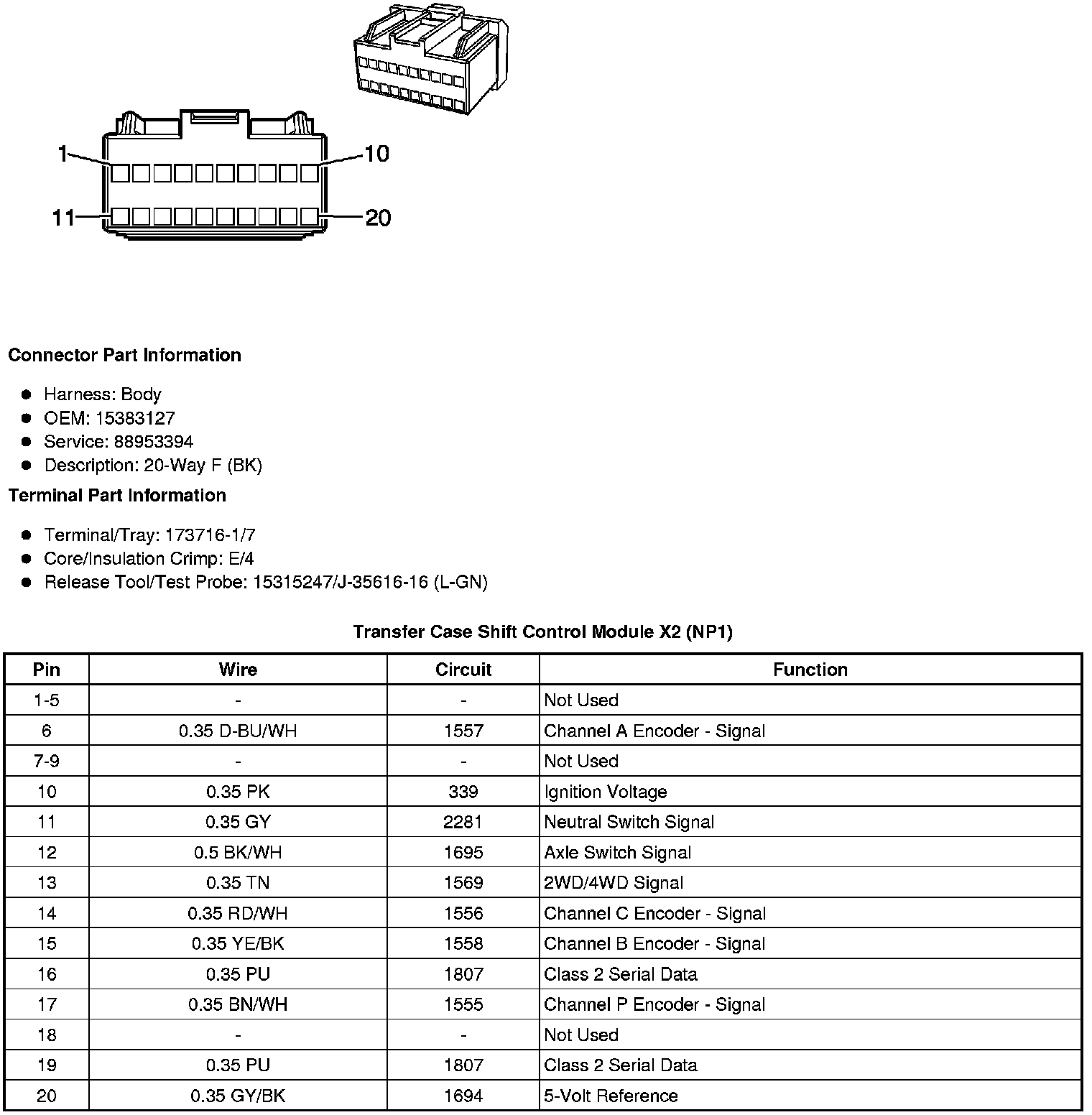

Transfer Case Shift Control Module X2 (NP1)
