76. Intermediate Fourth Band Assembly Installation




Intermediate Fourth Band Assembly Installation

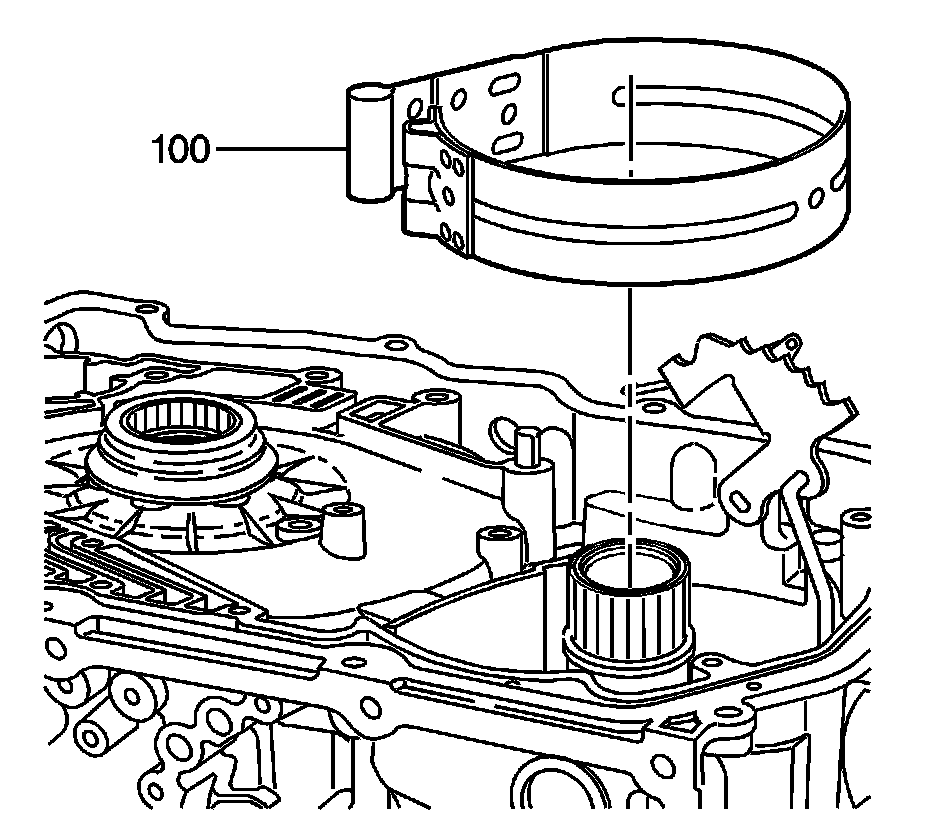

1. Assemble a new Intermediate/Fourth band (100) into the transmission case.

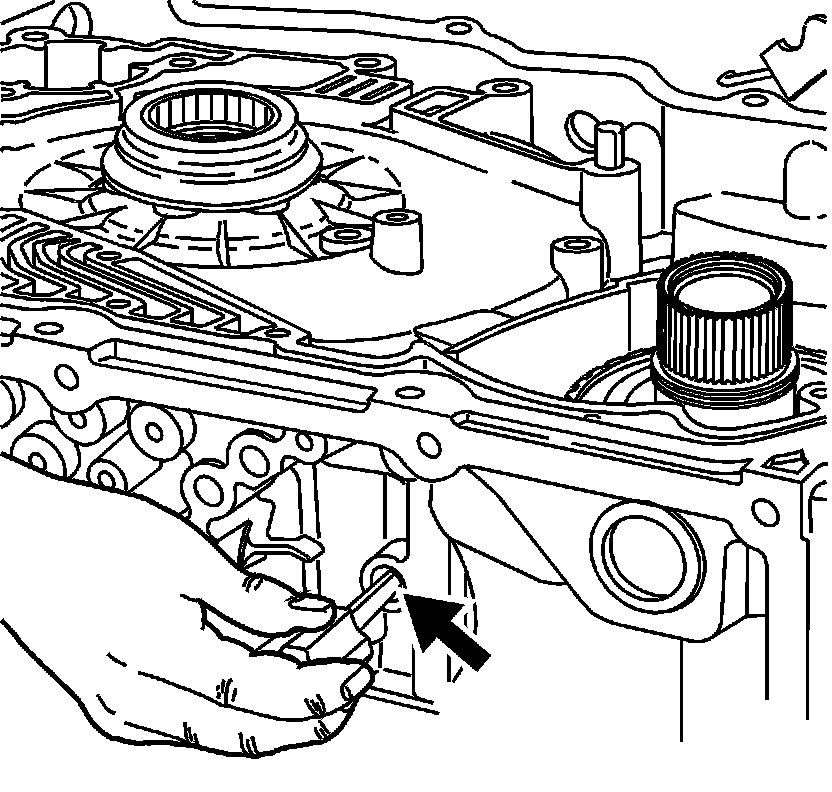

2. In order to verify the proper positioning of the band, insert a screwdriver through the Intermediate/Fourth servo bore. The screwdriver should press on the servo pin rest and compress the band around the reverse clutch housing.
