Throttle Position Sensor: Diagrams




Component Connector End Views

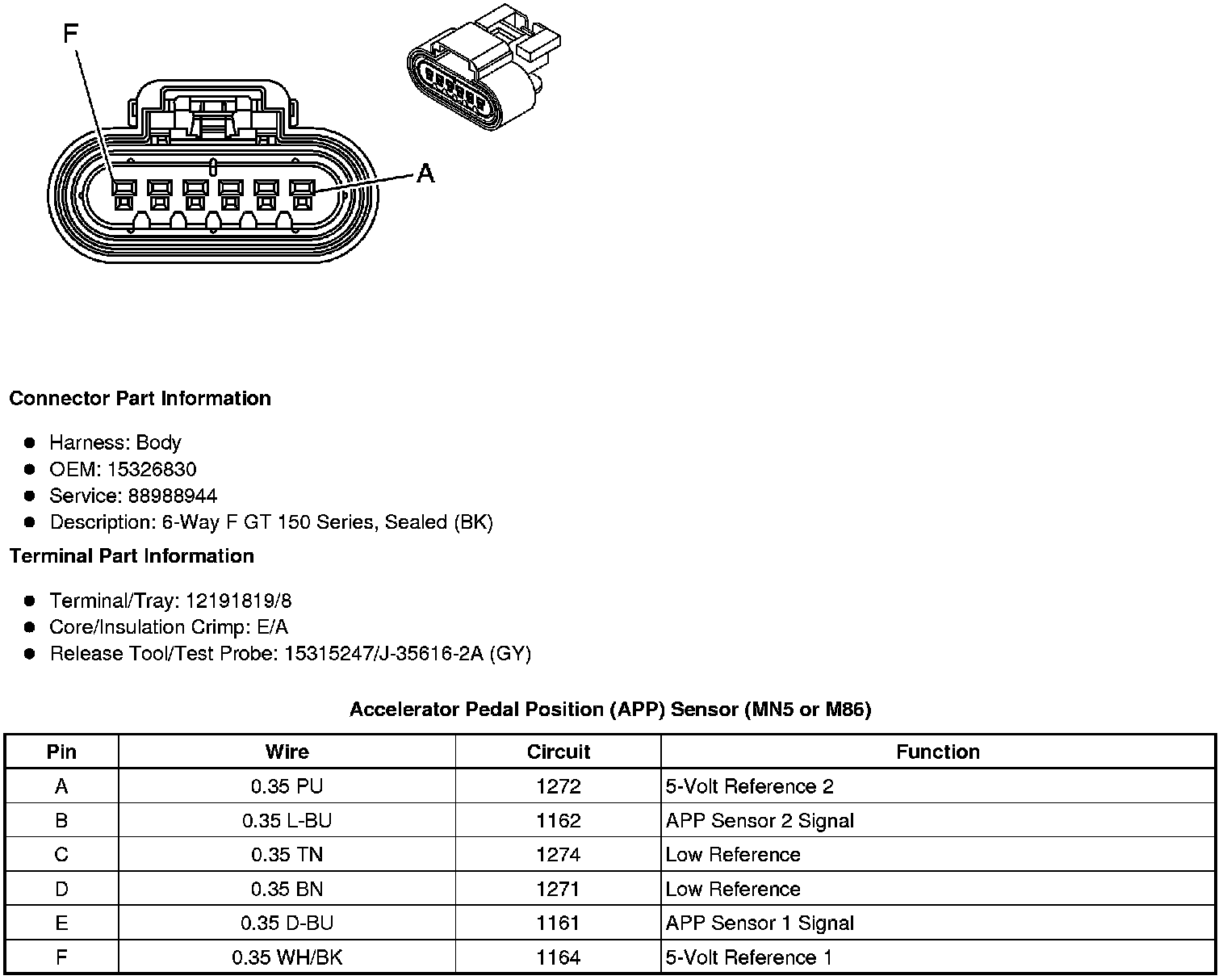

Accelerator Pedal Position (APP) Sensor (MN5 or M86)





Accelerator Pedal Position (APP) Sensor (MU3)
