Engine Control Module: Diagrams




Component Connector End Views

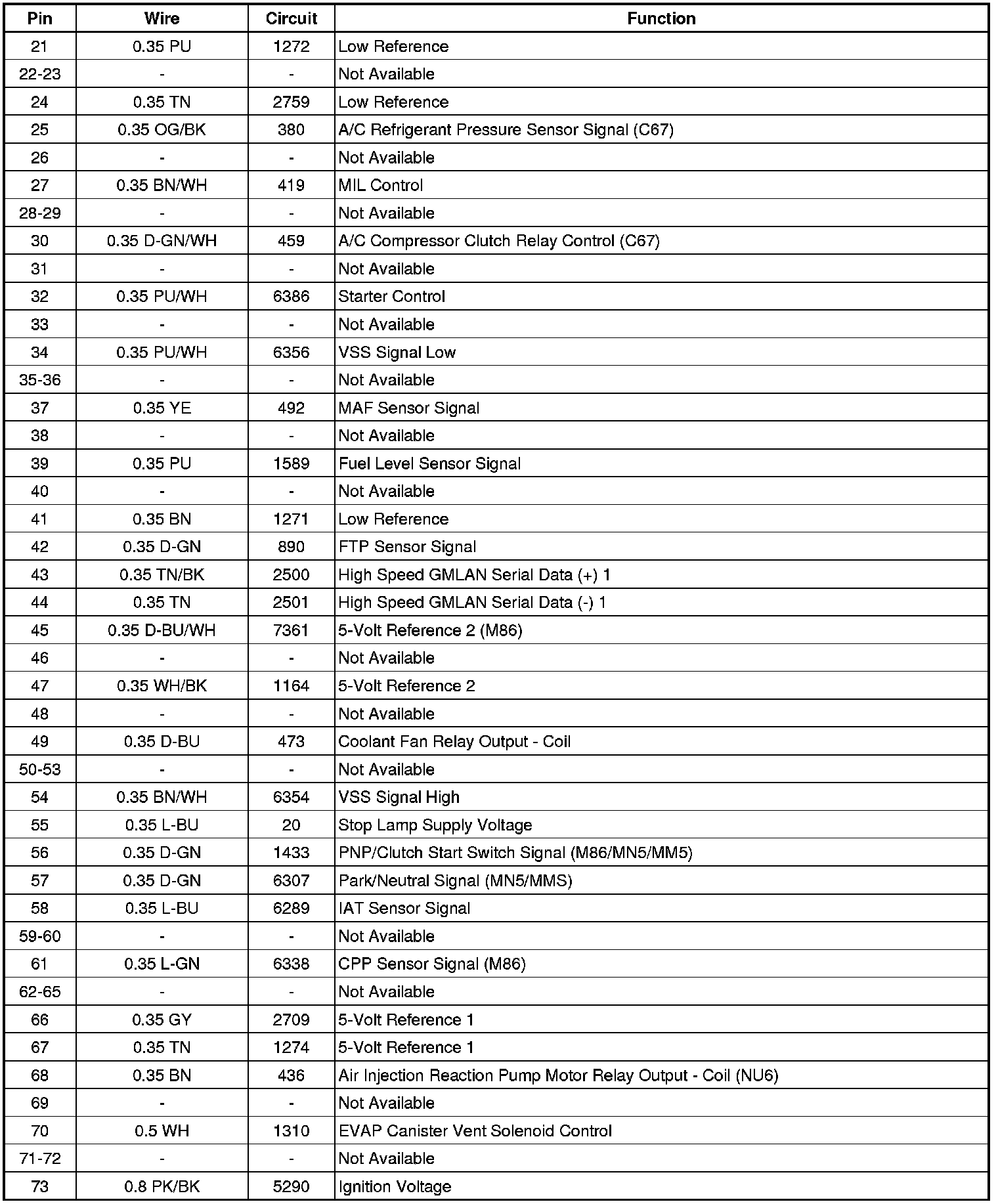

Engine Control Module (ECM) X1 (LAP)

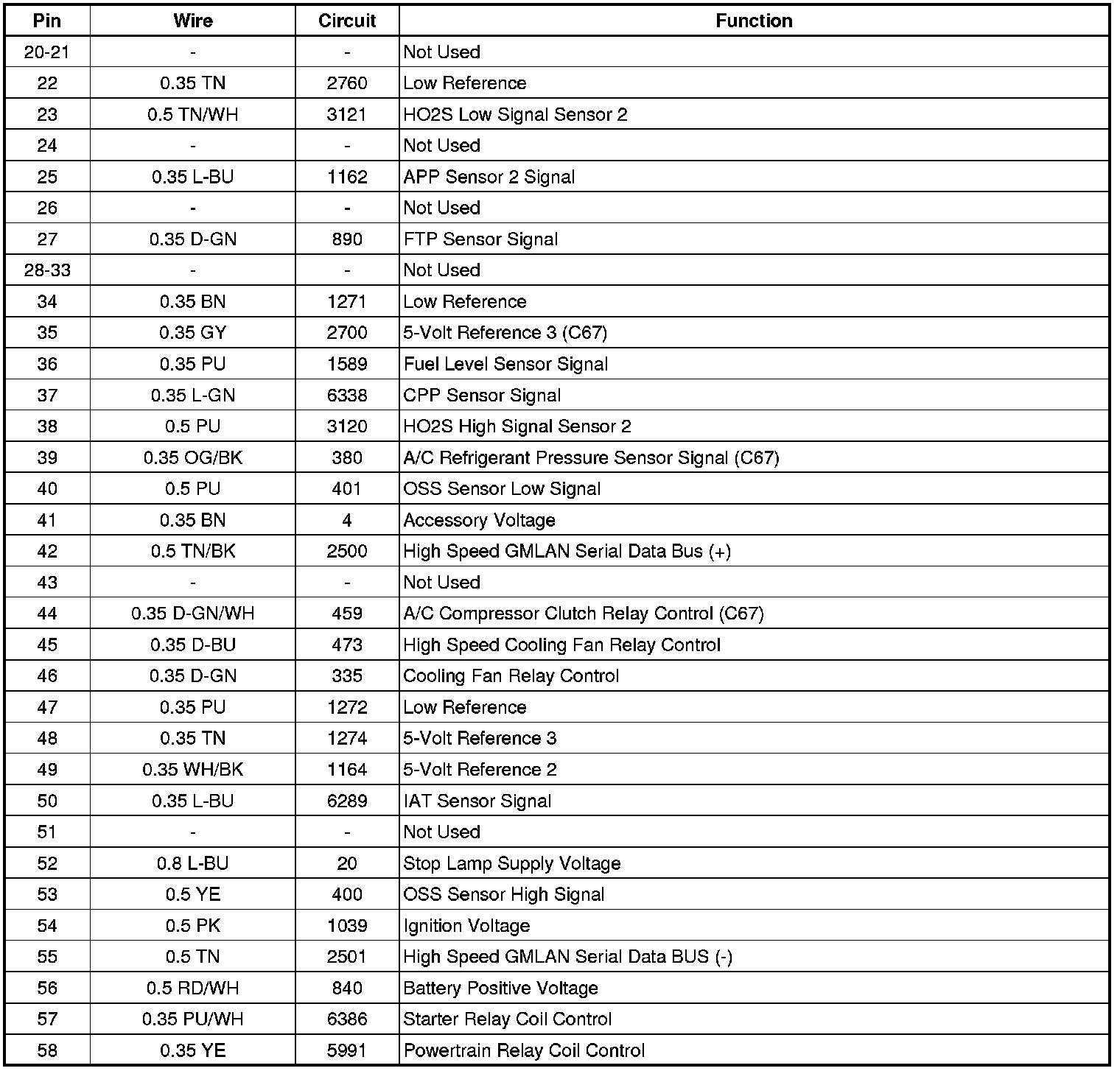

Engine Control Module (ECM) X1 (LNF)

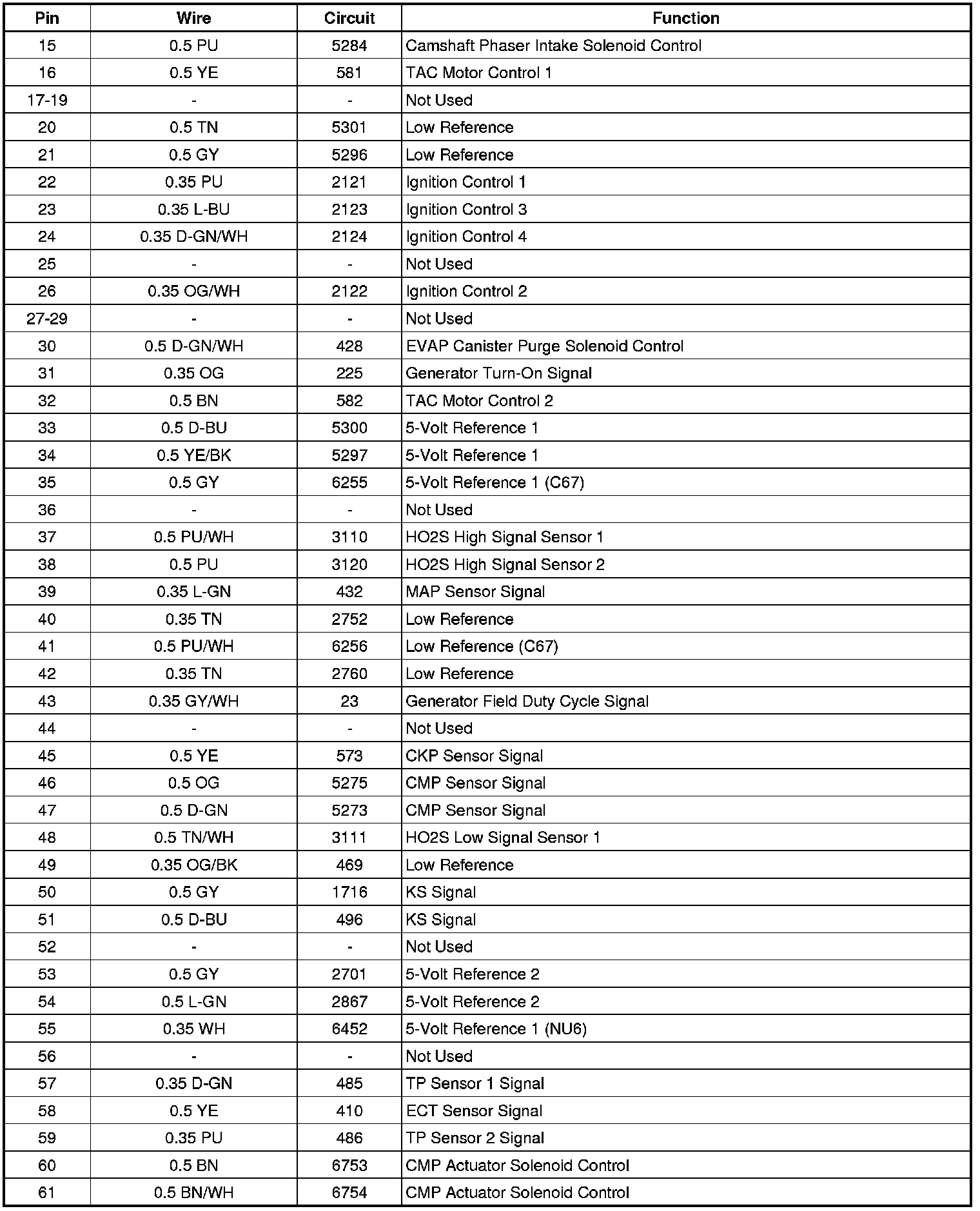

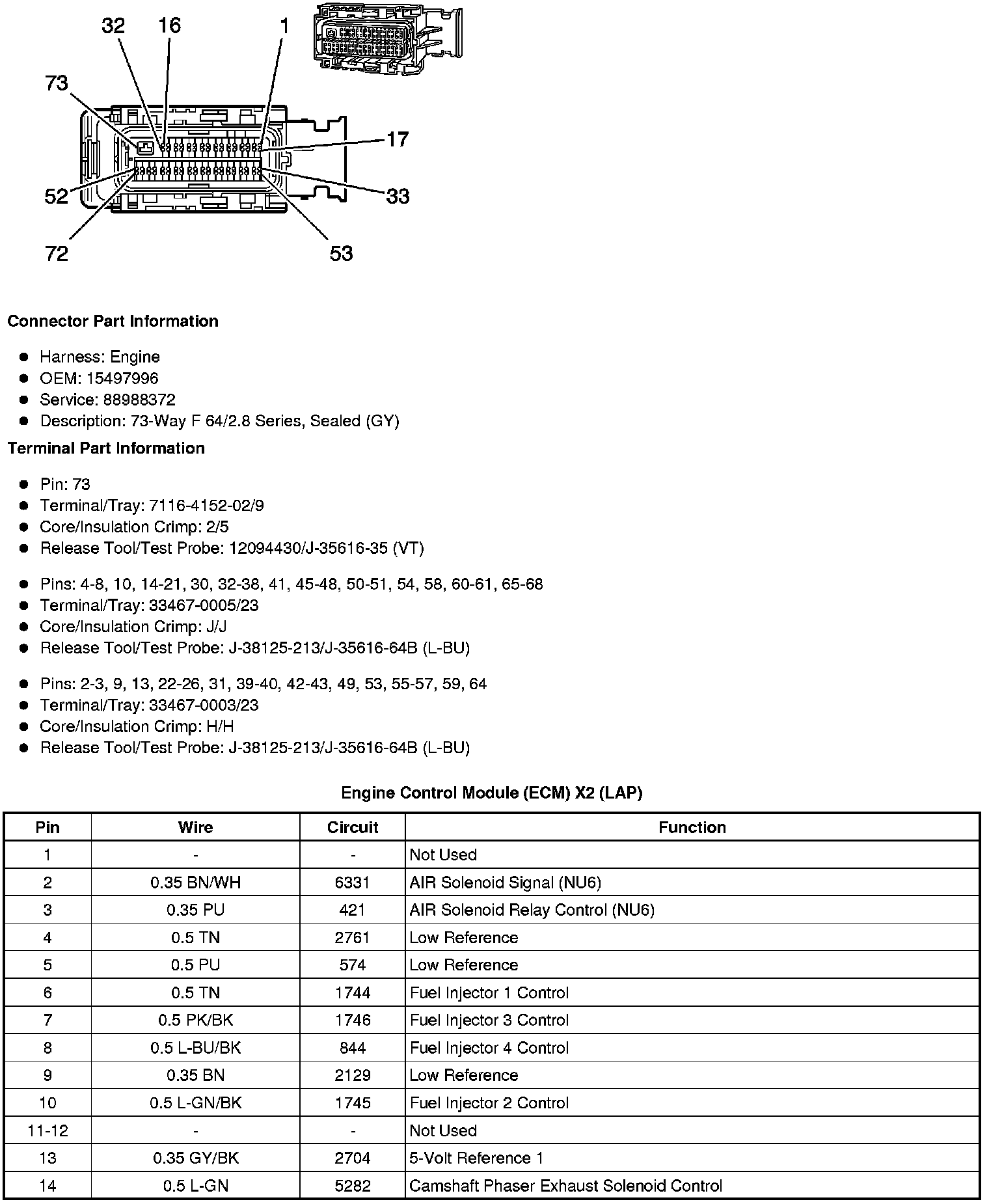

Engine Control Module (ECM) X2 (LAP)

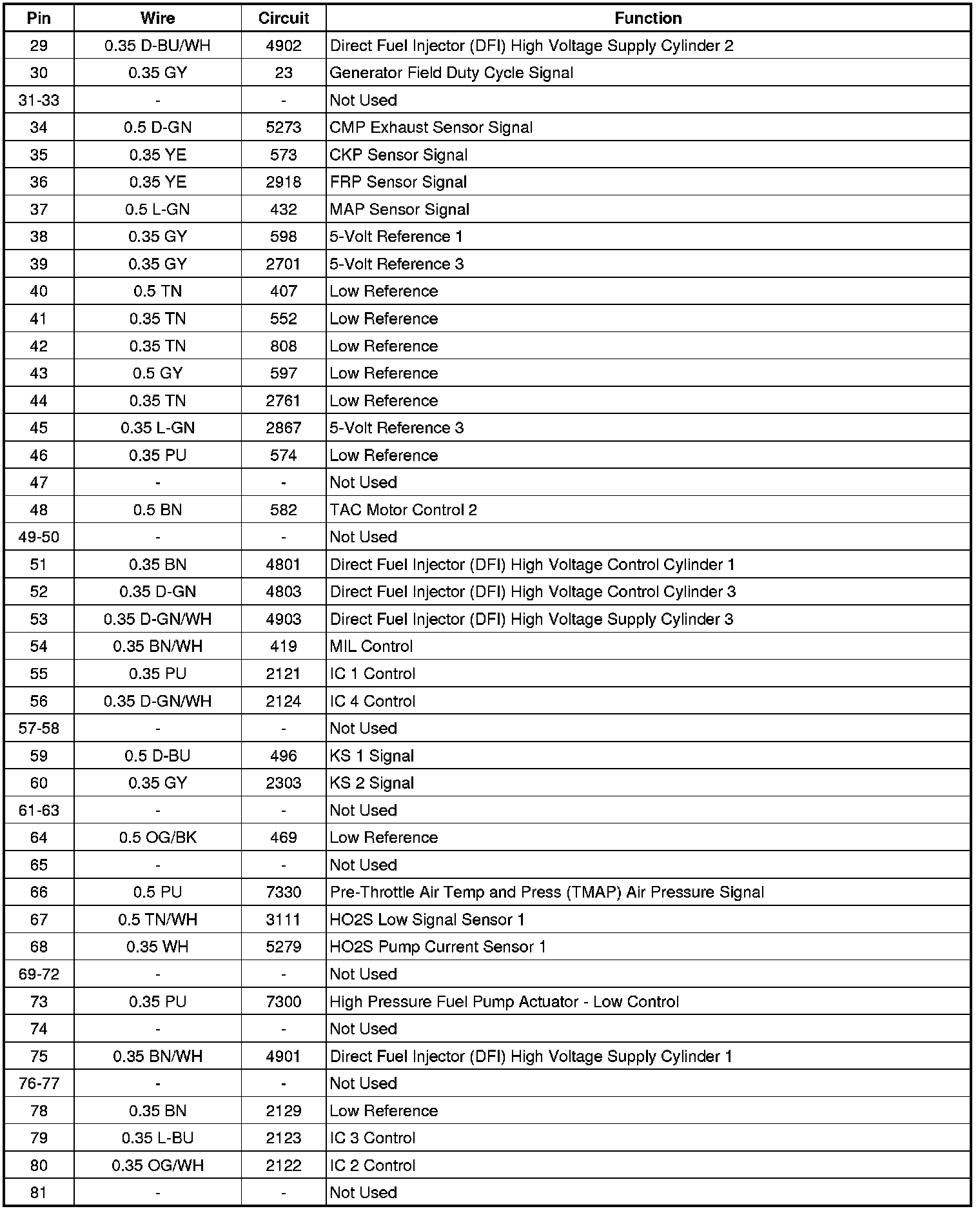

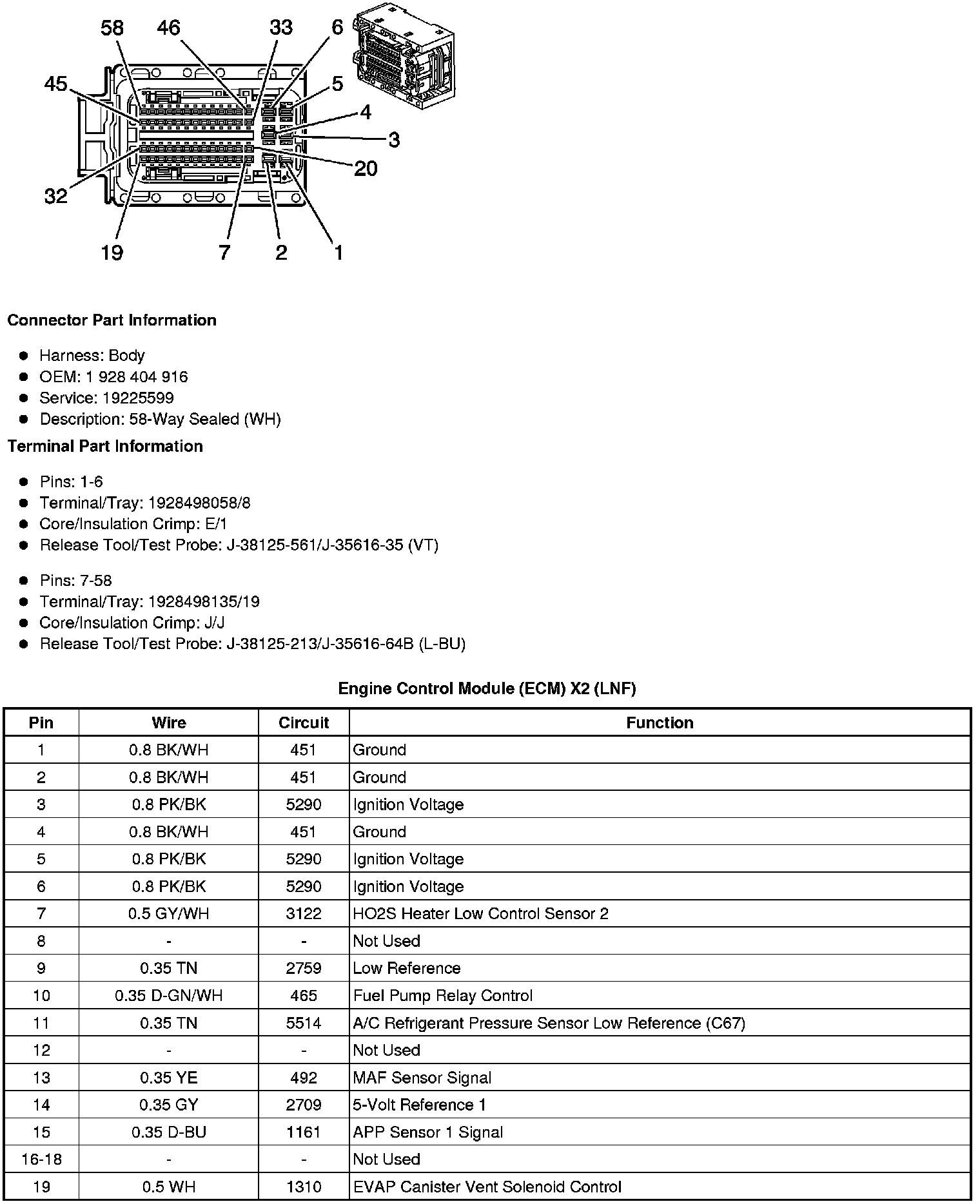

Engine Control Module (ECM) X2 (LNF)
