Harness Locations

Harness Routing Views

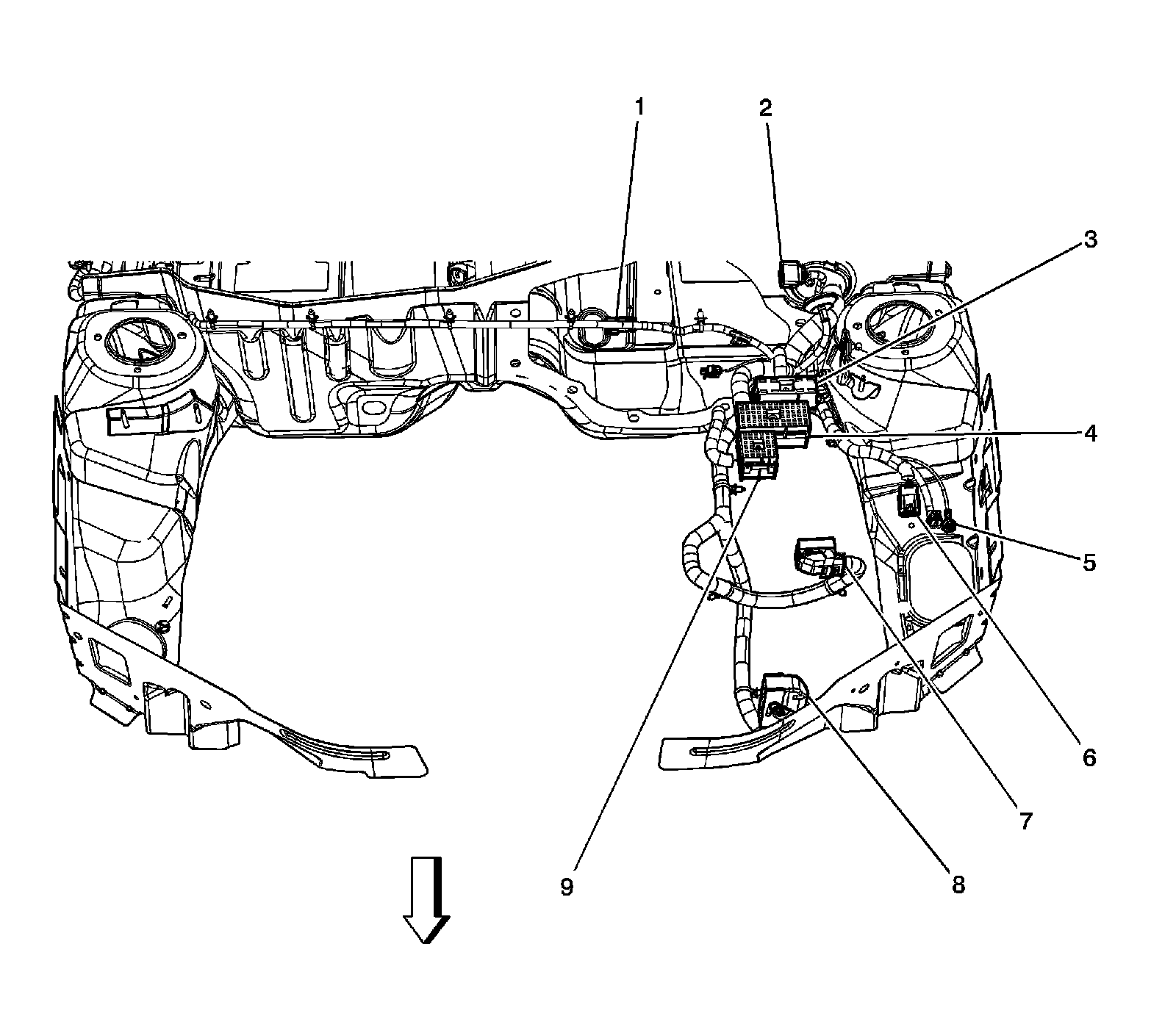

Body Harness - Engine Compartment

1 - X101
2 - Windshield Wiper Motor Connector
3 - Fuse Block - Underhood X4
4 - Fuse Block - Underhood X2
5 - G101
6 - X121
7 - Engine Control Module (ECM) X1
8 - Electronic Brake Control Module (EBCM) Connector
9 - Fuse Block - Underhood X5
