Component Locations

Luggage Compartment/Rear of Vehicle Component Views

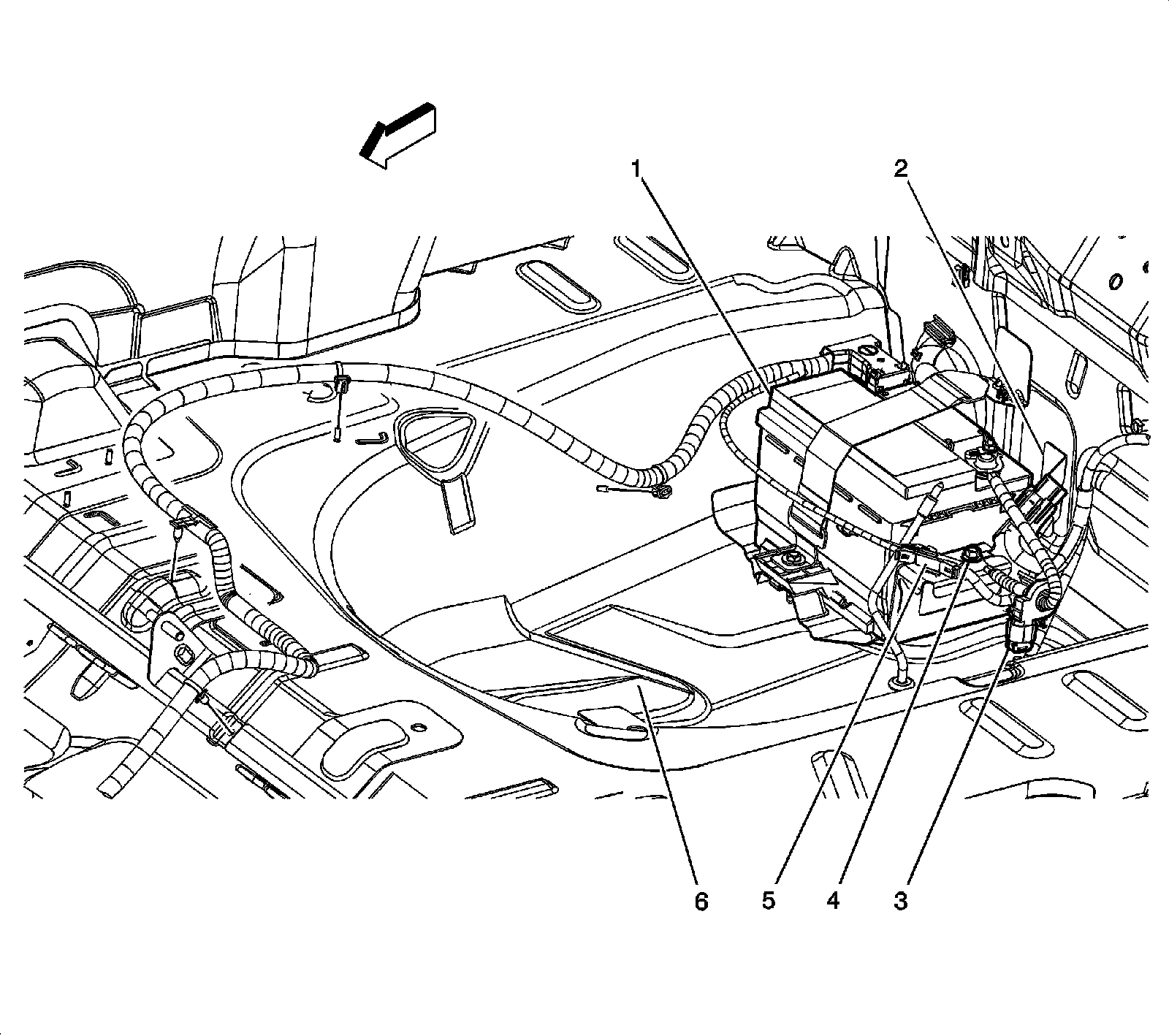

Rear Floor Pan Components and G403

1 - Battery
2 - Fuse Holder 50 A
3 - Battery Current Sensor
4 - G403
5 - X400
6 - Spare Tire Well
