Disassembled Views




Disassembled Views

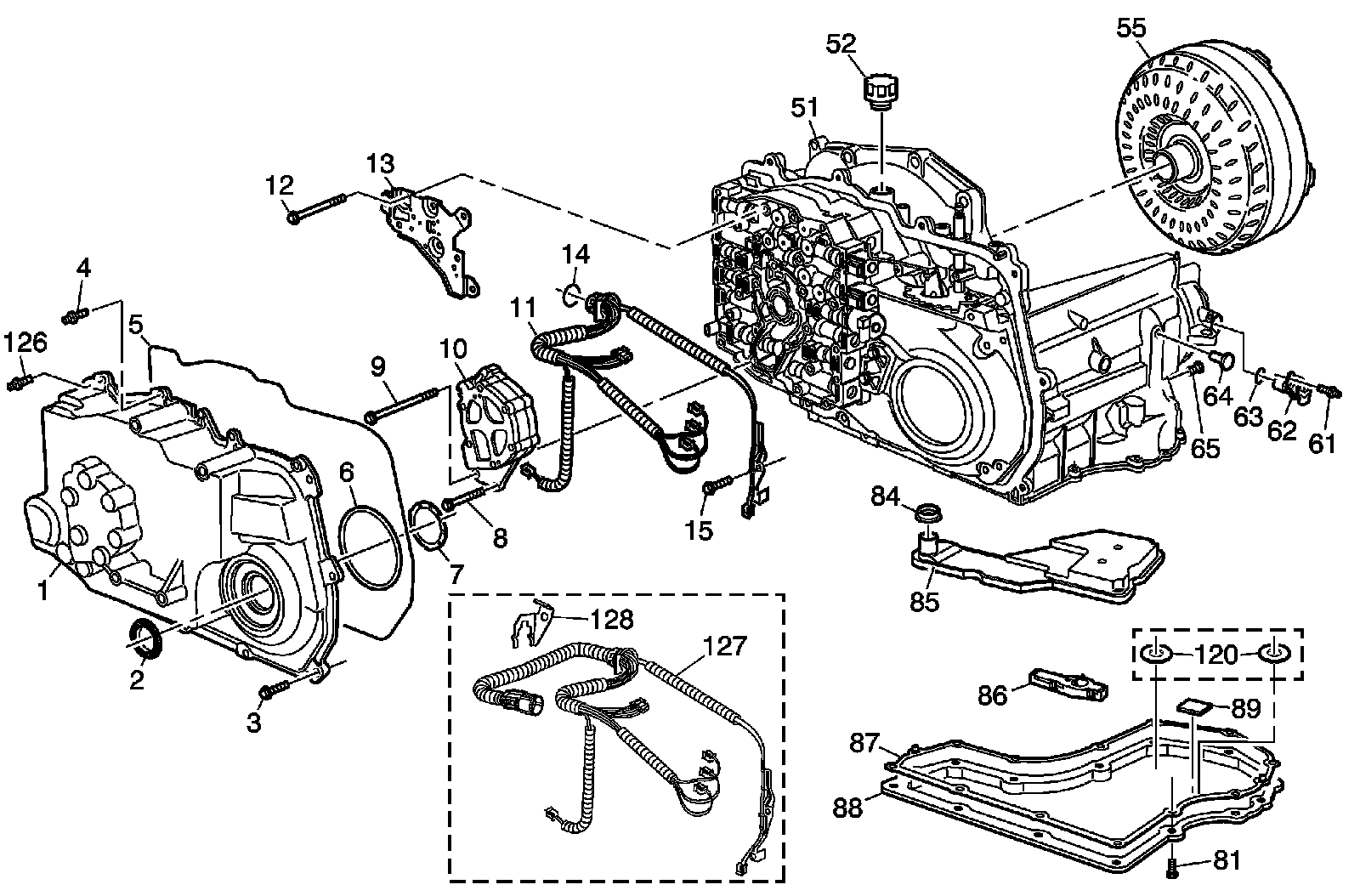

Case and Associated Parts (1 of 3)




1 - Side Cover (Structural)
2 - Axle Oil Seal
3 - Side Cover Bolt
4 - Side Cover Stud
5 - Side Cover Gasket
6 - Side Cover Oil Level Control Gasket
7 - Thrust Washer (Side Cover to Driven Sprocket)
8 - Oil Pump Bolt
9 - Oil Pump Bolt
10 - Transaxle Oil Pump Assembly
11 - Transaxle Wiring Assembly
12 - TFP Manual Valve Position Switch Assembly Bolt
13 - TFP Manual Valve Position Switch Assembly
14 - Wiring Harness Pass-Through Connector O-Ring Seal
15 - Wiring Harness Bracket Bolt/Input Speed Sensor Bolt
51 - Transaxle Case
52 - Vent Cap
55 - Torque Converter Assembly
61 - Output Speed Sensor Stud
62 - Output Shaft Speed Sensor
63 - O-Ring Seal (Output Speed Sensor)
64 - Band Anchor Pin (Lo/Reverse)
65 - Oil Level Control Plug
81 - Tube Assembly Bolt/Bottom Pan Bolt
84 - Transaxle Oil Filter Seal
85 - Transaxle Oil Filter Assembly
86 - Oil Level Control Valve
87 - Transaxle Bottom Pan Gasket
88 - Transaxle Oil Pan
89 - Chip Collector Magnet
120 - Chip Collector Magnet (Some Models)
126 - Side Cover Stud
127 - Transmission Wiring Harness Assembly (Some Models)
128 - Electrical Connector Retaining Bracket (Some Models)
