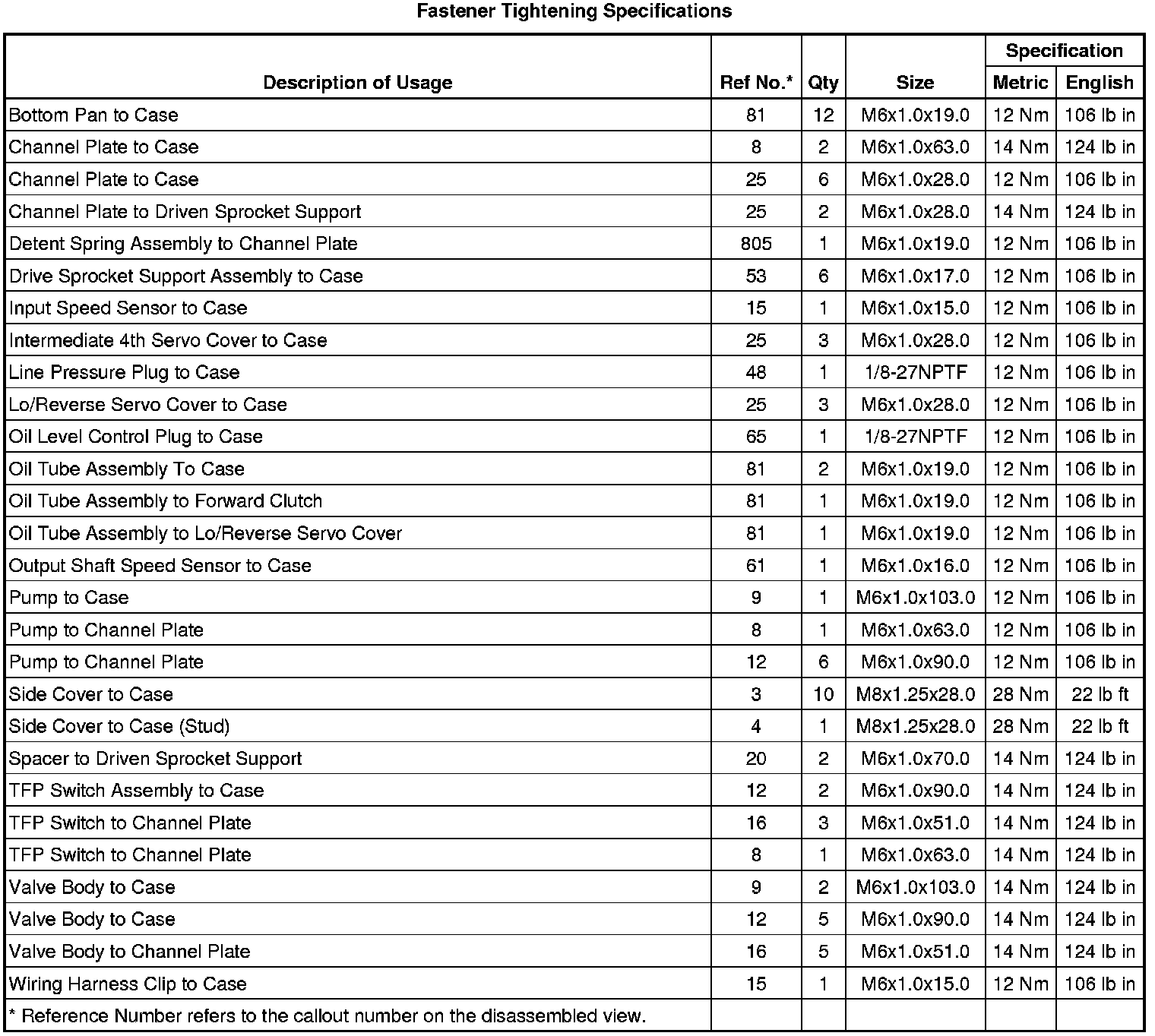

Fastener Tightening Specifications




Fastener Tightening Specifications





Flex plate 2.0L 53 Nm (39 lb ft) plus 25 degrees
Flex plate 2.2L 53 Nm (39 lb ft) plus 25 degrees
