Impact Sensor




Component Connector End Views

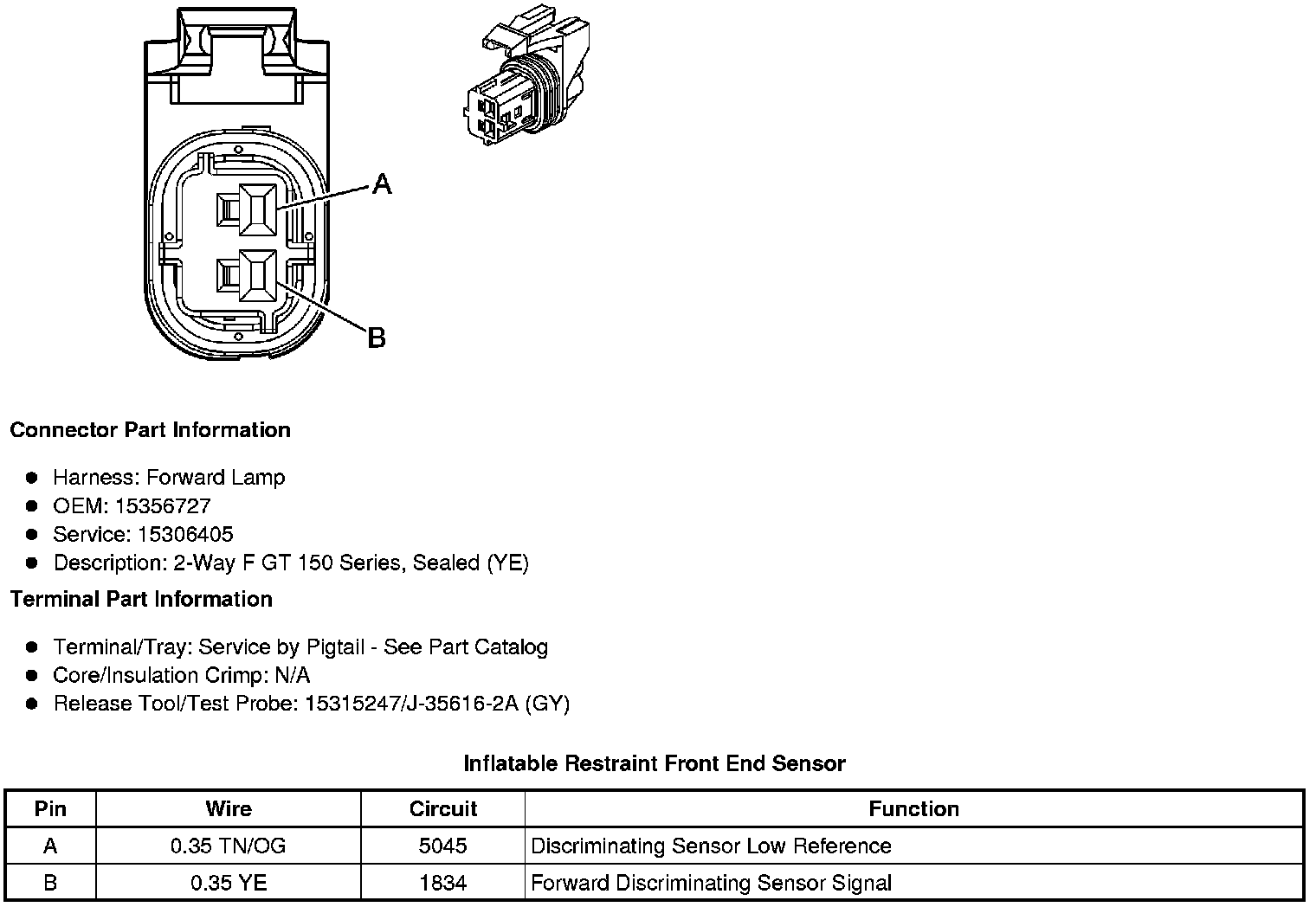

Inflatable Restraint Front End Sensor





Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

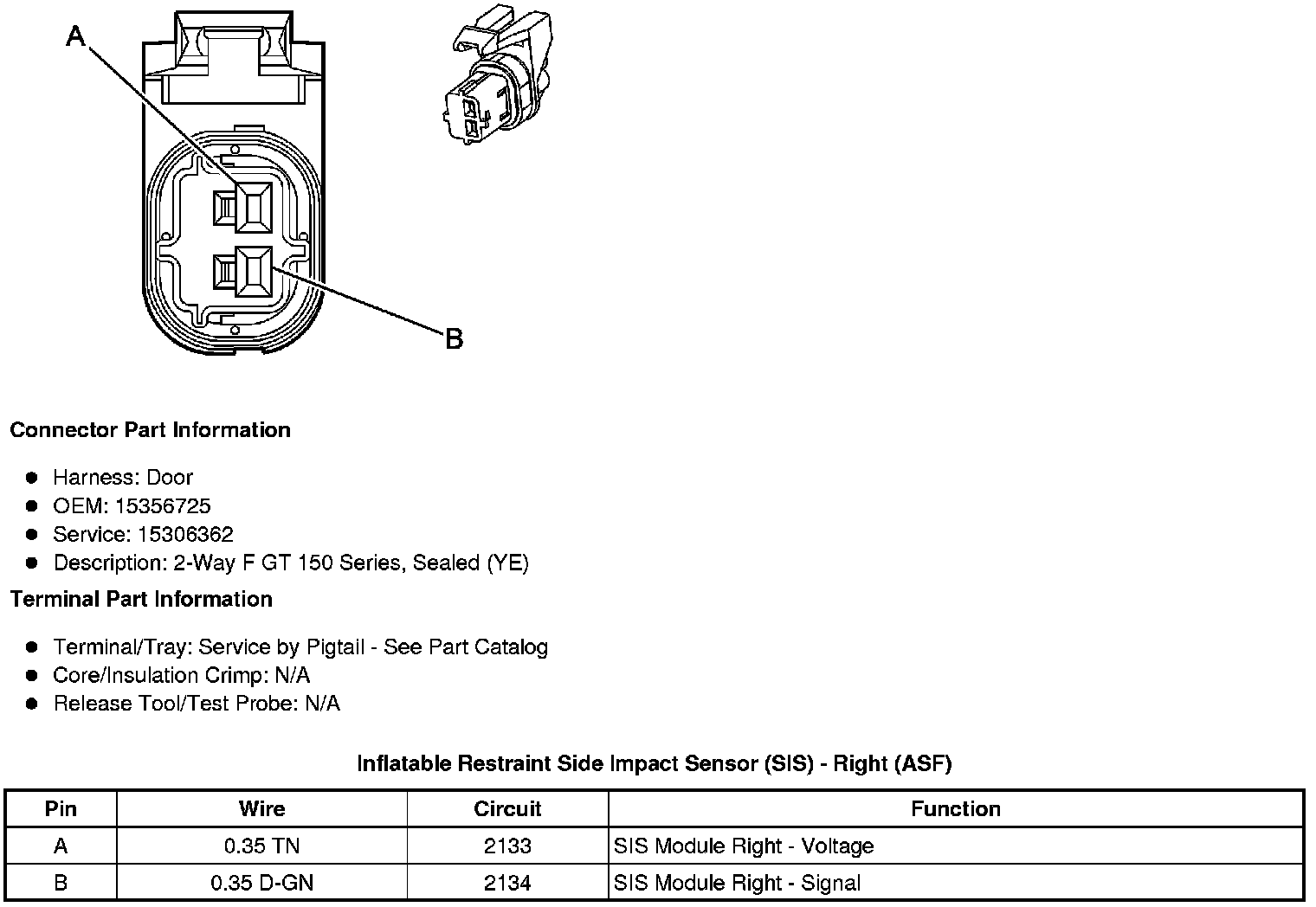

Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
