Alternator




Component Connector End Views

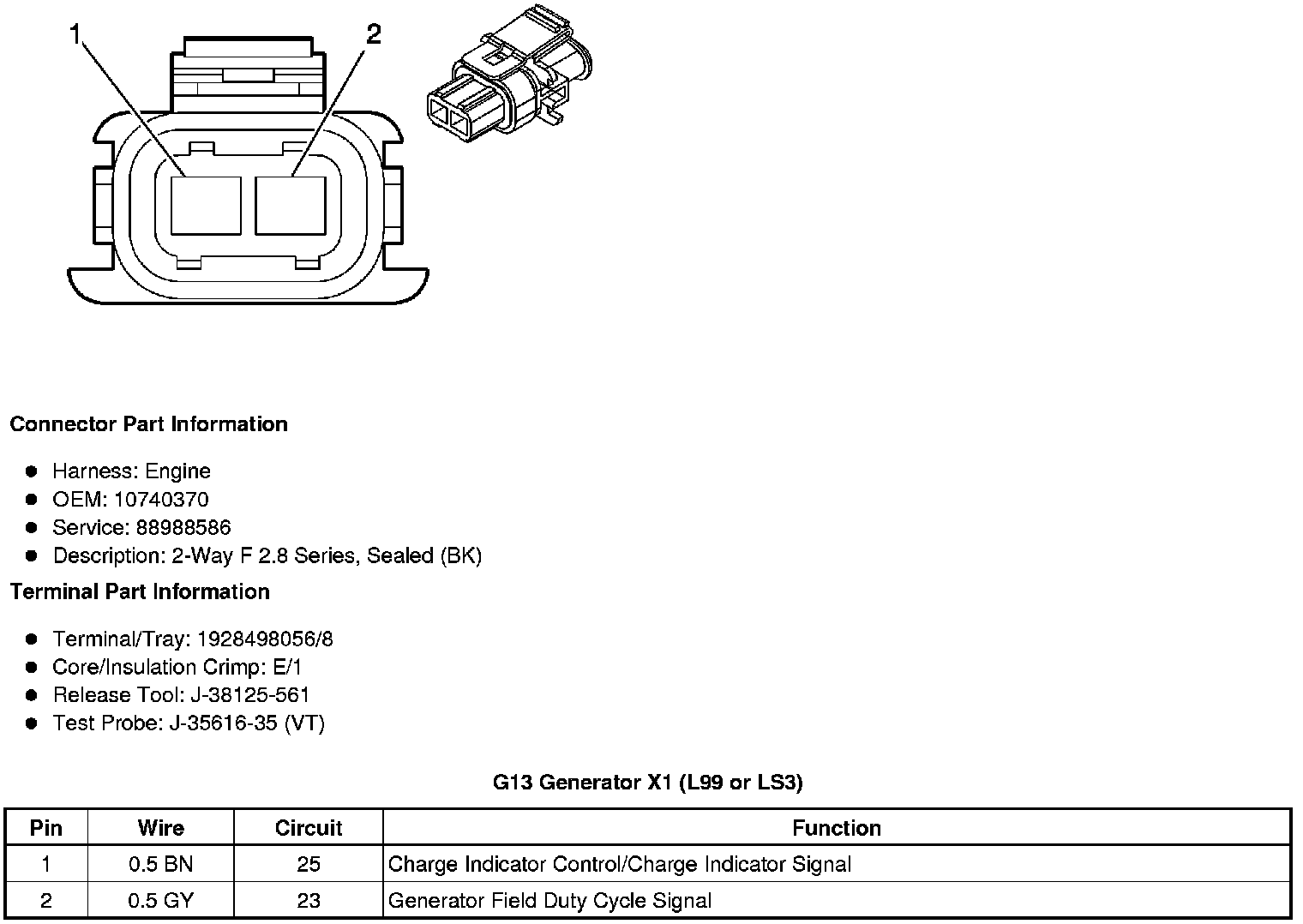

G13 Generator X1 (L99 or LS3)

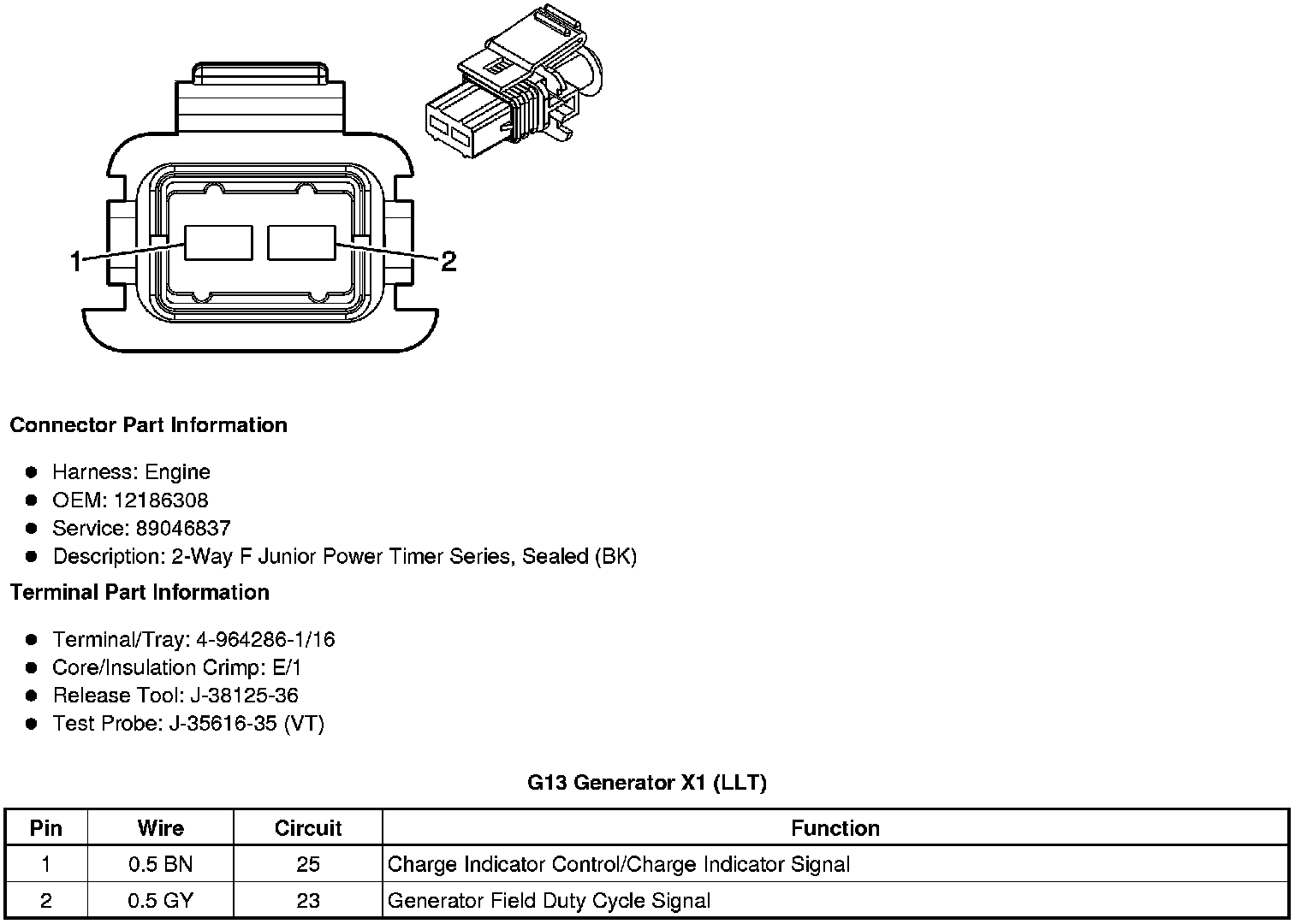

G13 Generator X1 (LLT)





G13 Generator X2
